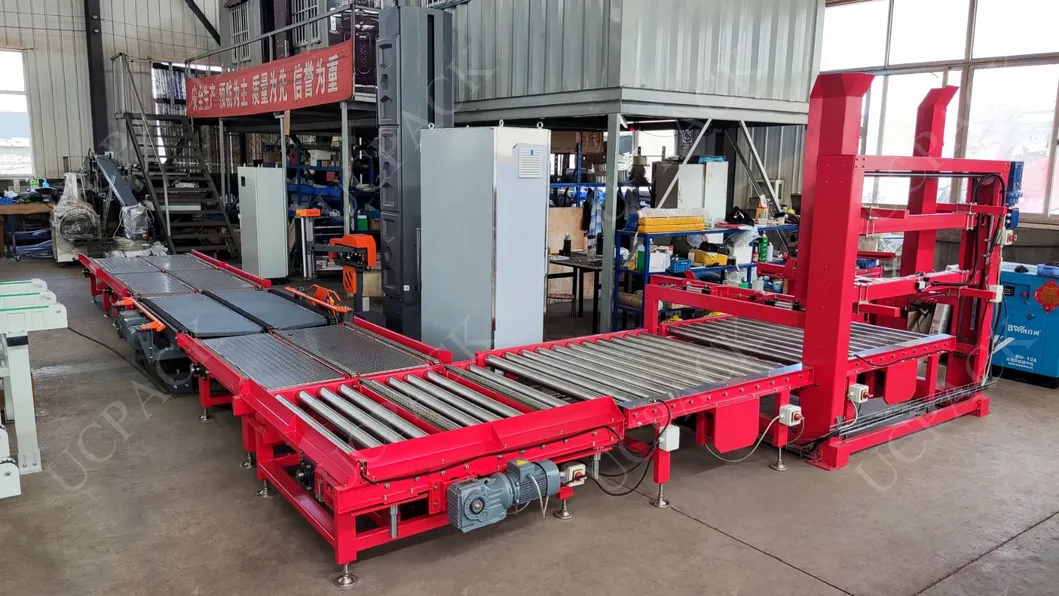

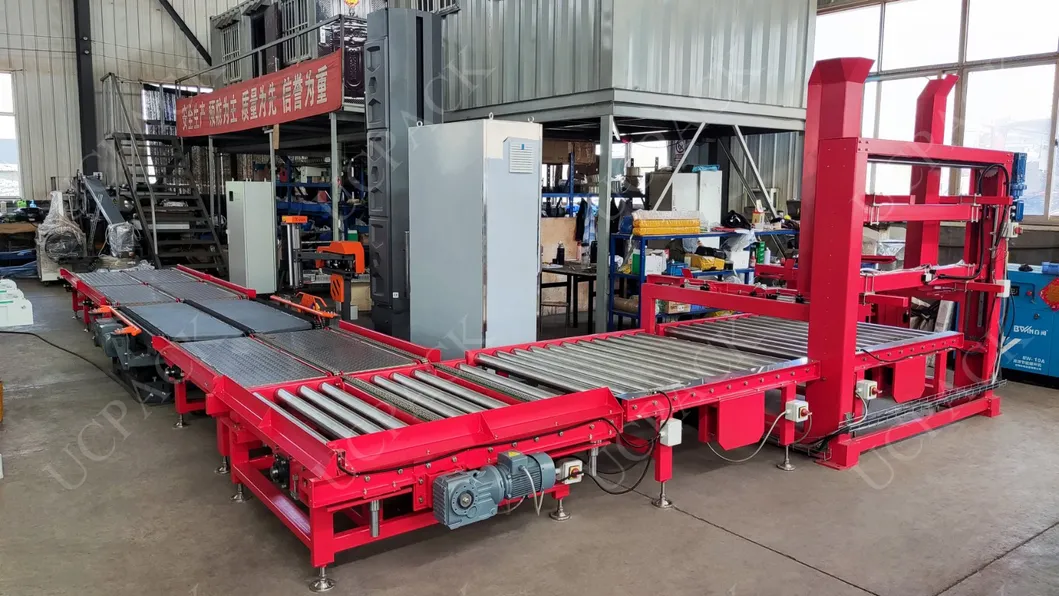

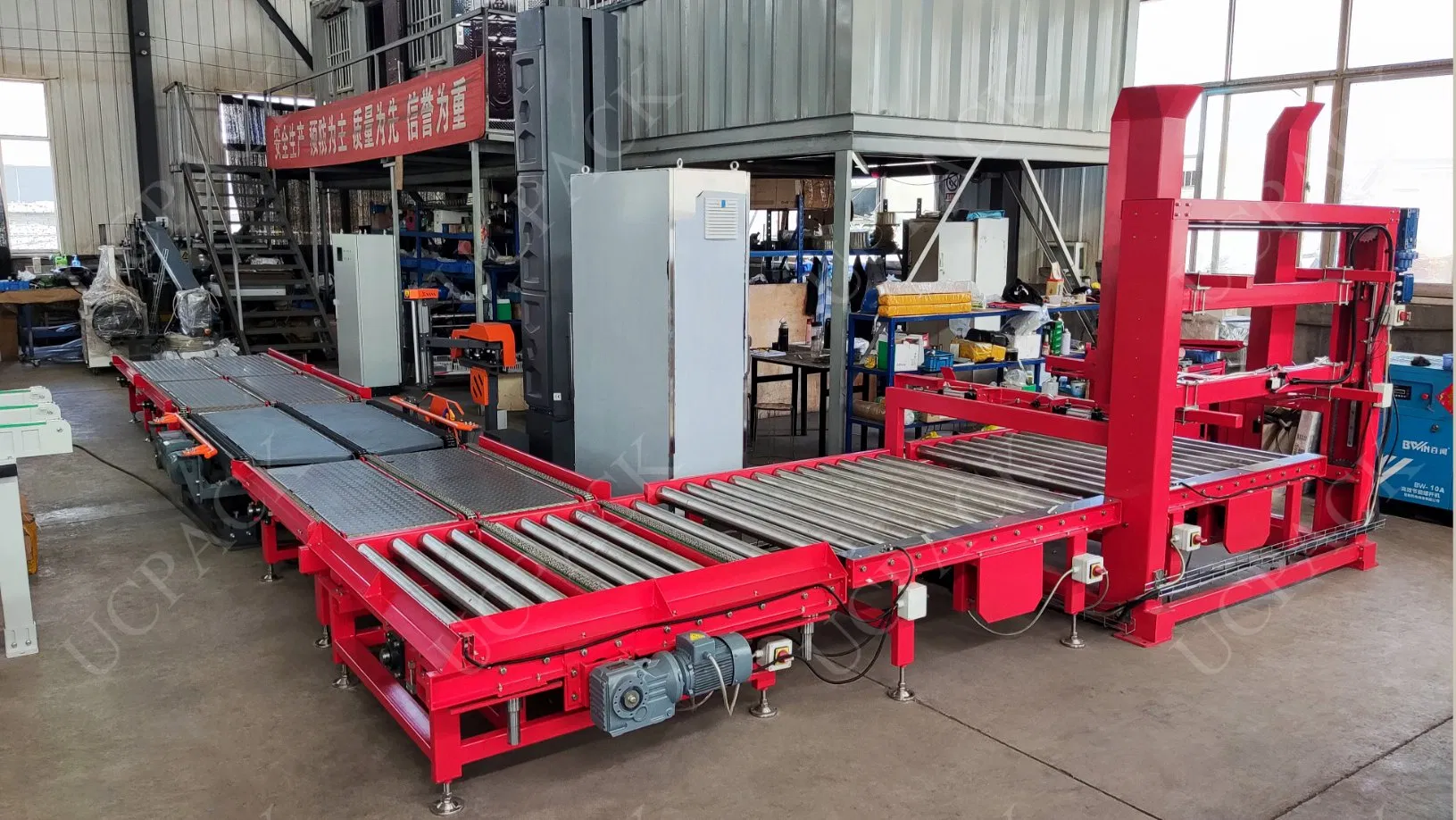

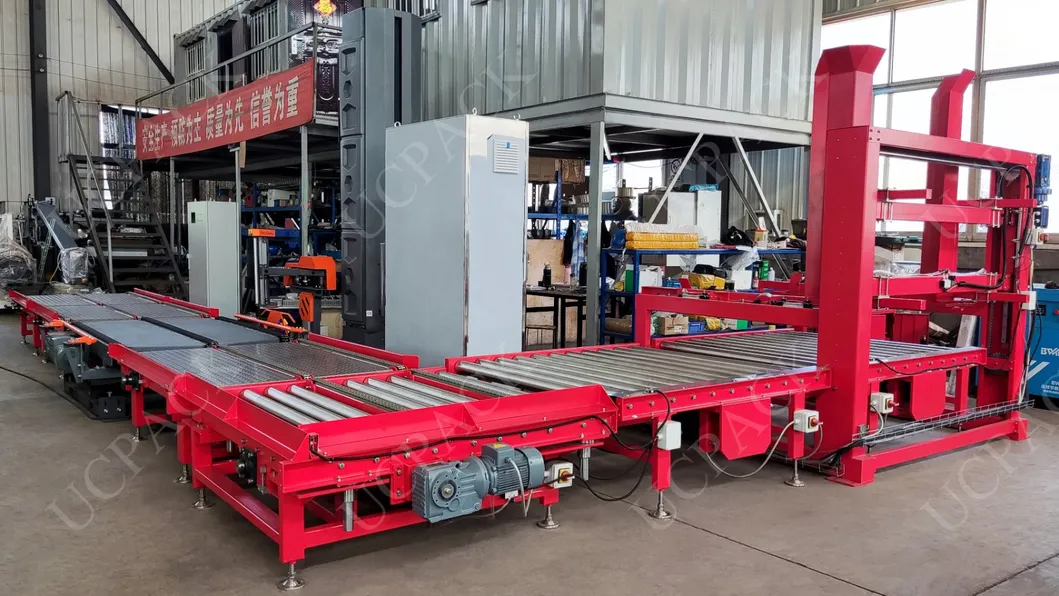

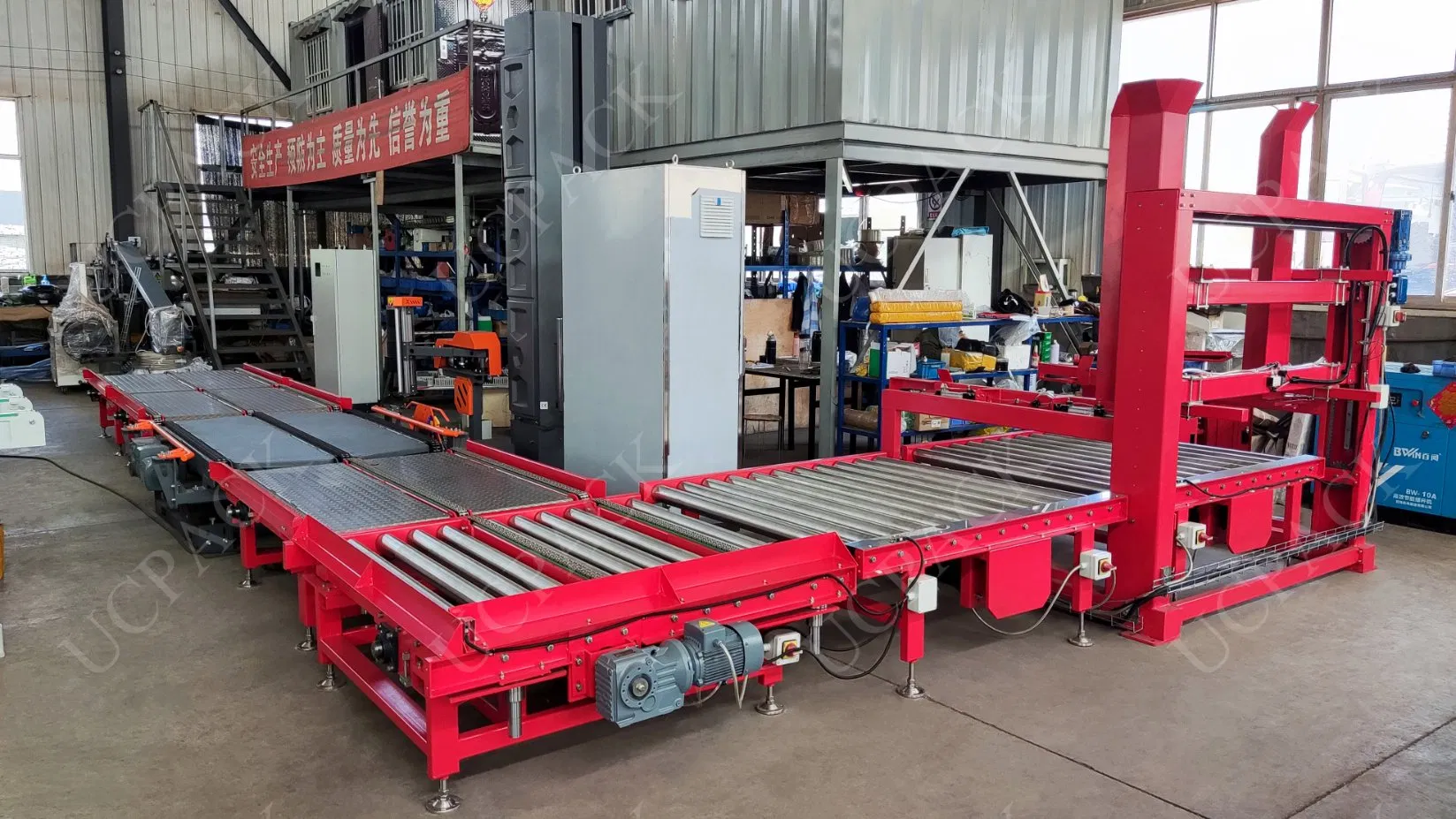

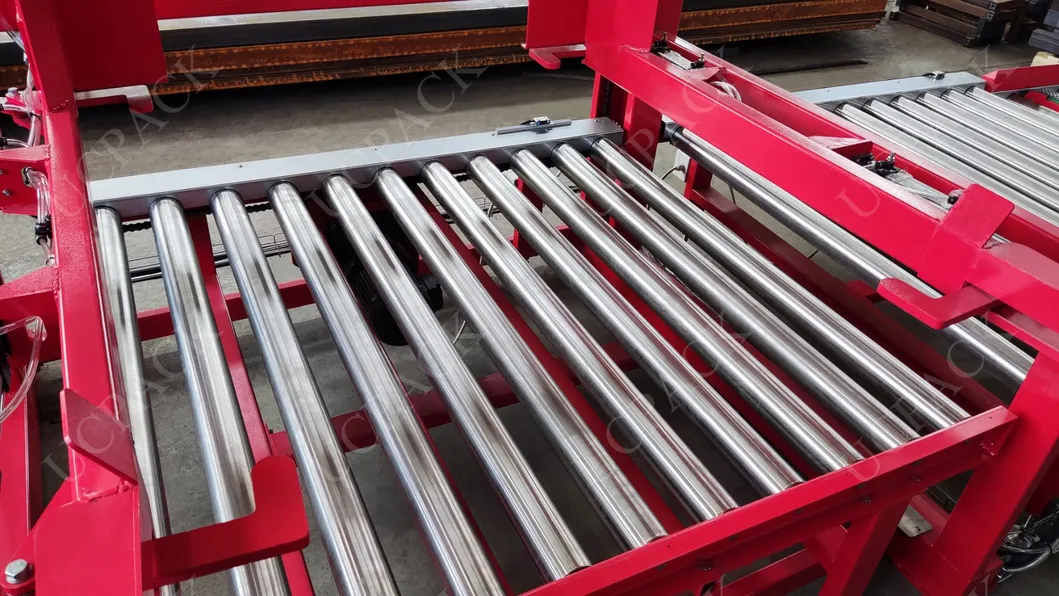

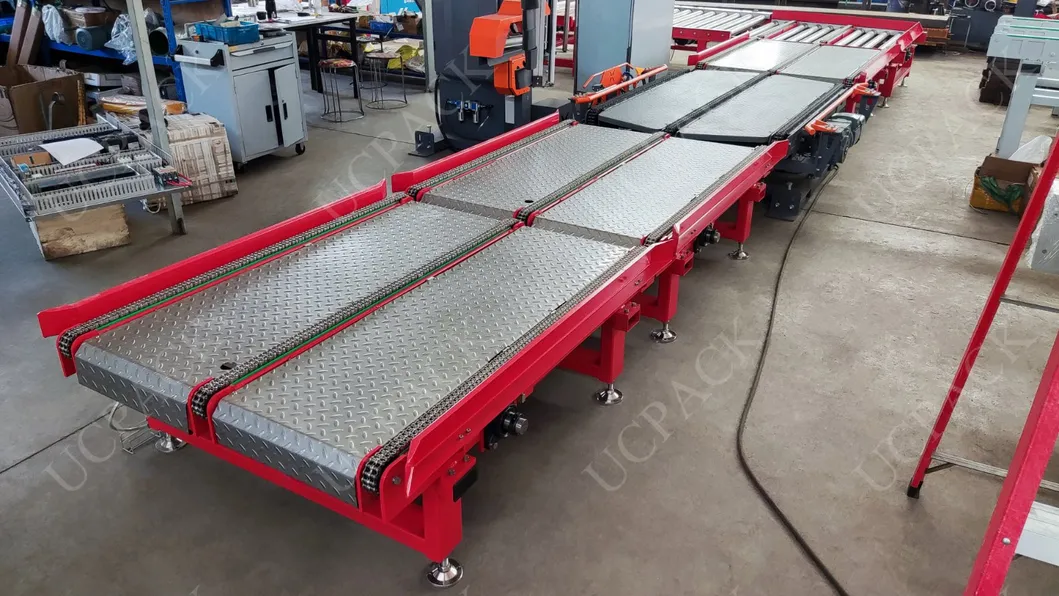

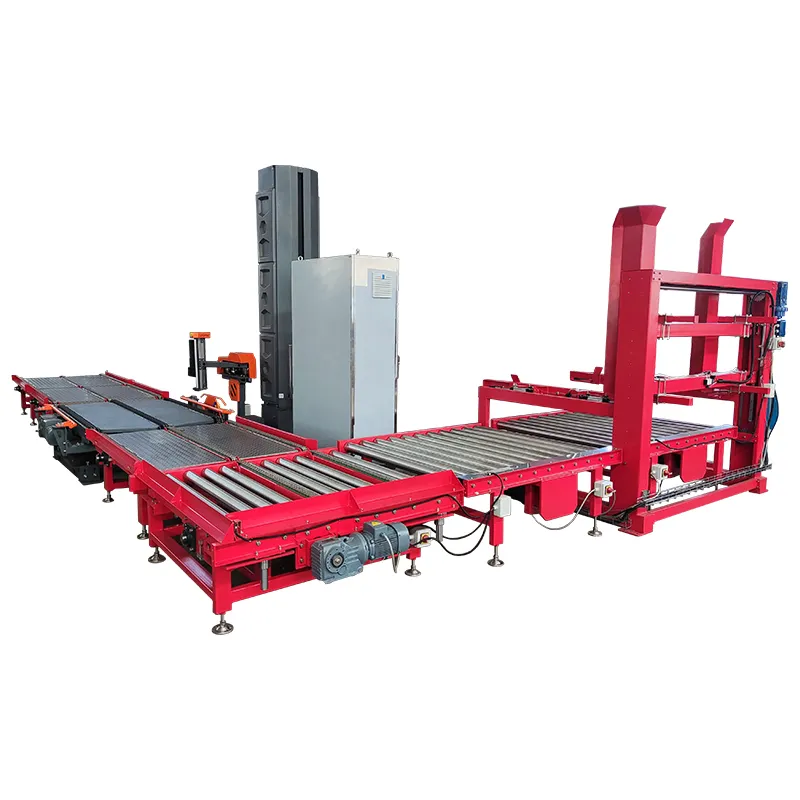

This System consists of a Pallet Dispenser which stores 10 Pcs Australian Standard 2-Way Wooden Pallets (L 1165 mm x W 1165 mm x H 145 mm) distributing one by one onto the bottom Chain Driven Live Roller Conveyor. It includes a Buffer Roller Conveyor, a Pop-up Roller Transfer Conveyor for positioning and right-angle output, an Inline Pallet Stretch Wrapper for automatic wrapping, and an Outfeed Chain Conveyor for forklift unloading.

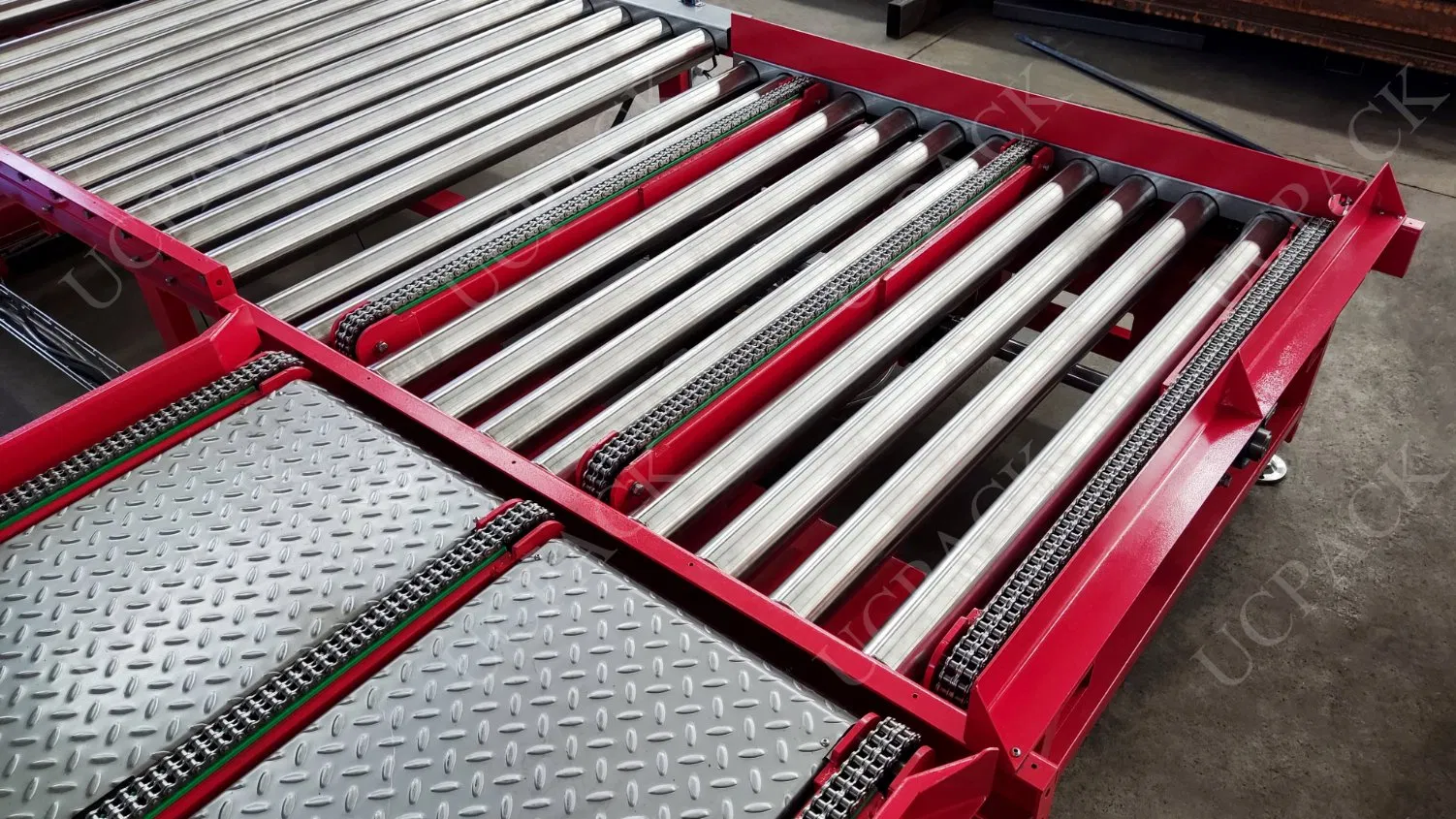

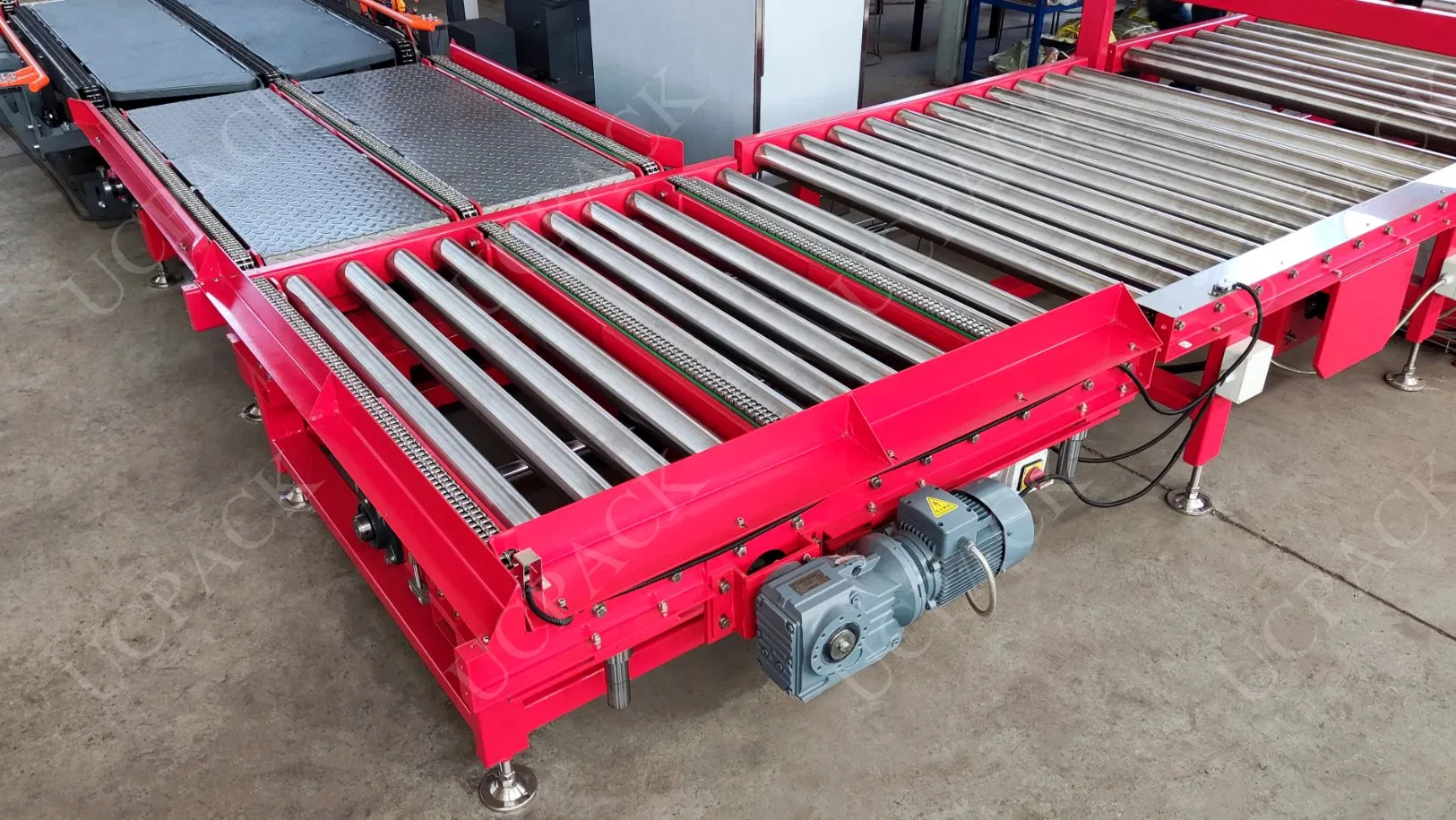

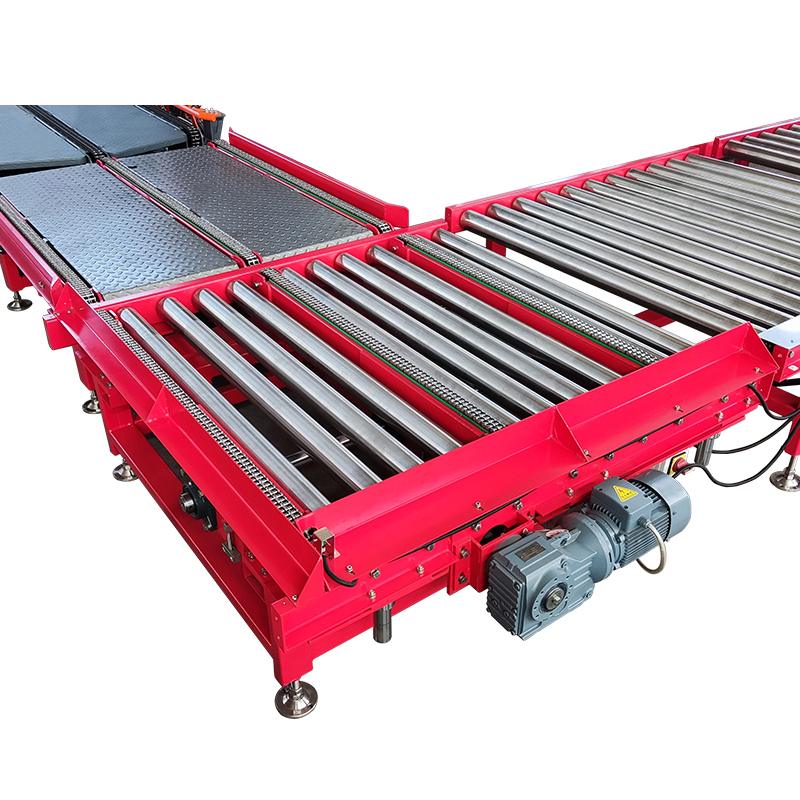

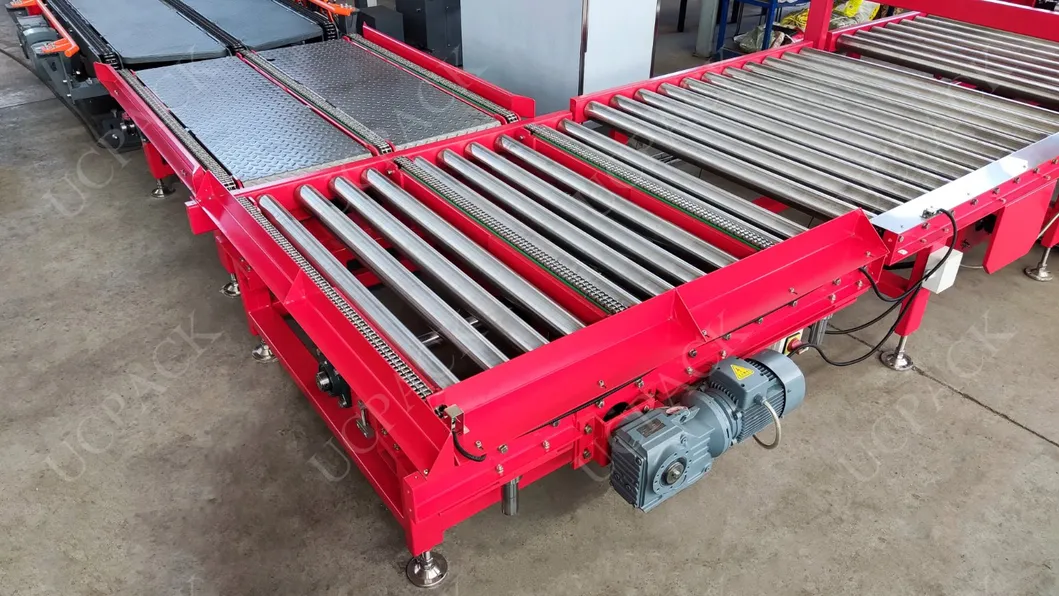

Operating Principle: The Pop-up Roller Transfer Conveyor is the solution for right-angle direction changes from a chain conveyor. A pneumatic/electric operated lifting device raises the roller table up through the gap between chain strands while these powered rollers transfer the load offline.
| Specification | Details |
|---|---|
| Model | URTS-1300 Pop-up Roller Transfer Conveyor |
| Length (L) | 1500 mm |
| Strands Number | 3 Strands |
| Effective Width (EW) | 1300 mm |
| Height (H) | 500 mm with 50 mm Heavy Duty Adjustable Feet |
| Chain Type | 10A (15.875 mm Pitch) Duplex Chain Guided by UHMWPE |
| Speed | 10 m/min, Constant |
| Rollers | Dia. 76 mm x 3 mm Tube Wall Thickness Galvanized Steel |
| Motor | 0.75 kw x 2 Pcs |
| Machine Size | L 1500 mm x W 1550 mm x H 500 mm |
| Machine Weight | 450 kg |
With expertise in design, development, and manufacturing, the system offers robust automation packaging solutions. Specialized in shrink wrapping, pallet handling, and timber handling, the equipment is engineered to meet various industrial needs.
