Maximum traction clamping window: 1000mm(W) × 300mm(H)
Traction force: 200-800kN
Pultrusion speed: 0.1~1.0m/min

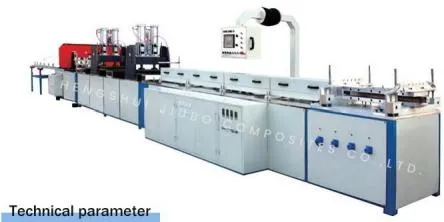

Lead Screw Type & Winding Production Lines
The FRP pultrusion winding production line represents a perfect integration of pultrusion and winding processes. It significantly enhances both longitudinal and transverse strength, allowing for continuous production and improved efficiency. The uniform winding of glass fiber and reinforcing materials ensures superior pressure resistance.
Carbon Fiber Cable Composite Core Equipment
Key Parameters:
Yarn frame: Steel structure with 120 spindles
Crawler tractor: 4 tons traction force, air pressure compression
Traction speed: 0.1~1m/min (adjustable)
Continuous take-up function with alarm and emergency stop
Specializing in the production of complete chemical equipment and fiberglass production lines. Holding certifications for ISO9001, ISO14001, and ISO45001.
EPC Chemical Equipment: Potassium sulfate and sodium sulfate production lines.
FRP Production Lines: Microcomputer controlled FRP pipe systems, tank winding lines, and grating production lines.

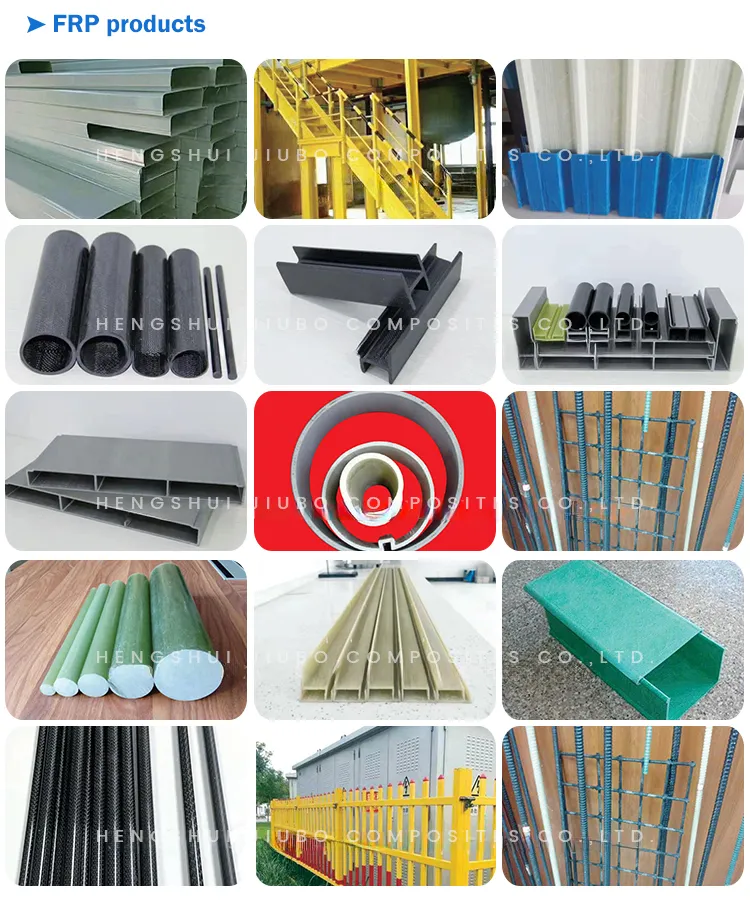

Fiberglass Products: High/medium/low pressure pipes, cooling towers, and pultrusion profiles.
Frequently Asked Questions
1. What is the typical production speed for the FRP pultrusion machine?
The standard pultrusion speed ranges from 0.1 to 1.0 meters per minute and is continuously adjustable to meet different production requirements.
2. How does the winding process improve the quality of FRP pipes?
By integrating the pultrusion process with circumferential winding, the machine significantly enhances both the longitudinal and transverse strength of the pipe, improving its overall pressure resistance.
3. What kind of traction force can the equipment handle?
Depending on the model, the traction force can range from 4 tons for specialized cable core equipment up to 800kN for heavy-duty reciprocating pultrusion systems.
4. Is the equipment suitable for different types of fibers?
Yes, our production lines are designed to handle glass fiber, carbon fiber, fiber felt, and various other reinforcing materials.
5. Does the machine include a curing system?
Yes, many models include a post-curing device with adjustable heating zones (minimum 2 meters) to ensure the composite materials are fully cured after molding.
6. What international quality standards does the equipment meet?
The production processes and management systems are certified under ISO9001, ISO14001, ISO45001, and have also received SGS certification.
