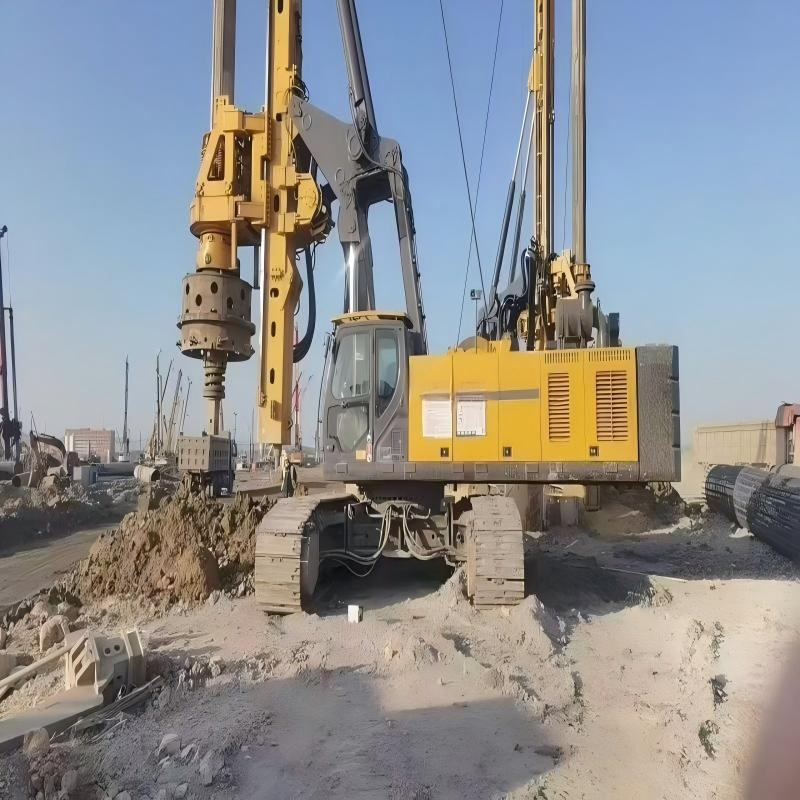

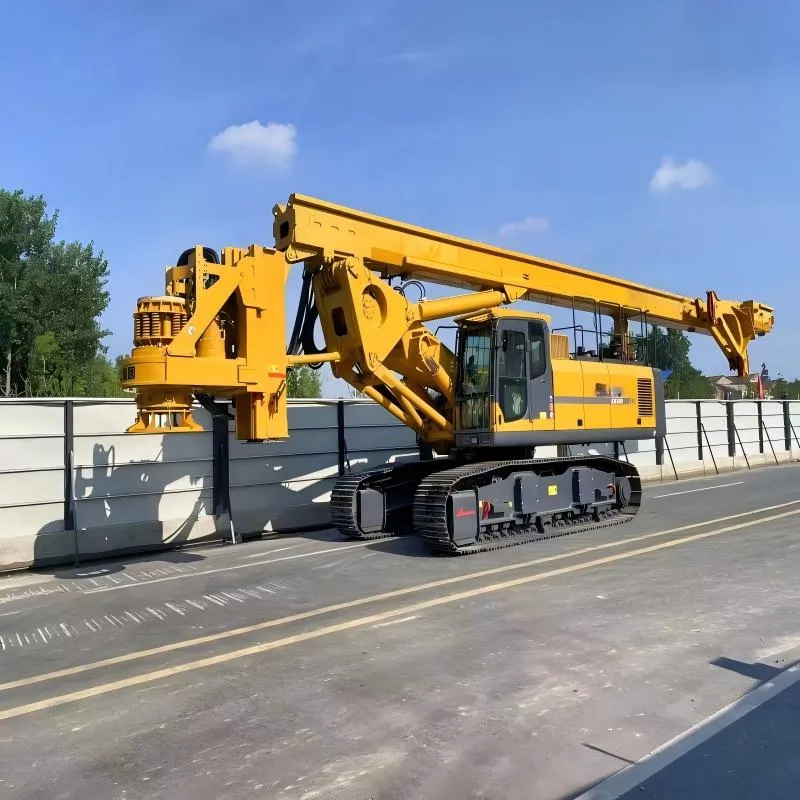

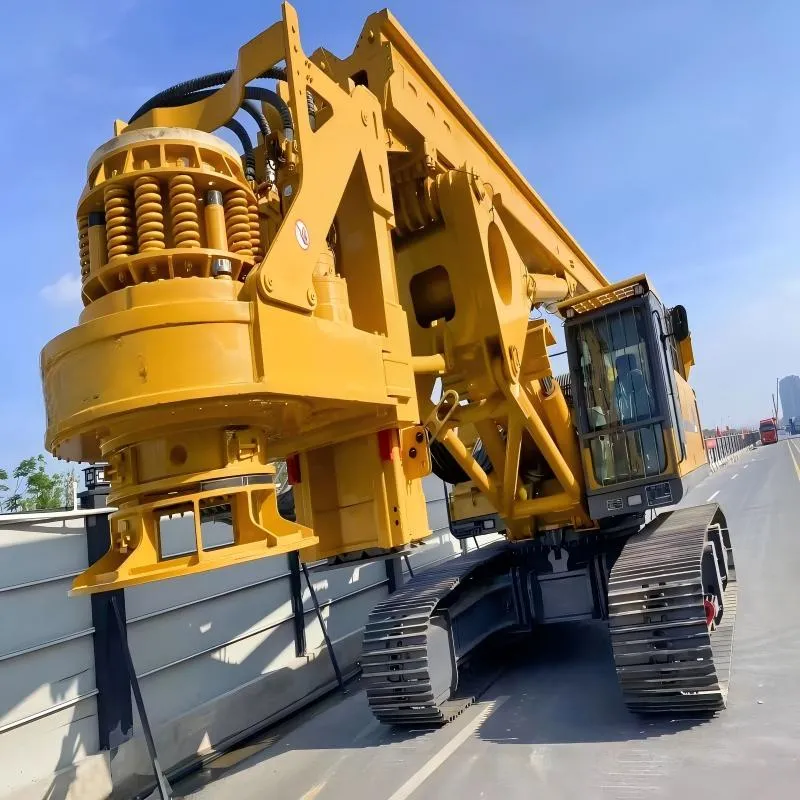

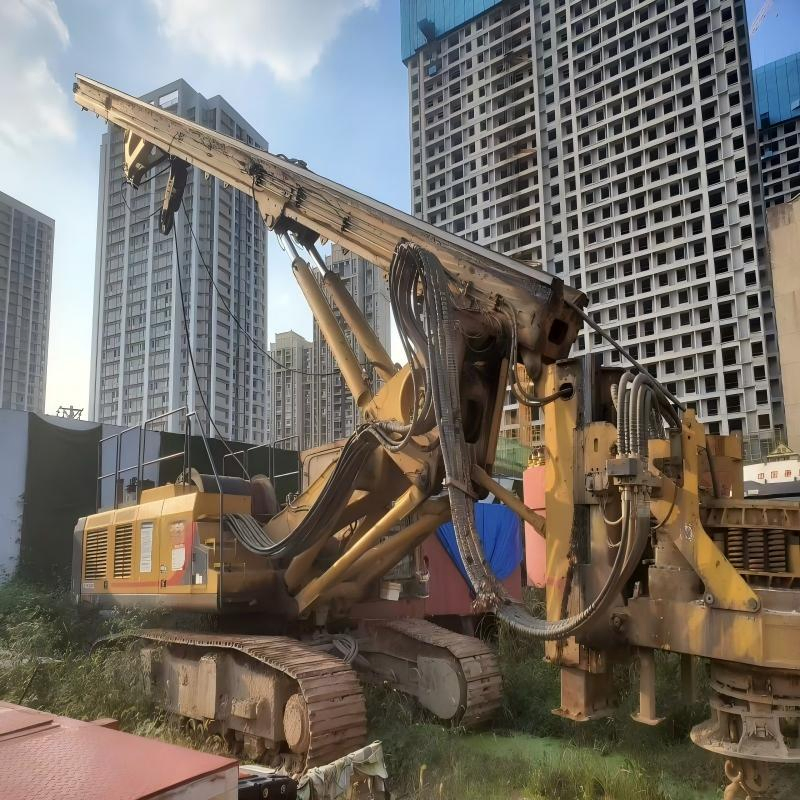

The XR360 is a high-power, high-stability rotary drilling rig engineered for large-scale foundation piling works—ideal for bridge construction, high-rise buildings, port terminals, and road/railway infrastructure projects that demand deep drilling, hard formation penetration, and precise hole-forming.

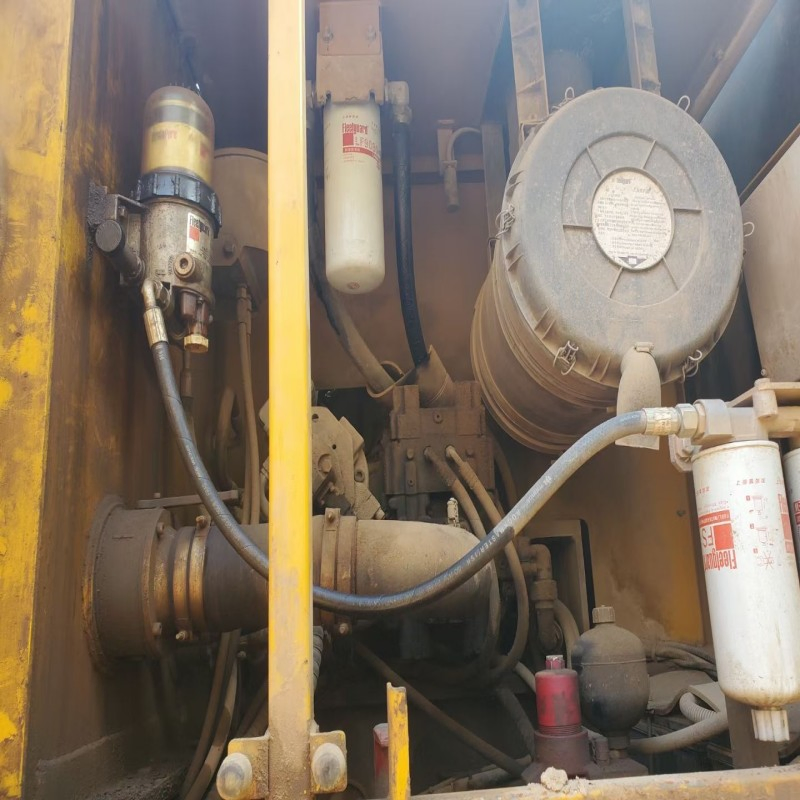

Equipped with a turbocharged engine (Euro Ⅲ emission standard) delivering 298kW (400HP) rated power and 360kN·m maximum drilling torque, it excels in complex strata including sandy gravel, backfill soil, silty clay, weathered layers, and water-rich formations.

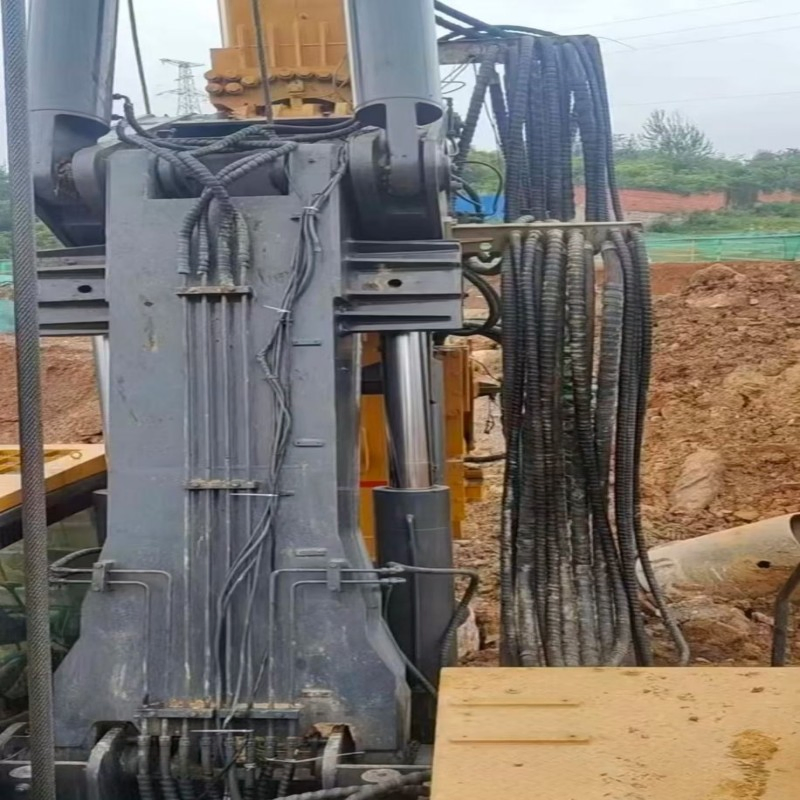

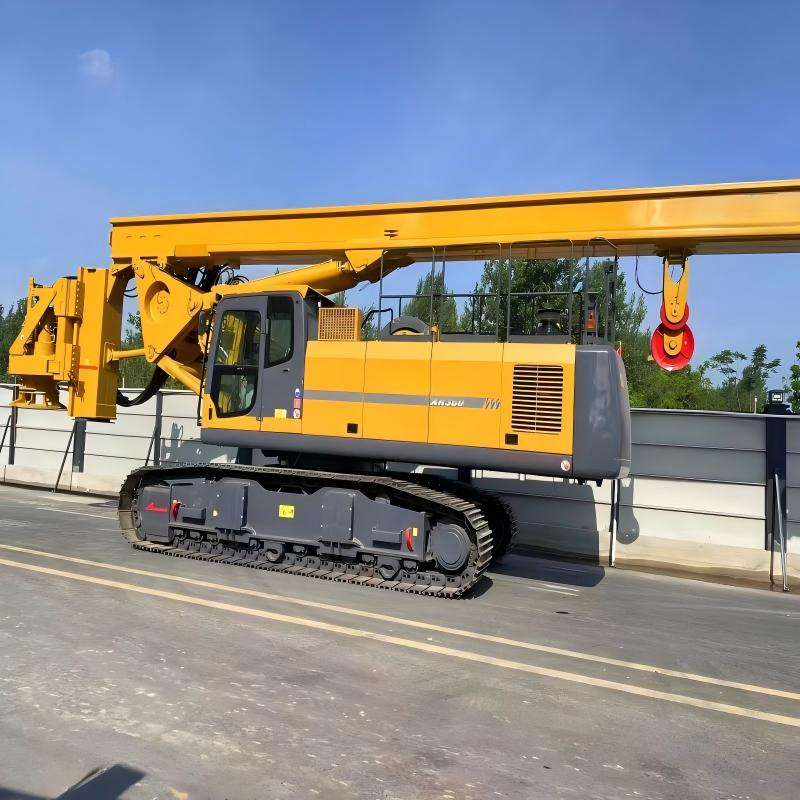

Adopting a dedicated hydraulic retractable crawler chassis and heavy-duty components, it boasts exceptional overall stability. The patented parallelogram articulated mechanism and box-type drill mast made of high-strength steel enhance rigidity and torsion resistance.
With a maximum drilling depth of 96-102m and 2500mm maximum drilling diameter, it meets the requirements of large-scale foundation projects. Load-sensing technology achieves higher efficiency and energy saving.
| Item | Unit | Parameter Value |
|---|---|---|
| Max Drilling Diameter | mm | 2800 |
| Max Drilling Depth | m | 100 |
| Engine Model | - | QSM11-C425 |
| Rated Power | kW/rpm | 320 / 2100 |
| Max Output Torque | kN·m | 360 |
| Rotary Speed | r/min | 5 - 20 |
| Max Thrust Force | kN | 270 |
| Max Pull-Up Force | kN | 300 |
| Main Winch Max Pull | kN | 320 |
| Total Machine Weight | t | 105 |
| Hydraulic System Pressure | MPa | 35 |
We are a professional enterprise dedicated to the full industrial chain services of construction machinery, focusing on the sales of new and used machinery, as well as the renovation, remanufacturing, and sales of complete machines and spare parts. Strategically located in the "Capital of Construction Machinery," we enjoy unparalleled industrial advantages including a mature R&D, production, and parts supply ecosystem.
In the field of remanufacturing, our technical team carries out in-depth detection and renovation of equipment, restoring performance to levels close to new machines. We strictly adhere to the use of original spare parts, ensuring reliability and durability while promoting the recycling and reuse of resources.
