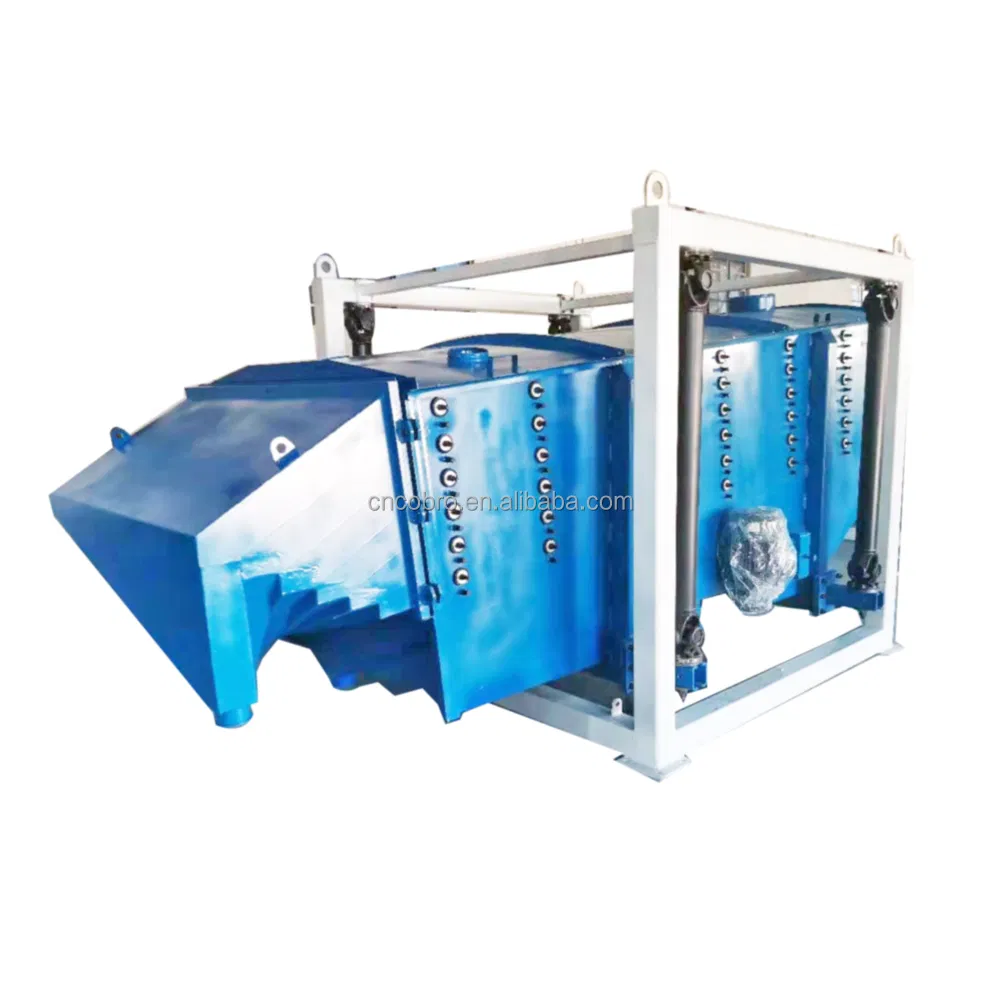

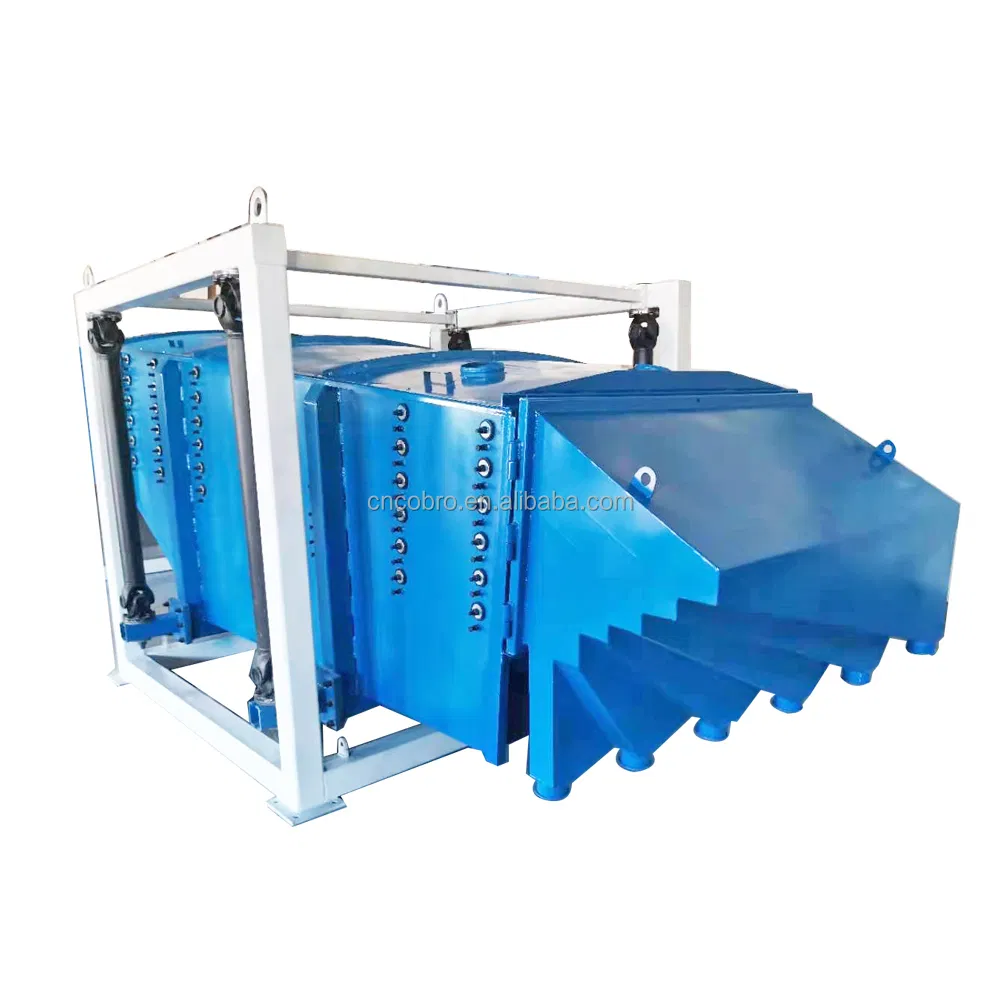

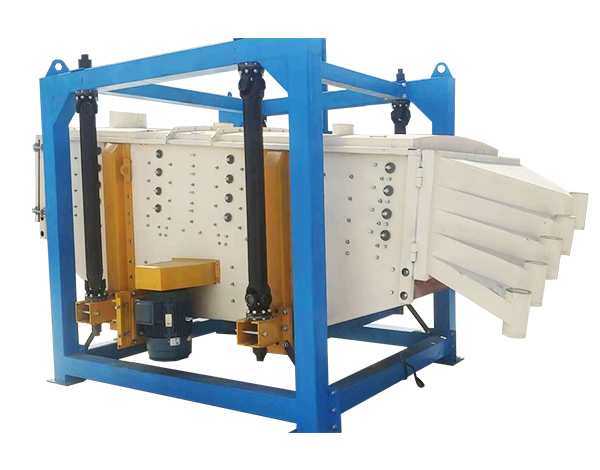

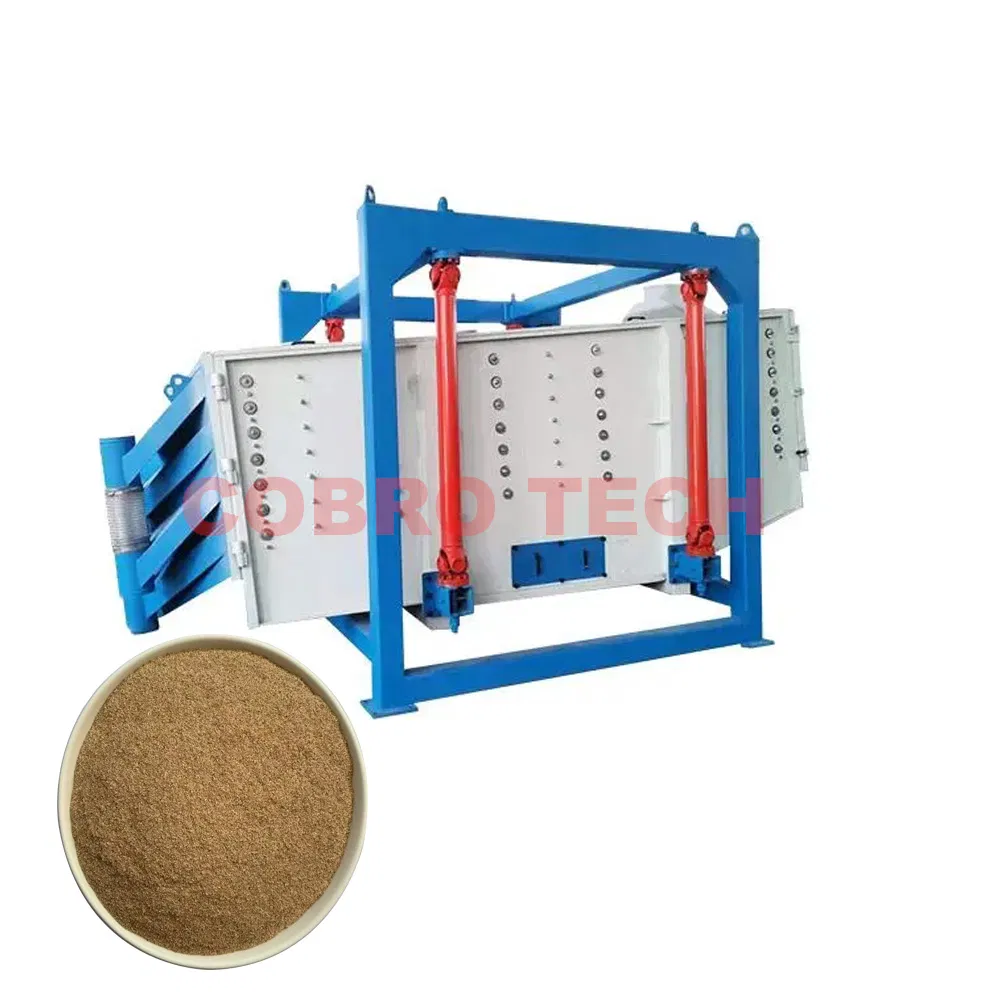

Calcite sieve shaker vibrating tumbler screen machine minerals separators

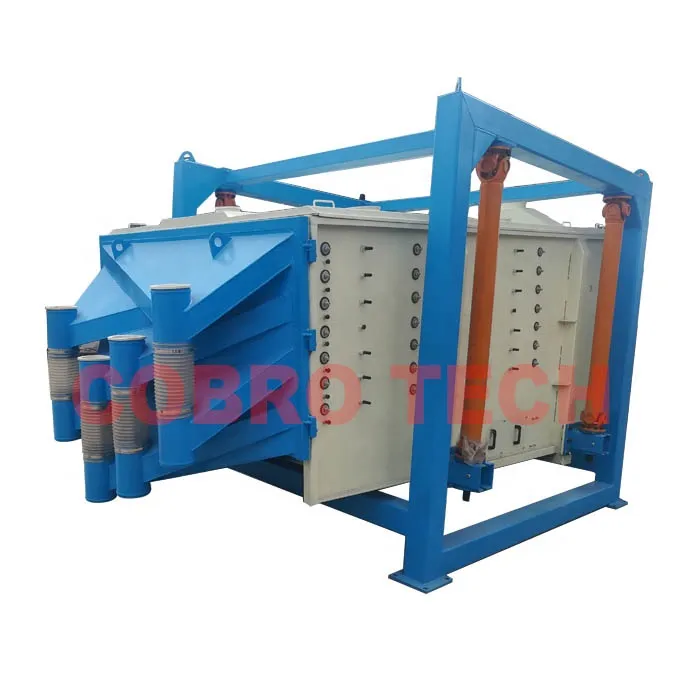

The square mineral separator, also known as a reciprocating screen, utilizes a unique motion trail for efficient separation. The vibratory force is an inertial force generated by a driving device winding along a dead axle. The essence of this swinging screen is the reciprocating inertial force formed by the rotation of an eccentric wheel. With a screen surface inclined between 0-5 degrees, the box undertakes a reciprocating movement, driving the material to jump directionally. Particles smaller than the aperture fall to the lower layer, while larger materials are discharged via the coarse outlet.
| Model | Effective Screening Area (m2) | Power (kw) | Screening Angle (°) | Layer Number | Rotation Frequency (r/min) | Box Travel (mm) | Dimensions (mm) |
|---|---|---|---|---|---|---|---|
| FYBS1030-4D | 3.6 | 3 | 5~8 | 1~5 | 180~260 | 25~60 | 3842×1700×1917 |
| FYBS1236-4D | 4.32 | 4 | 5~8 | 1~5 | 180~260 | 25~60 | 4442×1900×1917 |
| FYBS1536-4D | 5.4 | 5.5 | 5~8 | 1~5 | 180~260 | 25~60 | 4442×2200×1917 |
| FYBS1836-4D | 6.48 | 7.5 | 5~8 | 1~5 | 180~260 | 25~60 | 4442×2500×1917 |
| FYBS2036-4D | 7.2 | 7.5 | 5~8 | 1~5 | 180~260 | 25~60 | 4442×2700×1917 |
