Product Description

Basic Specifications

Model NO. RGV

Transport Package Well-Packed

Origin China

Product Description

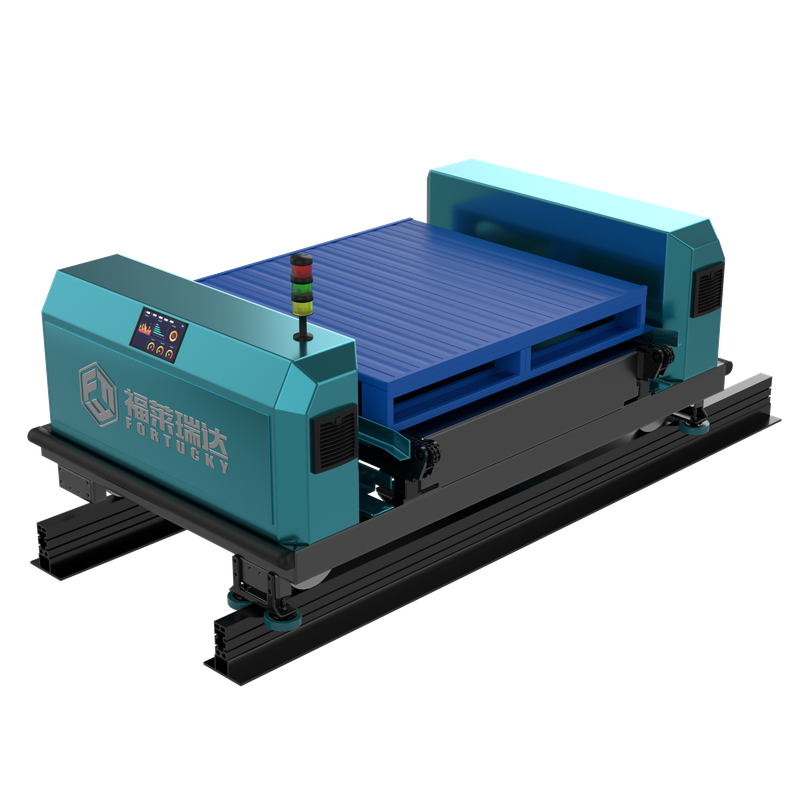

Introducing the Go Straight RGV, an ingenious innovation also referred to as the Duplex Shuttle Car. This cutting-edge dual-track vehicle is engineered to glide effortlessly along a straight-line path, ensuring flawless transportation of goods from one point to another with unmatched precision and efficiency. Its sleek, compact design coupled with a minimal footprint and rapid transport capability makes this RGV a standout choice for those seeking state-of-the-art warehousing solutions.

✓

Features & Advantages

Stable Performance Dominantly constructed from high-grade aluminum alloy tracks, the RGV delivers a whisper-quiet performance, providing smooth and dependable operations.

Boosted Efficiency Our advanced command control strategy is designed to optimize system performance significantly, enhancing warehouse operational efficiency and workflow.

Impressive Speed Striking reduction in acceleration and deceleration times enables precise positioning and rapid material handling, staying ahead of industry standards.

Thoughtful Design Compact and smartly structured design boasts easy installation and low-maintenance requirements, ensuring it integrates effortlessly into any environment.

Safety First Armed with strategically placed safety gratings on both sides, the equipment puts safety at the forefront, guaranteeing a secure working atmosphere.

⚙

Technical Parameters

Technical Parameters	Unit	Typical Range/Value
Rated load	kg	3000
Driving speed	m/min	≤200
Driving acceleration	m/s²	2
Positioning accuracy	mm	±3
GPS	-	Laser/barcode positioning
Control method	-	PLC control
Drive method	-	Motor driven
Operation method	-	Manual/Single-machine/Online
Communication method	-	Wireless Ethernet
Power supply	-	Slide line
Track	-	Dedicated dual-track, straight operation

回

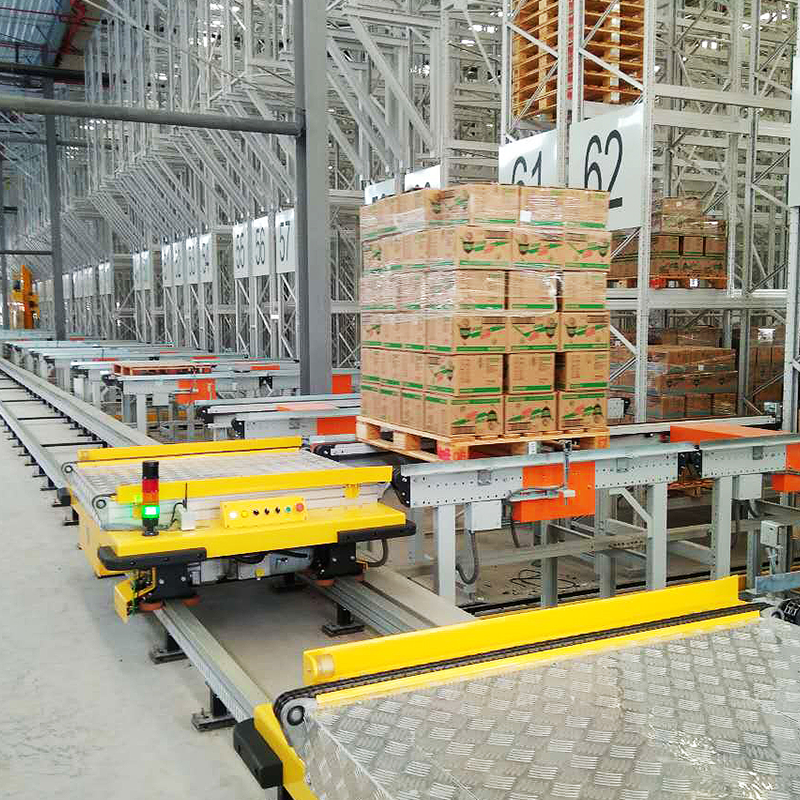

Visual Display

Frequently Asked Questions

What is the primary function of the Go Straight RGV?

The Rail Guided Vehicle (RGV) is designed for high-speed, straight-line transport of materials between specific points in a warehouse, providing a highly efficient alternative to traditional conveyor systems.

How does the system ensure precise positioning of goods?

The system utilizes advanced PLC control combined with laser or barcode positioning technologies to achieve a high positioning accuracy of ±3mm.

What is the maximum load capacity and speed?

The RGV is capable of handling a rated load of up to 3000kg and can reach driving speeds of up to 200 meters per minute.

What makes this RGV quieter than other handling equipment?

The use of high-grade aluminum alloy tracks and optimized motor drive systems significantly reduces noise levels, ensuring a whisper-quiet operational environment.

Is the system safe for operators working nearby?

Yes, safety is a priority. The vehicle is equipped with safety gratings on both sides to detect obstacles and prevent potential safety incidents.

What are the power supply and communication methods?

The equipment uses a slide line for continuous power supply and communicates via Wireless Ethernet for seamless integration with warehouse management systems.
