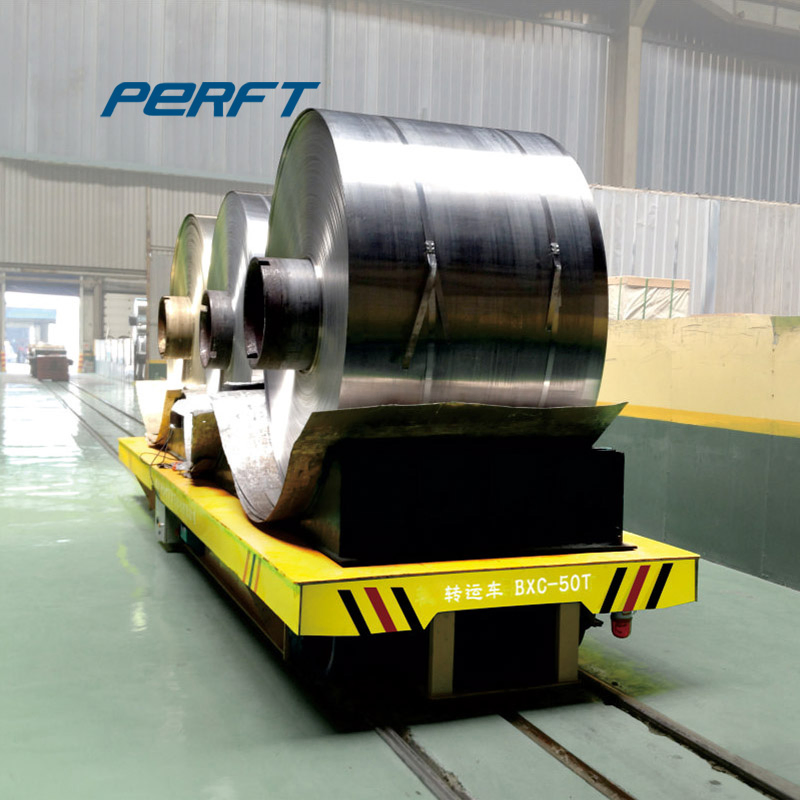

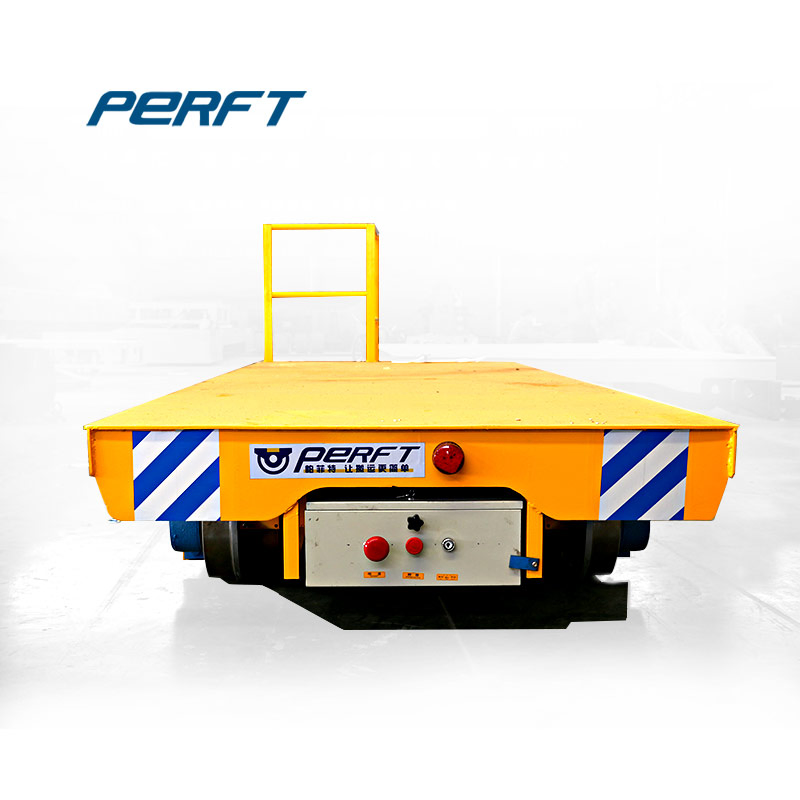

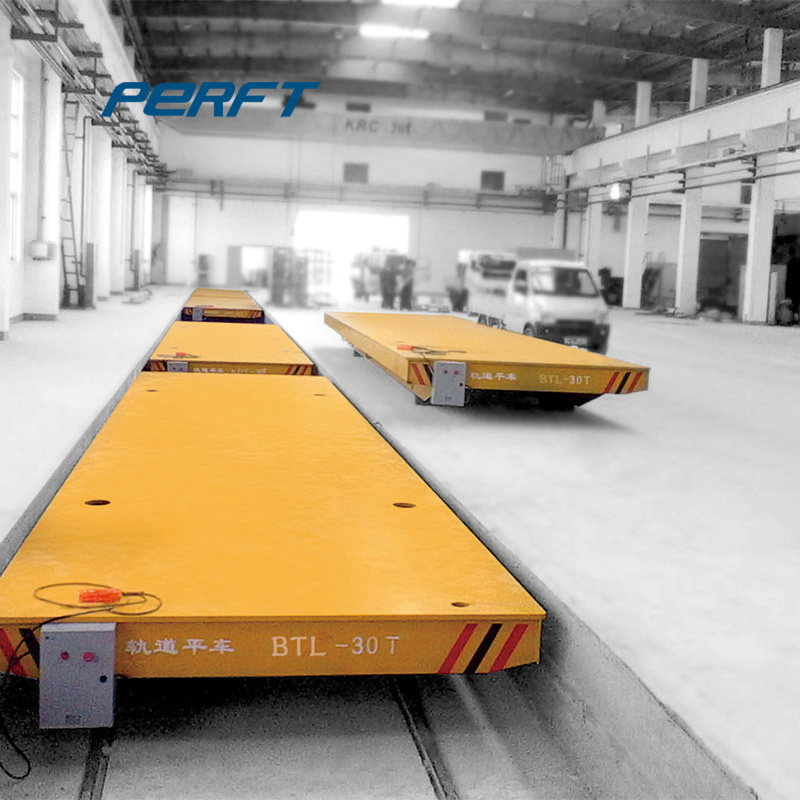

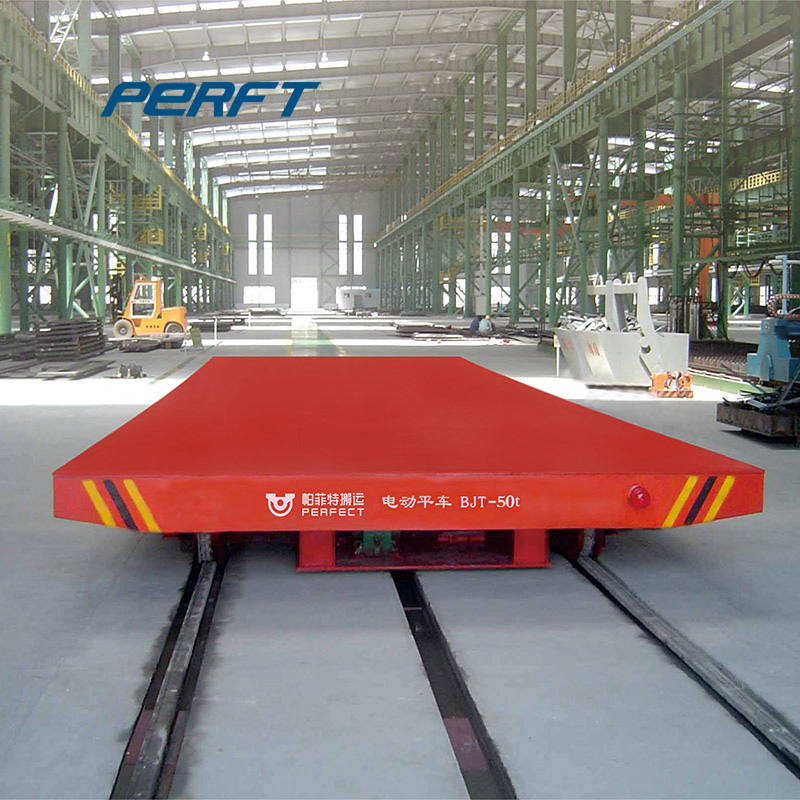

Production Line Using Rail Handing Trolley Material Transfer Equipment

1 / 5

Production Line Using Rail Handing Trolley Material Transfer Equipment

Customization:	Available
Color:	Yellow
Product Name:	Material Transfer Equipment

Send Inquiry

Product Description

Basic Specifications

Model

BTL

Power Mode

Trailing Cable

Running Speed

0-20m/Min

Load Capacity

1-300 Ton

Control Mode

Pendant/Remote Controller

Material

Q235B

HS Code

84289090

Capacity

50 Sets/Month

Product Description

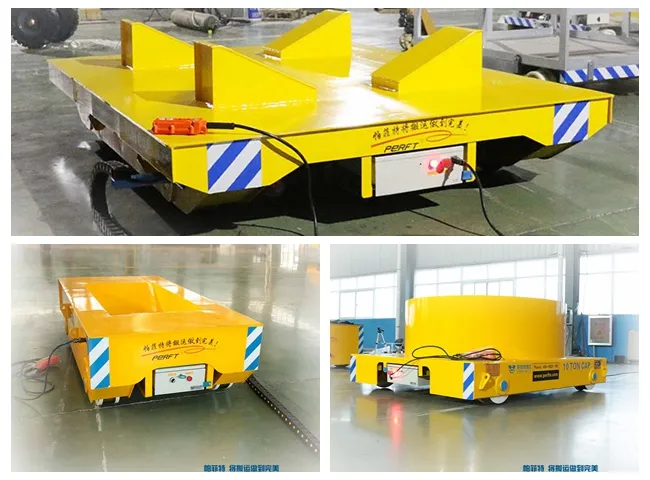

Production Line Using Rail Handing Trolley Material Transfer Equipment

Our line of Material Transfer Equipment is designed to accommodate the needs of a wide range of industries such as steel, aluminum, automotive, stamping, heavy manufacturing and several others. These units are designed to operate on floor mounted rails and are used to transport heavy materials across crane bays or in areas not serviced by an overhead crane.

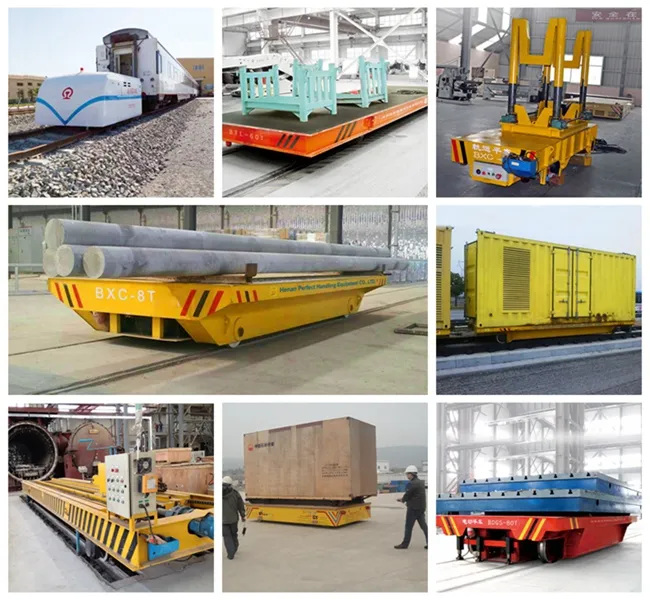

Application Areas

The trailing cable powered Heavy Duty Material Transfer Equipment is mainly applied in:

Assembly line (ring/loop)

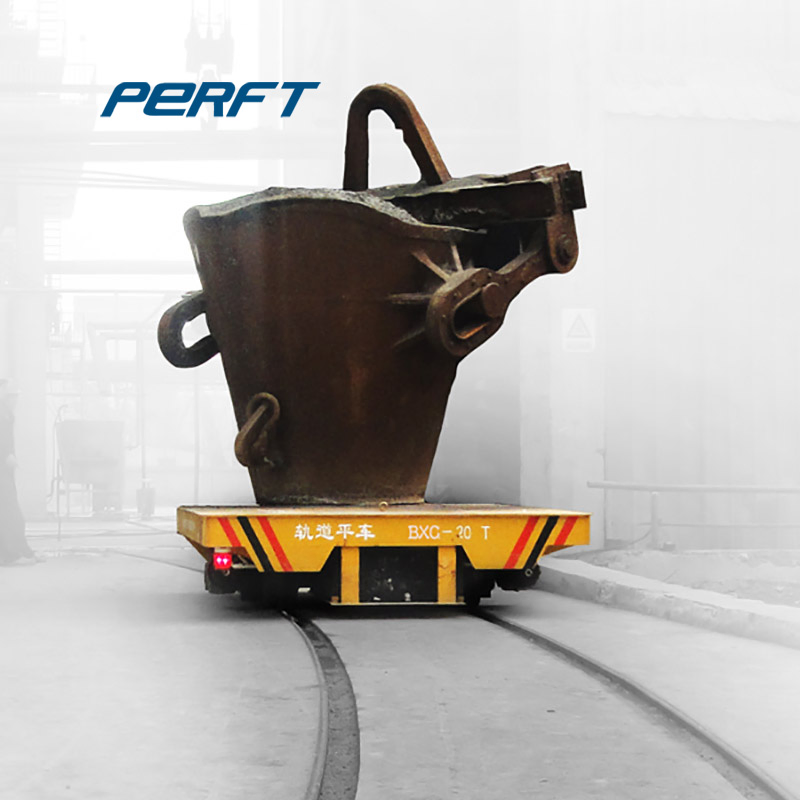

Metallurgy industry (steel ladle)
Warehouse & Port transport
Shipbuilding & Maintenance
Steel factory (billet, coil, pipe)
Construction (bridge, concrete)
Petroleum & Energy
Railway & Chemical industry

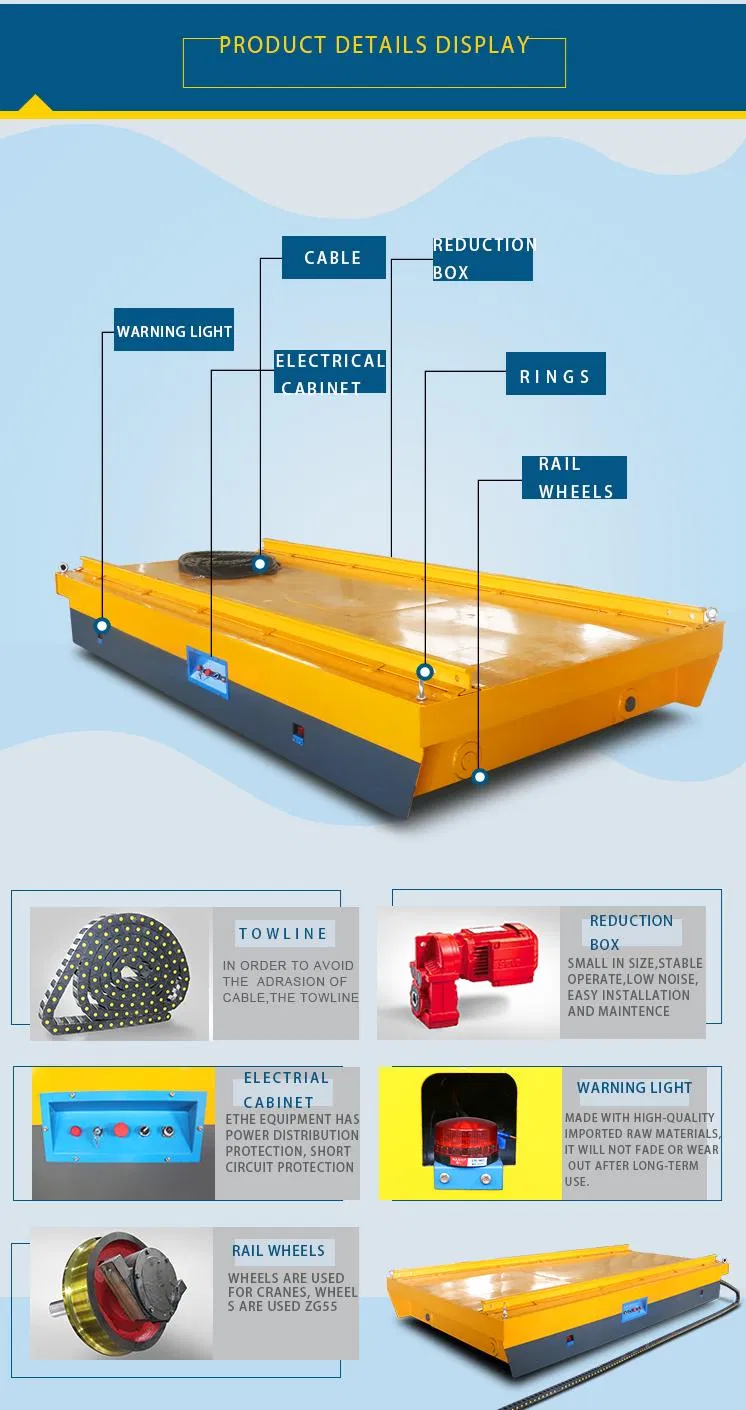

Working Principle

This Heavy Duty Material Transfer Equipment is powered by dragging cable. The power source (380-690v alternating) is leaded into the electrical control cabinet by cable, which controls the motor to make the cart start, stop, move forward, and move backward. Hydraulic lifting systems can be mounted to meet lifting demands. Suitable for running distances less than 20m with high frequency use.

Product Parameters

Model	BTL-2t	BTL-20t	BTL-50t	BTL-100t	BTL-150t
Rated Load (t)	2	20	50	100	150
Length (mm)	2000	4000	5500	6500	10000
Width (mm)	1500	2200	2500	2800	3000
Height (mm)	450	550	650	850	1200
Wheel Base (mm)	1200	2800	4200	4900	7000
Wheel Qty	4	4	4	4	8
Motor Power (kw)	0.8	2.5	5.5	11	15
Rail Model	P15	P24	P43	QU100	QU100

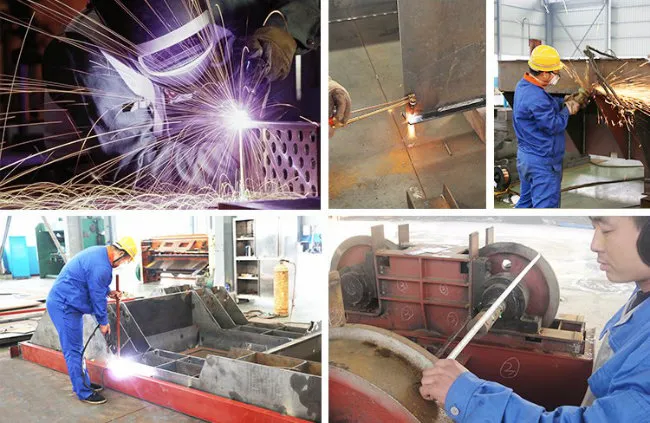

Production Process

1. CNC Cutting

Steel plates are cut using precision CNC machines followed by chip removal.

2. Welding

Automatic welding ensures structural integrity followed by stress elimination treatments.

3. Spray Primer

Dual layers of zinc-rich epoxy antirust paint are applied for corrosion protection.

4. Assembling

Installation of wheels, motors, gearboxes, and control systems.

5. Debugging

Rigorous no-load and full-load testing before storage.

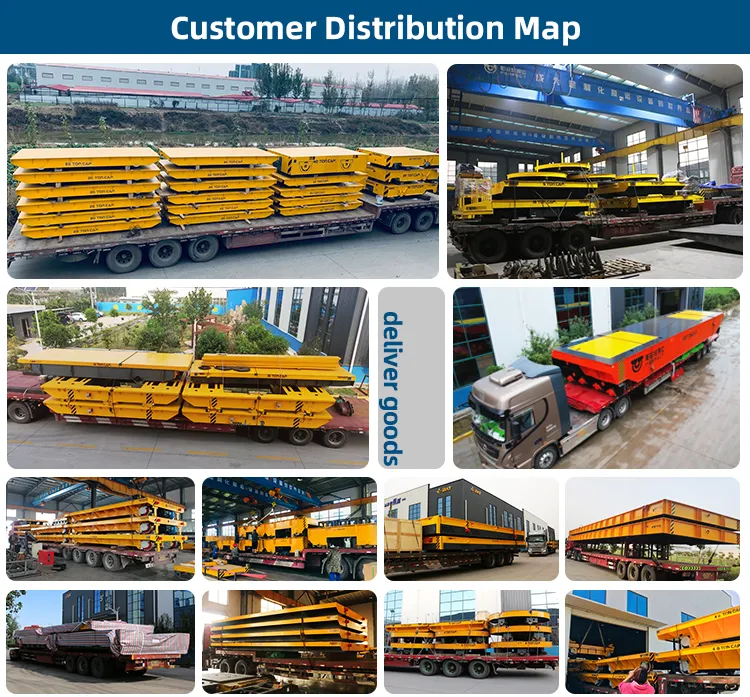

Packaging & Shipping

Standard transport modes based on dimensions:

20ft/40ft Containers: For lengths under 12m and width under 2.2m.
Flat Rack: For width exceeding 2.2m.
Bulk Cargo: For oversized equipment or specific large quantities.

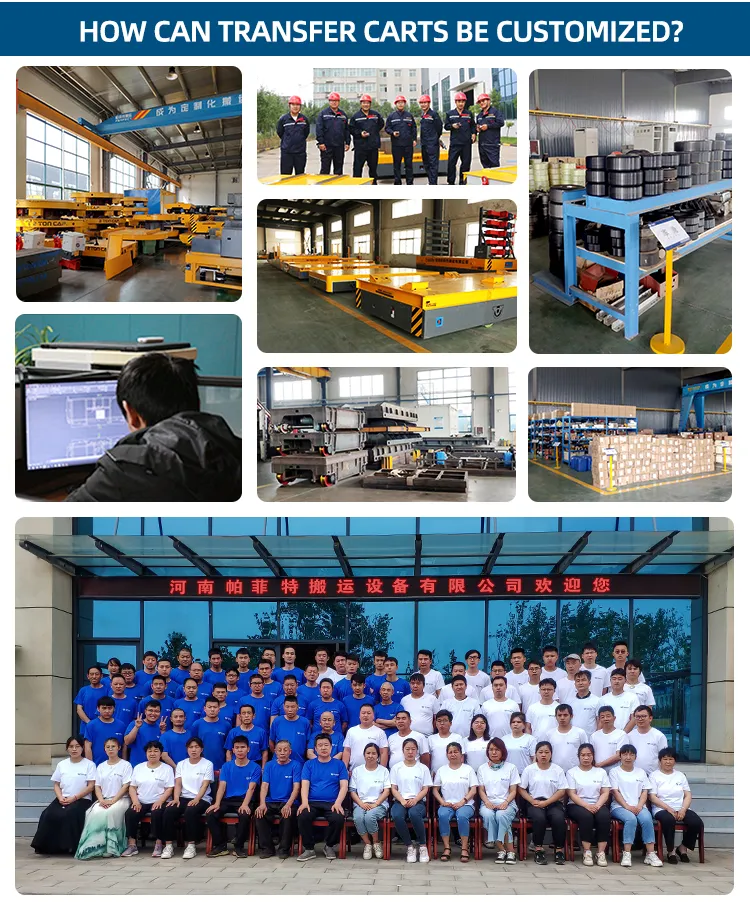

Factory & Quality Assurance

Frequently Asked Questions

What is the maximum load capacity of these rail carts?

The BTL series can handle loads ranging from 1 ton up to 300 tons, and specifications can be customized to your specific needs.

How is the equipment powered?

This specific model is powered via a trailing cable (dragging cable), drawing power from a 380-690v alternating source.

Is the trolley suitable for long-distance travel?

The trailing cable model is ideal for running distances under 20 meters with high frequency. For longer distances, other power options may be considered.

What safety features are included?

The carts come equipped with alarm lights, buffers, radar detectors, and other customized safety devices to ensure workshop security.

Can the table size be customized?

Yes, both the table size (length, width, height) and the rail inner gauge can be fully customized according to your workpiece and workshop layout.
