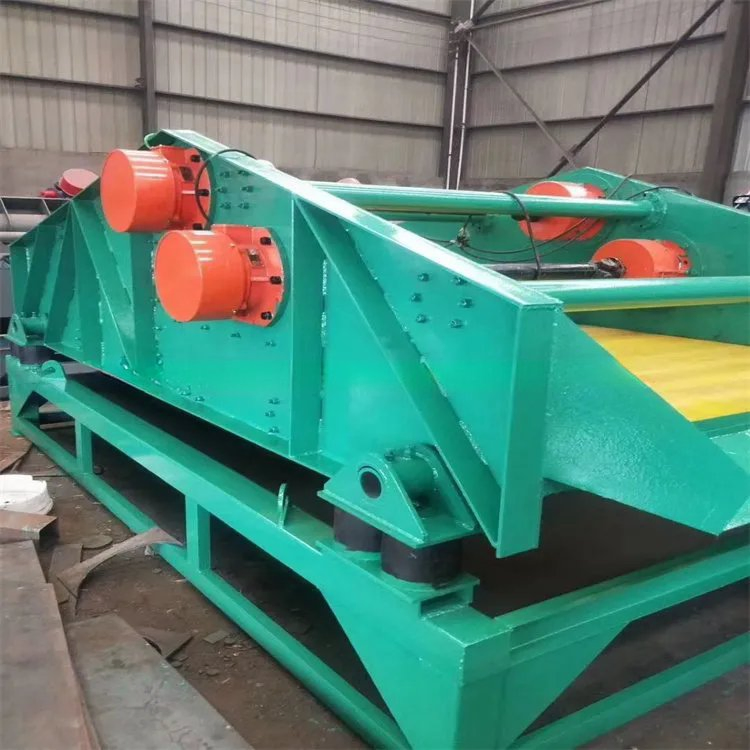

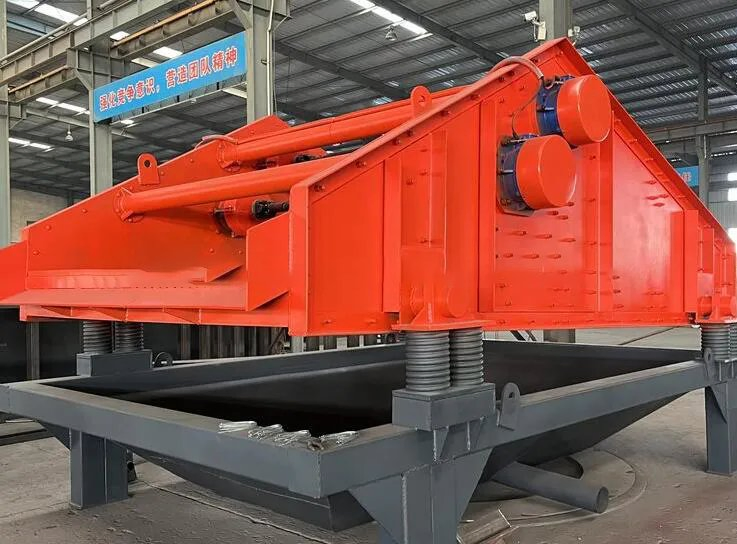

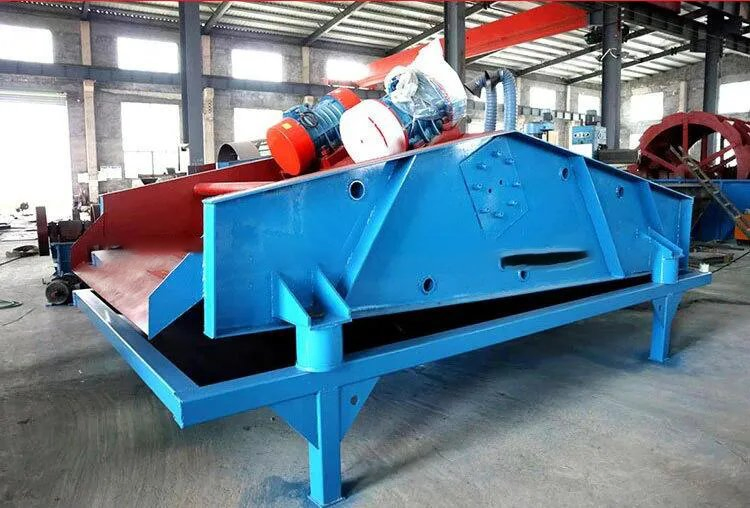

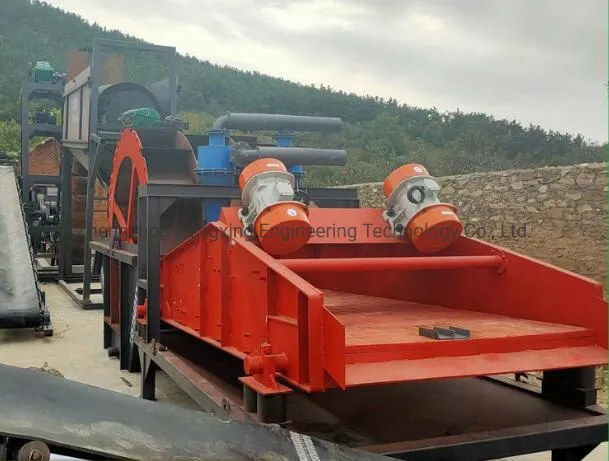

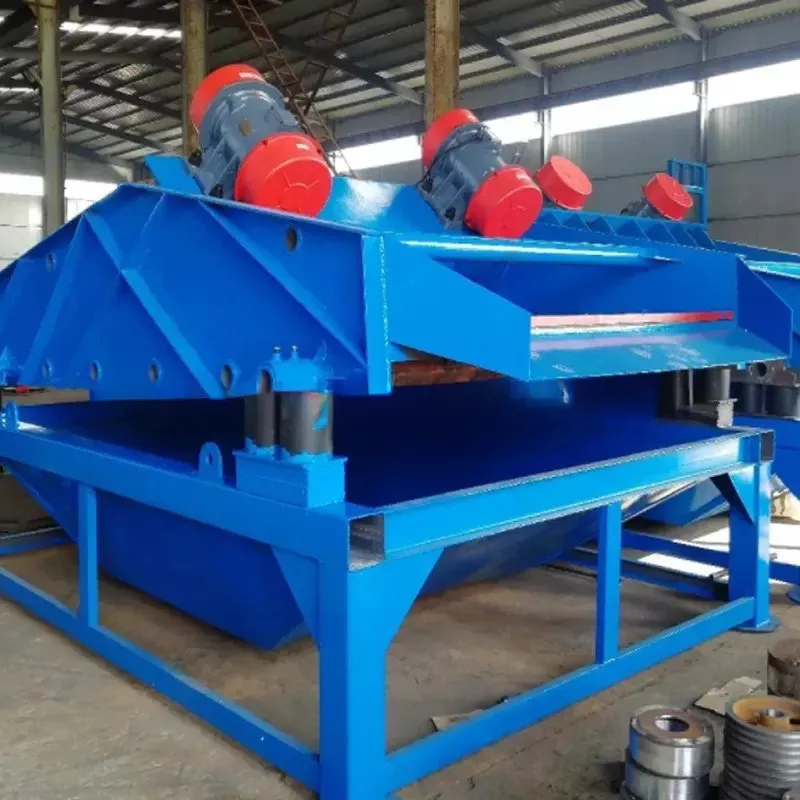

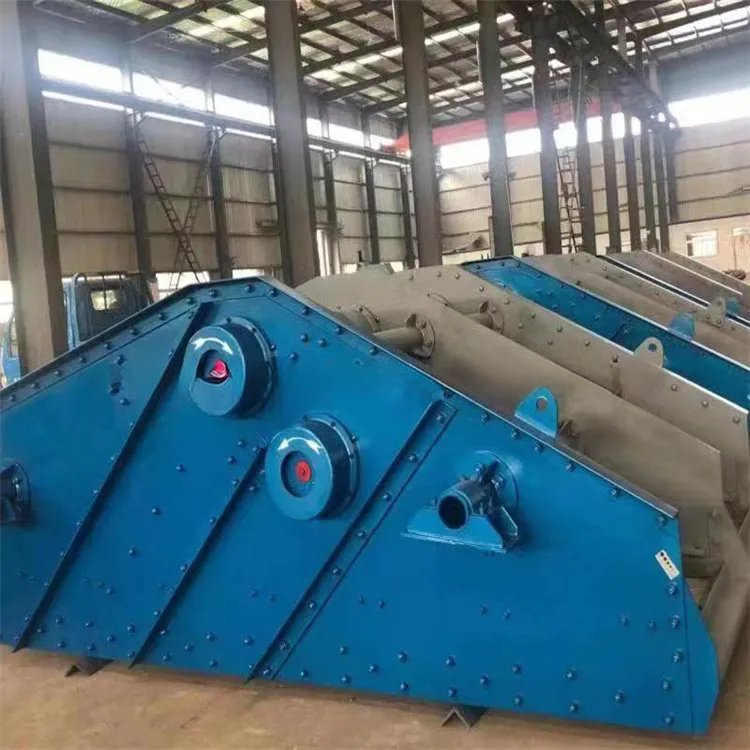

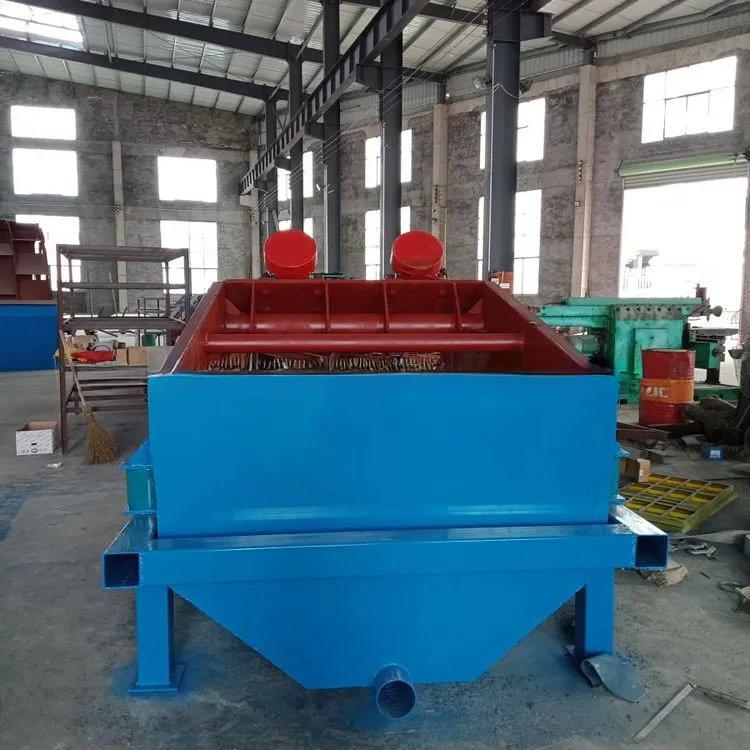

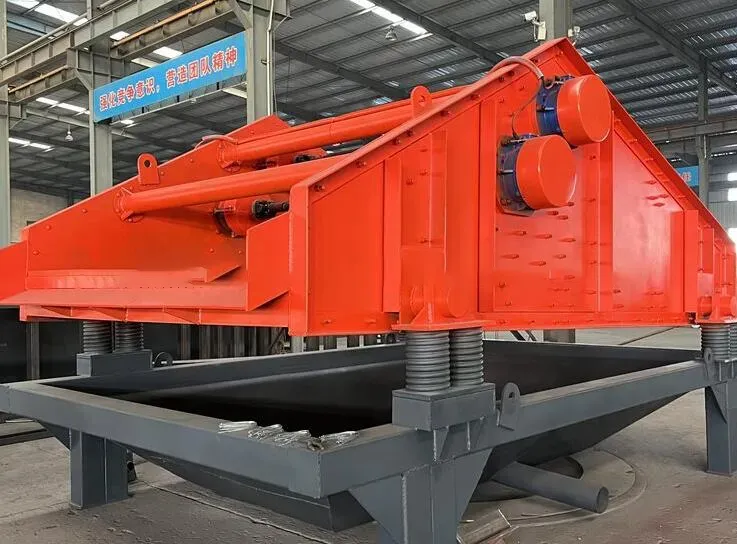

Dehydration Use Dewatering Screen For Sand Washer Plant
◈ Dewatering Screen Usage and Application:
Dewatering Screen is widely applied for dewatering, desliming, deintercalation, which can be used to sand and stone washing plant, coal preparation plant, sludge recycling, mineral processing plant, tailings dry discharge and more. So it is also called sand and stone dewatering screen, mine dewatering screen, coal slime dewatering screen, tailings dewatering screen.
◈ Dewatering Screen Working Principle:
Dewatering screen adopts dual-motor self-synchronization technology. Motors coordinate with universal eccentric and adjustable amplitude vibrator. When motors start to work, centrifugal forces which generate by the eccentric models will superposition themselves and forming a single direction vibration. The high frequency vibration drive of the screen will line move back and forth in line repeatedly. So the sand will be dehydrated and filtered.
◈ Dewatering Screen Features:
| Model | Screen Area (m²) | Power (kw) | Capacity (m³/h) | Feed Size (mm) | Weight (t) | Overall Dimension (L*W*H)(mm) |
|---|---|---|---|---|---|---|
| TS0820 | 1.5 | 2*0.75 | 5-10 | ≤10 | 0.8 | 2220*1140*1140 |
| TS1020 | 2 | 2*1.5 | 20-30 | ≤10 | 1.6 | 2220*1340*1190 |
| TS1225 | 3 | 2*2.2 | 50-80 | ≤10 | 2.1 | 2820*1570*1370 |
| TS1530 | 4.5 | 2*3 | 100-120 | ≤10 | 3.2 | 3320*1880*1350 |
| TS1840 | 7.2 | 2*3.7 | 150-180 | ≤10 | 4 | 4100*2441*1980 |
| TS1845 | 8.1 | 2*5.5 | 150-200 | ≤10 | 4.5 | 4600*2441*1980 |
