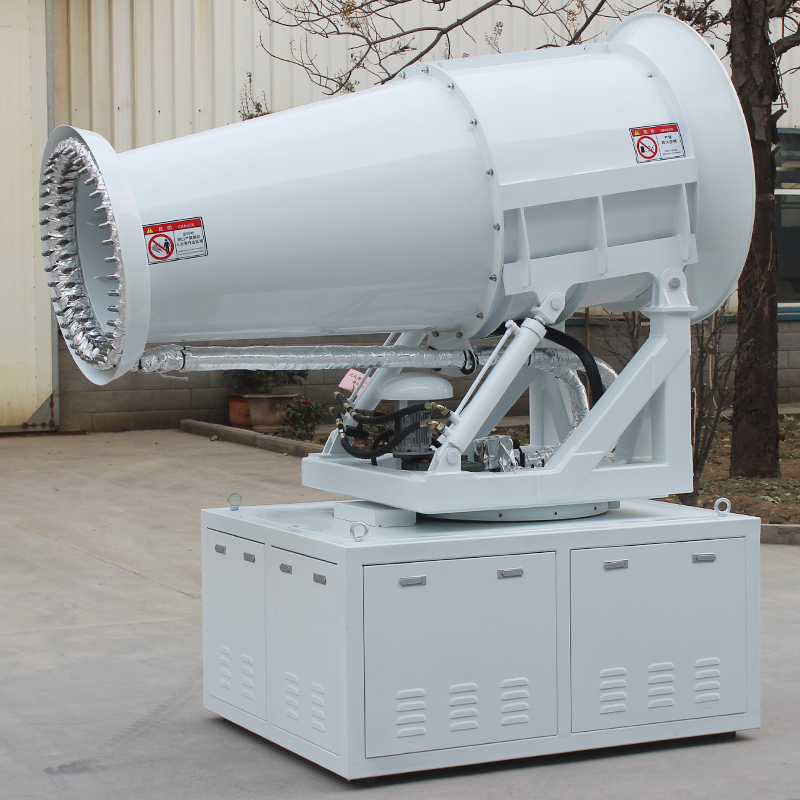

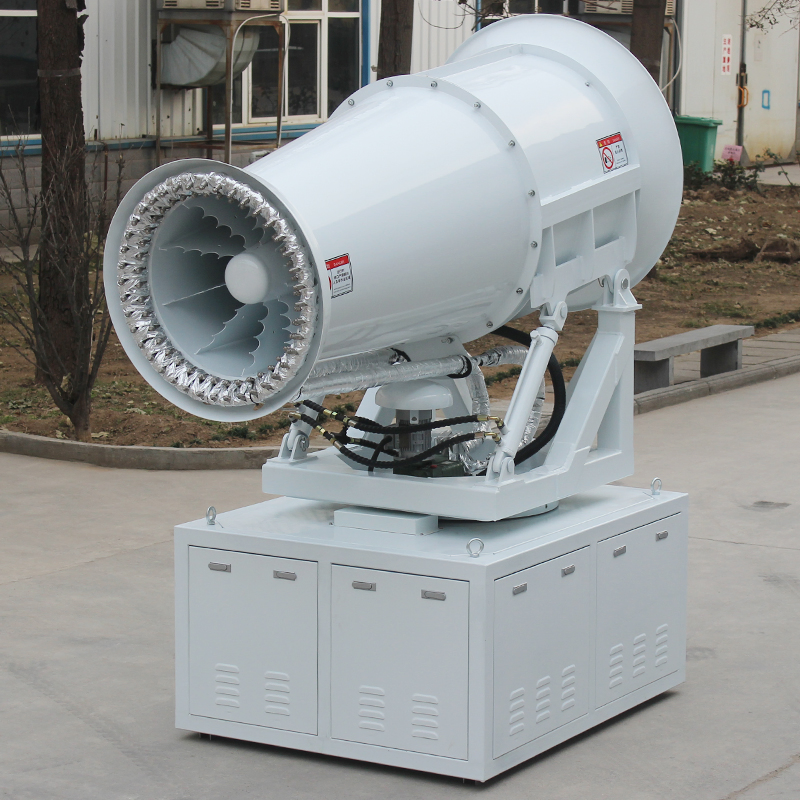

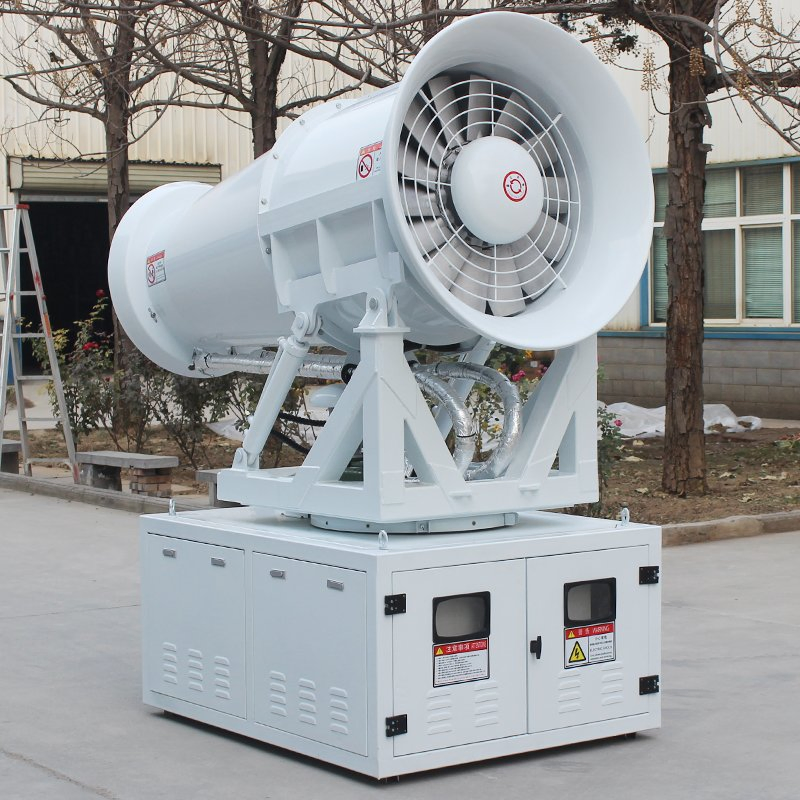

Factory Price Fixed Dust Suppression Mist Fog Cannon System for Cement Plant & Aggregate Processing Yard

Customization:	Available
After-sales Service:	Lifetime Maintenance
Warranty:	1 Year

1

Basic Specifications

Model	80m Fog Cannon System	Type	Mist Cannon System
Weight	1360 Kg	Delivery Time	7-15 Working Days
Water Pressure	0.3-0.8 MPa	Nozzle Qty	70 Pcs (Stainless Steel 304)
Certificates	CE, ISO9001:2015	Warranty	1 Year (Core Components)
Control Method	Local, Remote, PLC Automatic	Pump Type	Stainless Steel Multistage Centrifugal
Applicable Industries	Manufacturing Plant, Machinery Repair Shops, Farms, Construction Sites

2

Product Description

Fixed Dust Suppression Mist Fog Cannon System

Principle and Function:
The mist cannon atomizes water into ultra-fine droplets (30-150 microns). When sprayed by the high-power fan, these droplets adhere to floating dust particles, forming larger aggregates that settle naturally due to gravity. This effectively reduces airborne dust concentration and purifies the air.

Application Features: High efficiency for capturing PM2.5 and PM10 particles. Water-saving and energy-efficient with adjustable spray range. The mist is non-corrosive and non-wetting to equipment, requiring no chemical additives.

Applicable Scenarios: Ideal for coal yards, mines, quarries, cement plants, demolition sites, port terminals, and waste incineration plants.

3

Quality Certifications

We hold 125 specialized certifications, including EU CE certification, ISO 9001, ISO 14001, and ISO 45001. With over 20 years of manufacturing experience, our equipment meets the highest international standards.

4

Scenario Case Studies

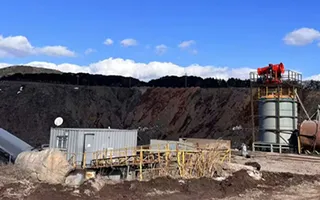

Dust Suppression

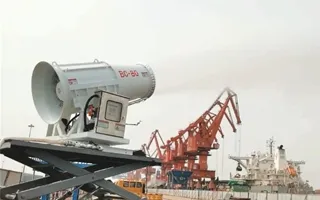

Odor Control

Cooling & Humidification

Industrial Control: Suitable for construction sites and mines. Condenses and settles dust particles quickly to improve the working environment.

Odor Elimination: Used in farms and chemical zones. By adding deodorant to water, it decomposes odor molecules in large areas.

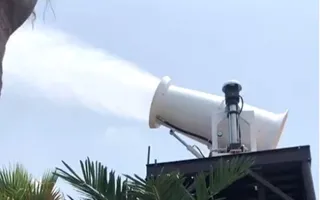

Physical Cooling: Ideal for high-temperature workshops and outdoor squares. Achieves cooling through evaporation and heat absorption.

5

Technical Details & Components

Feature	Specification	Feature	Specification
Model	ZT-80	Range Meters	80m
Coverage Area	19500 m²	Water Discharge	80-130 L/min
Aerosol Particles	30-150 μm	Power	45 kW

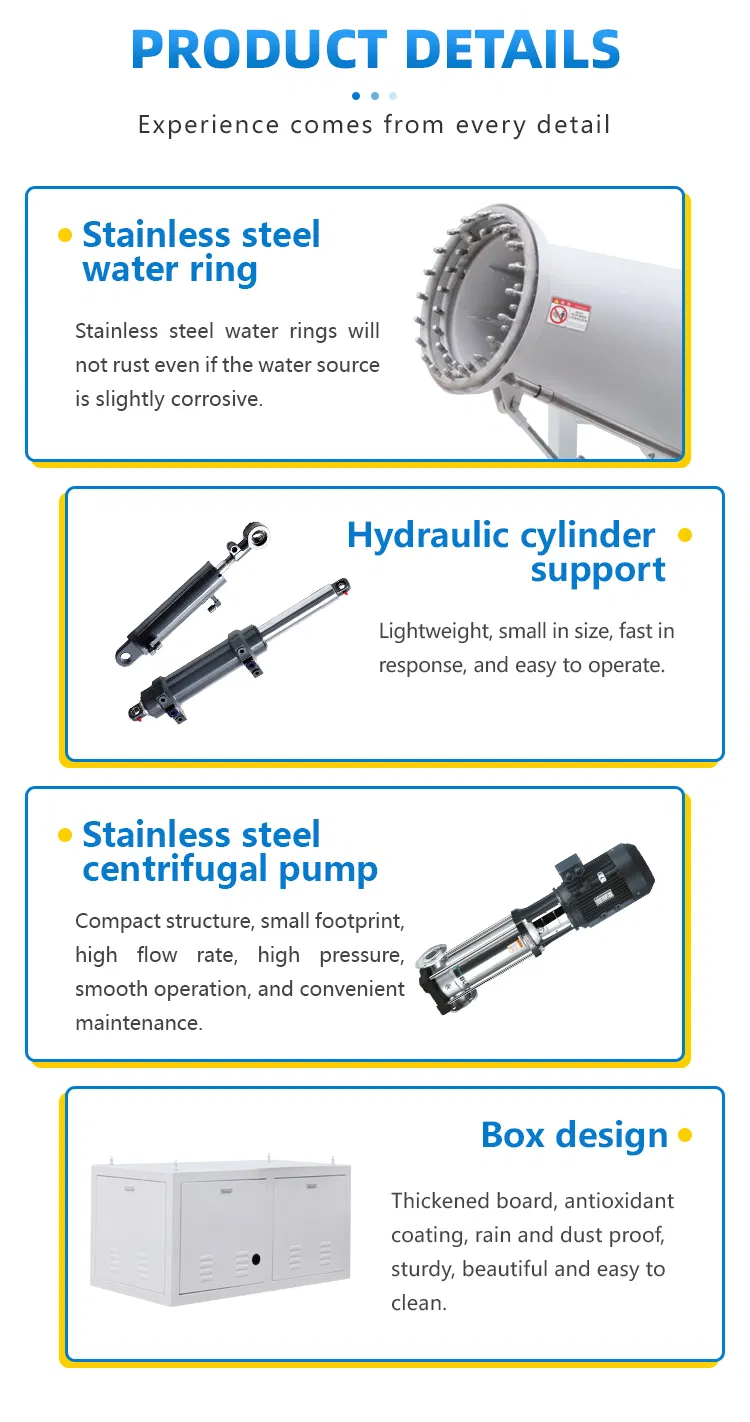

Gun barrel: Laser full-weld process with integrated conical design.
Water passage: All nozzles and water rings made of high-grade 304 stainless steel.
Elevation: Supports both electric and hydraulic actuators.
Rotation: Equipped with slewing bearing and worm gear reducer motor.

6

Packing & Logistics

Machines are packed with reinforced export-special packaging. This includes waterproof film, shockproof bubble cotton, and sturdy multi-layer plywood cases. All packaging follows international logistics norms and is fumigation-free for smooth customs clearance.

7

Factory Video

?

Frequently Asked Questions

Is this equipment suitable for international export?

Yes. The system is designed according to international standards and can be configured for different voltages and regional requirements.

What droplet size does the mist cannon produce?

The mist cannon produces micron-level droplets (30-150 microns) that effectively capture airborne dust particles such as PM10 and PM2.5.

What is the typical operating cost of a mist cannon?

Operating costs mainly include electricity and water. Compared with traditional water trucks, mist cannons offer significantly lower long-term operating costs.

How often does the equipment need maintenance?

Basic maintenance includes nozzle cleaning and inspection, typically performed weekly or monthly depending on the dust levels of the environment.

Can the machine be customized by color?

Yes, we provide color customization based on the customer's specific requests to match corporate branding or site requirements.

What are the after-sales service terms?

We offer a one-year warranty and lifetime maintenance support. Critical spare parts are often shipped with the initial delivery for easy replacement.
