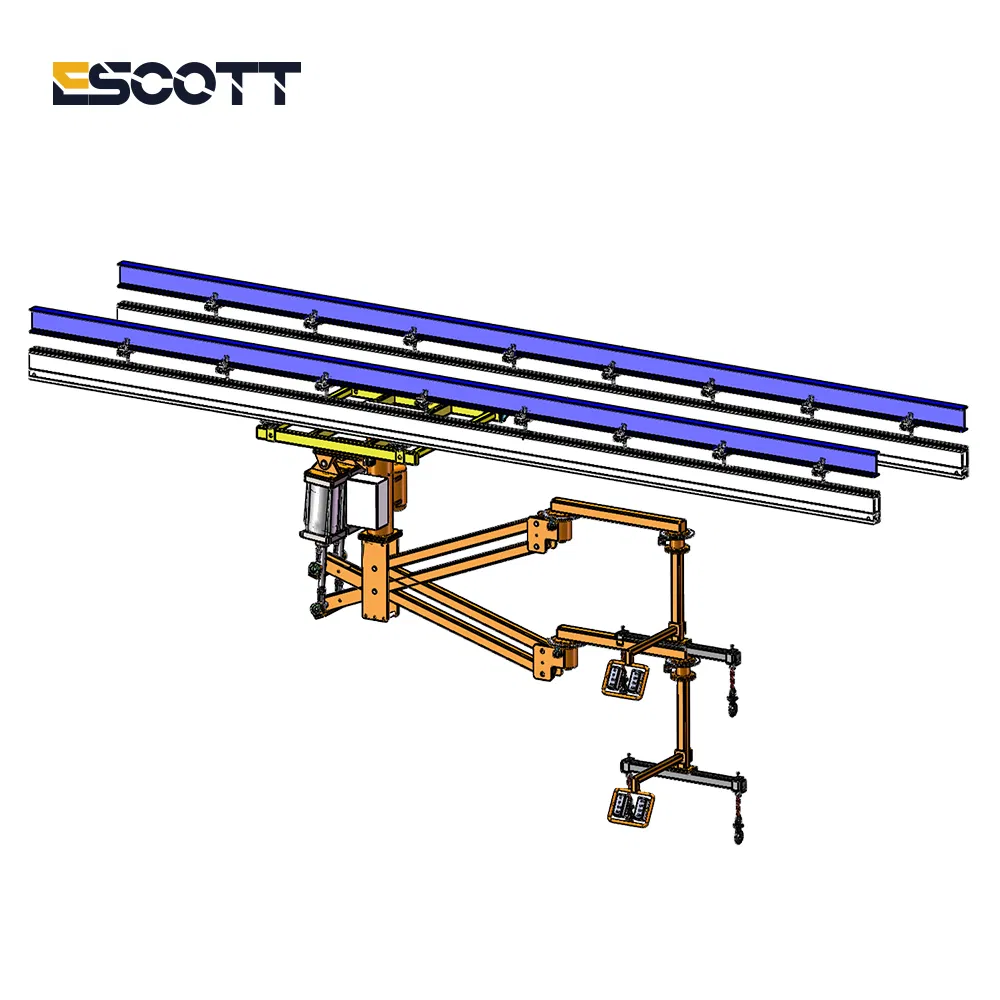

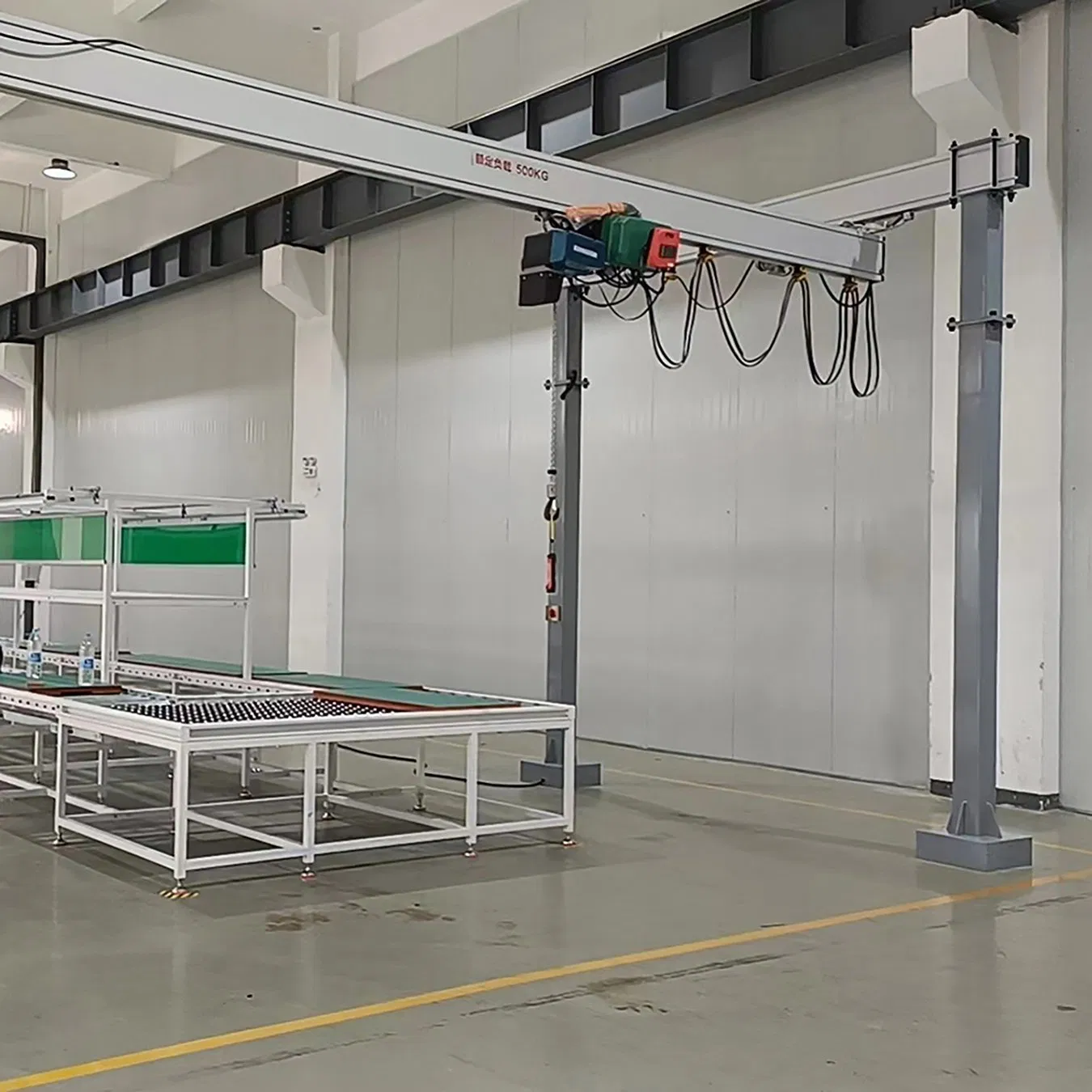

Advanced Electric Truss Lifting System for Heavy-Duty Use

1 / 5

Advanced Electric Truss Lifting System for Heavy-Duty Use

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Info.

Model NO.

Truss type lifting equipment

Certification

GS, RoHS, CE, ISO9001, ISO

Condition

New

Operation Form

Air Operation+Ground Operation

Maximum Lifting Height

<10m

Maximum Lifting Weight

<20t

Main Girder Form

Double Girder

Type

Truss Suction Crane

Capacity

200kg, Customized

Up and Down Stroke

0-1700mm, Customized

Coverage Area

40000*2800mm, Customized

Material

Carbon Steel Column+Aluminium Alloy Track

Drive Mode

Pneumatic

HS Code

8428909090

Packaging & Delivery

Package Size

300.00cm * 250.00cm * 350.00cm

Package Gross Weight

1000.000kg

GENERAL INTRODUCTION

Overhead Crane is a kind of manipulator equipment with cable. It realizes the lifting function by connecting the auxiliary lifting equipment installed on the mechanical arm with the fixture by soft cable.

The equipment is used with various non-standard fixtures to realize workpiece handling, palletizing, loading and unloading. It reduces operator fatigue, maximizes productivity, and ensures worker safety. It has a wide range of applications, especially for modern production lines.

CORE TECHNOLOGY

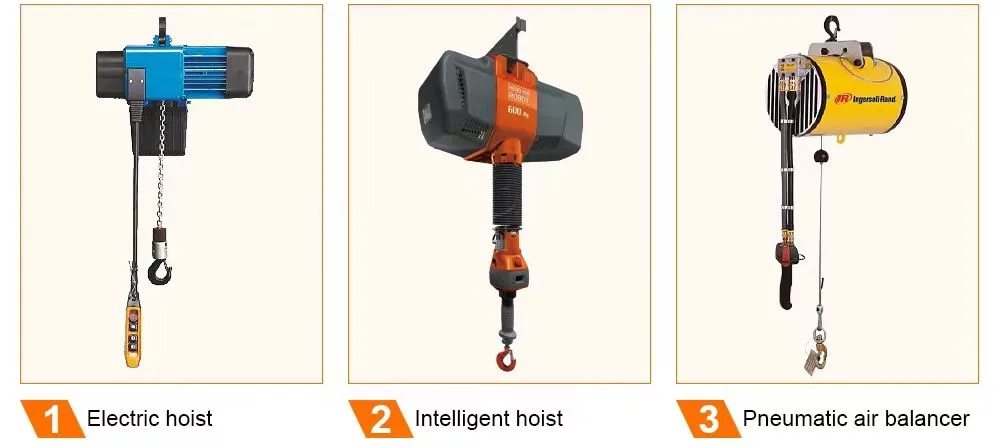

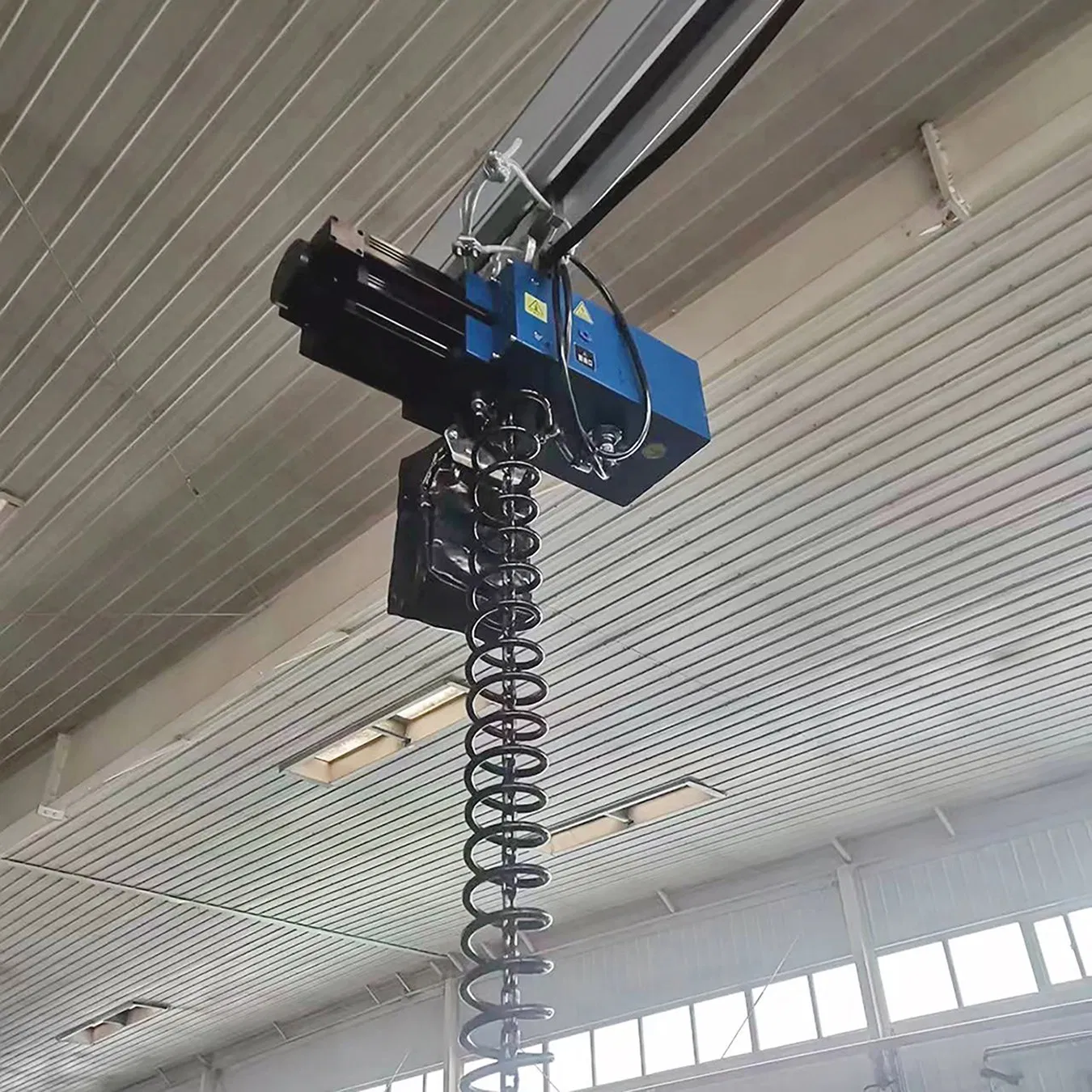

Overhead Crane consists of three parts: column and cantilever arm, auxiliary lifting hoist and non-standard fixture. Auxiliary lifting hoist includes Electric hoist, intelligent hoist and pneumatic air balancer:

Electric hoist: Usually installed on the cantilever, gantry crane, or truss. It features low cost, simple operation, and low maintenance. Available in wire rope and chain types with single or two-speed lifting options.
Intelligent hoist: Composed of a servo drive, motor, and reducer. Controlled by a microprocessor, it allows for variable speed movement and high precision, providing safe and reliable handling.
Pneumatic air balancer: Uses compressed air thrust to balance load gravity. Achieves accurate suspension control, allowing operators to handle heavy objects with minimal effort and high safety.

MODELS FOR REFERENCE

1. Electric hoist

NAME	BMS125	BMS250	BMS500	BMS1000	BMS2000
Maximum load(Kg)	125	250	500	1000	2000
Lifting speed (m/min)	8/2	8/2	8/2	4/1	4/1
Motor power(Kw)	0.4/0.1	0.4/0.1	0.4/0.1	0.75/0.2	1.5/0.37
Lifting Medium	Chain
Power supply	220-460V

2. Intelligent hoist

NAME	IAD-H80	IAD-H200	IAD-H300	IAD-H600
Maximum load(Kg)	80	200	300	600
Handle Lifting speed (m/min)	40	30	15	7.5
Float Lifting speed (m/min)	36	27	13.5	6.75
Maximum stroke (m)	3.5	3.5	3.5	1.7
Lifting Medium	Wire rope or chain
Power supply	220V±10% 50HZ

3. Pneumatic air balancer

NAME	BW005060	BW015080	BW020120	BW032080	BW035080	BW050080
Maximum load(Kg)	22	68	90	147	158	227
Maximum stroke(m)	1.5	2.0	3.0	2.0	2.0	2.0
Lifting medium	Wire rope
Power supply	Air pressure

* Custom features available upon request.

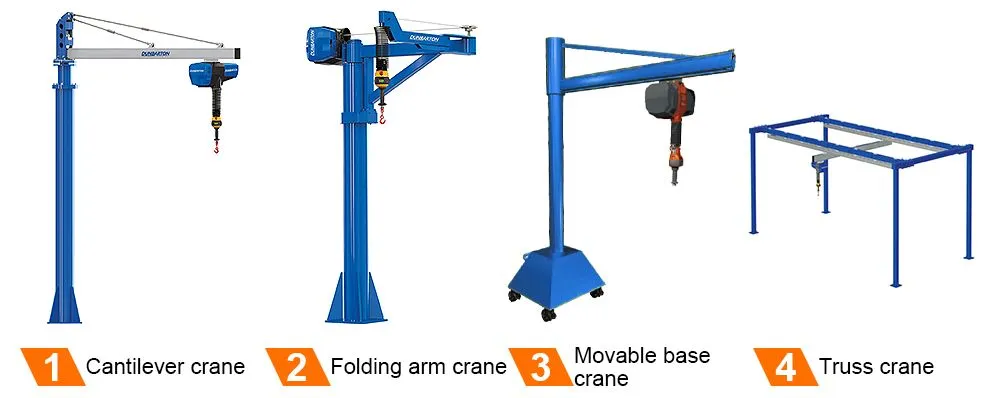

INSTALLATION WAY

Cantilever crane: Uses steel pipe columns and I-beam main beams; simple structure and large working space.
Folding arm crane: Composed of a column and rotating arm; allows accurate positioning with a small footprint.
Movable base cantilever crane: Flexible movement in all directions with large operation range.

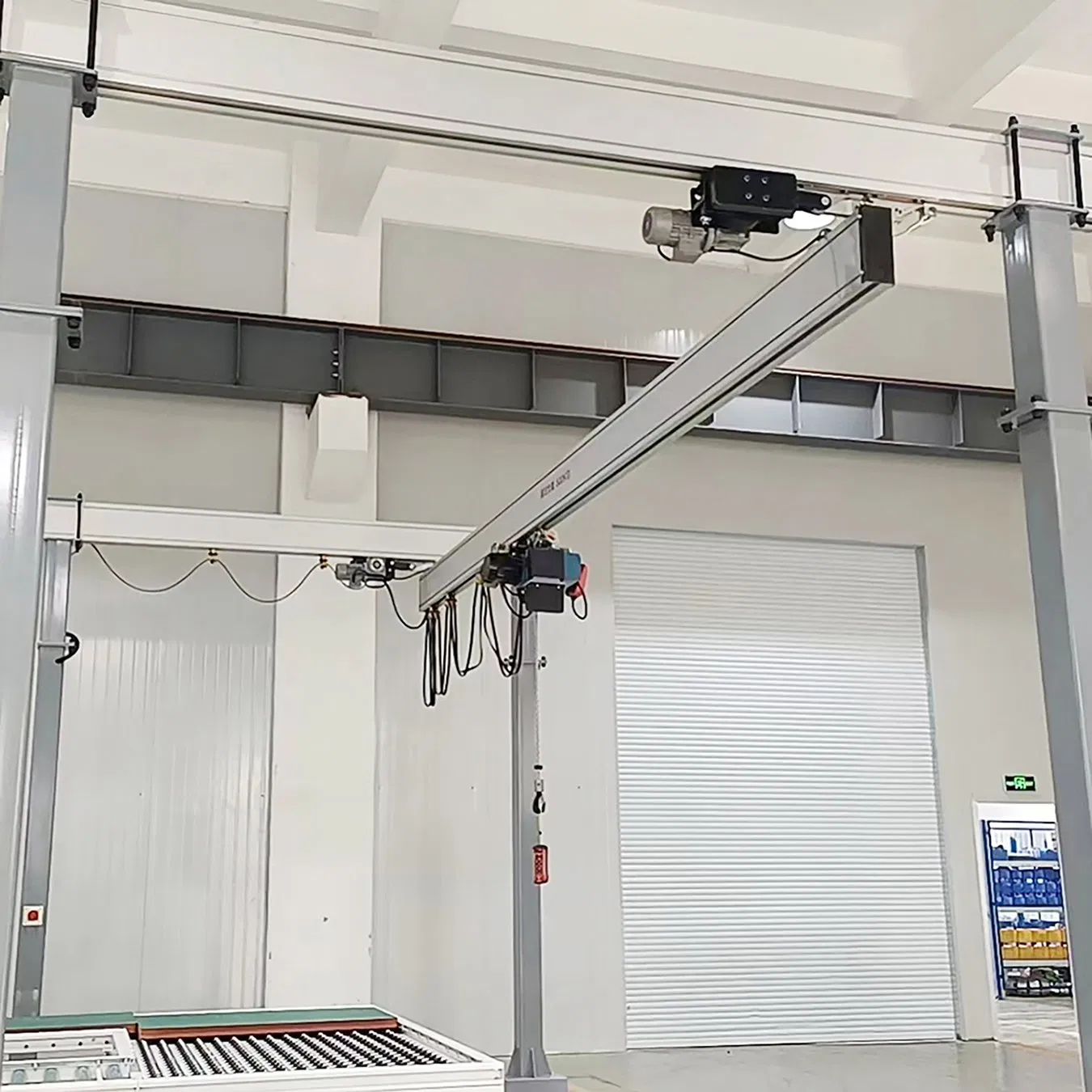

Truss crane: Lightweight steel structure suitable for limited height or large travel requirements.

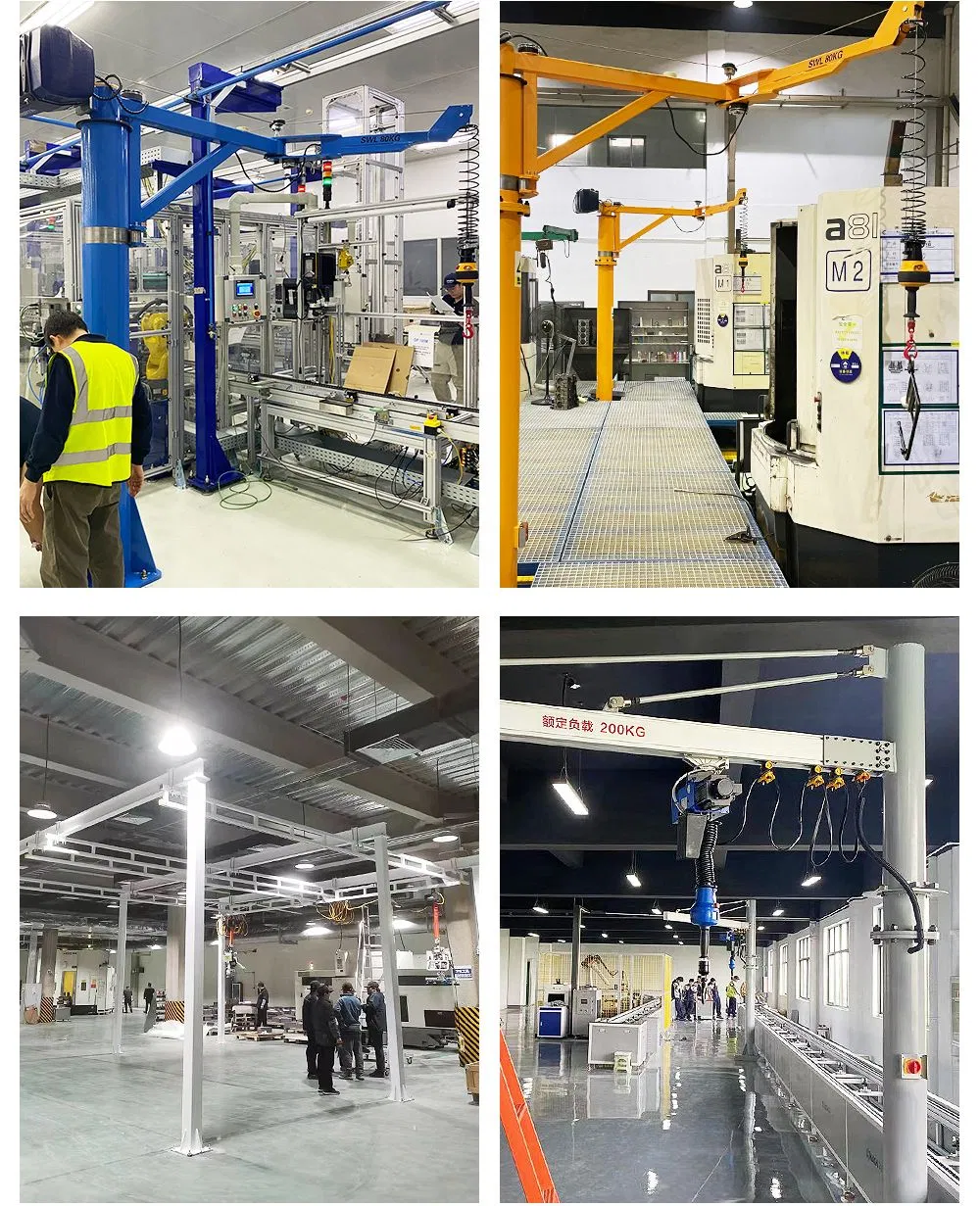

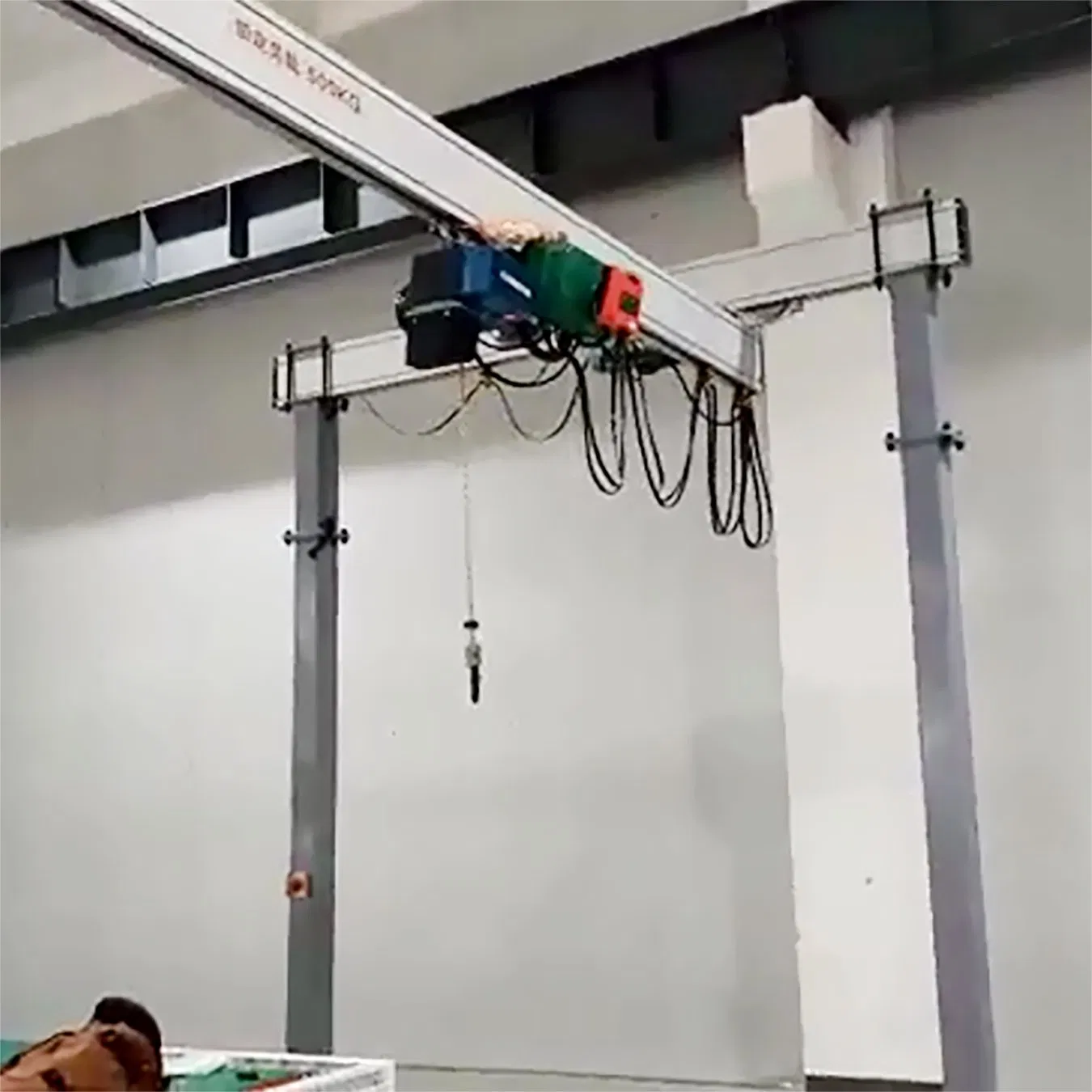

WORKING SCENARIO

OUR FACTORY

Frequently Asked Questions

What are the primary differences between electric and intelligent hoists?

Electric hoists are cost-effective and simple for standard lifting, while intelligent hoists use servo motors and microprocessors for variable speed control and higher precision handling.

Is the equipment compatible with non-standard workpieces?

Yes, the system is designed to work with various non-standard fixtures to handle specific workpiece shapes for palletizing and loading.

What are the advantages of a pneumatic air balancer?

It uses compressed air to create a "weightless" feel for the load, allowing for extremely smooth movement and precise positioning without manual strain.

Which installation method is best for small footprints?

The folding arm crane is ideal for small footprints as it covers multiple units efficiently using a rotating arm design.

Can the lifting capacity be customized beyond the standard models?

Yes, capacities such as 200kg and other specifications like stroke length can be customized to meet specific industrial requirements.

What materials are used in the construction of the truss cranes?

Typically, the columns are made of robust carbon steel, while the tracks utilize high-quality aluminum alloy for a balance of strength and light weight.
