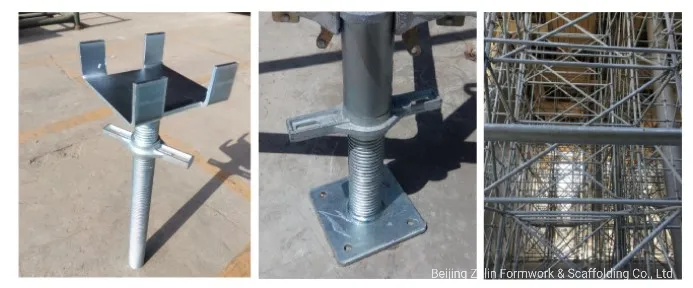

Ring-lock scaffolding is a premier support system for construction, combining the advantages of both cup-lock scaffolding and shoring towers. As a new generation of scaffolding, it offers two primary series based on standard diameters: 48mm and 60mm. The 60mm series can be specifically configured as stair towers when equipped with staircases. With adjustable screw jack heads and feet, the system provides excellent stability, bearing capacity, and standardization for buildings, bridges, and tunnels.

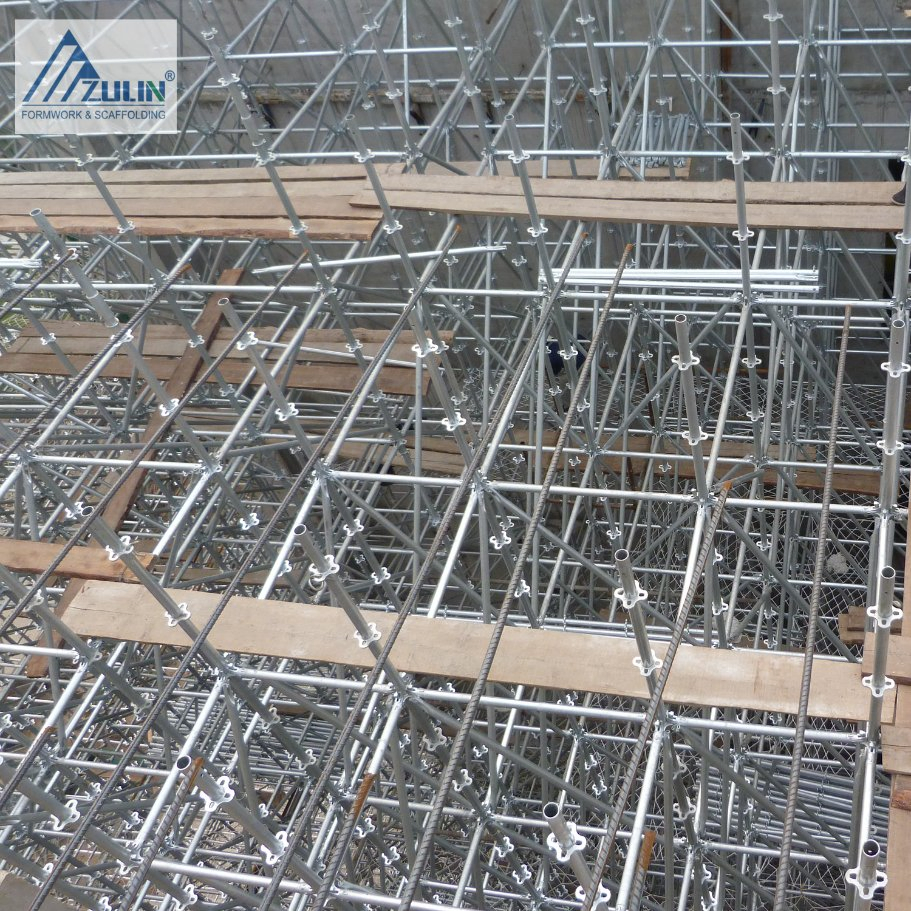

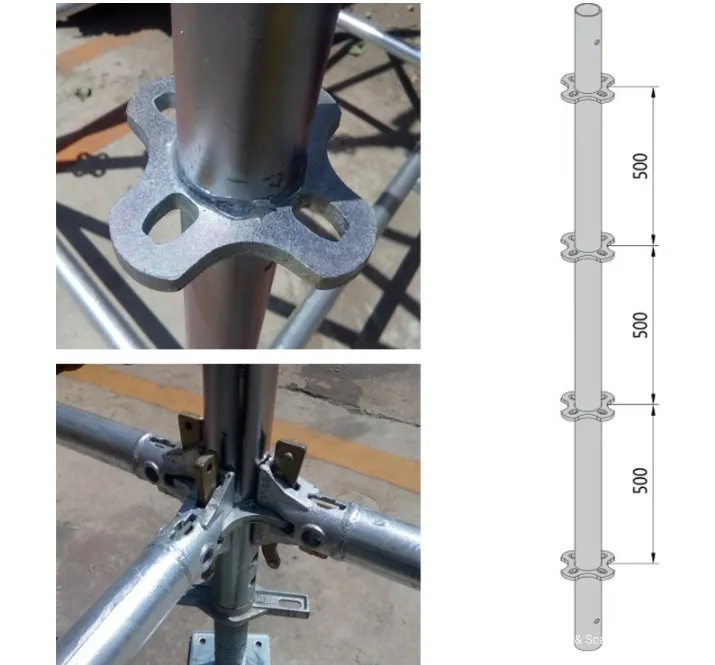

1. Rosette Node: Features a node welded every 500mm on the standard, allowing flexible connections in four directions.

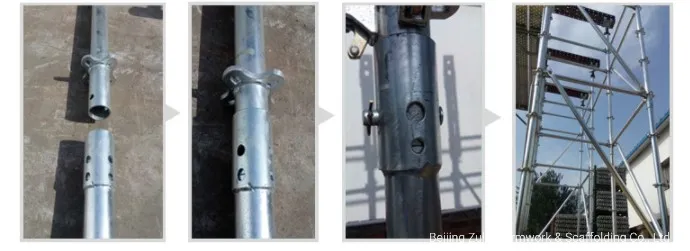

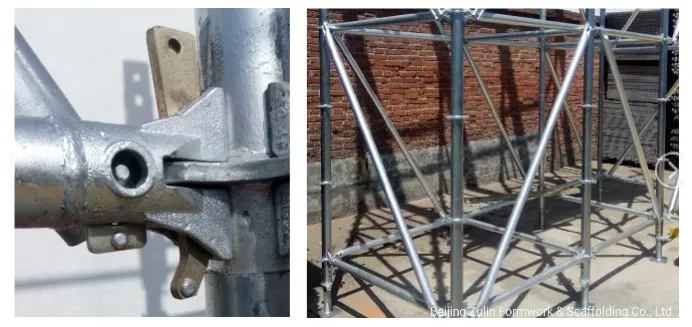

2. Vertical & Horizontal Connection: Standards insert into each other for vertical height. Horizontal ledgers use integrated connectors with rivets and inverted pins for a firm, "no-loss" assembly.

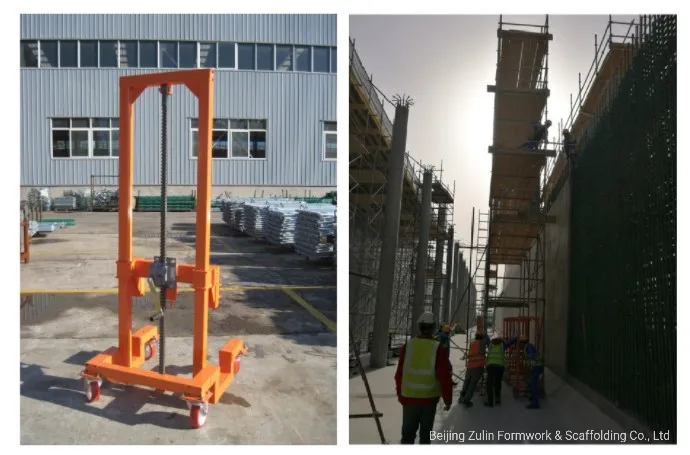

3. Shifting Trolley: Specifically designed trolley allows the entire assembled scaffolding structure to be moved integrally, significantly improving efficiency.
| Name | Diameter (mm) | Length (mm) | Thickness (mm) |
|---|---|---|---|
| Ledger (42) | 42 | 600~3000 | 3 / 2.5 |
| Standard (48) | 48 | 500~3000 | 3 / 3.25 |
| Diagonal Brace (42) | 42 | 1200*1500~3000*2000 | 3 / 2.5 |
| Screw Jack Head (48) | - | 600~900 | - |
| Standard (60) | 60 | 500~3000 | 3.25 |
| Screw Jack Head (60) | - | 600~1200 | - |
