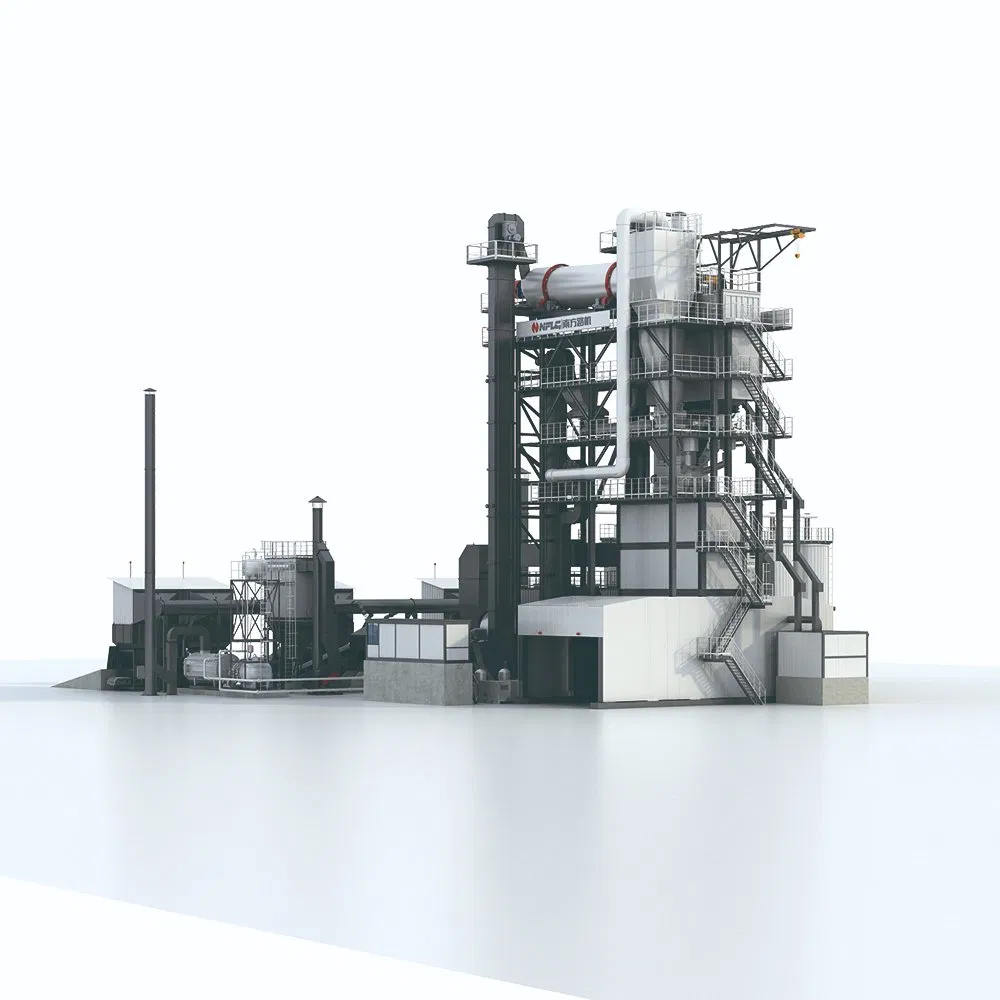

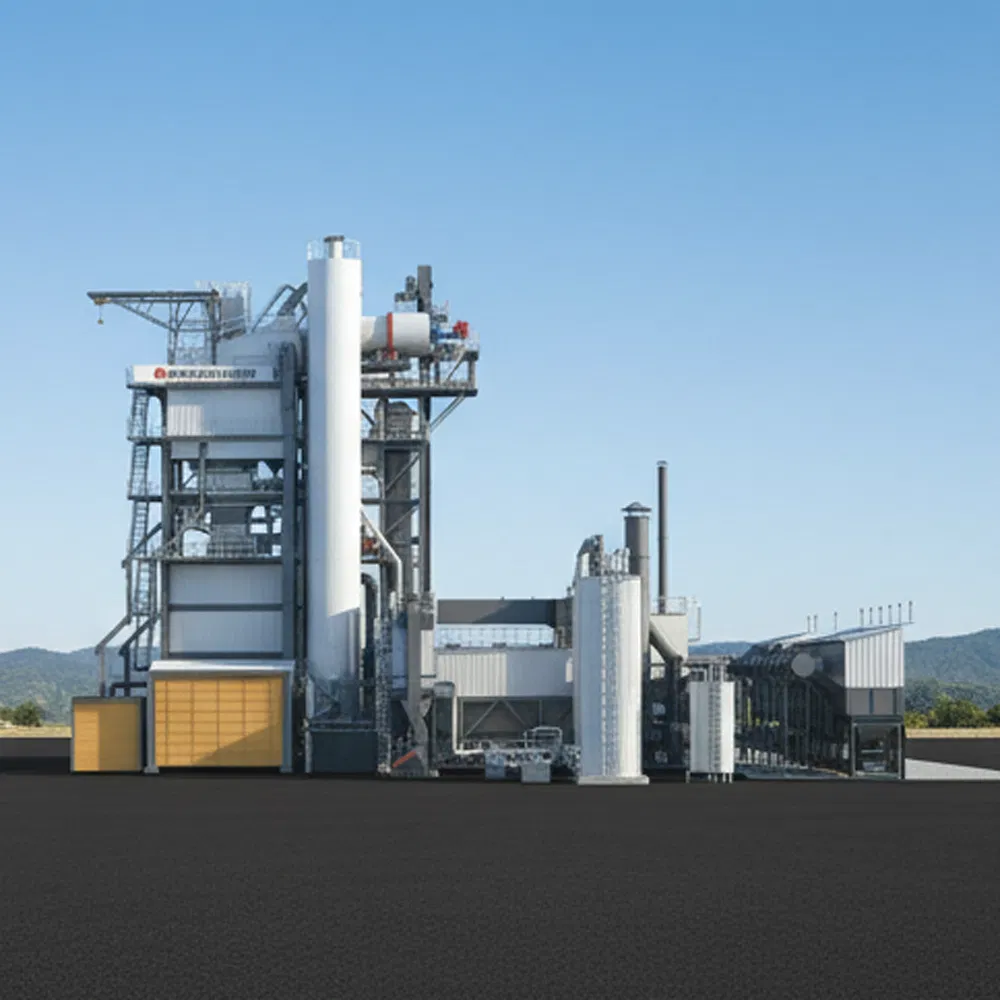

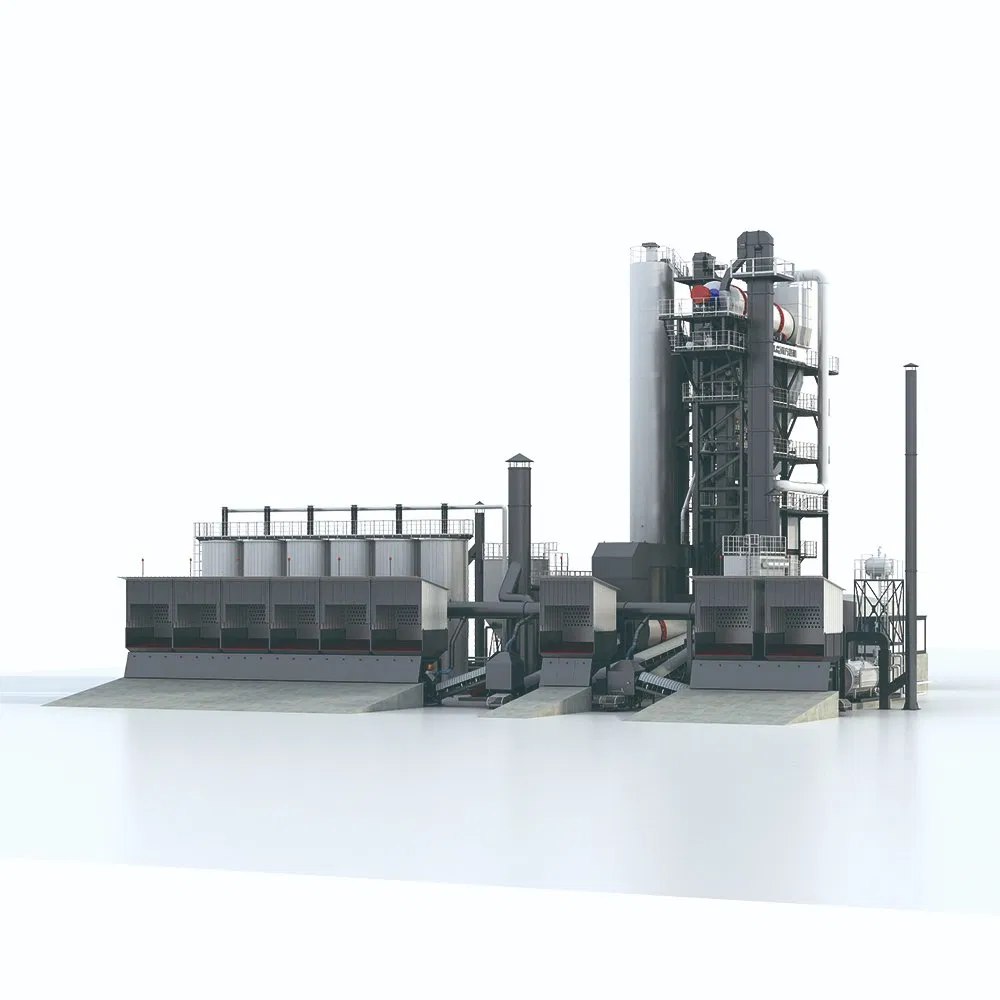

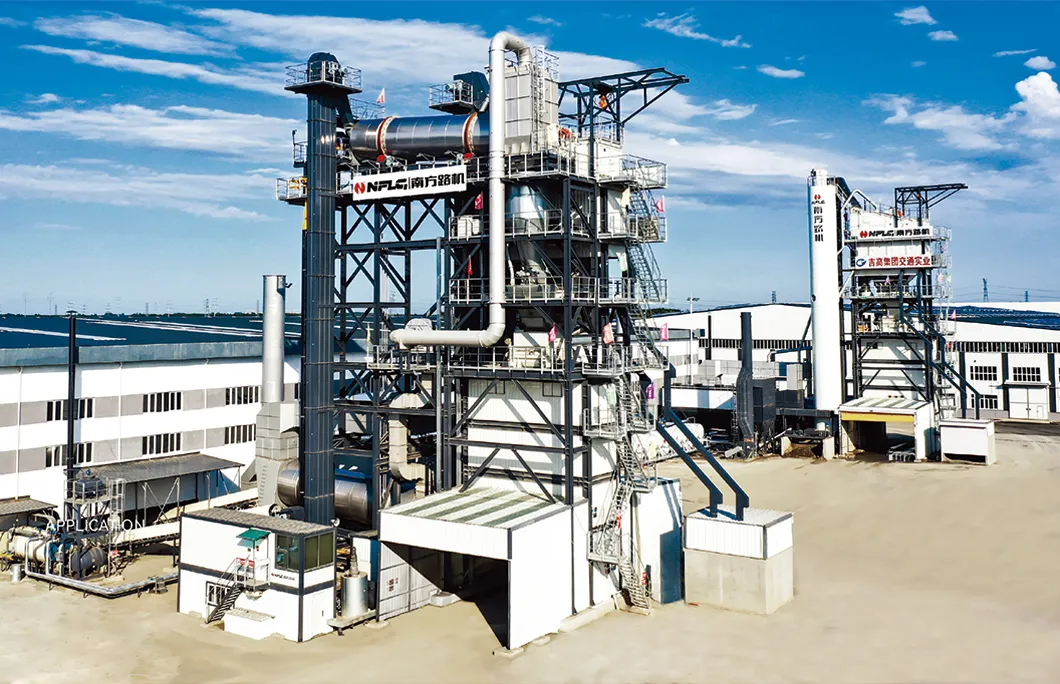

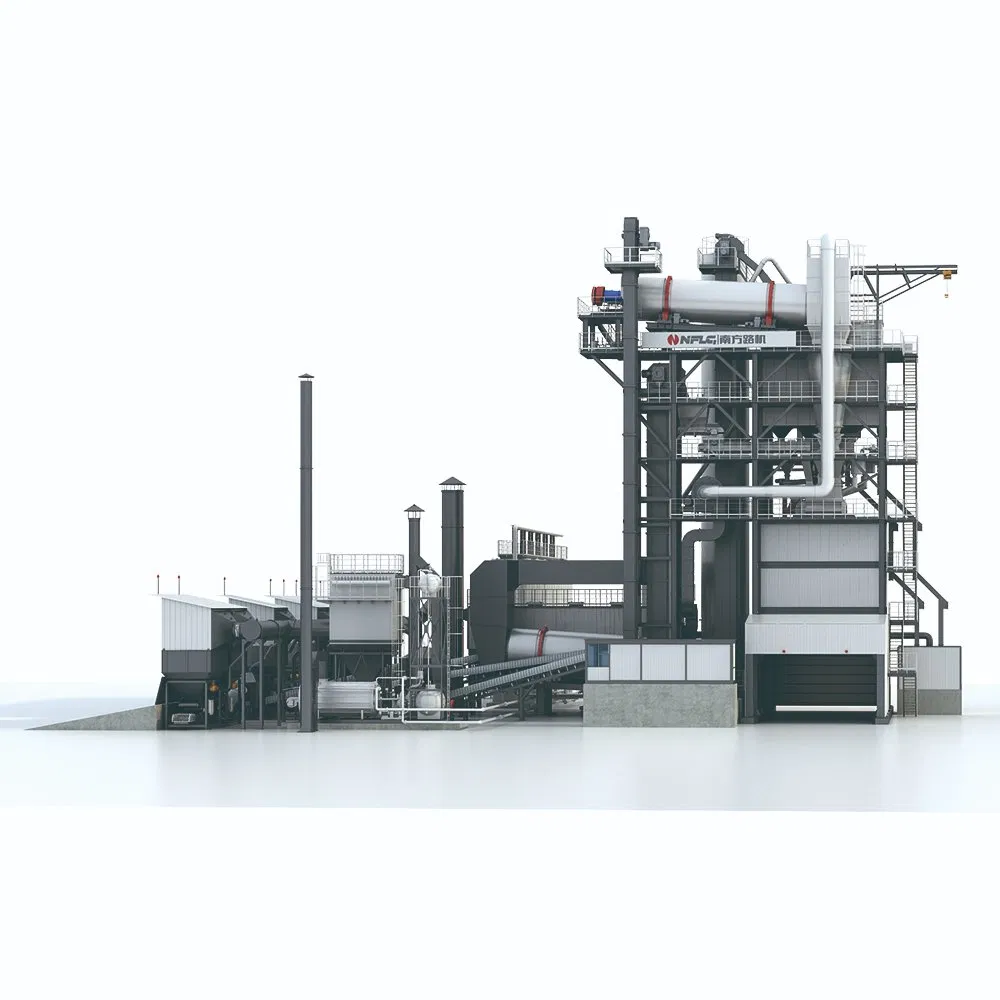

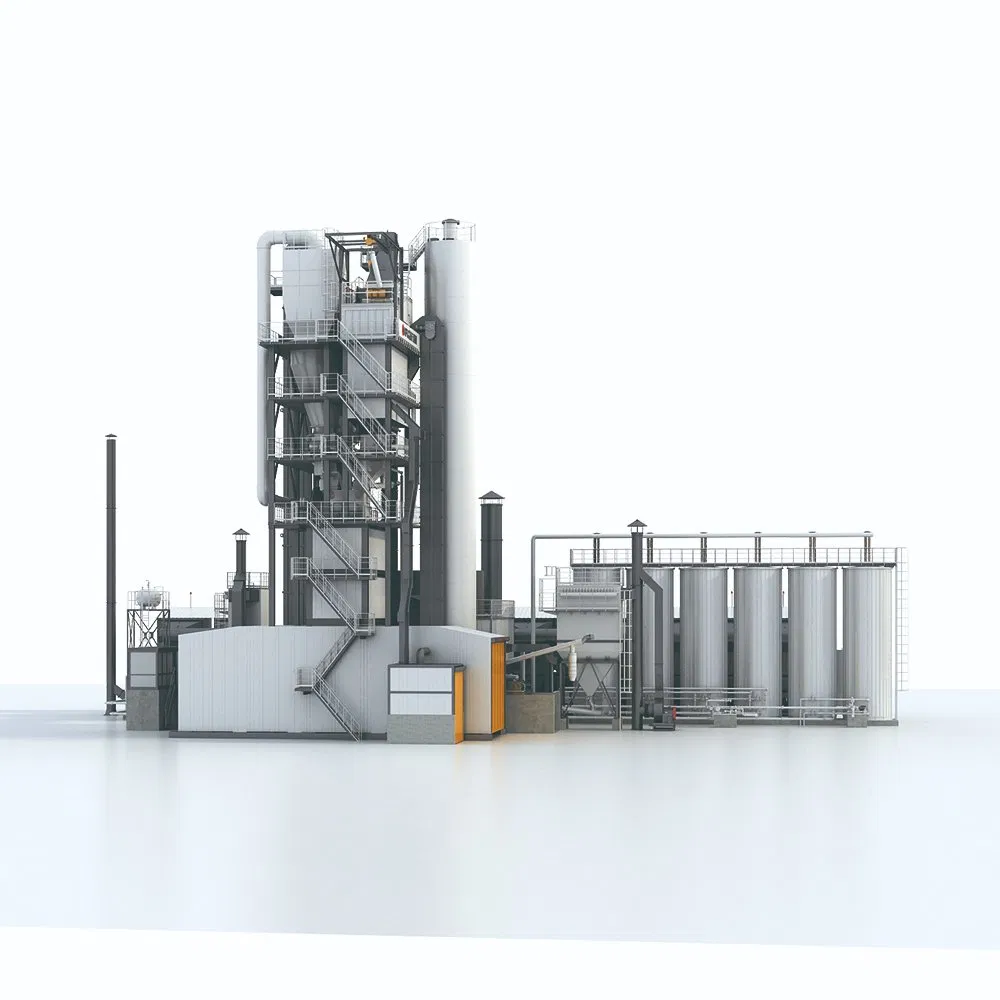

LBGZ Integrated Asphalt Mixing Plant
Ingeniously crafted for both original and regenerative processes, this advanced equipment boasts an enlarged mixer, ensuring impressive output levels. With the innovative design eliminating the need for a regeneration chute, this equipment stands with reduced height and demands significantly less maintenance.
The holistic design prioritizes safety, offering a safer maintenance experience and a more spacious work environment. A strategic repositioning of the mixer allows for RAP discharge without the need for a chute, effortlessly preventing material from sticking in the process.
| Model | LBGZ2000 | LBGZ3000 | LBGZ4000 | LBGZ5000 |
|---|---|---|---|---|
| Cold material bin (qty x vol) | 5 * 15m³ | 5 * 20m³ | 6 * 20m³ | 6 * 20m³ |
| Dryer dimension (D x L) | 2.25m * 9m | 2.5m * 10m | 2.8m * 11m | 2.9m * 12.5m |
| Max Capacity (moisture 5%) | 160t/h | 240t/h | 320t/h | 400t/h |
| Mixer capacity | 3t | 4t | 5t | 6.5t |
| Mixing method | Horizontal twin shaft forced mixing | |||
| Standard area | 40m * 36m | 46m * 44m | 49m * 47m | 50m * 47m |

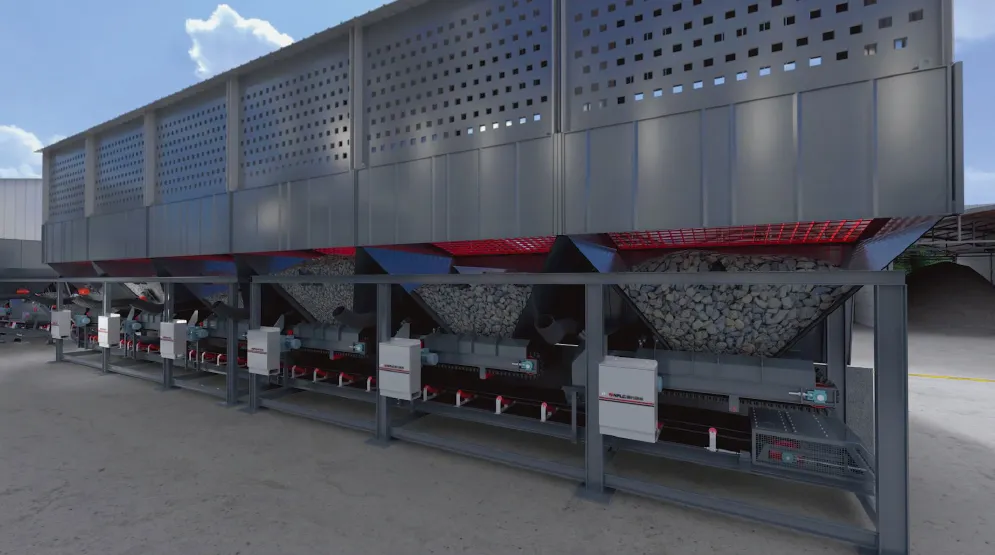

1. Belt feeder utilizes frequency conversion control for precise speed adjustment.
2. Sand bin includes internal vibration arch-breaking and gas cannon devices.
3. Sound and light alarm system for material shortage detection.
4. Top protective grid prevents oversized debris entry.

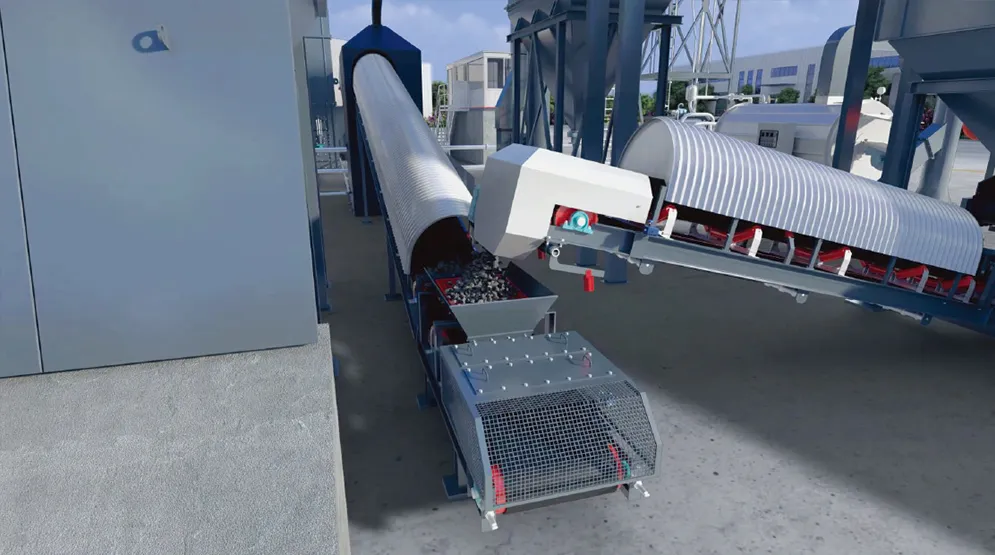

1. Patented interchangeable friction plate for swift drum replacement.
2. Polyurethane wear-resistant belt cleaner with modular design.
3. Manual emergency pull switch and alarm for maximum safety.
4. Screening mechanism on inclined conveyor blocks oversized materials.

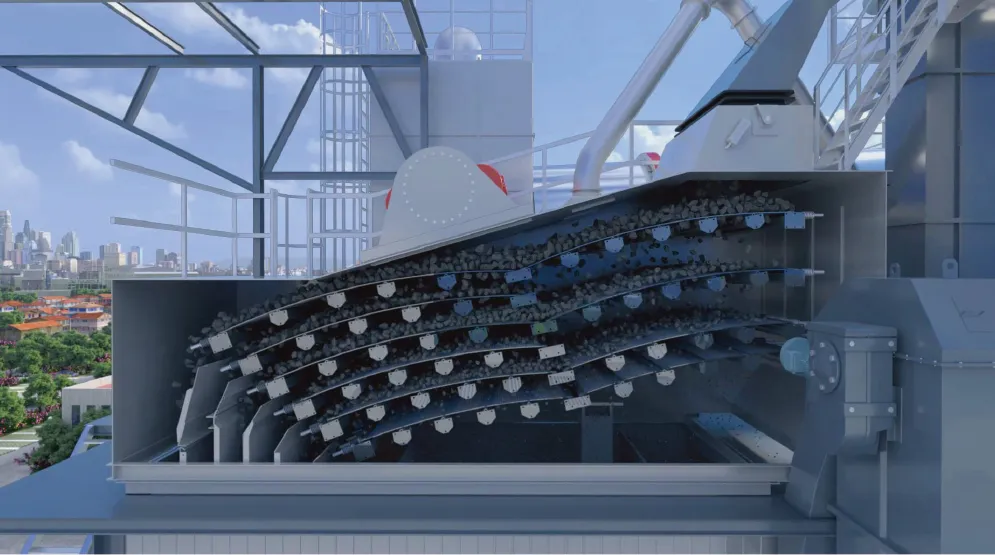

1. Shell enveloped in thermal insulation rock wool for noise reduction.
2. Driven by maintenance-free high-efficiency vibration motors.
3. ≥95% screening efficiency with user-friendly tensioning identifiers.

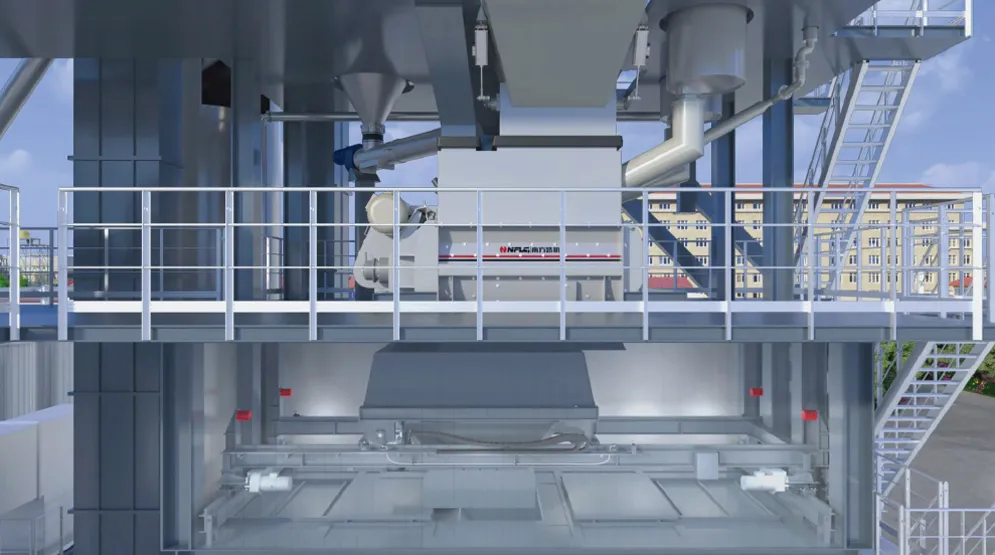

1. Flexible synchronous drive for unmatched mixing efficiency.
2. Intermittent screw arrangement for intensive three-dimensional mixing.
3. Sweden's AB BRUZAHOLMSBRUK wear-resistant paddles and liners.
4. Supports additions like RAP, wood fiber, and foamed bitumen.

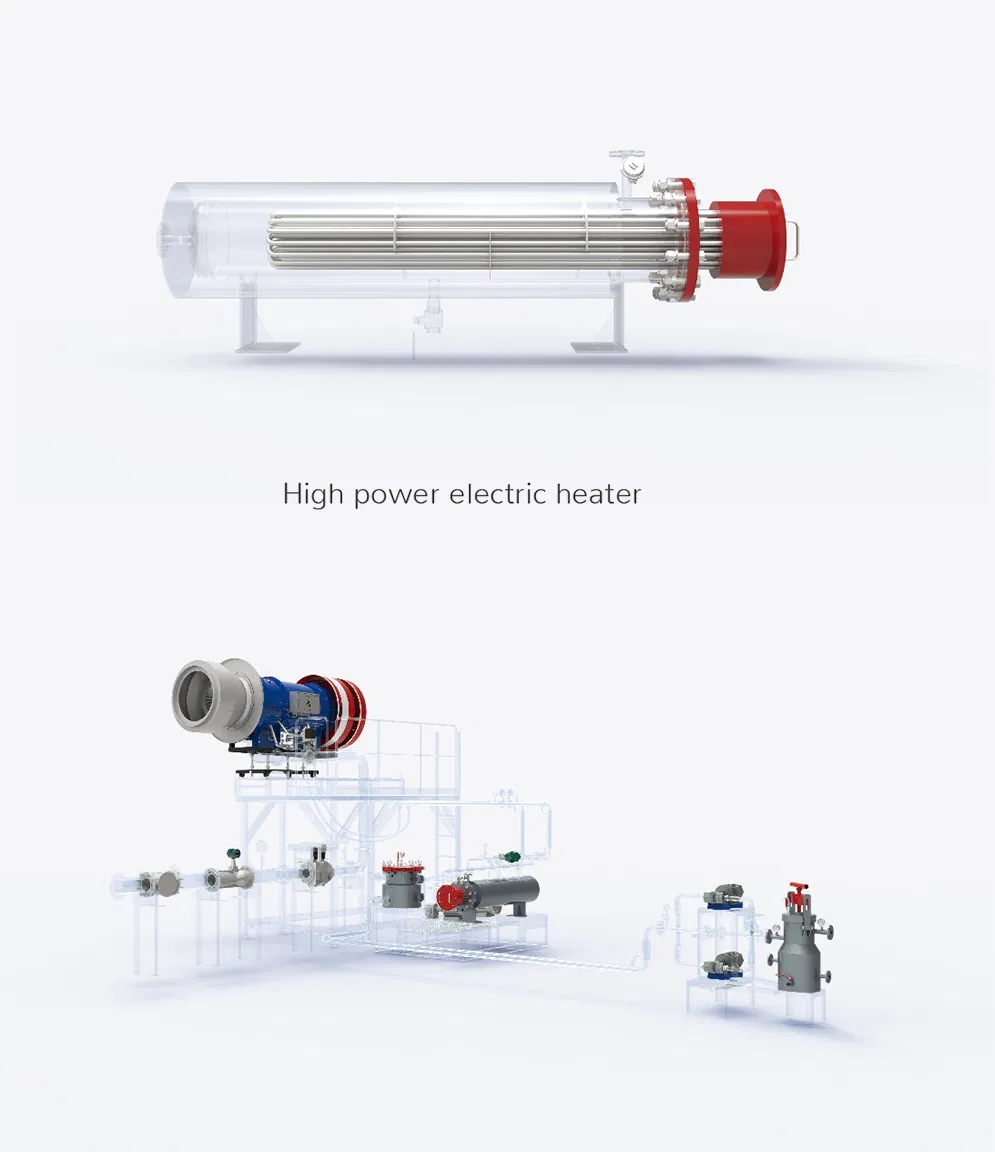

Leveraging a decade of R&D, our system intuitively adjusts combustion modes to suit diverse oil types. Features patented aggregate temperature measurement and one-button operation for maximum efficiency and minimal emissions.
