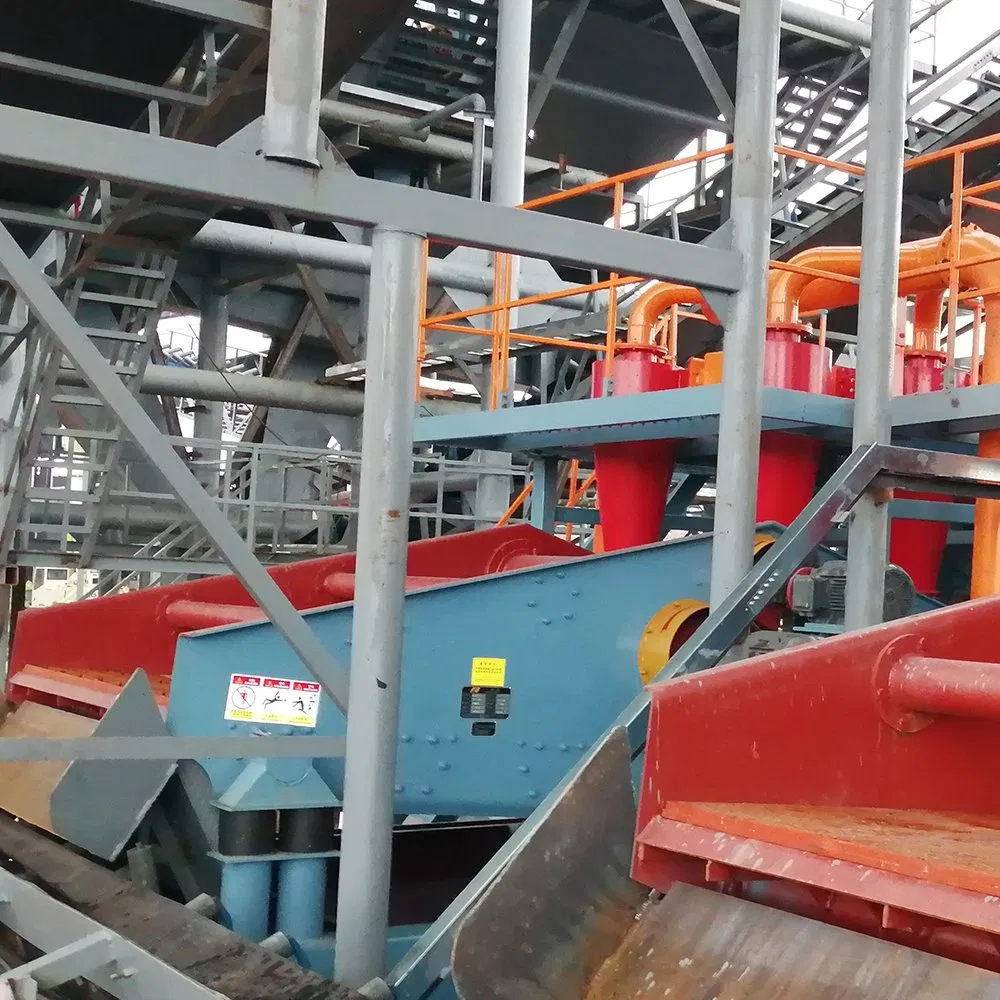

Integrated Cyclone Dewatering System for Mineral Processing Plants

Our integrated cyclone-dewatering screen system combines a high-efficiency hydrocyclone with a robust dewatering screen and a powerful slurry pump. It is widely used in industries such as sand processing, mining, aggregate production, coal preparation, and mineral beneficiation, where recovery of fine materials and water removal is essential.

• Integrated System: Compact design combining pump, cyclone, and dewatering screen to reduce footprint and simplify operation.
• Safe and Easy Maintenance: Built-in maintenance platform ensures secure, convenient, and easy maintenance.
• High Efficiency: Effectively performs dewatering, desliming, and recovery of coarse, medium, and fine sand from the material.
• Low Maintenance: Robust construction, well-known motors, and wear-resistant components guarantee long-term reliability.
• Customizable: Cyclone size, screen deck type, motor power, and flow capacity can be tailored to your process needs.

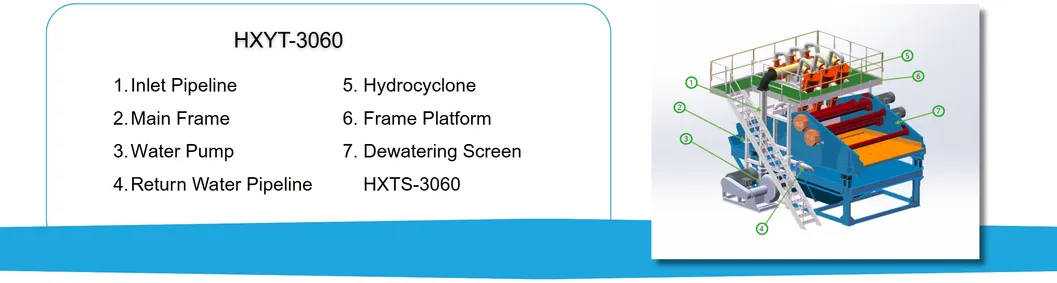

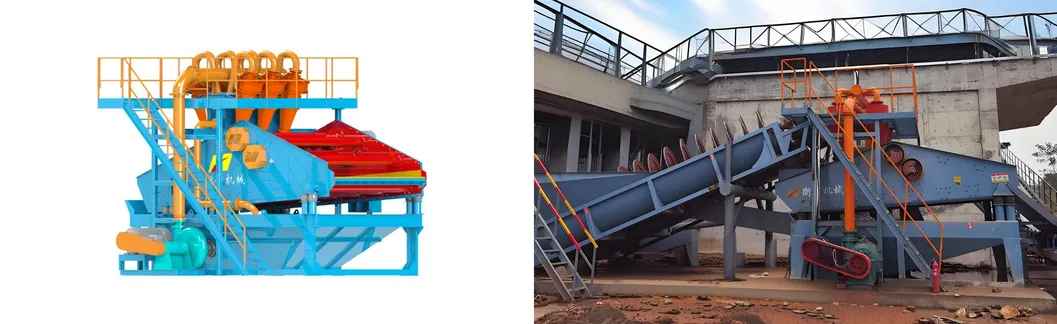

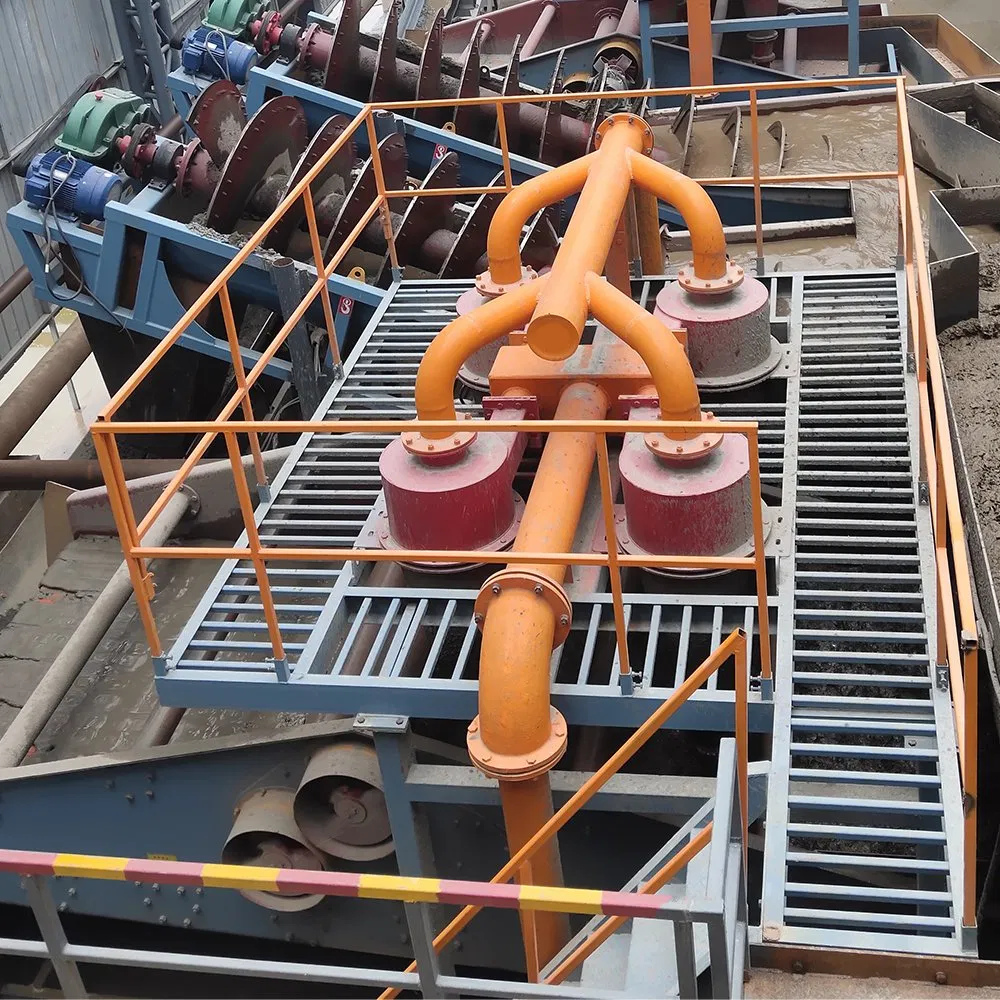

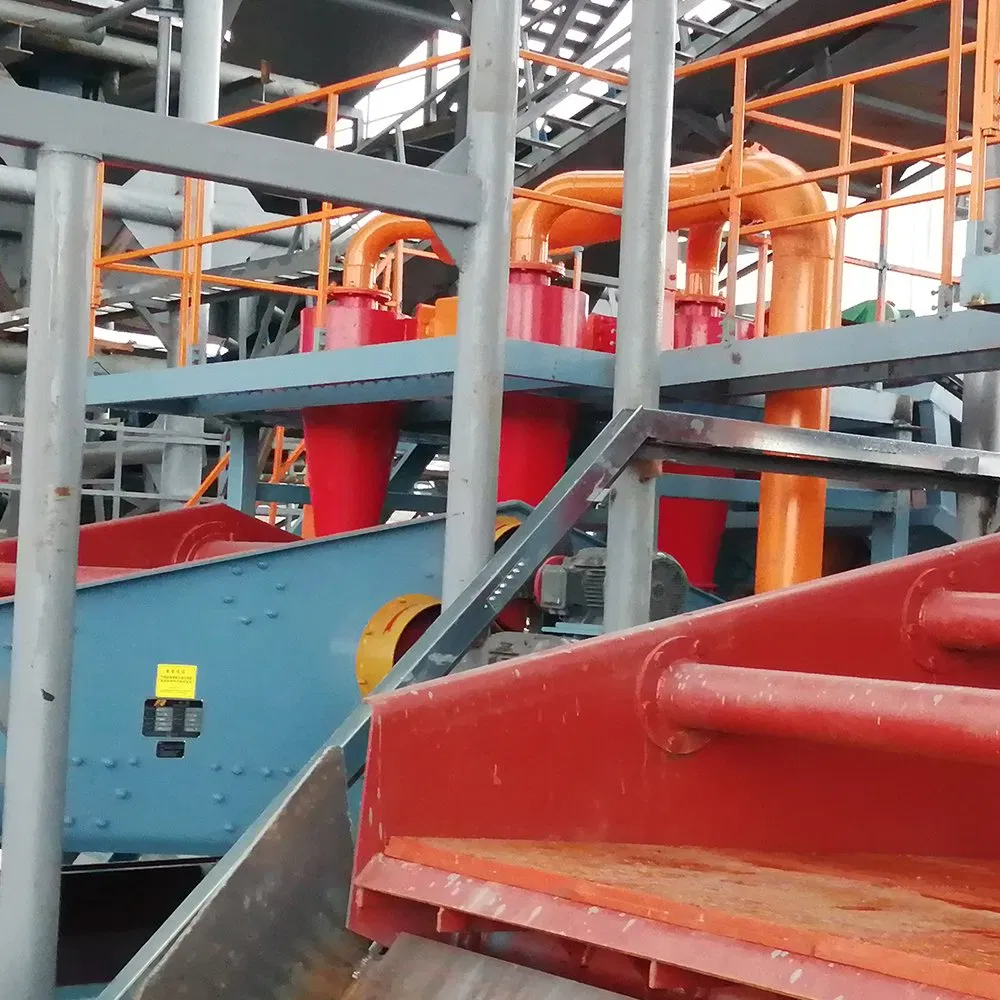

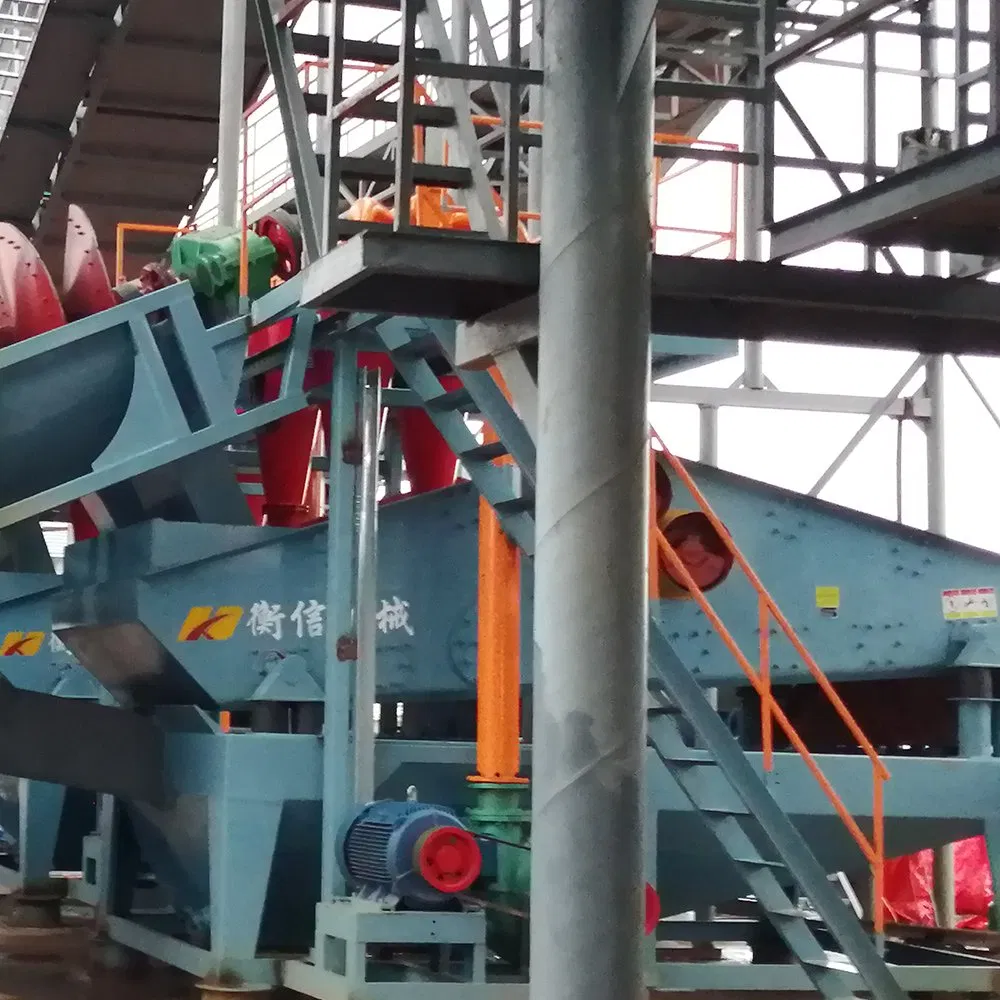

The system combines a cyclone cluster, a dewatering screen, and a slurry pump. The sand-water mixture enters the screen box, where coarse and medium sand settle. Fine particles overflow into a water tank and are pumped into the cyclone for centrifugal separation. Recovered fine sand is discharged through the underflow nozzle and evenly distributed onto the screen for final dewatering. This ensures high recovery efficiency and improved product quality.

* Note: This table shows partial models. Customized solutions are available based on your specific requirements.

We are a trusted Mining Machinery Manufacturer and System Solution Provider, integrating R&D, design, manufacturing, and sales. We specialize in Integrated System Solutions, Turnkey Services, and EPC Services for sand and aggregate production.

Our complete set of equipment includes vibrating screens, dewatering screens, crushers, sand washers, feeders, conveyors, and fine sand recovery systems. Occupying over 10,000 square meters, our workshops are equipped with advanced production facilities to ensure strict quality control.
