Lbk2000 160t/H Mini Quick-Install Asphalt Mixing Equipment

Customization:	Available
After-sales Service:	Engineers Available to Service Machinery Overseas
Application Area:	Building Construction

Send Inquiry

Product Description

Basic Specifications

Model NO.LBK2000

Capacity15m³/h & Above

CertificationCCC, CE, GOST, ISO

ConditionNew

Main MaterialAlloy Steel, Aluminum, Carbon Steel, Cast Iron

Power SourceDiesel

Stirring TypeDiving

Warranty1 year

Product Description

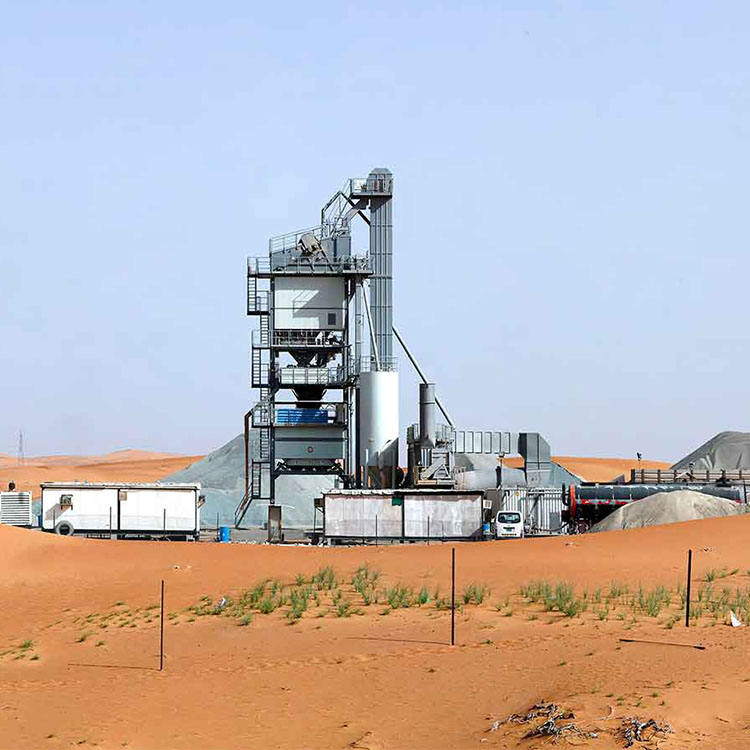

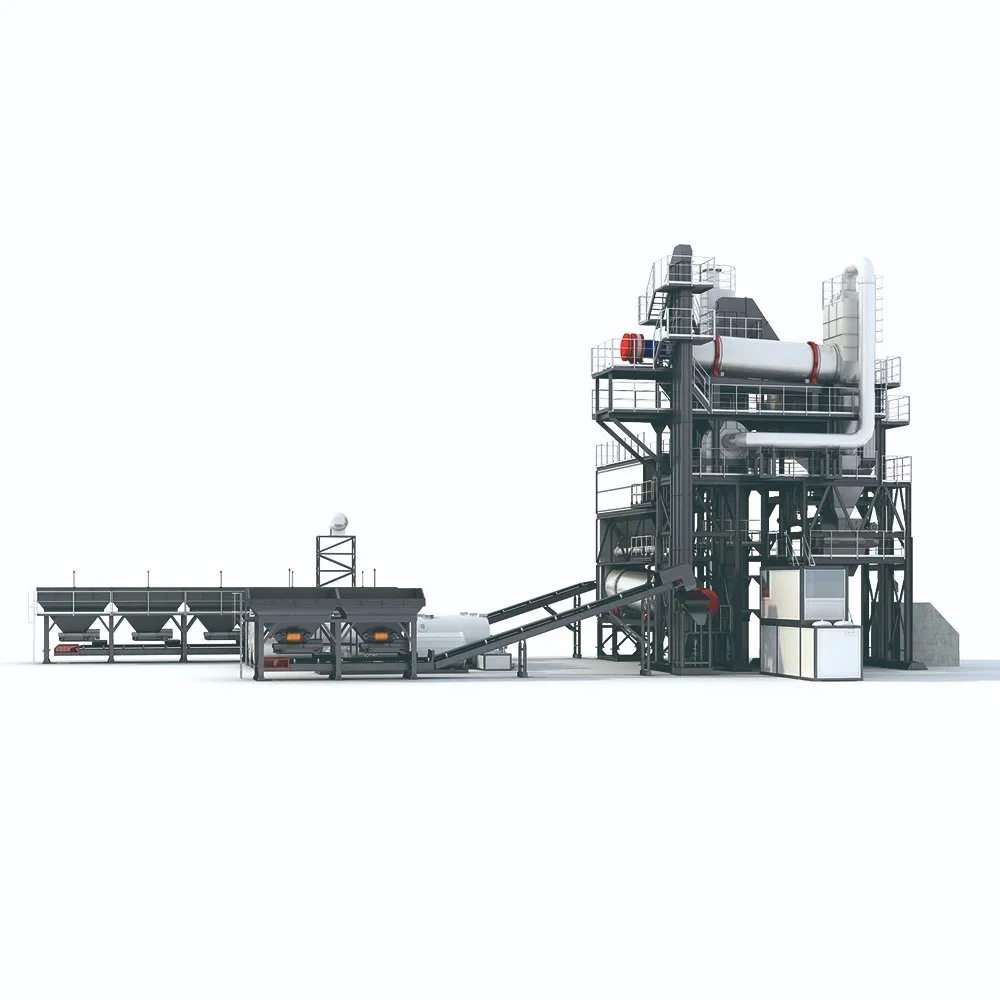

LBK2000 160T/H Mini Quick-install Asphalt Mixing Equipment

Model	LBG1500	LBG2000	LBG3000	LBG4000	LBG5000
Cold silo (Qty × Capacity)	4×10m³	5×15m³	5×20m³	6×20m³	6×20m³
Drum Size (D × L)	1.8m×7.5m	2.25m×9m	2.5m×10m	2.8m×11m	2.9m×12.5m
Max Drying Capacity	120t/h	160t/h	240t/h	320t/h	400t/h
Fuel Options	Light Oil / Heavy Oil / Natural Gas (Optional)
Dust Removal	First-level gravity dust removal + second-stage bag dust removal
Host Capacity	1.5t	2t	3t	4t	5t
Stirring Method	Horizontal double-shaft forced stirring
Rated Output	120t/h	160t/h	240t/h	320t/h	400t/h

★

Key Technical Features

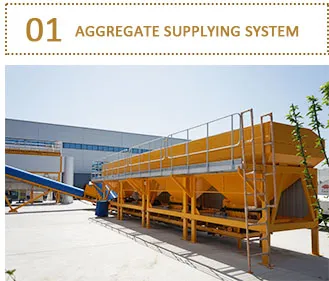

Protective plates on both sides of the aggregate hoppers to avoid sundries getting into the aggregates.
Vibrators equipped below each hopper to ensure smoother material supply.
Grid plates at the top of hoppers buffer shock and screen oversize aggregates.
Dustproof covers on conveying belts to significantly reduce dust emission.
Integrated belt cleaners and pinch rollers for accurate supplying and extended durability.

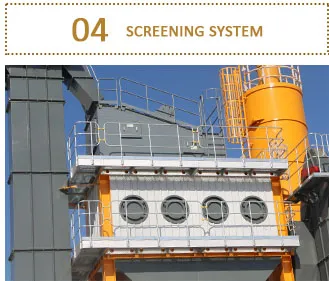

Intermediate vibrating screens to further refine aggregate sizing.
Advanced insufficient material alarm system for safe and uninterrupted production.

Equipment Gallery

Production Facility

Frequently Asked Questions

Q1: What is the rated output of the LBK2000 model? The LBK2000 model features a rated output of 160t/h with a maximum drying capacity of 160t/h at 5% moisture content.

Q2: Which fuel types can be used for the burner? The system is versatile and supports Light Oil, Heavy Oil, and Natural Gas as optional fuel sources.

Q3: What kind of dust removal system is installed? It utilizes a highly efficient two-stage system consisting of first-level gravity dust removal followed by a second-stage bag dust removal process.

Q4: What are the main materials used in construction? The equipment is built using high-durability materials including Alloy Steel, Aluminum, Carbon Steel, and Cast Iron.

Q5: Does the equipment include safety protection features? Yes, it includes Anti-Slip Feet, Emergency Stop Buttons, Overload Protection, Safety Locks, and Splash Guards for operator safety.

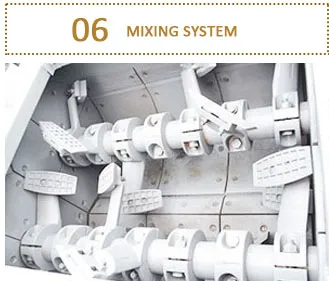

Q6: How does the mixing system operate? The equipment uses a horizontal double-shaft forced stirring method, ensuring a uniform and high-quality asphalt mix.
