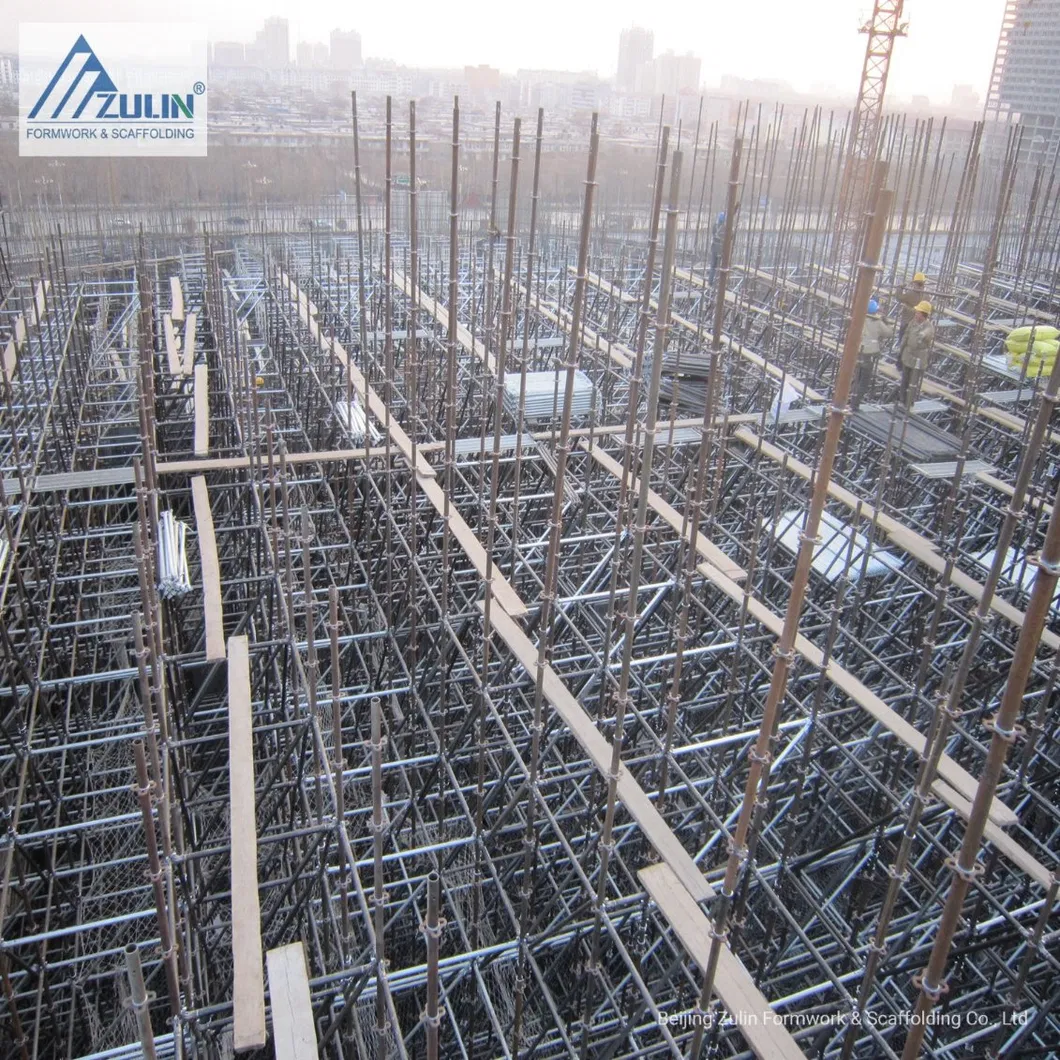

Ring-lock scaffolding is a premier support system for construction, combining the advantages of both cup-lock scaffolding and shoring towers. Representing the future of scaffolding technology, it is available in two main series: 48mm and 60mm diameter standards. The 60mm series is versatile enough to be used as stair towers when equipped with staircases. With adjustable screw jack heads and feet, this system offers exceptional stability, high bearing capacity, and ease of assembly.

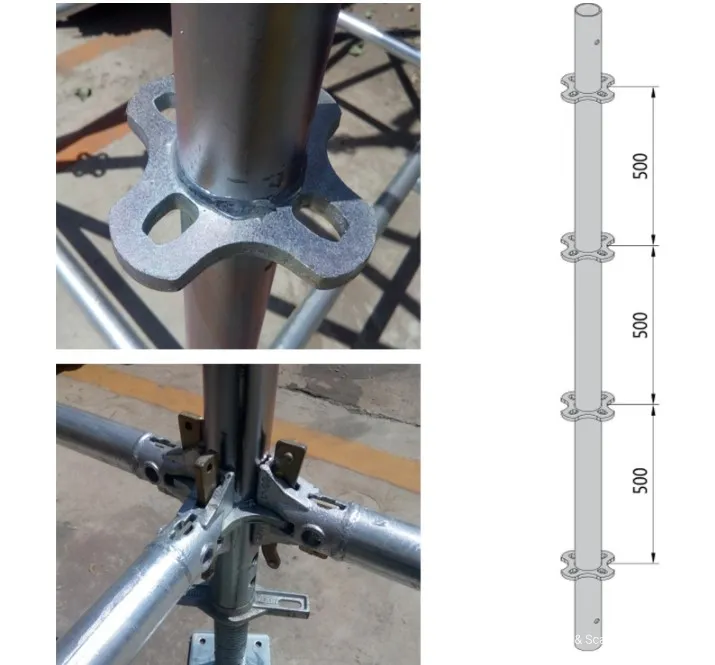

The system features Rosette nodes welded every 500mm on the standard, allowing for secure ledger connections in four directions.

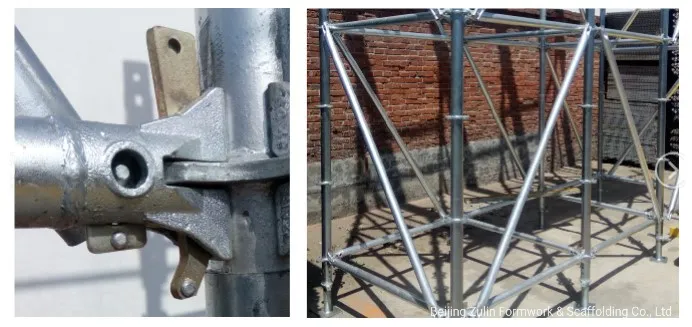

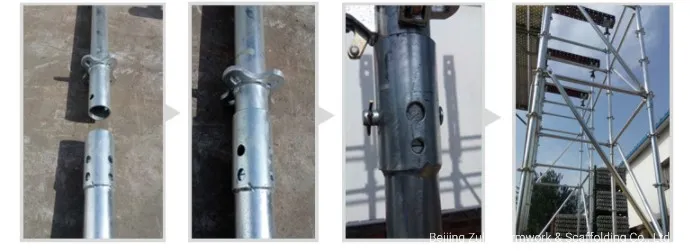

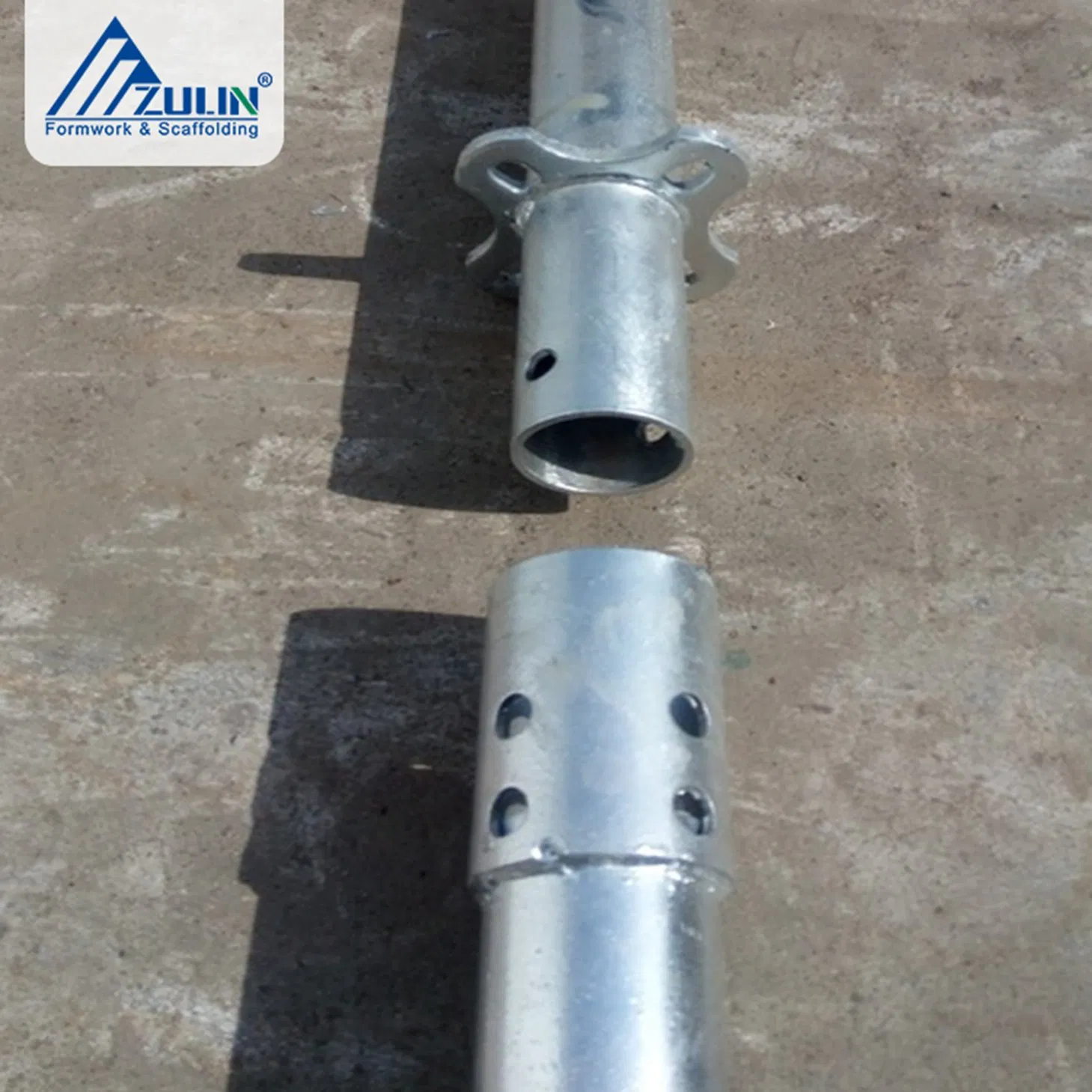

Vertical connection is seamless, where one end of the standard inserts into another. Horizontal connections utilize connectors with integrated inverted pins, ensuring a firm grip on the Rosette node while preventing the loss of small parts.

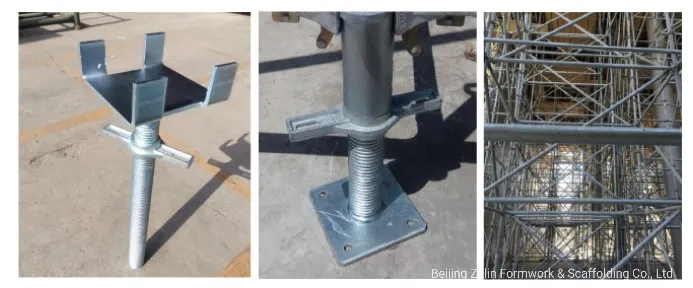

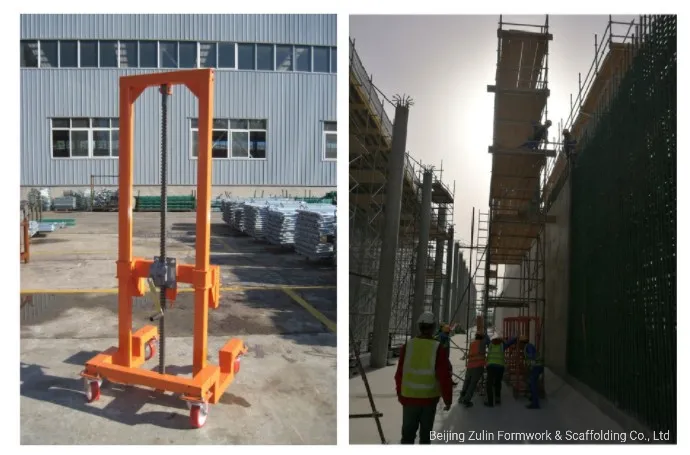

The system's diverse assembly options meet the requirements of various complex structures. A specialized shifting trolley allows the entire assembled scaffold to be moved as a single unit, significantly improving efficiency.
| Name | Diameter (mm) | Length (mm) | Thickness (mm) |
|---|---|---|---|
| Ledger (42) | 42 | 600~3000 | 3 / 2.5 |
| Standard (48) | 48 | 500~3000 | 3 / 3.25 |
| Diagonal Brace (42) | 42 | 1200*1500~3000*2000 | 3 / 2.5 |
| Screw jack head/foot (48) | - | 600~900 | - |
| Ledger (48) | 48 | 600~3000 | 3 |
| Standard (60) | 60 | 500~3000 | 3.25 |
| Diagonal Brace (48) | 48 | 1200*1500~2400*2500 | 3 |
| Screw jack head/foot (60) | - | 600~1200 | - |
