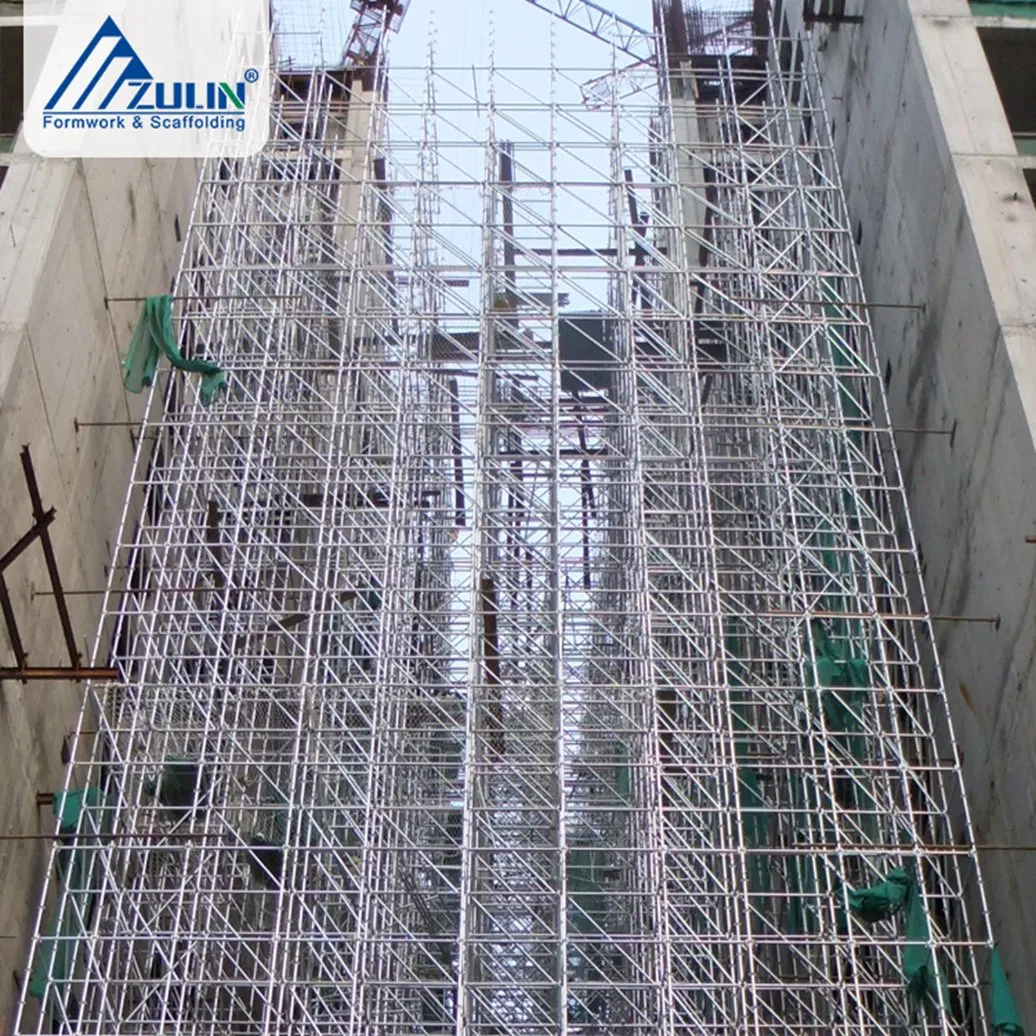

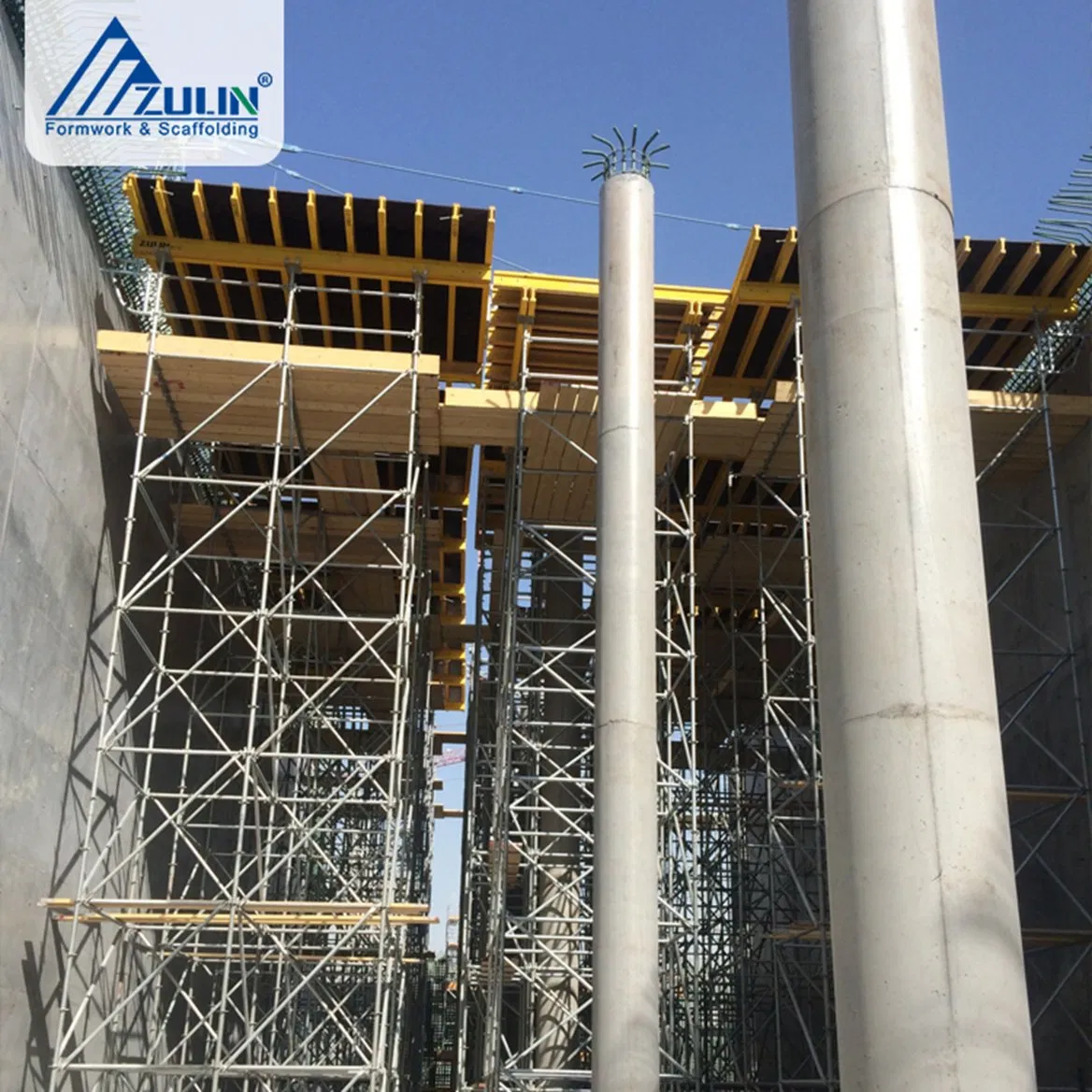

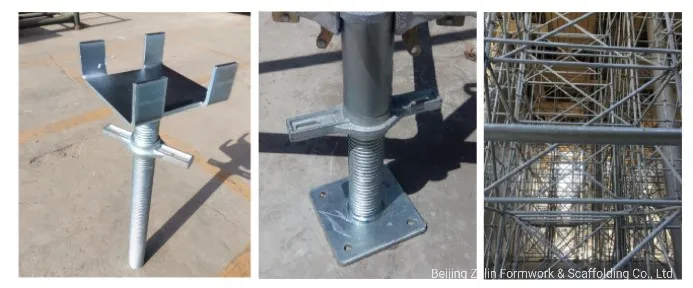

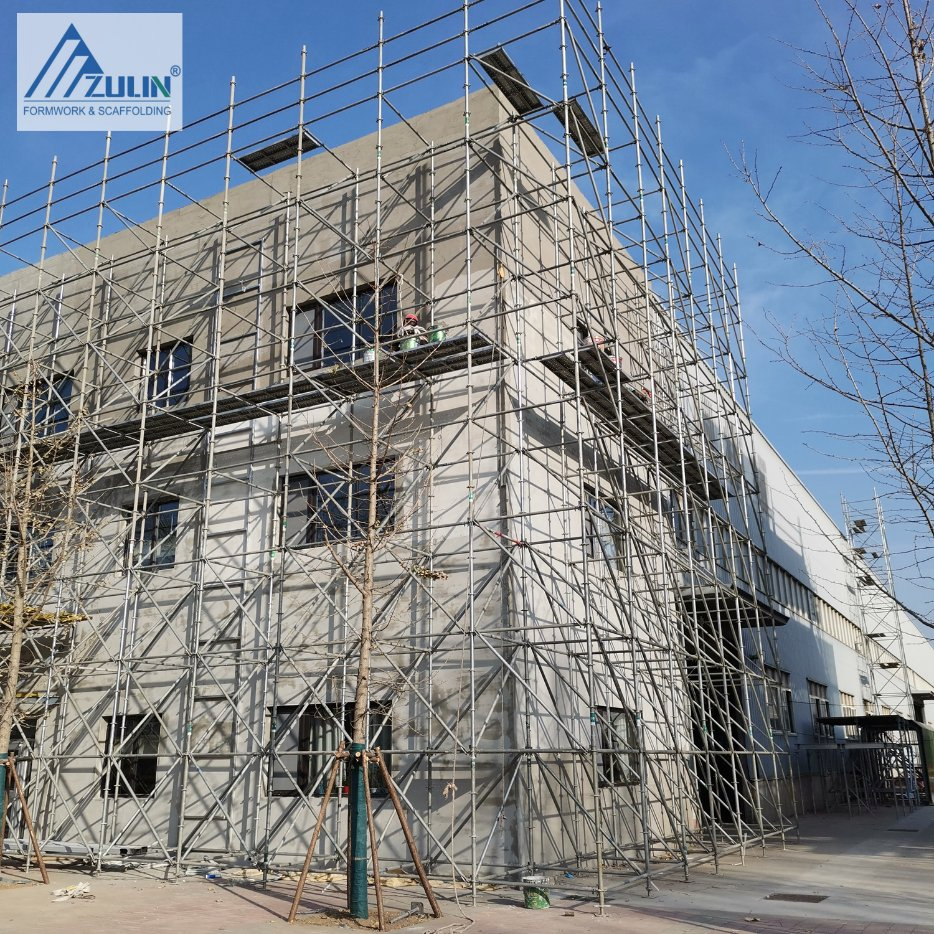

Ring-lock scaffolding is a premier support system for construction, combining the advantages of cup-lock scaffolding and shoring towers. It represents the new direction in scaffolding development. Divided into 48mm and 60mm series, the 60mm series can also be equipped with staircases for use as stair towers. The system features adjustable screw jack heads and feet, offering excellent stability and high load-bearing capacity.

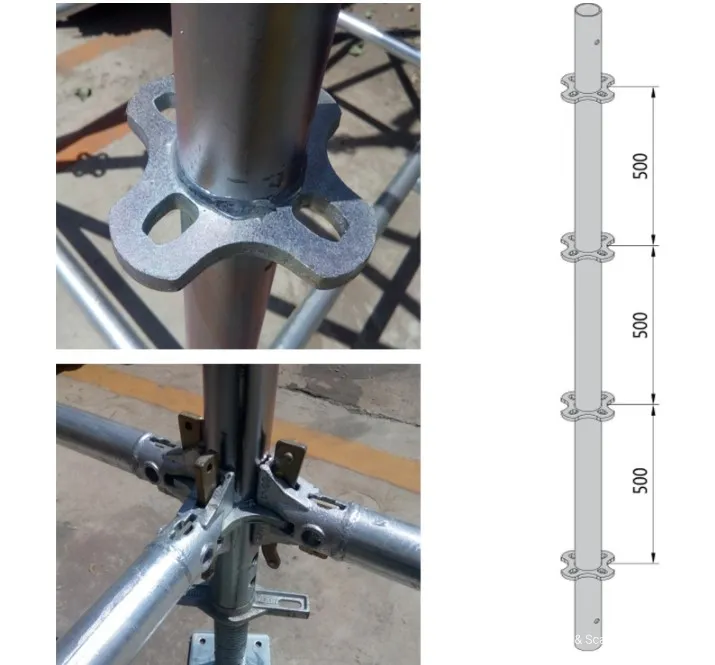

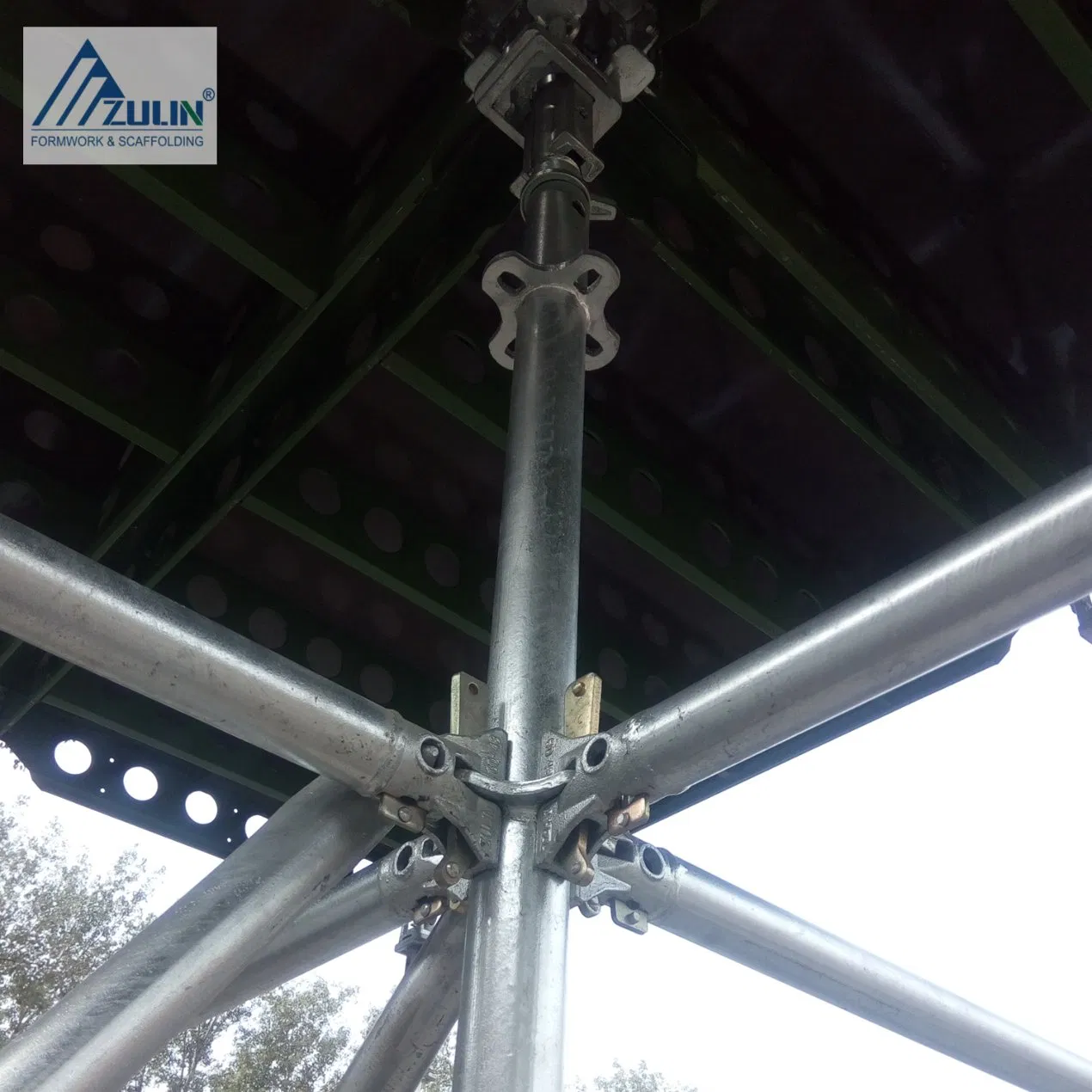

A Rosette node is welded on the standard every 500mm, allowing for ledger connections in four directions with maximum flexibility.

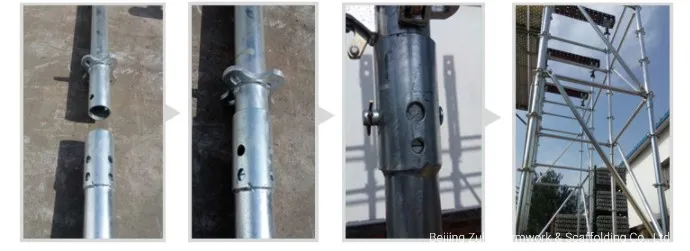

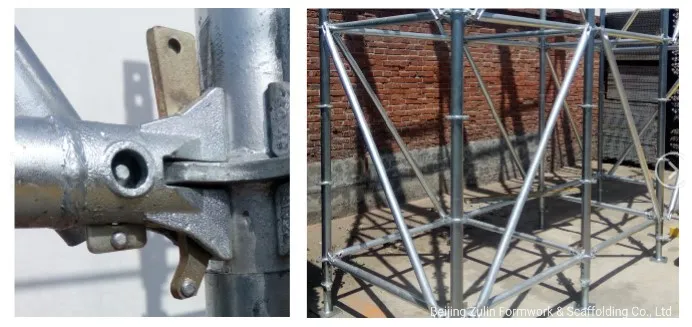

Standards are designed for easy insertion for vertical extension. For horizontal connection, each ledger features two integrated connectors with pins, preventing the loss of small parts and ensuring a firm, secure link.

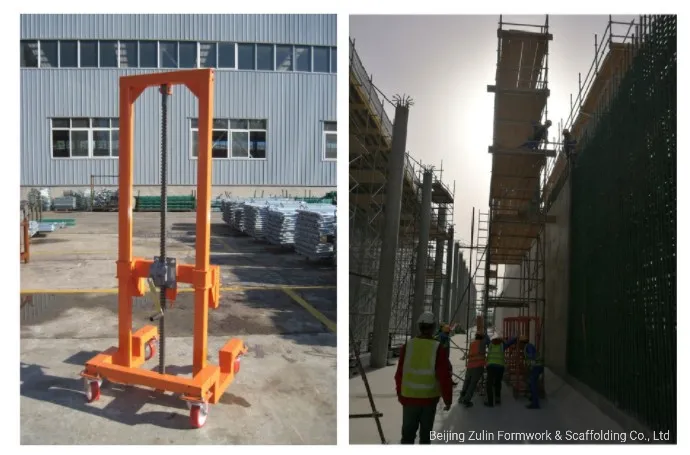

The system's diverse assembly options meet the requirements of complex structures. Shifting trolleys allow the assembled scaffolding to be moved as a single unit, significantly improving efficiency.
| Name | Diameter (mm) | Length (mm) | Thickness (mm) |
|---|---|---|---|
| Ledger (42) | 42 | 600~3000 | 3 / 2.5 |
| Standard (48) | 48 | 500~3000 | 3 / 3.25 |
| Diagonal Brace (42) | 42 | 1200*1500~3000*2000 | 3 / 2.5 |
| Screw Jack Head (48) | - | 600~900 | - |
| Ledger (48) | 48 | 600~3000 | 3 |
| Standard (60) | 60 | 500~3000 | 3.25 |
