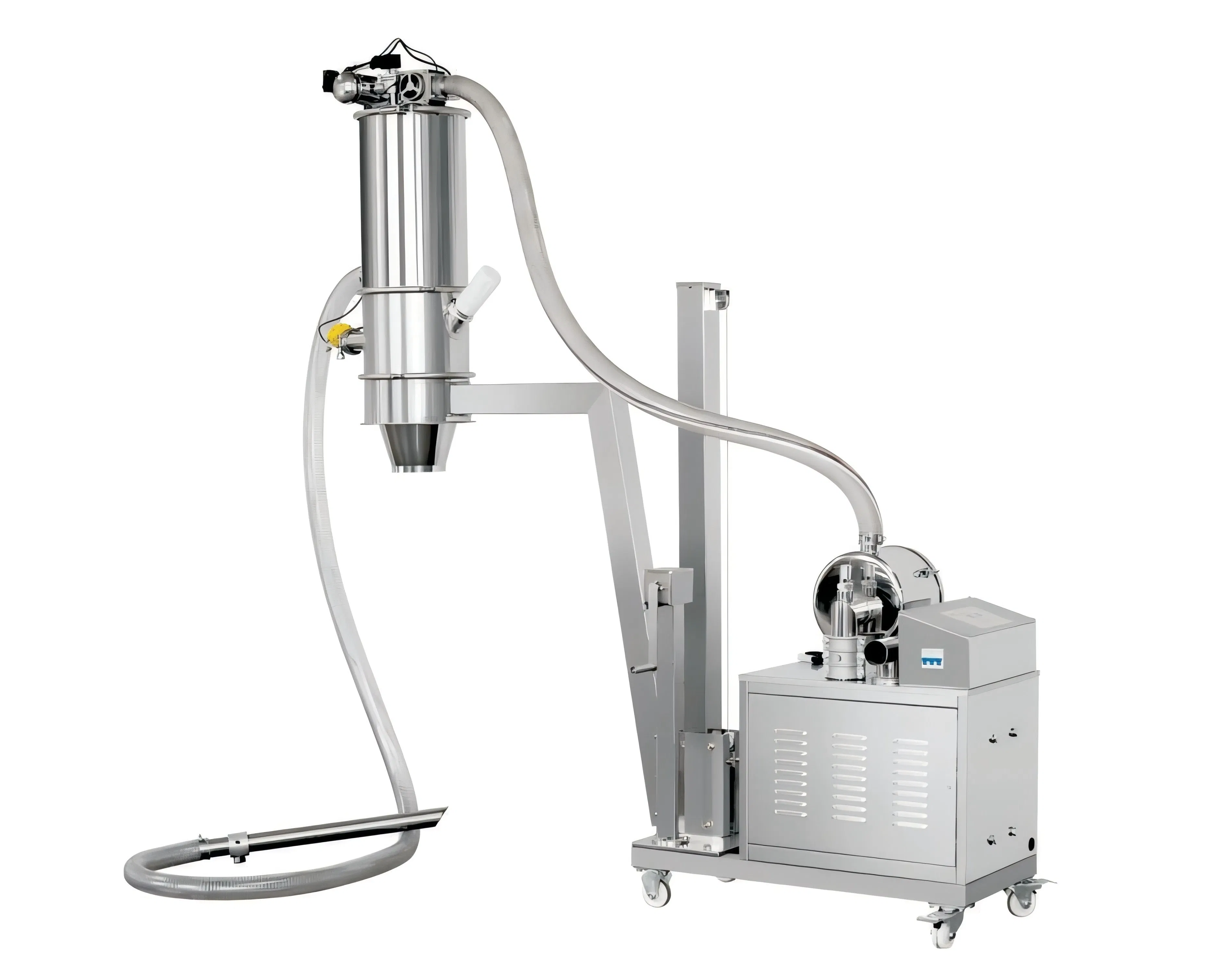

Advanced High-Efficiency Pneumatic Vacuum Conveying System for Bulk Materials

Customization:	Available
Capacity(t/h):	400-600
Control System:	Fully Automatic Control

🔹 Basic Info.

Model NO.

QVC

Conveying Distance

100 meters

Motor Power(kw)

Pneumatic

Usage

Building Materials, Chemical, Metallurgy, etc.

Safety Protection

Anti-Explosion/Defense

Blanking Method

Continuous/Intermittent

Power Source

Compressed Air

Production Capacity

10kg-20000kg

🔹 Product Description

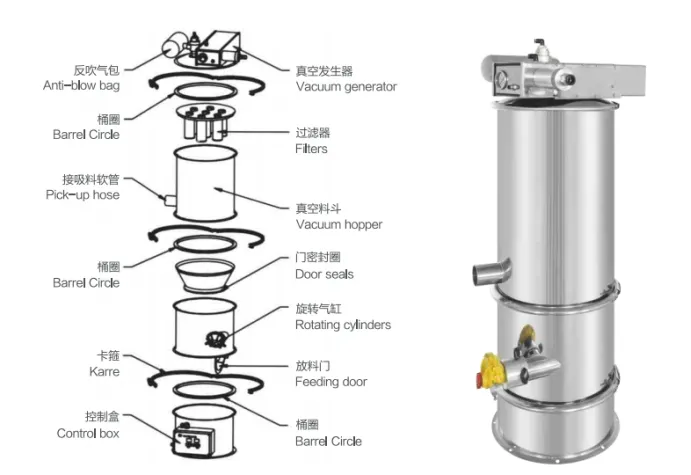

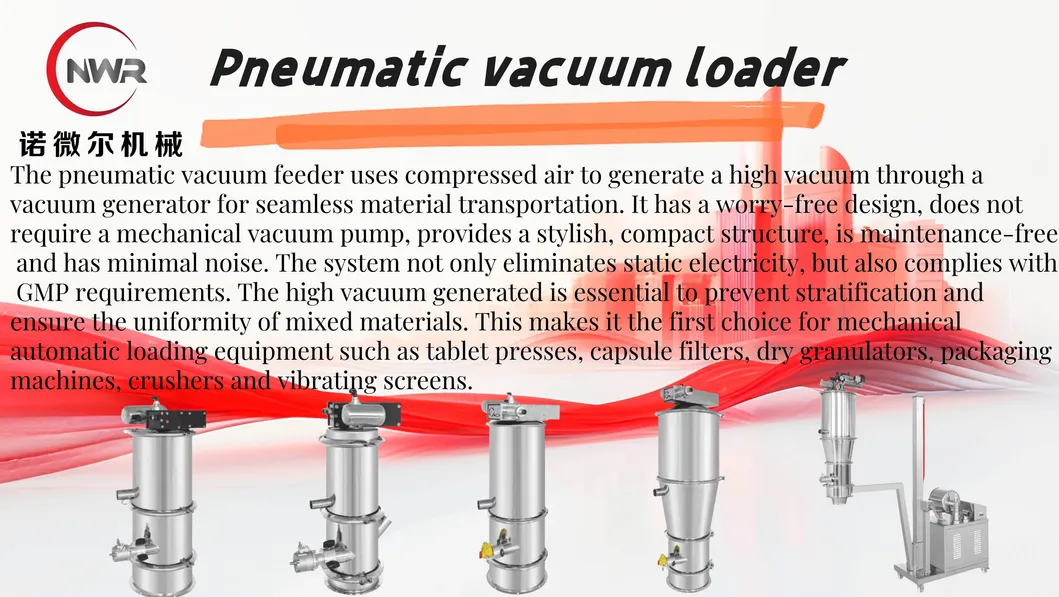

Upon supplying compressed air to the vacuum generator, a robust vacuum air is generated under negative pressure, effortlessly drawing materials into the suction, forming a continuous air flow that traverses the suction cake to reach the charging machine's silo. Here, an impeccable separation of material and air occurs. Once the material is retained, the sophisticated controller intuitively halts the air source, ceasing the vacuum generator's operation.

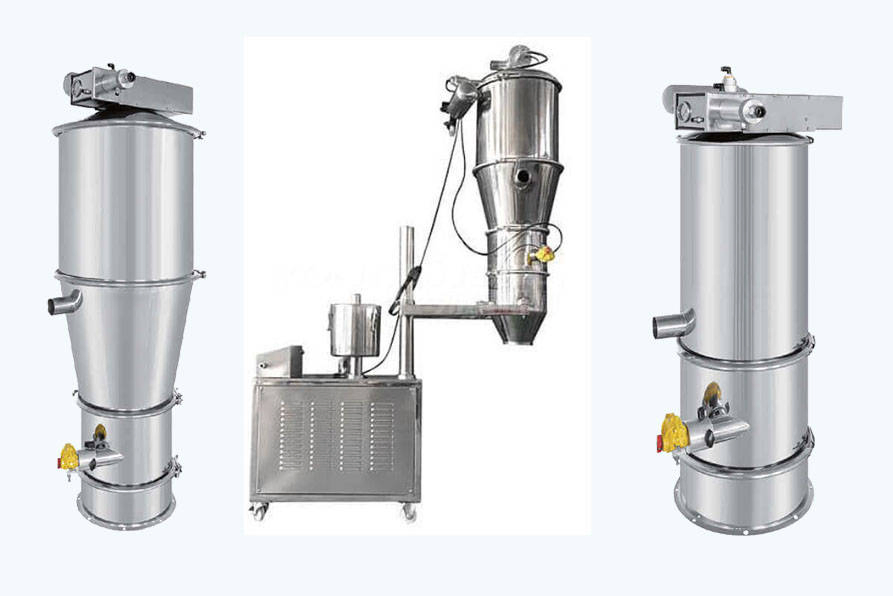

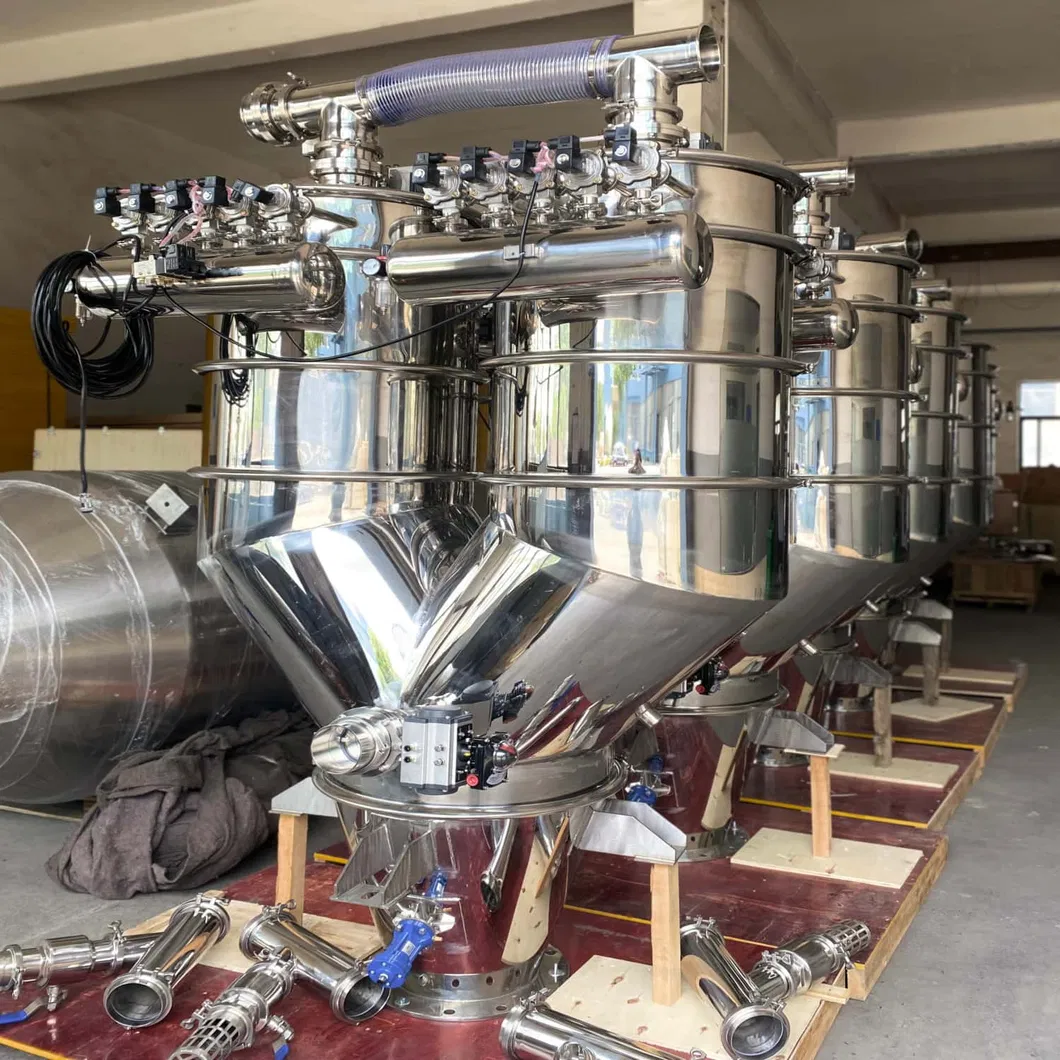

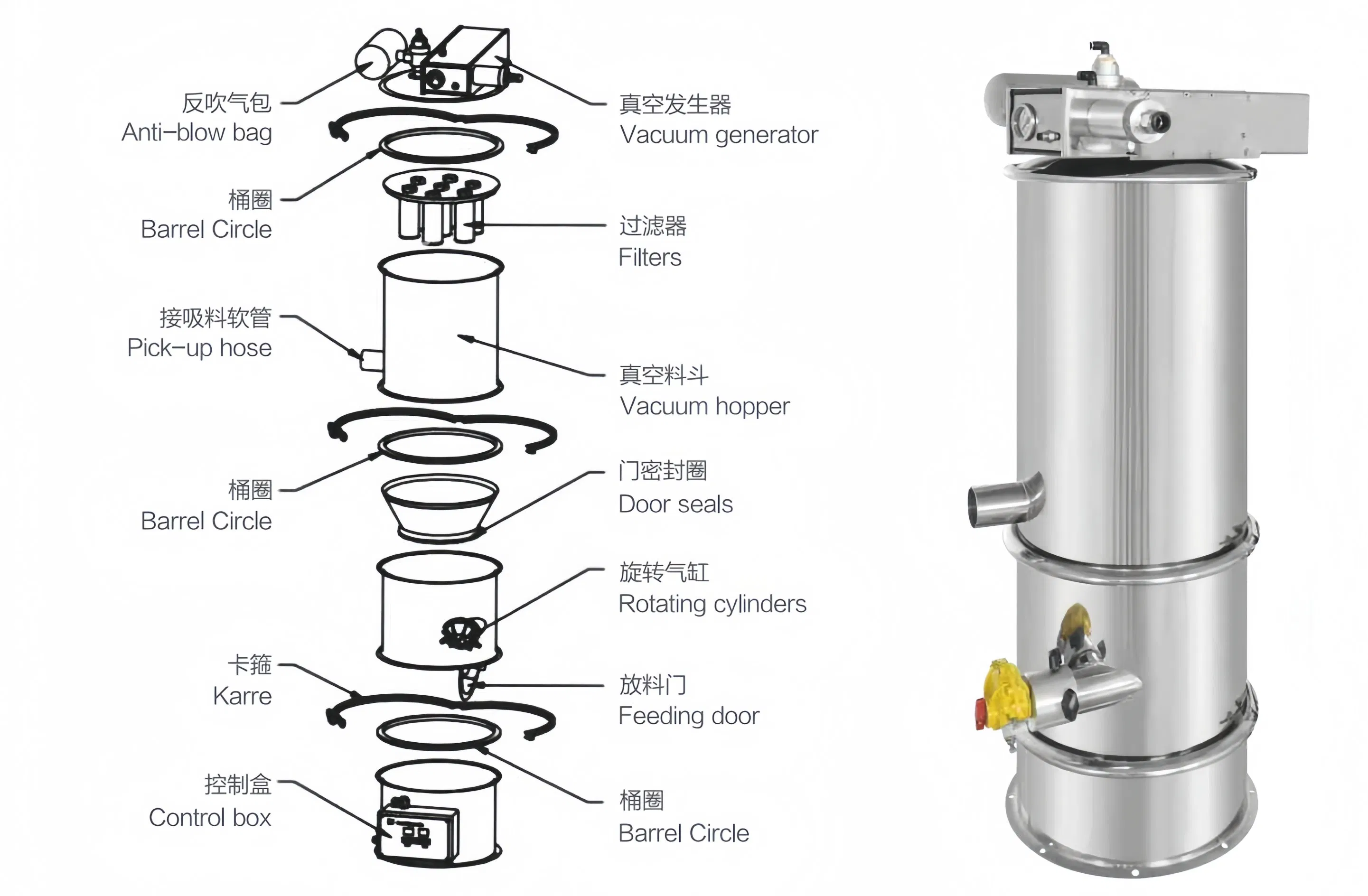

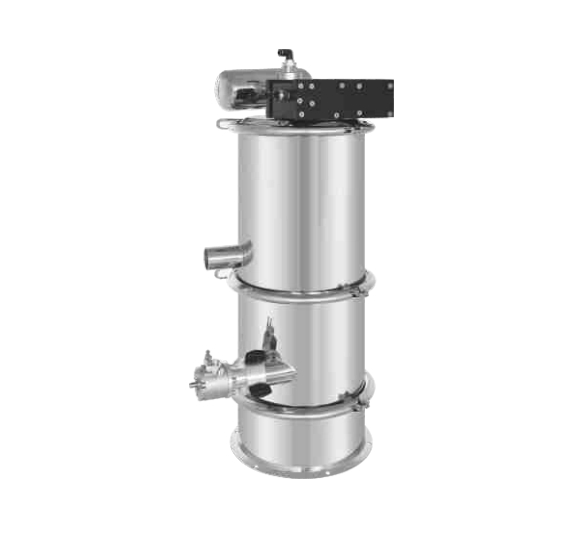

🔹 Detailed Photos

🔹 Product Parameters

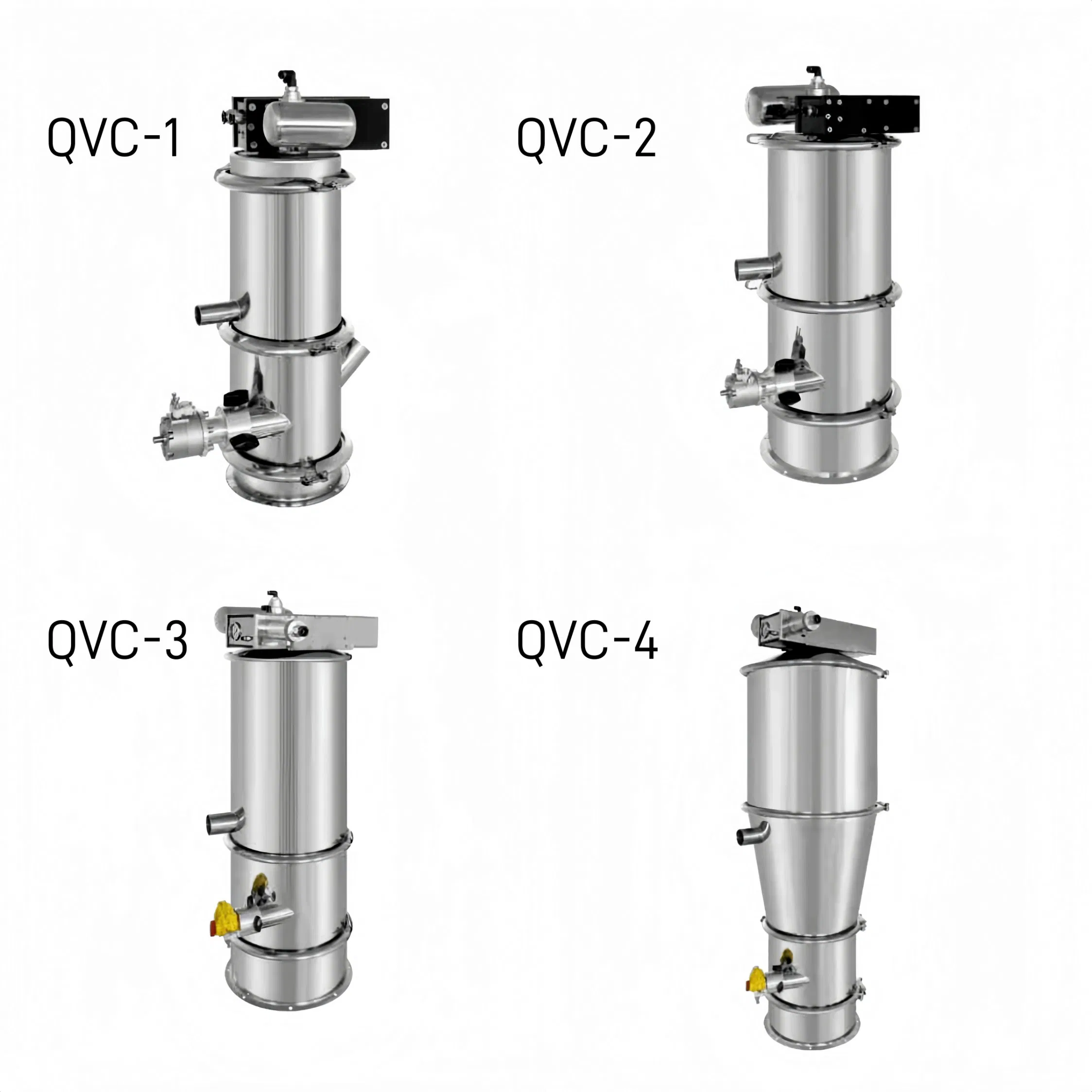

Model number	QVC-1	QVC-2	QVC-3	QVC-4
Hourly throughput(kg/h)	50-300	100-700	300-1500	600-3000
Bin volume(L)	1.1L	6L	12L	42L
Working pressure(Mpa)	0.4-0.6	0.4-0.6	0.4-0.6	0.4-0.6
Air consumption(L/min)	180	360	720	1440

🔹 Professional Manufacturer Profile

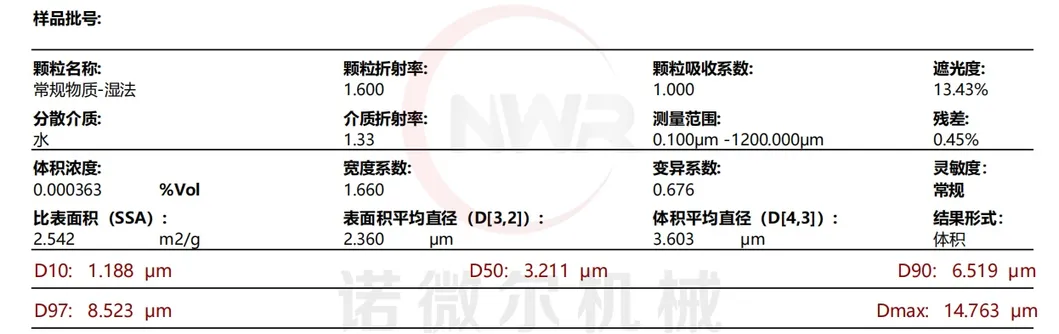

We are a dynamic and innovative technical enterprise that seamlessly integrates research and development, design, production, and professional sales. Renowned for our expertise, we specialize in the crafting and distribution of advanced machinery including air mills, mechanical mills, ultrafine mills, and vacuum conveying systems. Our technology stands at the forefront of the industry, achieving classification precision of D100 < 5 microns.

Our mission is a steadfast commitment to pioneering the future of material technology and cutting-edge particle handling techniques. Our equipment proudly meets GMP, C-GMP, and FDA certification standards, ensuring compliance and excellence in diverse fields such as medicine, food, fine chemicals, and minerals.

🔹 Our Advantages

We boast a professional experimental team, a cutting-edge design team, and a highly skilled production team. We take pride in crafting the most outstanding selection scheme that aligns with your requirements, maximizing energy efficiency and environmental sustainability.

✔ Specialized in matching different materials to the most suitable pneumatic models.

✔ Meticulous testing before factory departure to guarantee excellence.

✔ Seamless installation and prompt production commencement.

🔹 After Sales Service

1. Small-scale process experiments to identify optimal equipment.

2. Bespoke equipment installation methods based on room drawings.

3. Engineers provide video guidance for installation and operator training.

4. Comprehensive 1-year warranty (excluding wear parts).

5. Lifelong technical support and preferential supply of spare parts.

🔹 Packaging & Shipping

🔹 Frequently Asked Questions

1. How does the pneumatic vacuum conveying system work?

The system uses compressed air to create a negative pressure vacuum. This vacuum draws bulk materials into a suction flow which transports them to a silo or hopper where the air and material are separated.

2. What industries can use this vacuum conveyor?

It is ideal for industries such as Chemical, Food, Medicine, Building Materials, Metallurgy, and Mining where dust-free material handling is required.

3. What is the maximum conveying distance?

The standard system can handle a conveying distance of up to 100 meters, depending on the material properties and model selection.

4. Does the system meet hygienic standards?

Yes, our equipment is designed to meet GMP, C-GMP, and FDA certification standards, making it suitable for pharmaceutical and food-grade applications.

5. Is the equipment explosion-proof?

The system utilizes pneumatic power and features built-in safety protection for anti-explosion and defense, making it safe for volatile environments.

6. What kind of after-sales support is provided?

We provide a 1-year warranty, video-guided installation, technical personnel training, and lifelong supply of spare parts and technical consultation.
