Basic Information
Model NO.:GLS
Material:Carbon Steel
Application:Chemical Industry, Grain Transport, Mining Transport, Power Plant
Condition:New
Main Structure:Chain and Disc
Layout:Cover Small Area
Transport Package:Seaworthy Packing
Specification:Customizable
Origin:China
HS Code:8428391000
Product Description

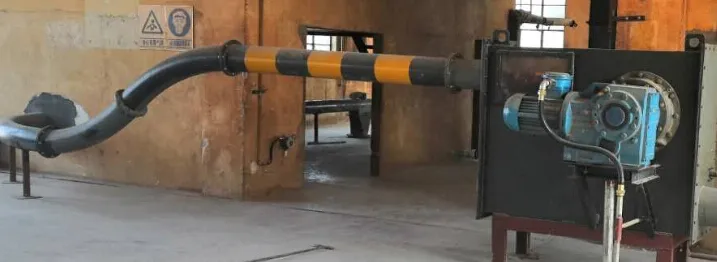

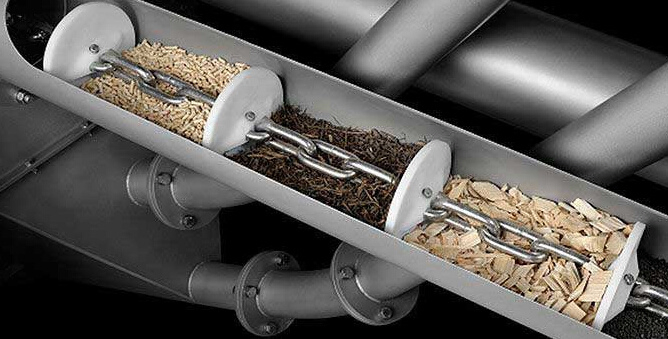

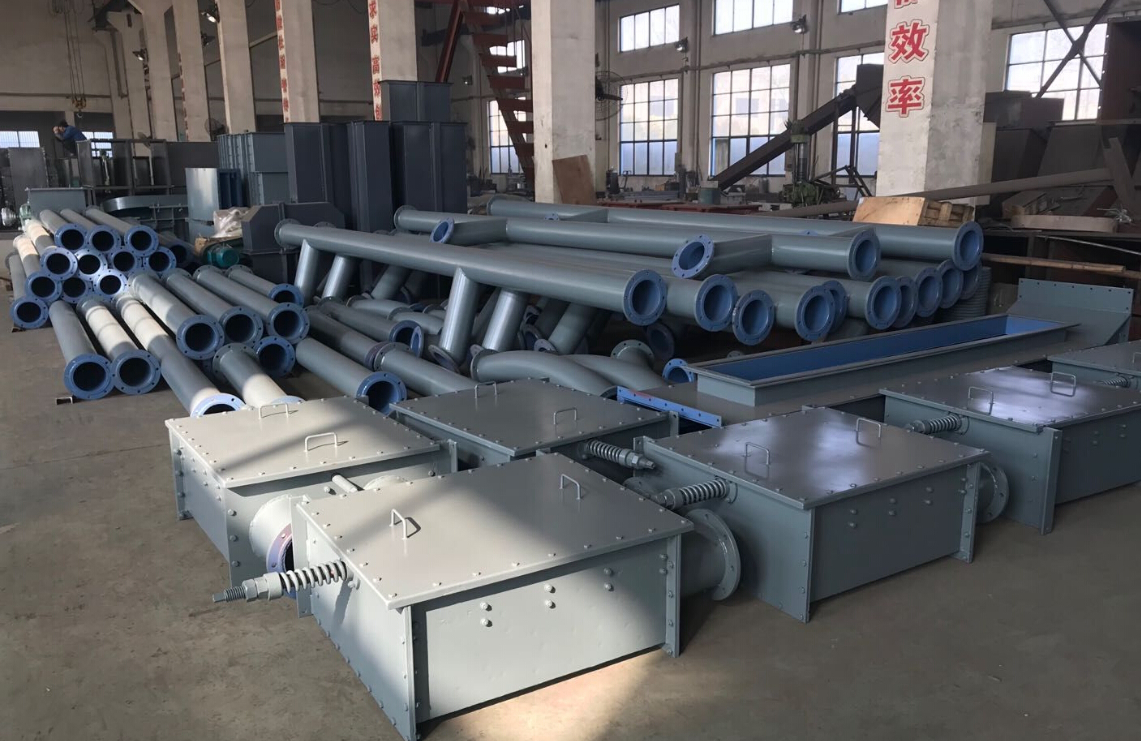

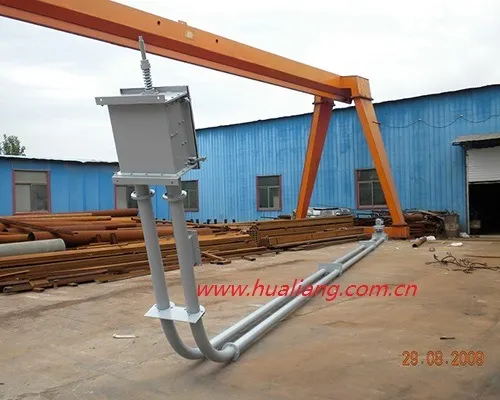

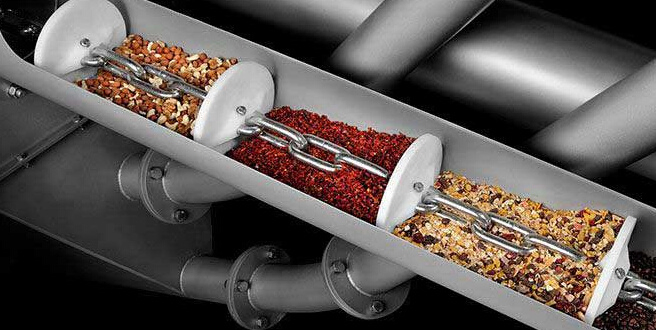

A tube chain conveyor is a continuous conveyor device with flexible driving components. It operates within a sealed, smooth material channel with rectangular or tubular sections. Utilizing the thrust force from the mobile chain disc, it makes the material and chain disc a continuous whole for efficient conveying.

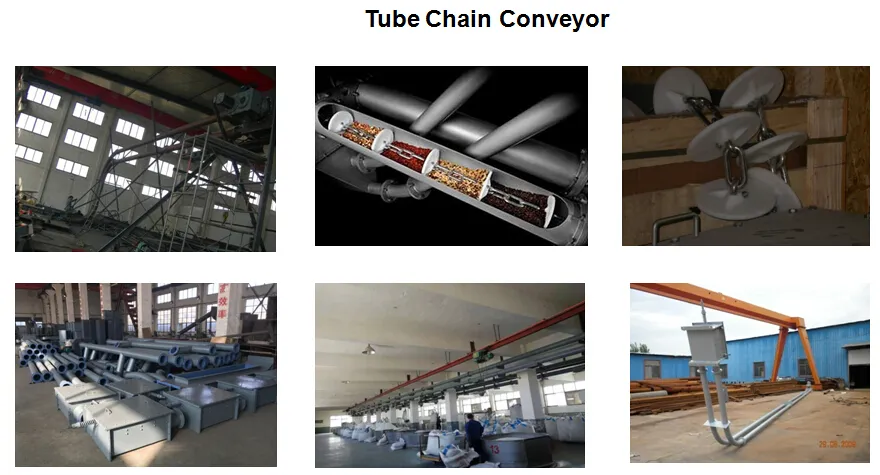

Main Structure

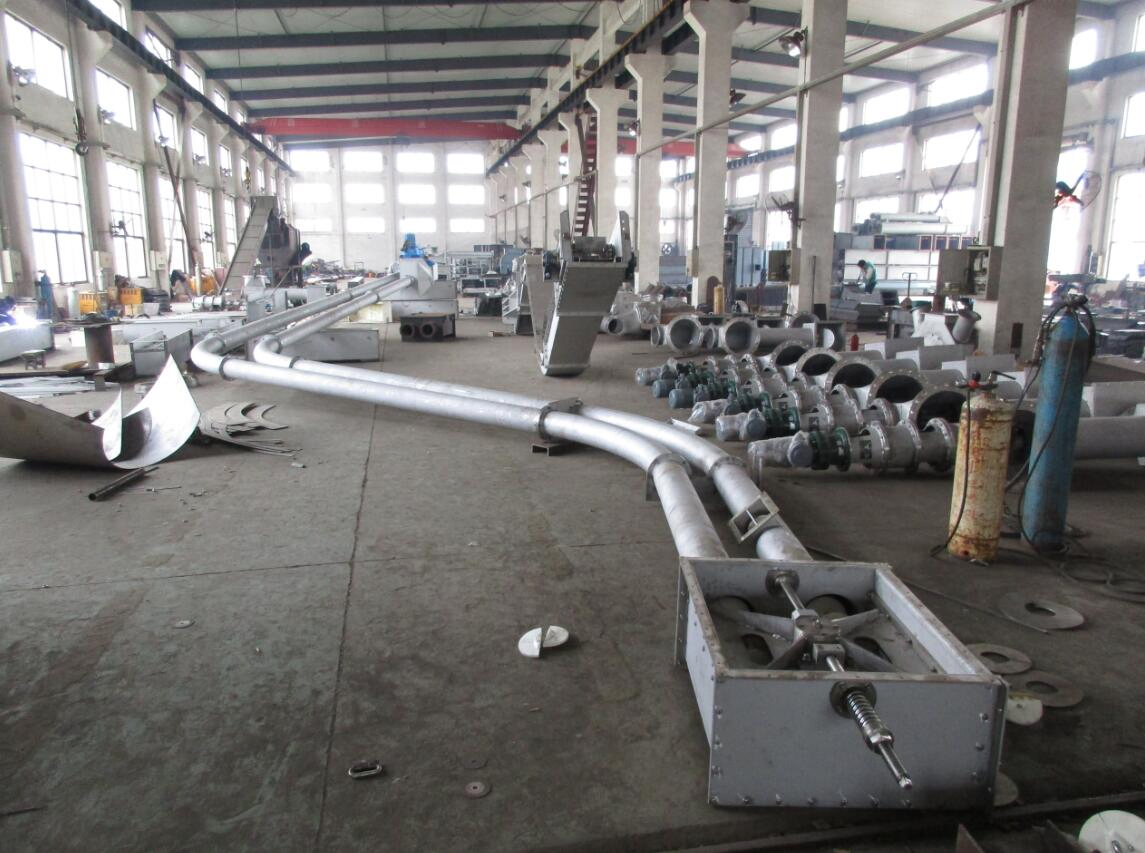

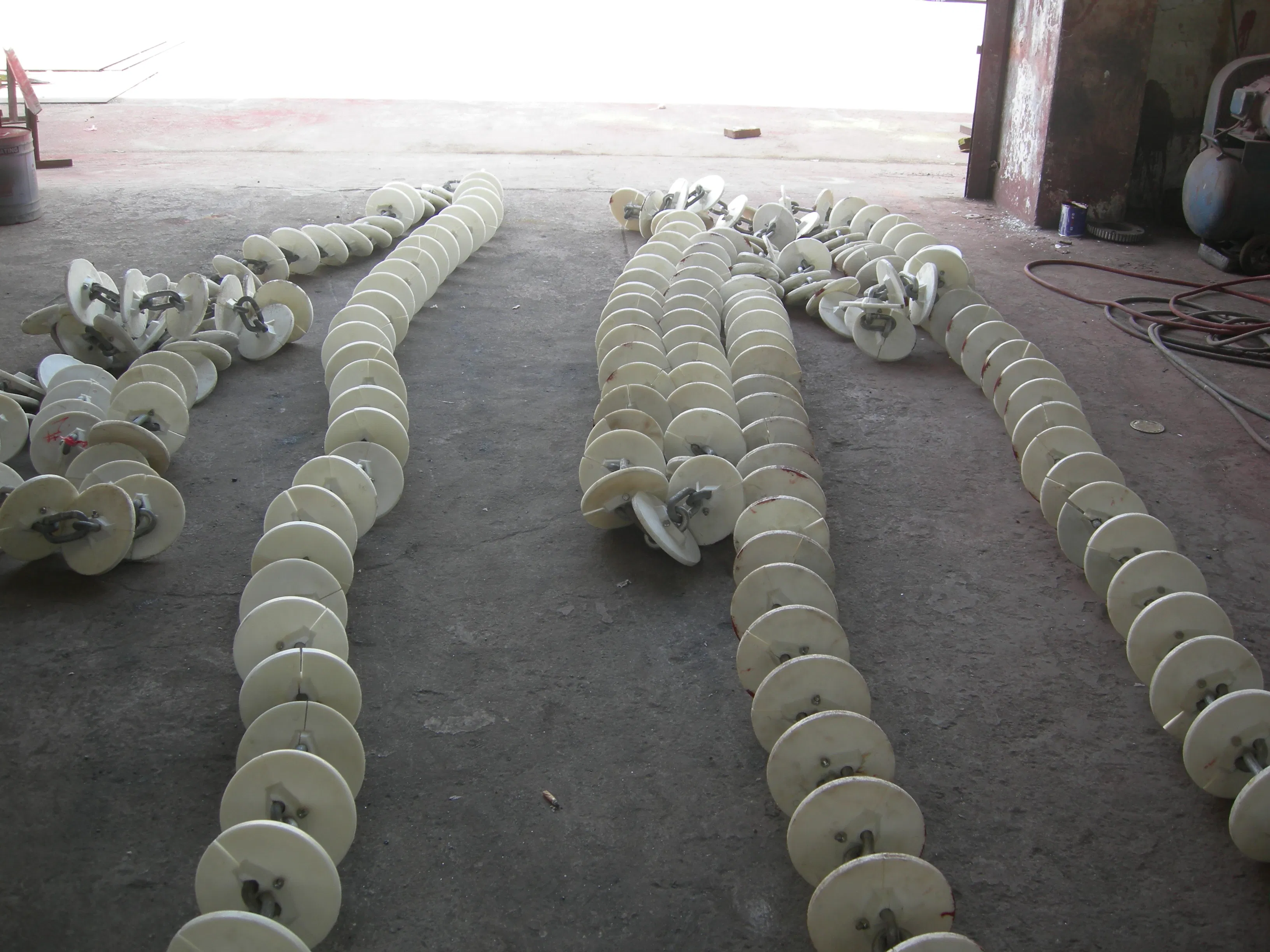

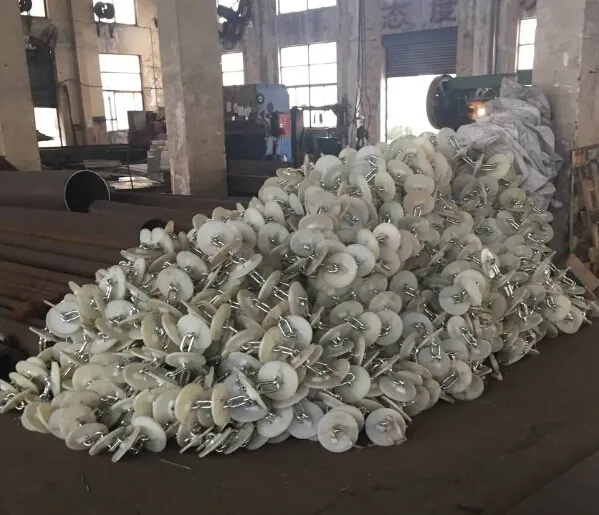

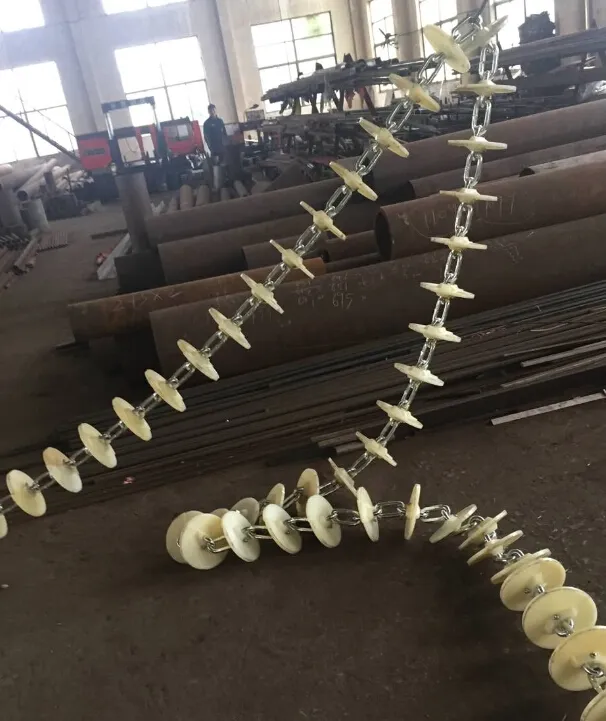

- Tube body and chain disc
- Head wheel and tail wheel
- Feed inlet and discharge outlet
- Drive system and tension device
Working Principle
The system is designed for continuous conveying of bulk materials such as powder, small granules, and small lumps within a sealed tube channel.
(1) Horizontally Conveying: When conveying horizontally, material granules suffer thrust from the direction of motion. When the friction between material layers exceeds the outer friction from the tube wall, the material moves forward, forming a stable stream.
(2) Vertically Conveying: In vertical mode, granules suffer upper thrust from the chain disc. Downward feeding prevents upper material glissade, causing lateral compression and increasing inner friction. When this exceeds internal friction and gravity, the material is conveyed upward.
Key Features
- Compact Design: Light weight and small footprint, convenient for installation and maintenance.
- Dust-Free Operation: The discharge outlet doesn't require a dust catcher and can be filled with gas during conveying.
- Material Integrity: Smooth conveying along the tube minimizes material breakage even in curved conduits.
- Energy Efficient: Low consumption and economic running costs; the entire system is driven by a single motor.
- Anti-Blockage: The system is designed to prevent blockages and is suitable for various material morphologies.

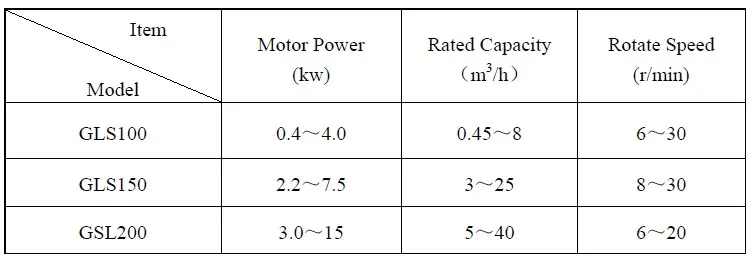

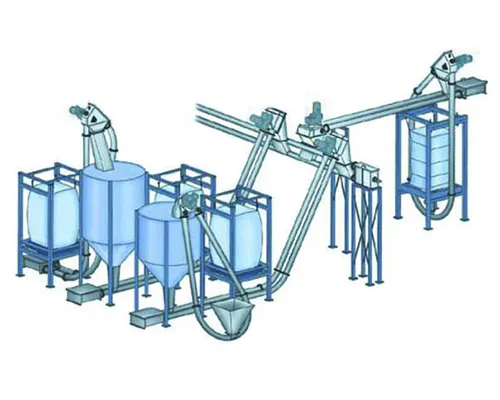

Technical Parameters & Layout

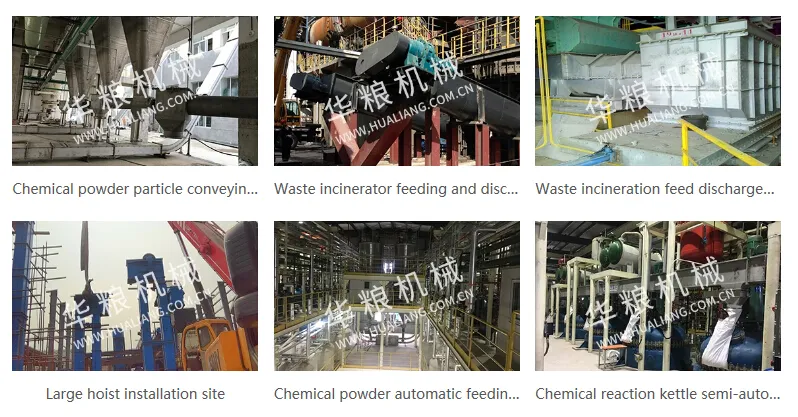

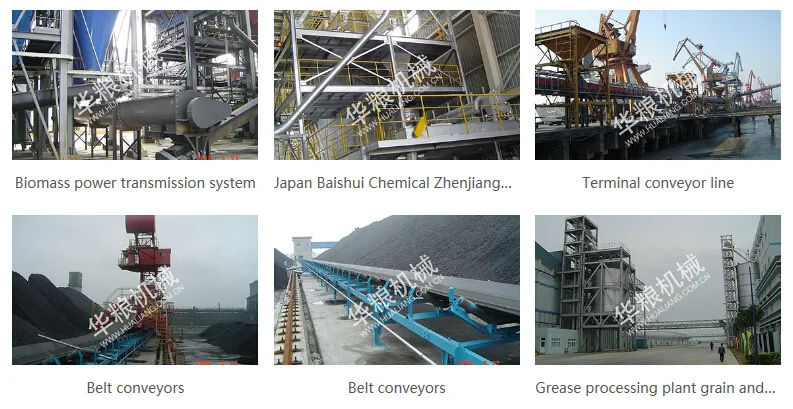

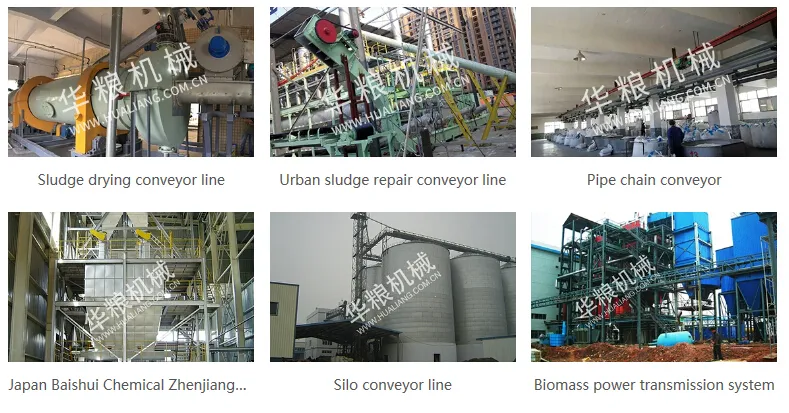

Project Case Exhibition
Frequently Asked Questions (FAQ)
Q1: What types of materials are suitable for tube chain conveyors?
A1: It is ideal for bulk materials including powders, small granules, and small lumps used in chemical, grain, and mining industries.
Q2: Can the system handle vertical conveying?
A2: Yes, the system is designed for both horizontal and vertical conveying by utilizing internal friction and disc thrust.
Q3: Does the system prevent environmental pollution?
A3: Yes, the conveyor operates in a completely sealed tube, preventing dust leakage and protecting the environment.
Q4: Is the conveyor customizable for specific plant layouts?
A4: Absolutely. The system is designed to cover small areas and can be configured with various layouts to fit specific facility requirements.
Q5: What are the maintenance requirements?
A5: Due to its compact and simple structure, it requires very low maintenance and offers an economic long-term running cost.
Q6: How does it affect material integrity?
A6: The smooth motion within the tube ensures minimal material breakage, making it suitable for fragile granules.
