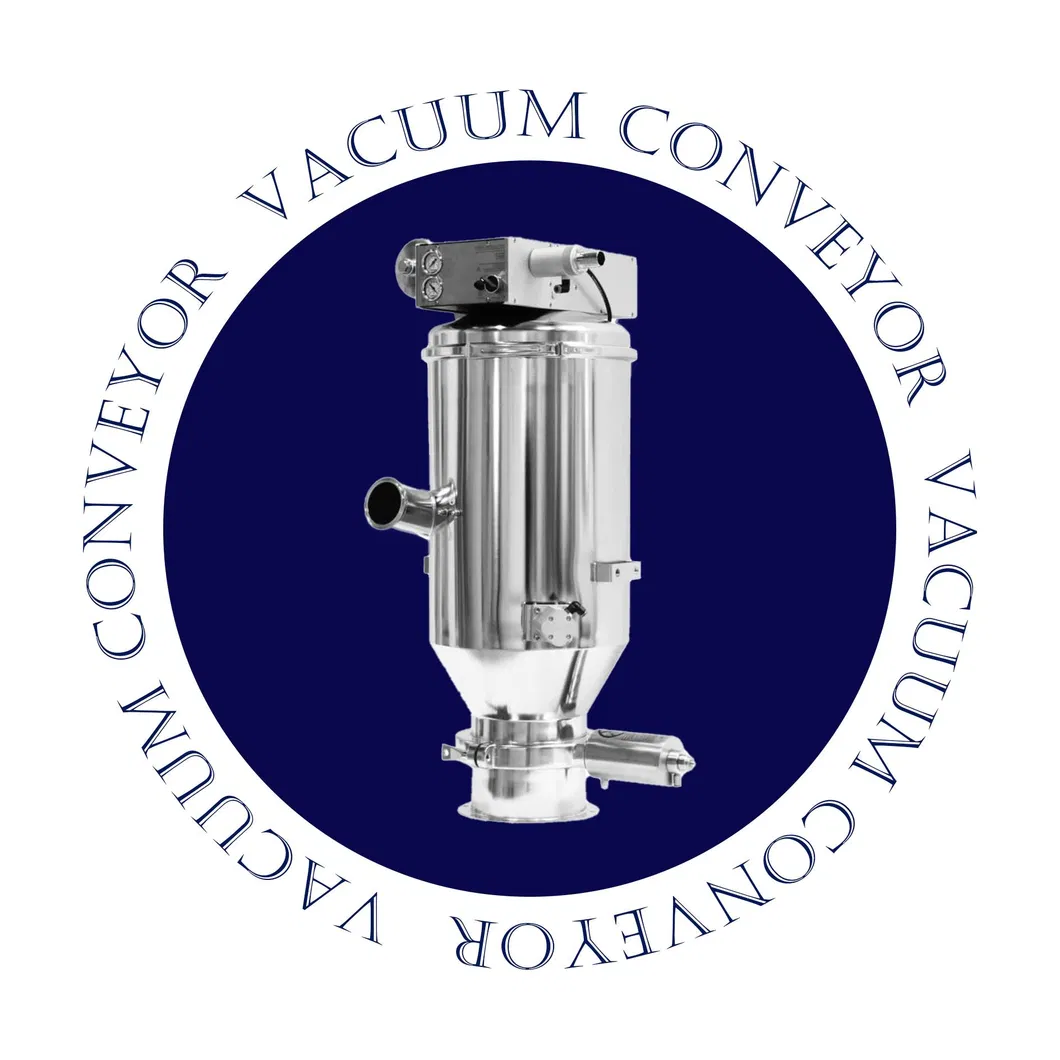

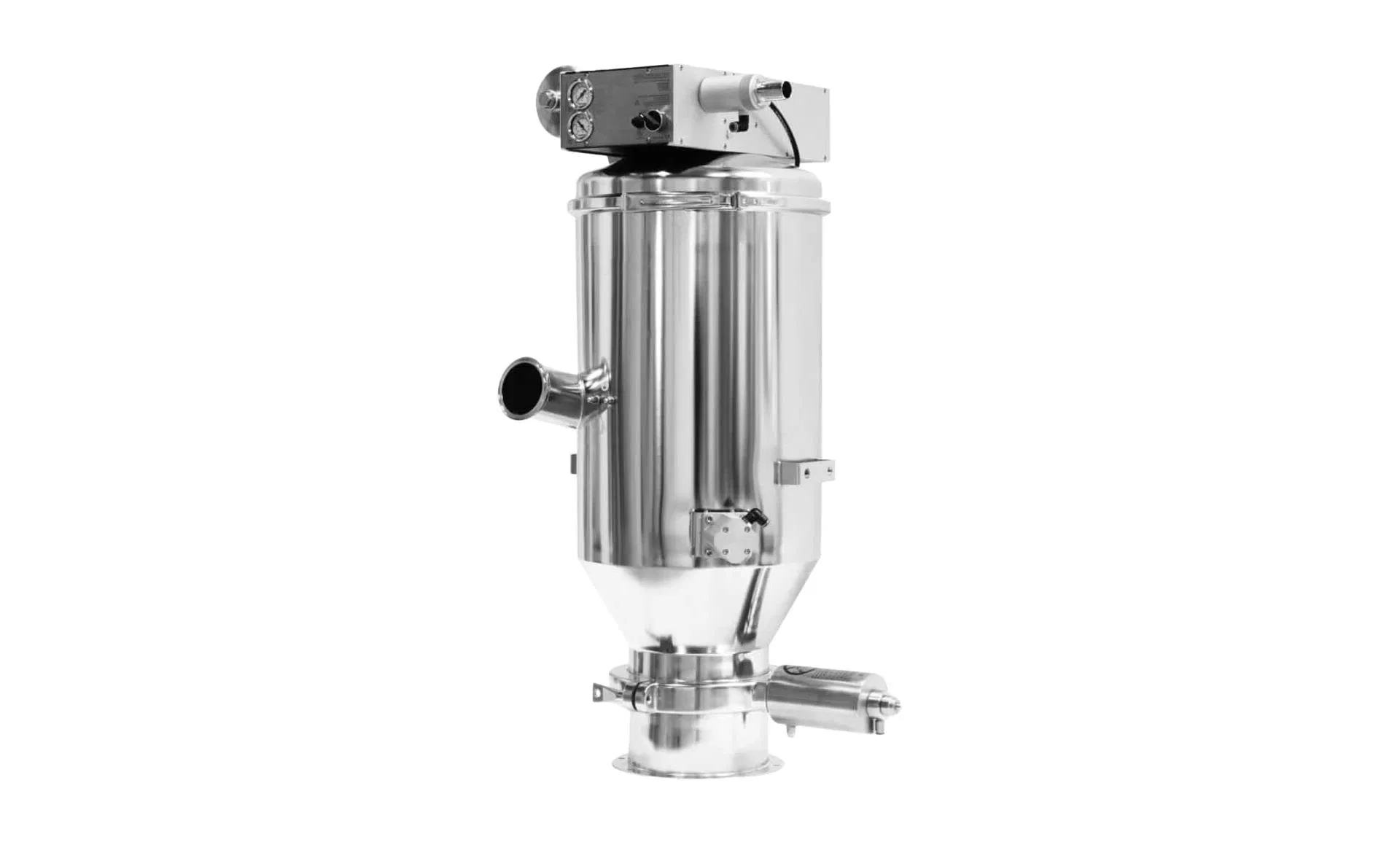

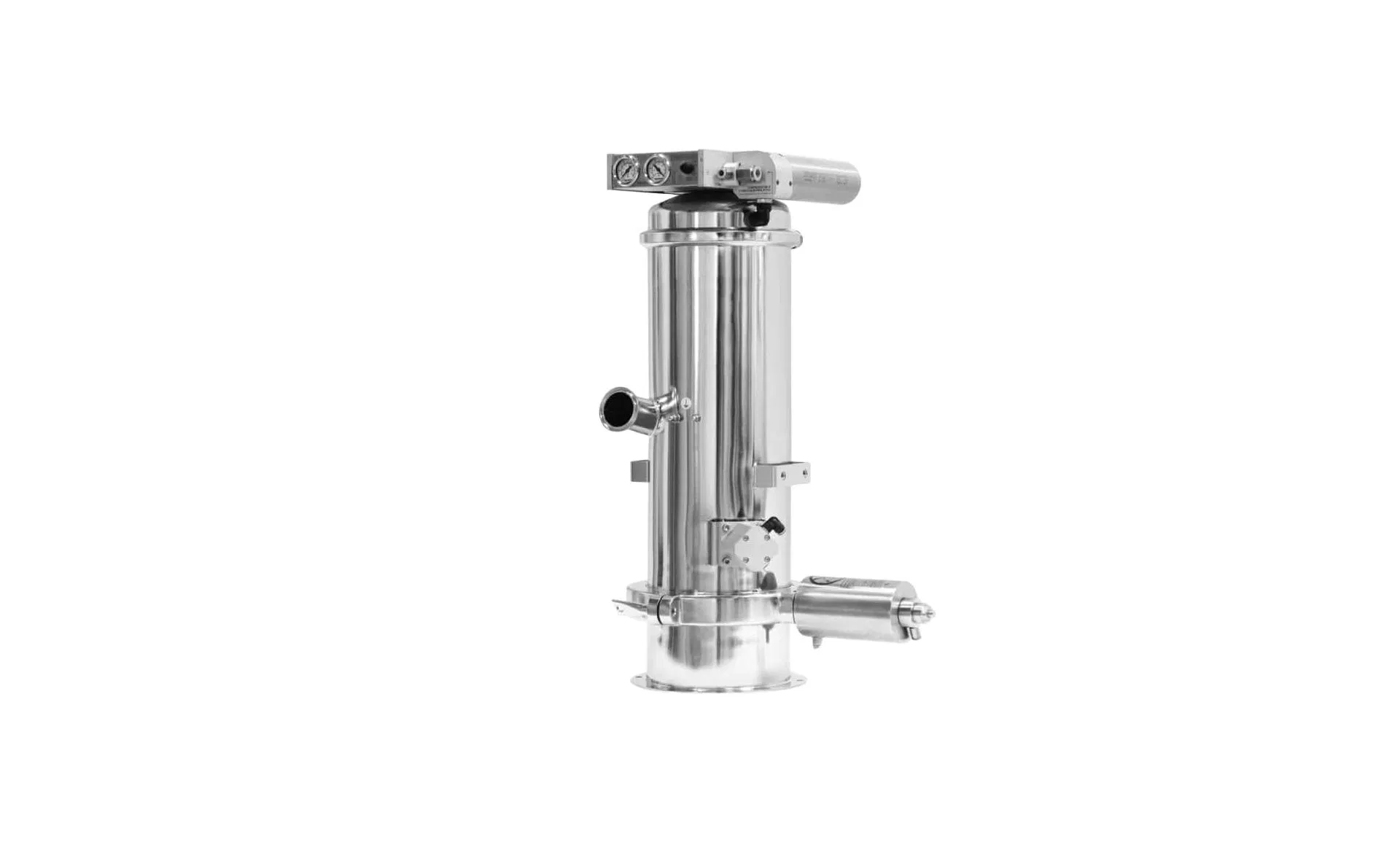

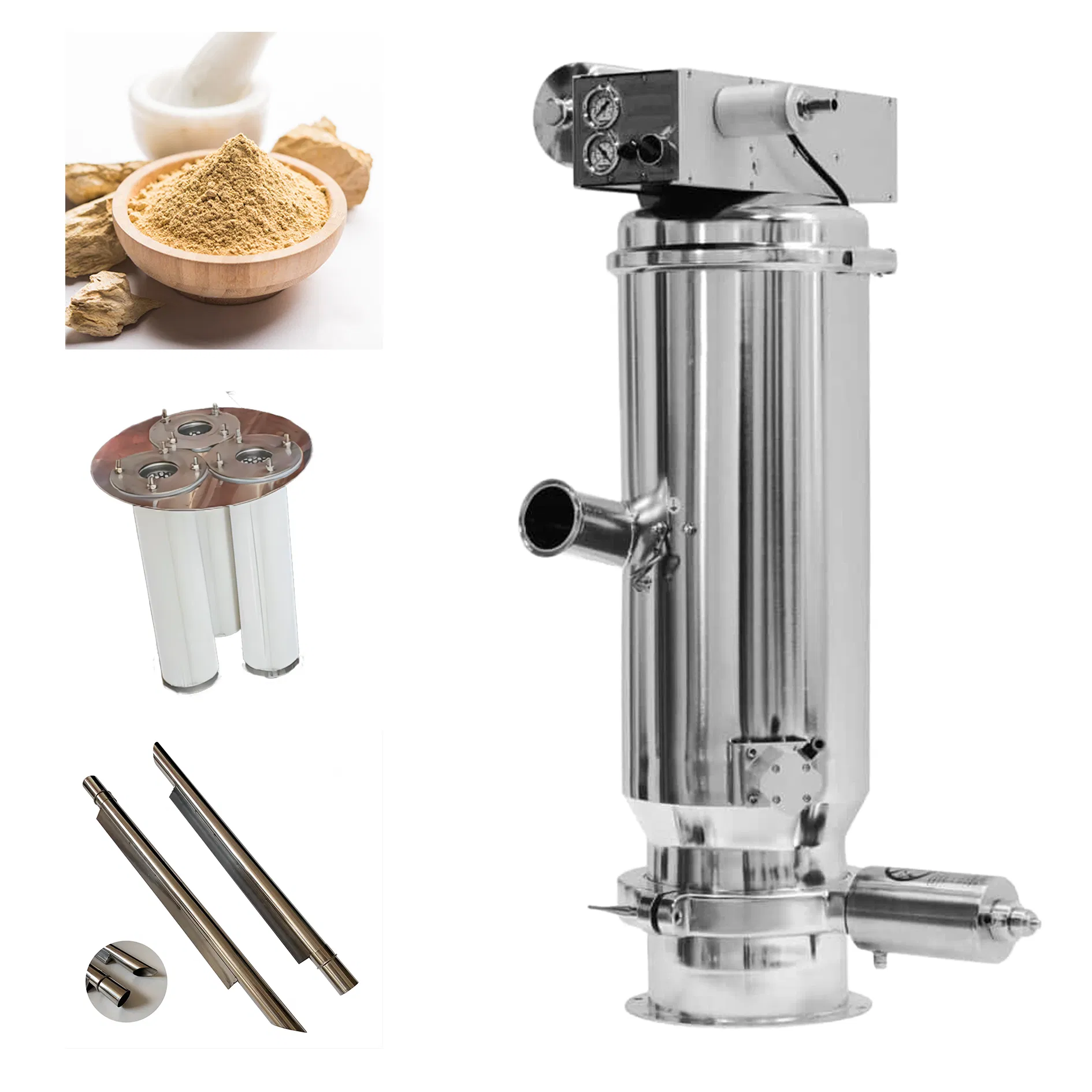

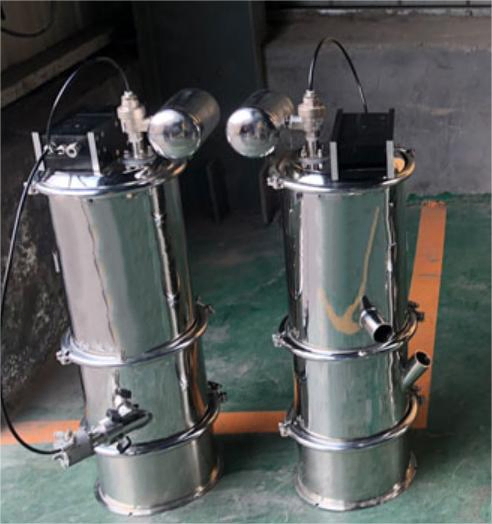

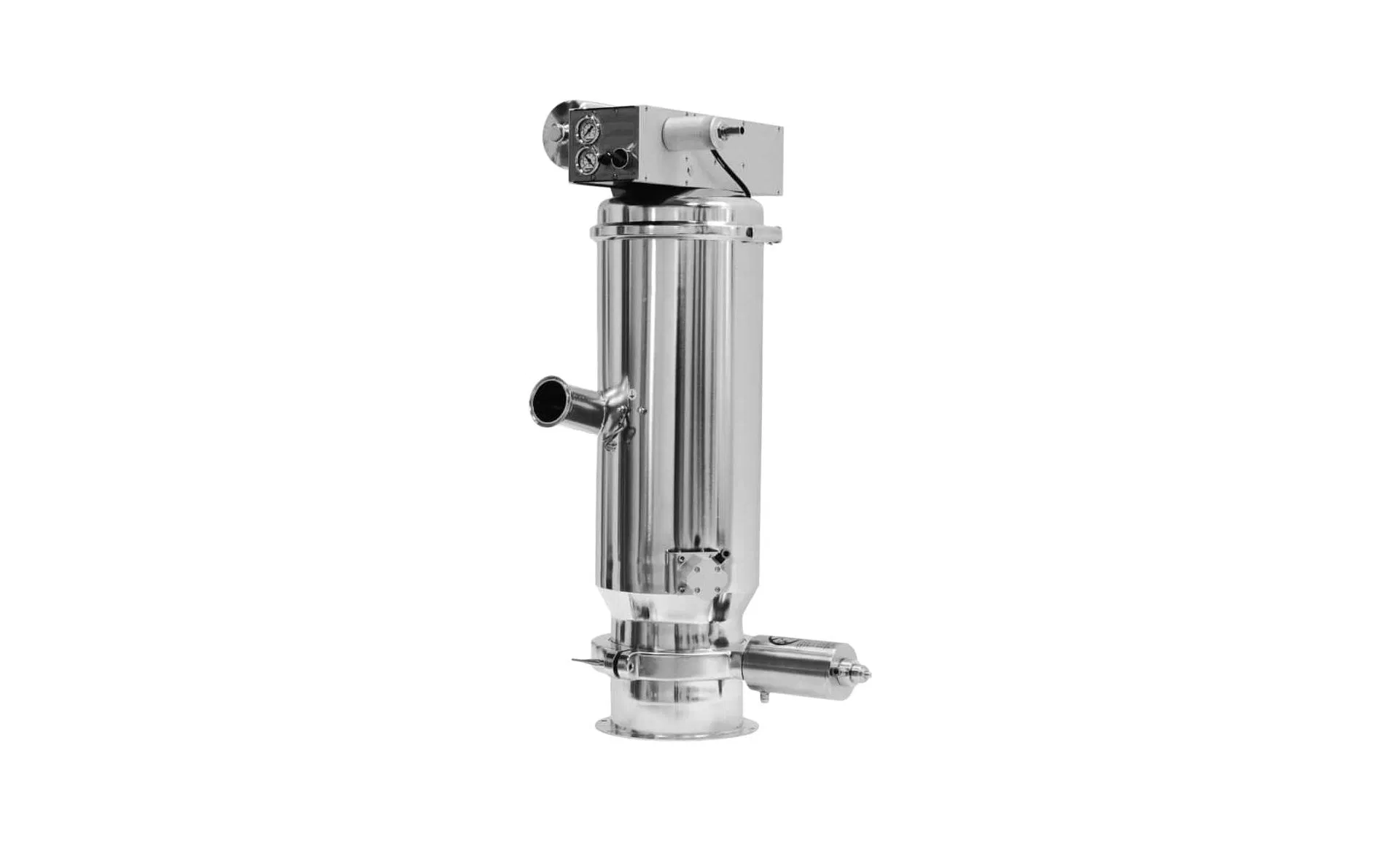

Vacuum Conveyor System
A vacuum conveyor is an advanced and highly efficient dust-free, closed pipeline conveying solution, expertly designed to transport granular and powdery materials by harnessing the power of vacuum suction.
It generates a dynamic airflow within the conveying pipeline by exploiting the pressure differential between the vacuum and the surrounding environment, thereby propelling powdered materials at high speeds and completing the powder conveying process seamlessly.
Specialized systems are available featuring advanced cleaning and sterilization functions as well as high-precision weighing capabilities.
| Model | XL-14 | XL-33 | XL-56 |
|---|---|---|---|
| Volume (L) | 14 | 33 | 56 |
| Power (W) | 200 | ||
| Air Consumption (L/min) / Pressure | 100 / 0.6 MPa | 200 / 0.6 MPa | |
| Interface Size | 2-inch quick connector | 3-inch quick connector | 4-inch quick connector |
| Weight (Kg) | 37 | 40 | 65 |
| Dimensions (Φ×H mm) | Φ400×1000 | Φ400×1250 | Φ650×1350 |
* Power excludes additional fan requirements. Air consumption refers to backflush device only.
