Product Description

📋 Basic Information
Model NO. Vehicle System
Object Class A/B/C/D/E Fire
Certification CE, UN ECE R107 / ISO9001
Material Stainless Steel / Steel
Activation Temp 140ºC & 180ºC
Working Pressure 14 Bar
🔍 Product Description

Vehicle Fire Systems for Mining, Construction, Agriculture, and Heavy Transport

The Vehicle Fire Suppression System is a pre-engineered solution designed to protect off-highway vehicles, commercial fleets, and industrial equipment. It is widely used in surface and underground mining, forestry harvesting, construction, and public transportation like municipal buses.

Vehicle Fire Suppression System 1

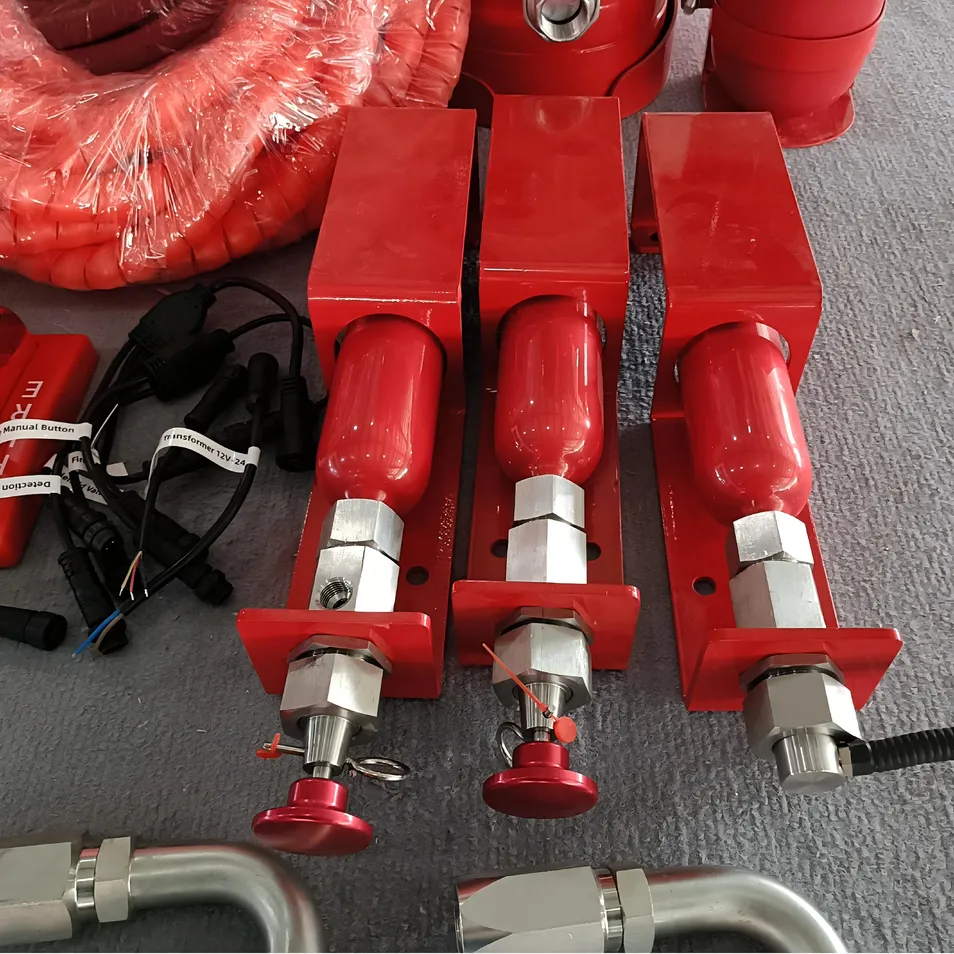

Vehicle Fire Suppression System 2

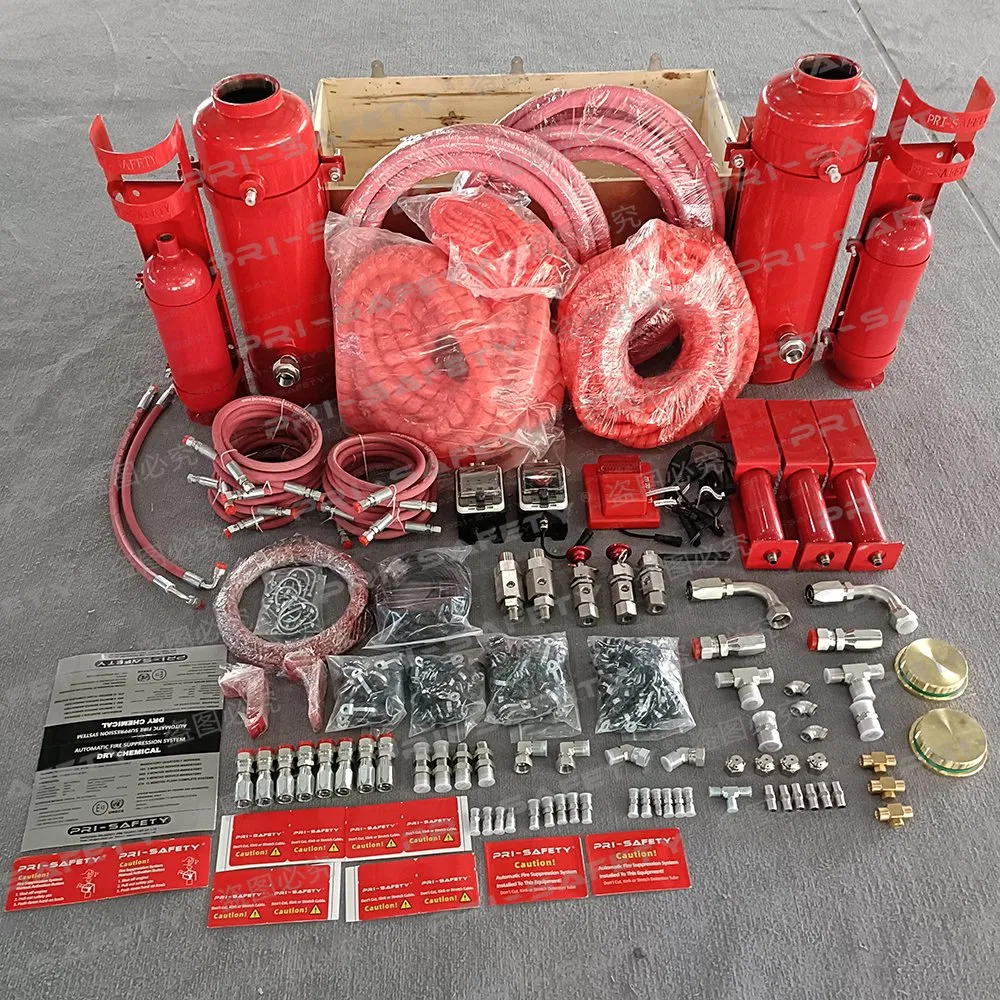

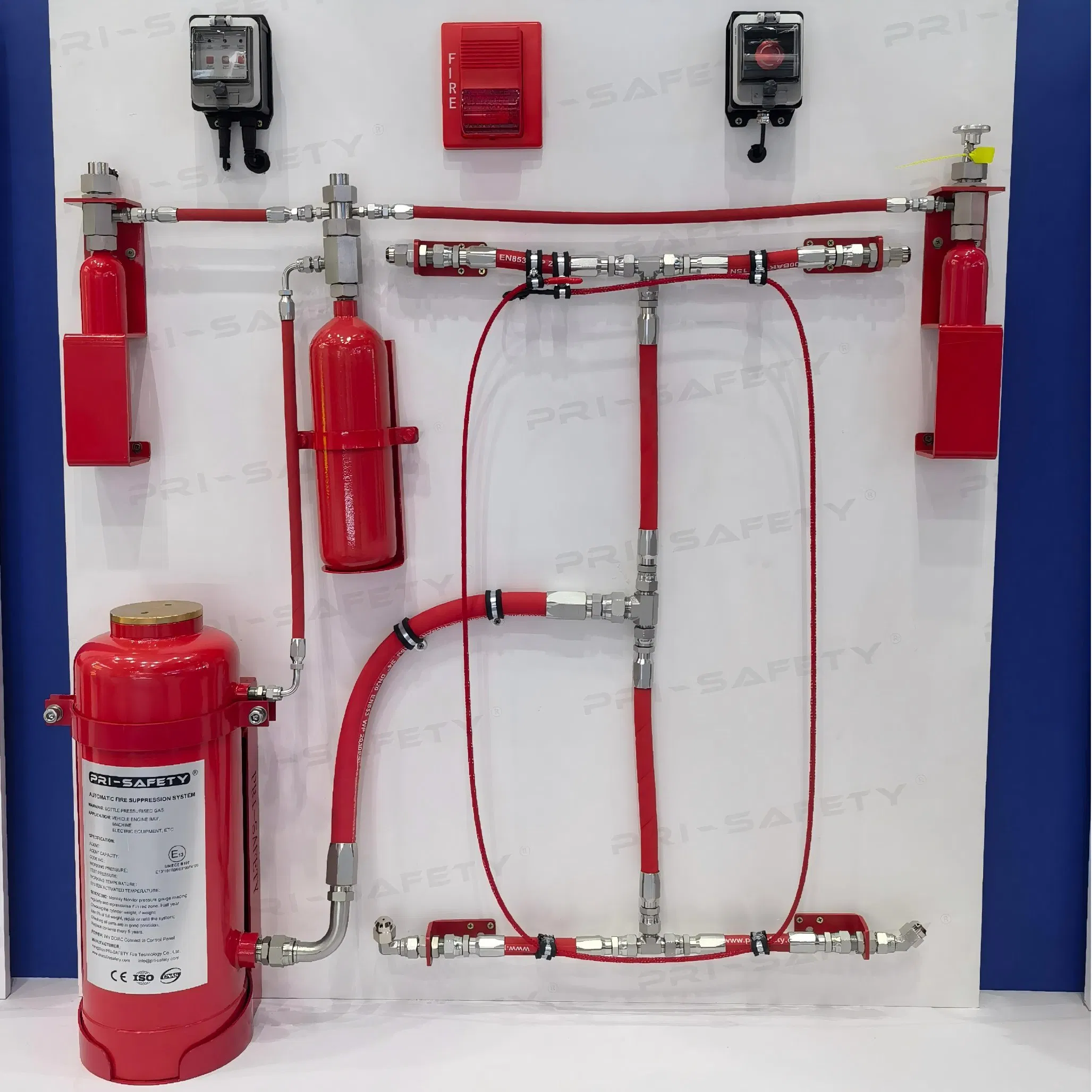

System Components:

  • High-capacity agent storage container (Dry Chemical/Foam/FK-5112).
  • Pneumatic or electric actuation system (Manual & Automatic).

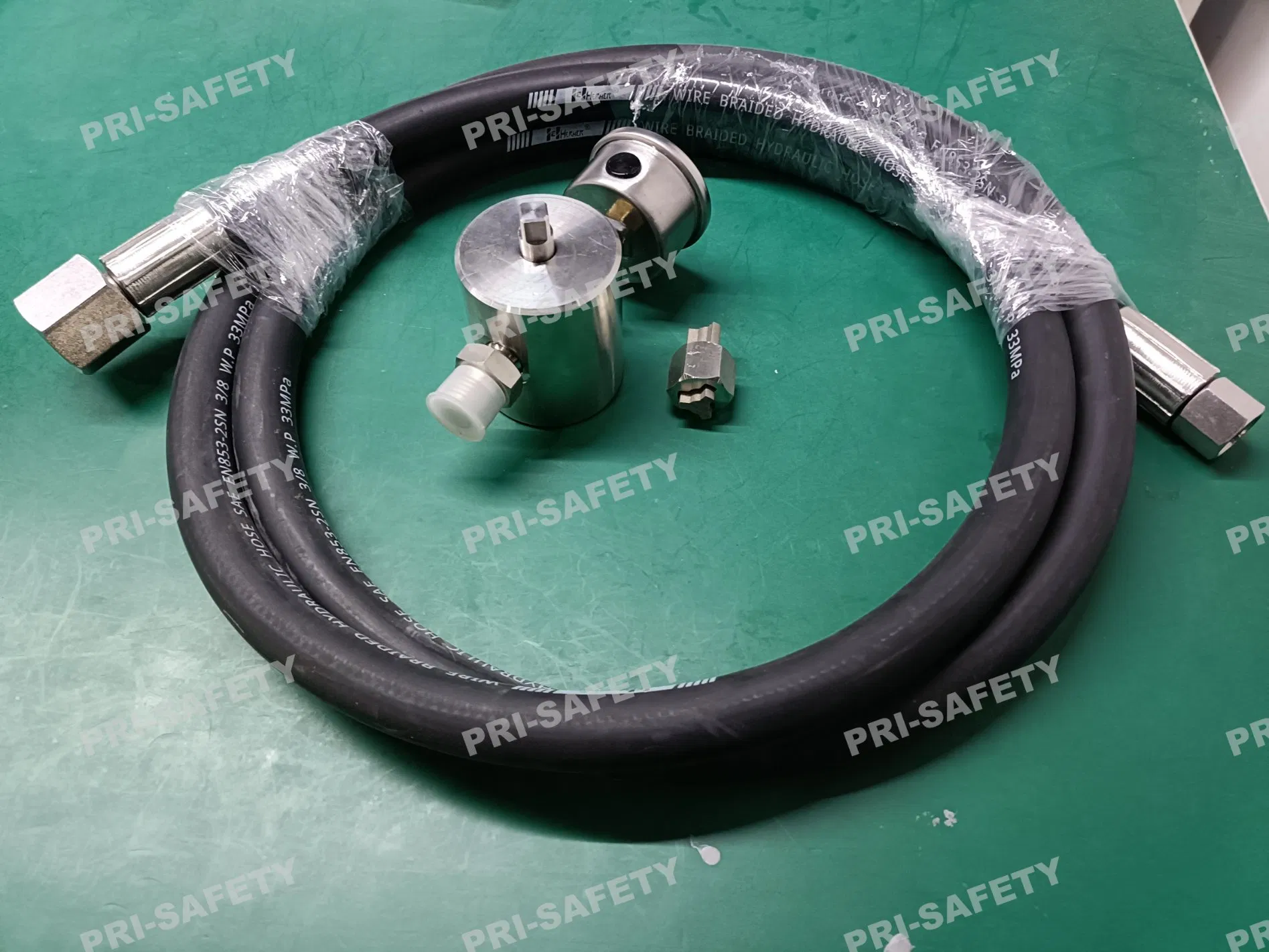

  • Agent distribution network with hydraulic hoses and specialized nozzles.
System Component Overview System Dimensions
⚙️ Design & Working Diagram

Temperature Detection & Solenoid Valve Operation:

The system utilizes a flexible detection cable connected to a control panel. When temperatures reach 180ºC (or 138ºC), a signal is sent to activate the solenoid valve. The fire suppression agent is immediately discharged through the pipe network. Simultaneously, a fire alarm is triggered, and a signal is output to the vehicle controller to shut down the engine safely.

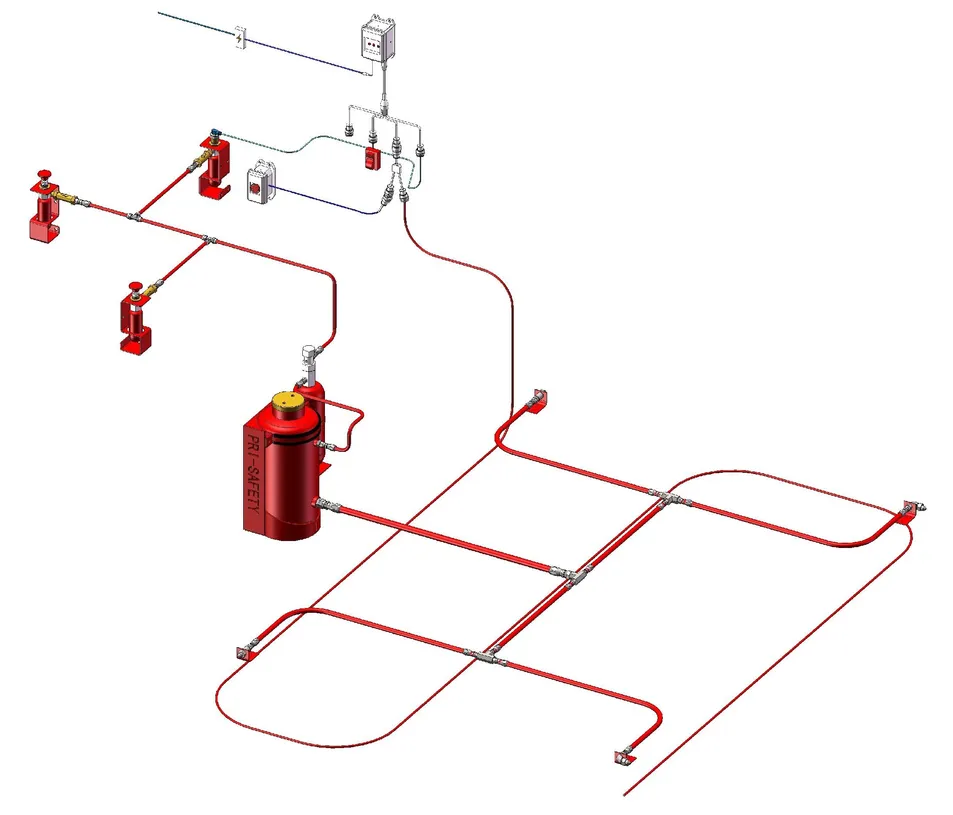

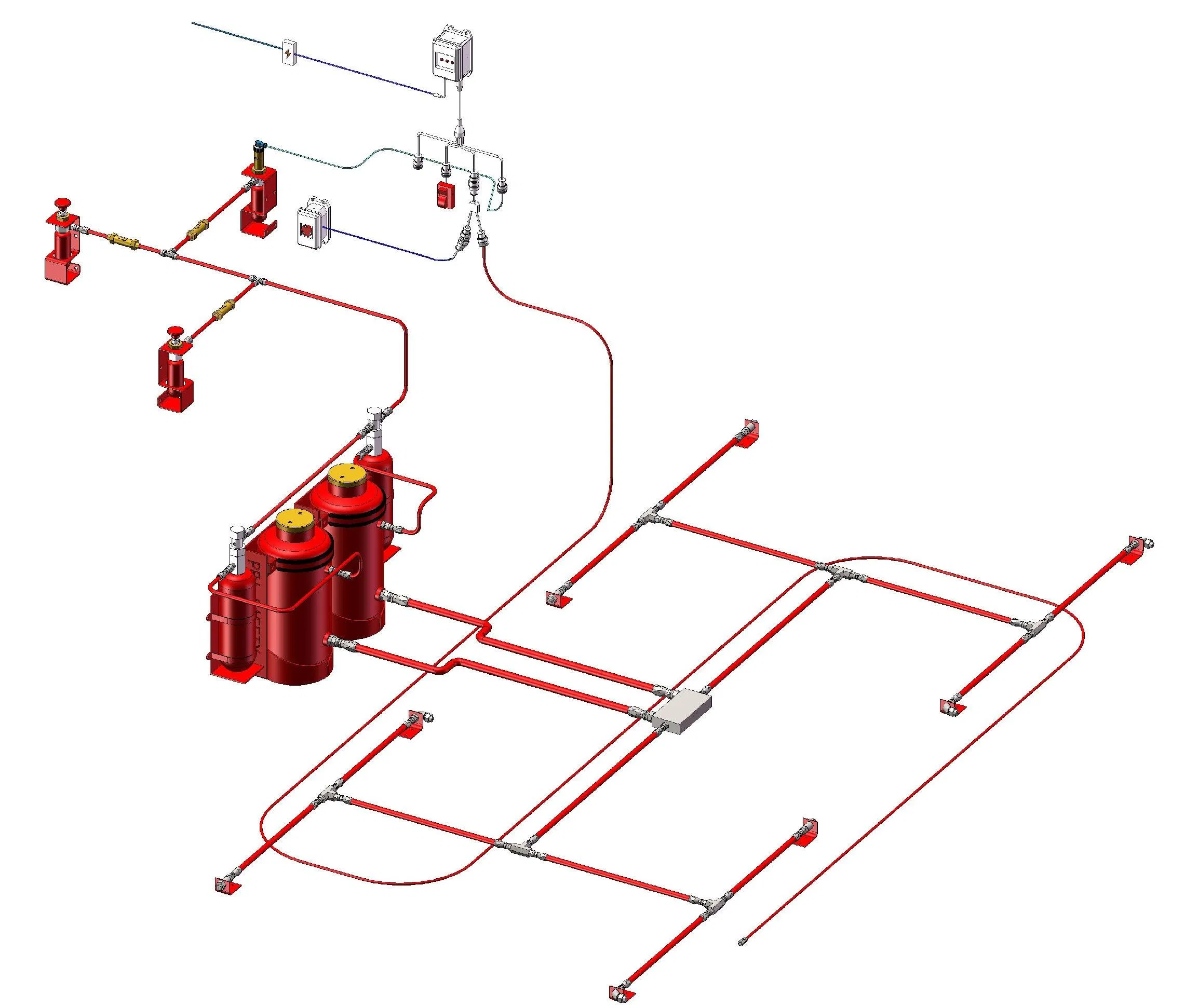

Design Drawing 1
Design Drawing 2

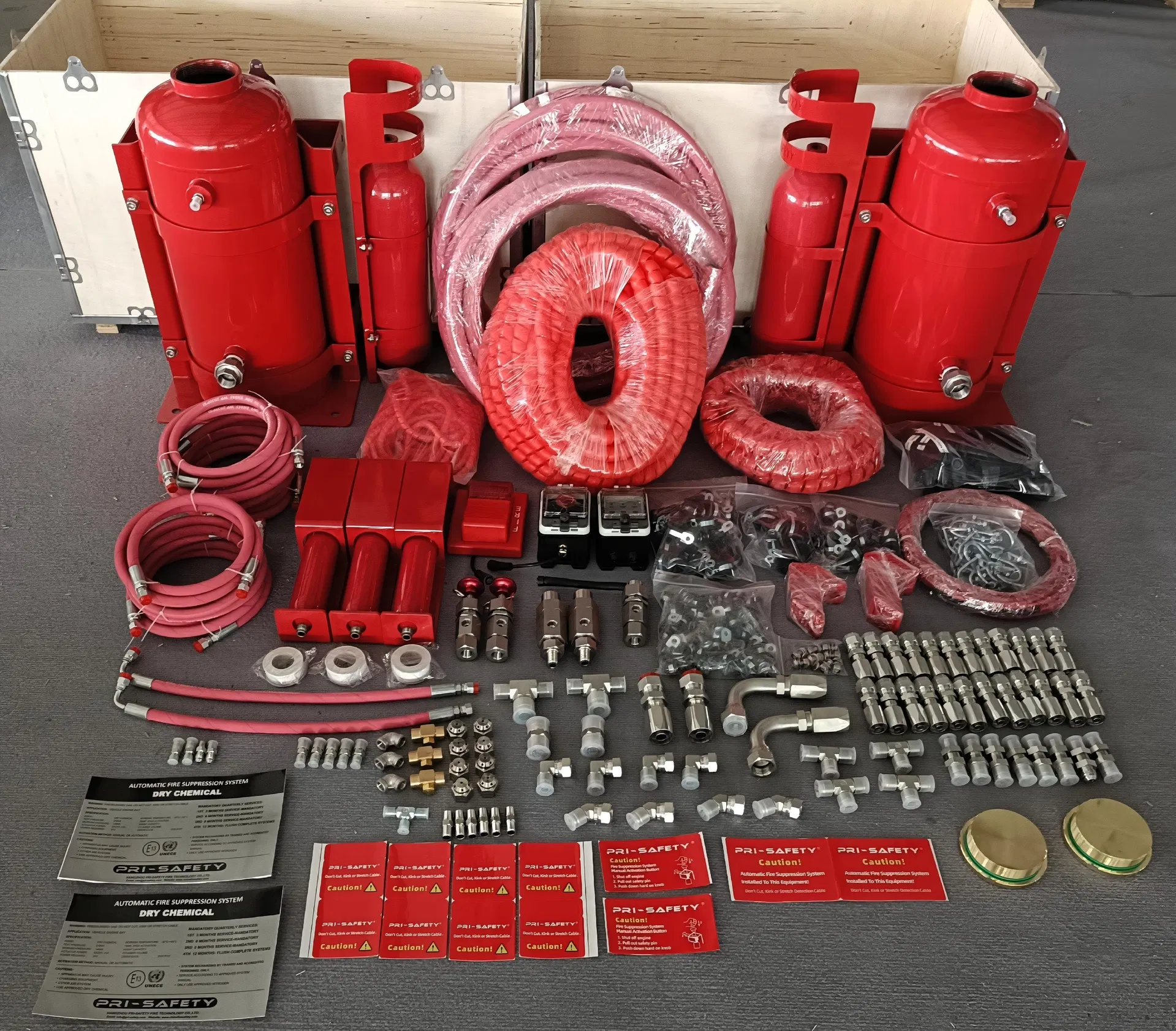

Workflow Diagram
⭐ Key Advantages
✓
Zero Residue: Clean agents prevent damage to sensitive electronics.
✓
Fast Extinguishing: Minimizes asset loss and machinery downtime.
✓
Occupant Safety: Agents are safe for use in occupied personnel areas.
✓
Durability: Stainless steel cylinders offer superior corrosion protection.

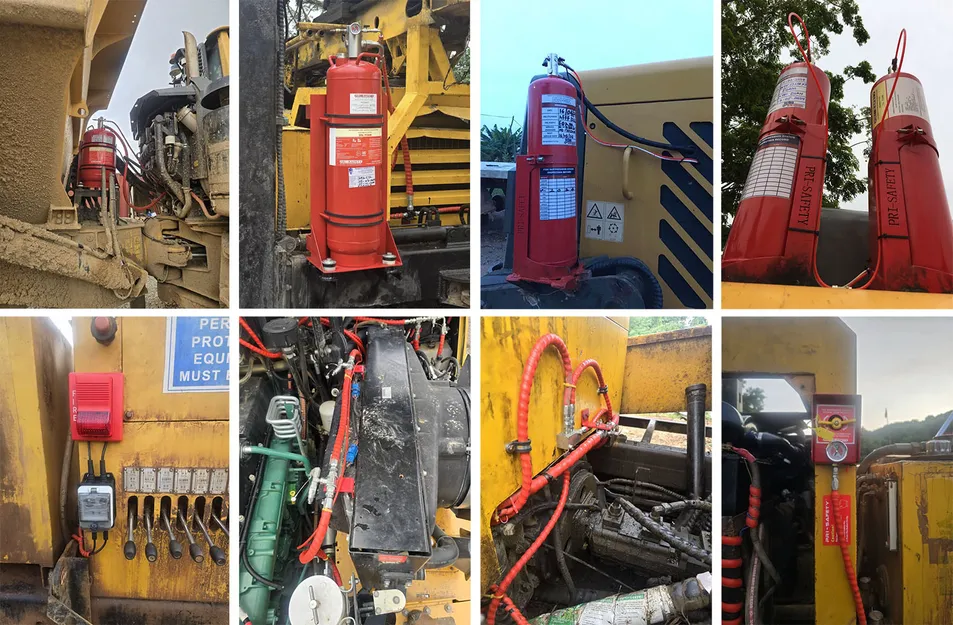

Installation Case
📊 Technical Specifications

Available Capacities: 20LBS, 30LBS, 40LBS, 50LBS, 60LBS, 100LBS (Customization Supported).

Fire Agent Foam / Dry Powder / FK-5112 / Novec 1230
Testing Pressure 27 Bar
Cylinder Material Steel (Red Painting) or Stainless Steel 304
Certification UN ECE R107, CE

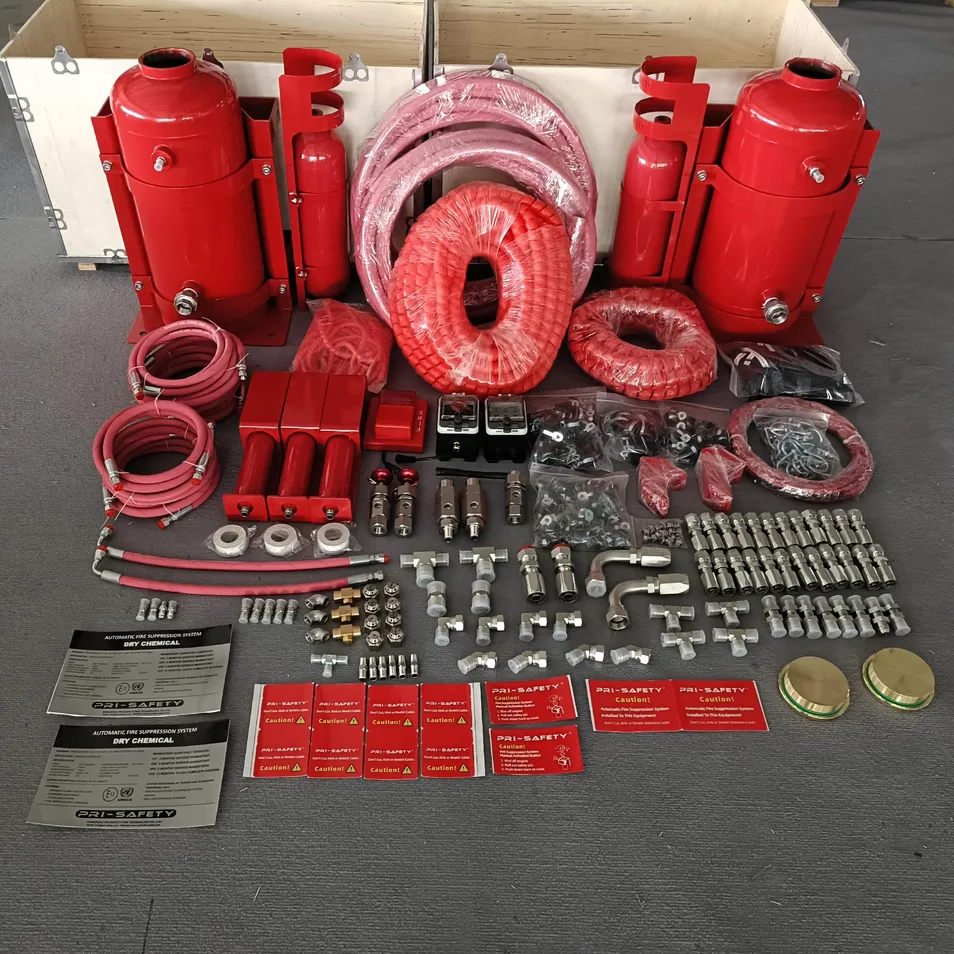

Spec Detail 1
Spec Detail 2

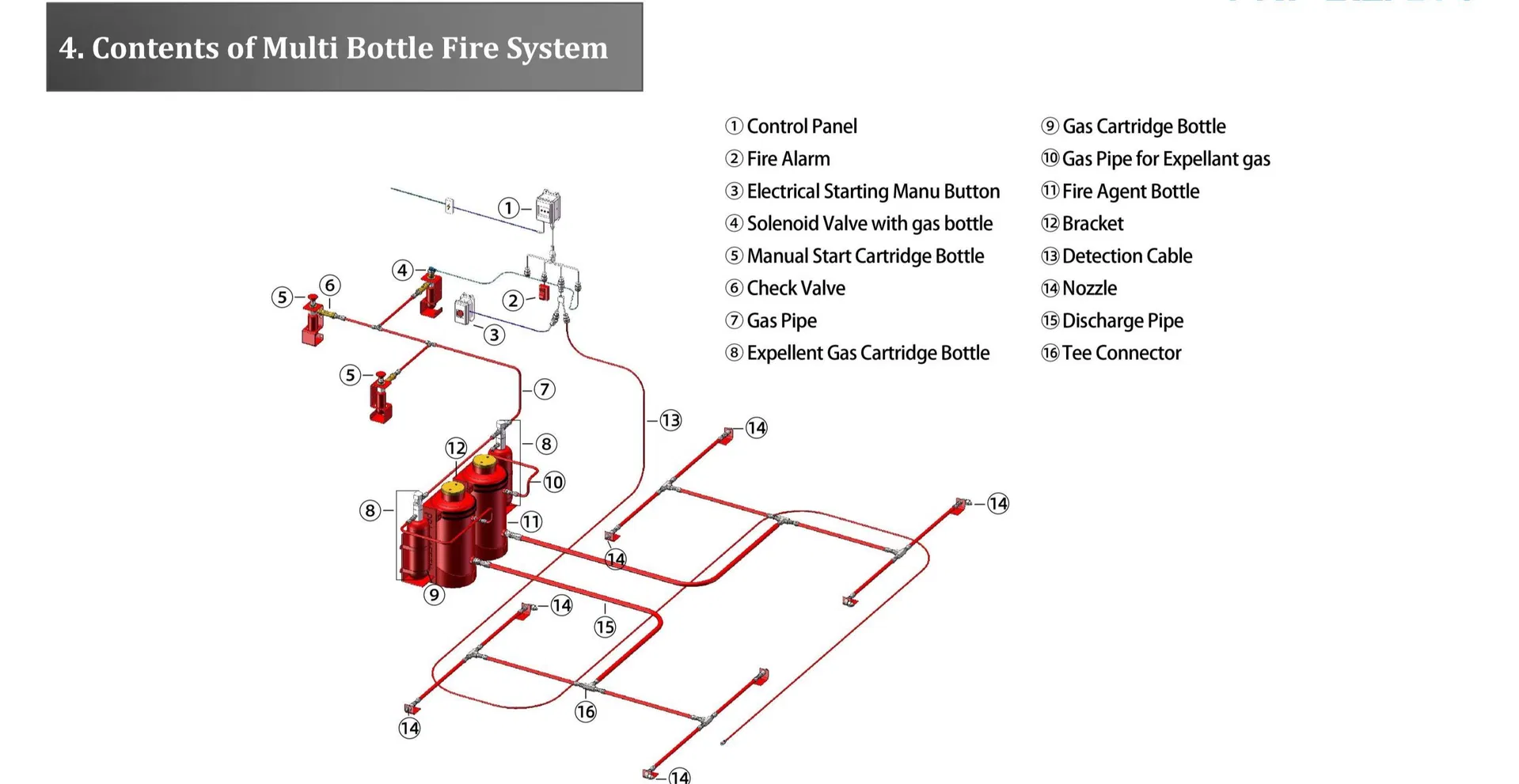

System Components Chart
🚜 Applications
Mining & Construction: Excavators, bulldozers, haul trucks, and drills.
Public Transit: City buses, coaches, and passenger shuttles.
Forestry & Agriculture: Tractors, combines, and timber harvesters.
Industrial: Oil & gas vehicles, waste management, and steel mill equipment.

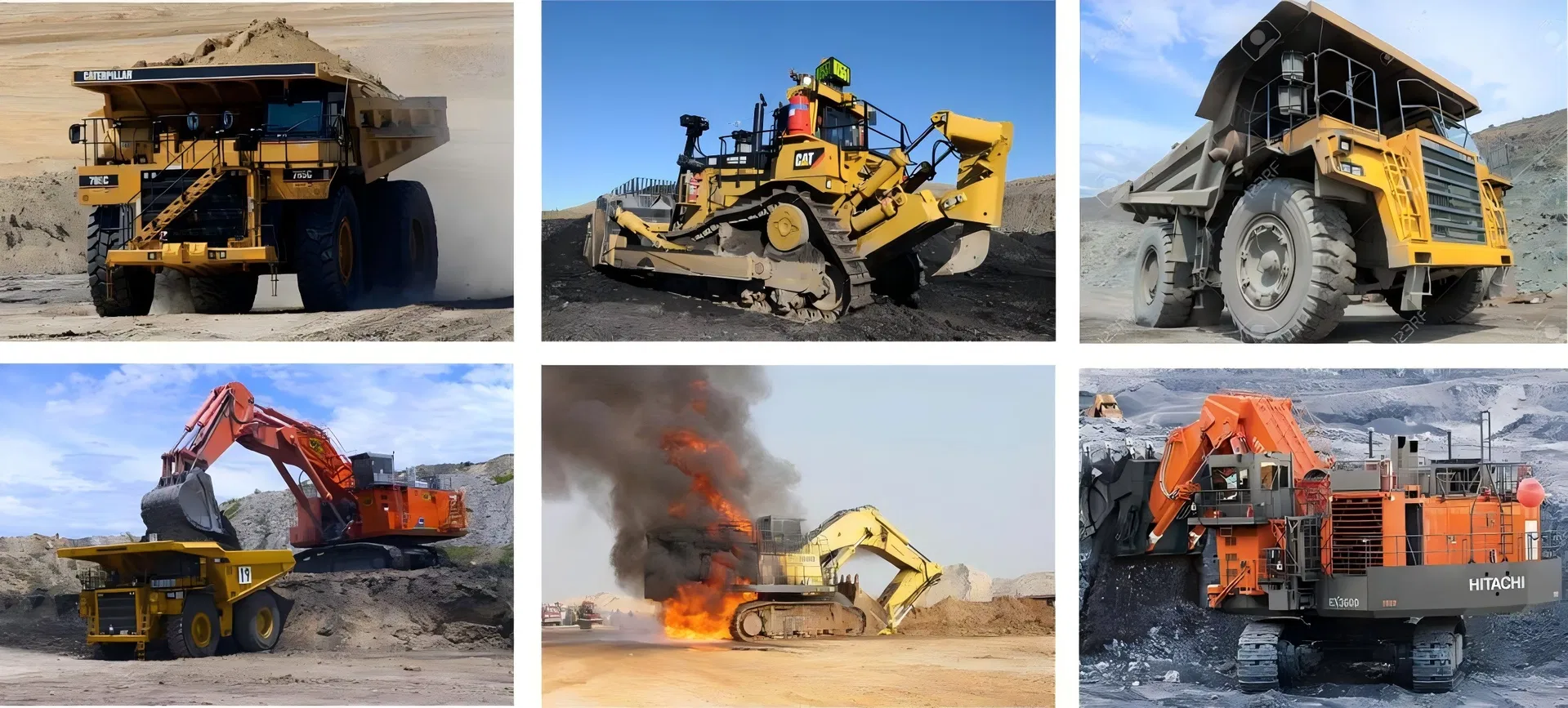

Application Environments
📦 Production & Logistics

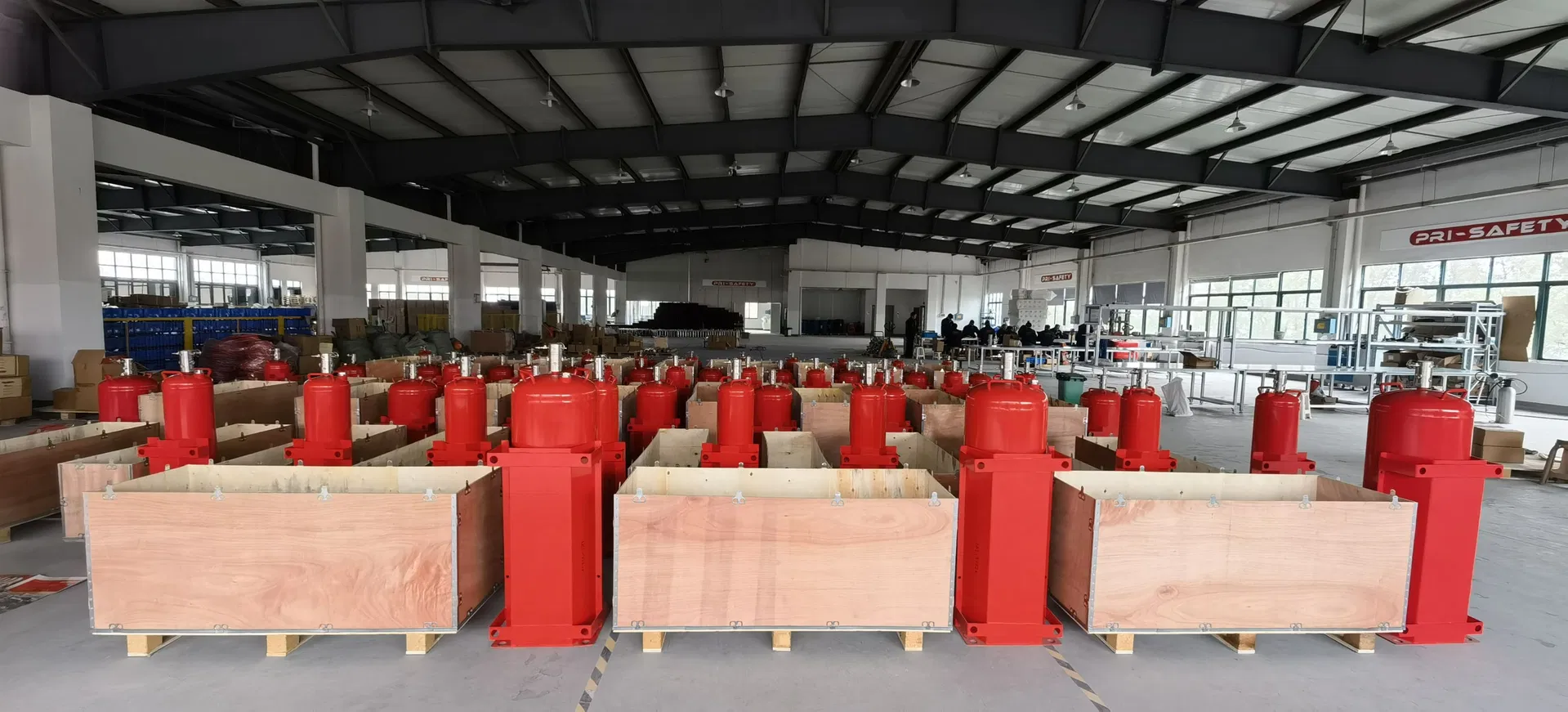

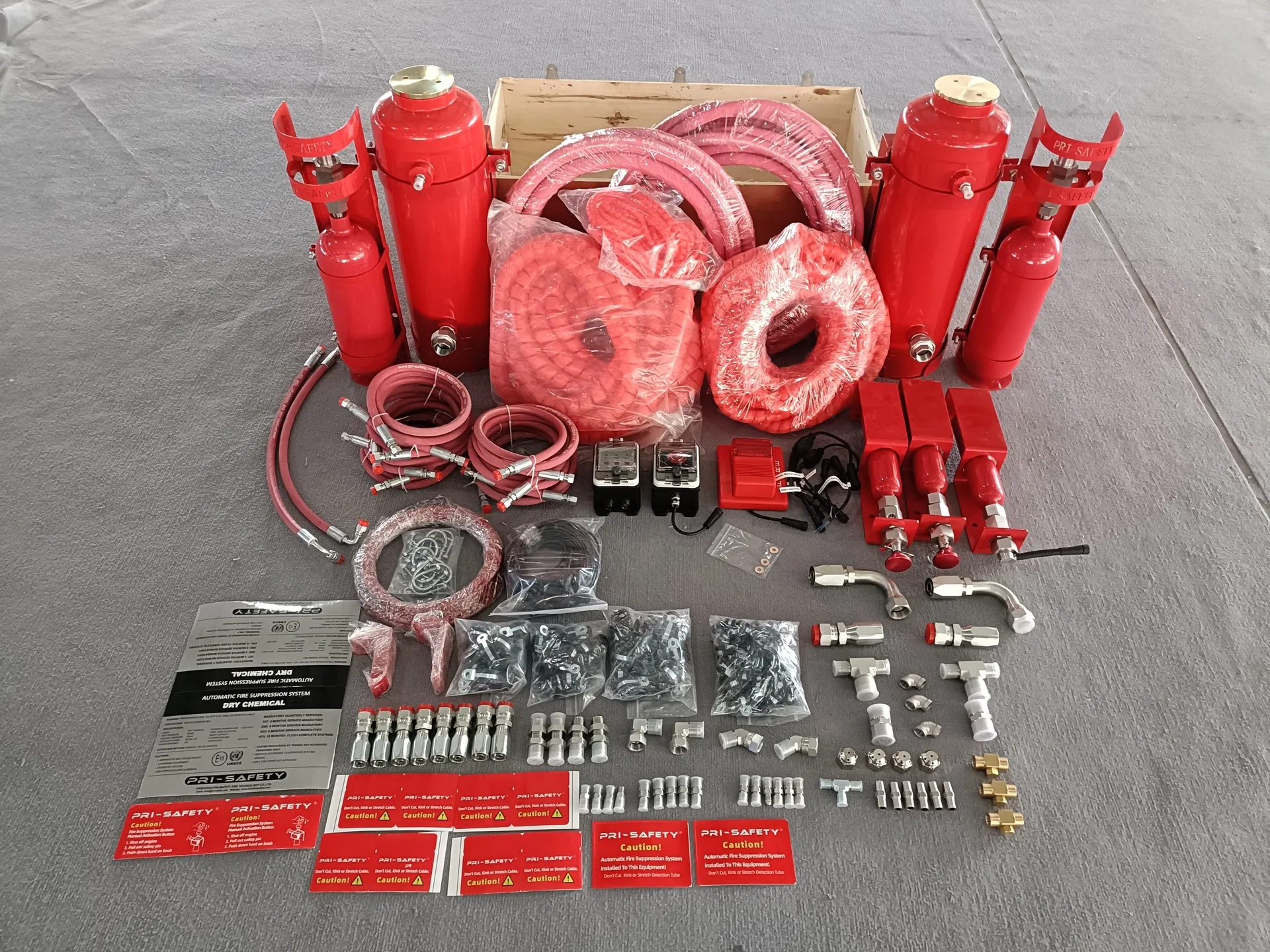

Factory Production Quality Inspection

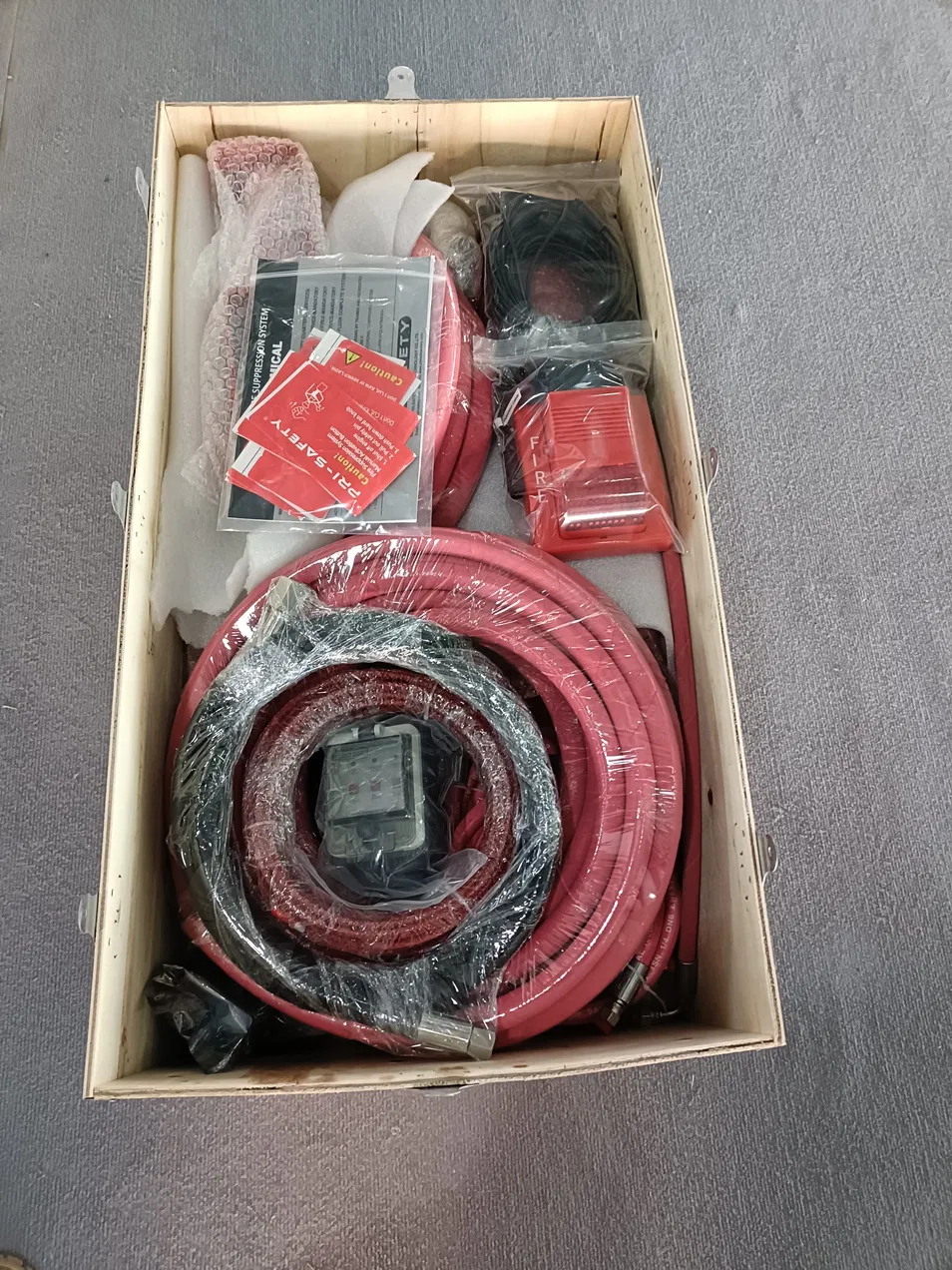

Packing 1

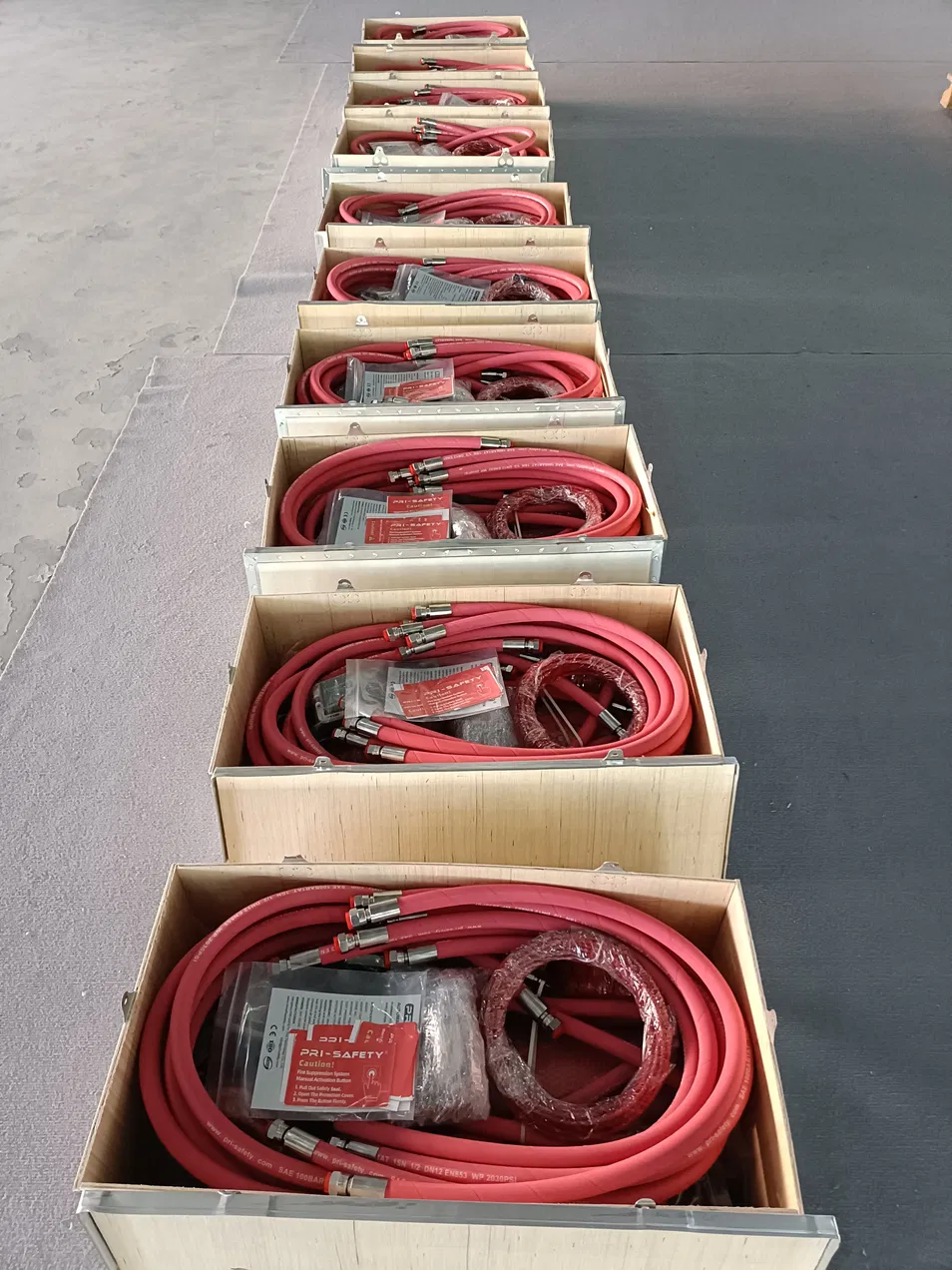

Packing 2
🏭 Service & Capability

We are a professional manufacturer focusing on the research, design, and manufacture of automatic fire suppression systems. Our facilities are ISO9001:2015 certified, and our vehicle safety systems carry CE and UN ECE R107 certifications.

One-Stop Solution: From project design to technical training.
Custom Manufacturing: OEM/ODM services for specialized vehicle cylinders and valves.
Technical Support: Remote and on-site guidance for installation and commissioning.

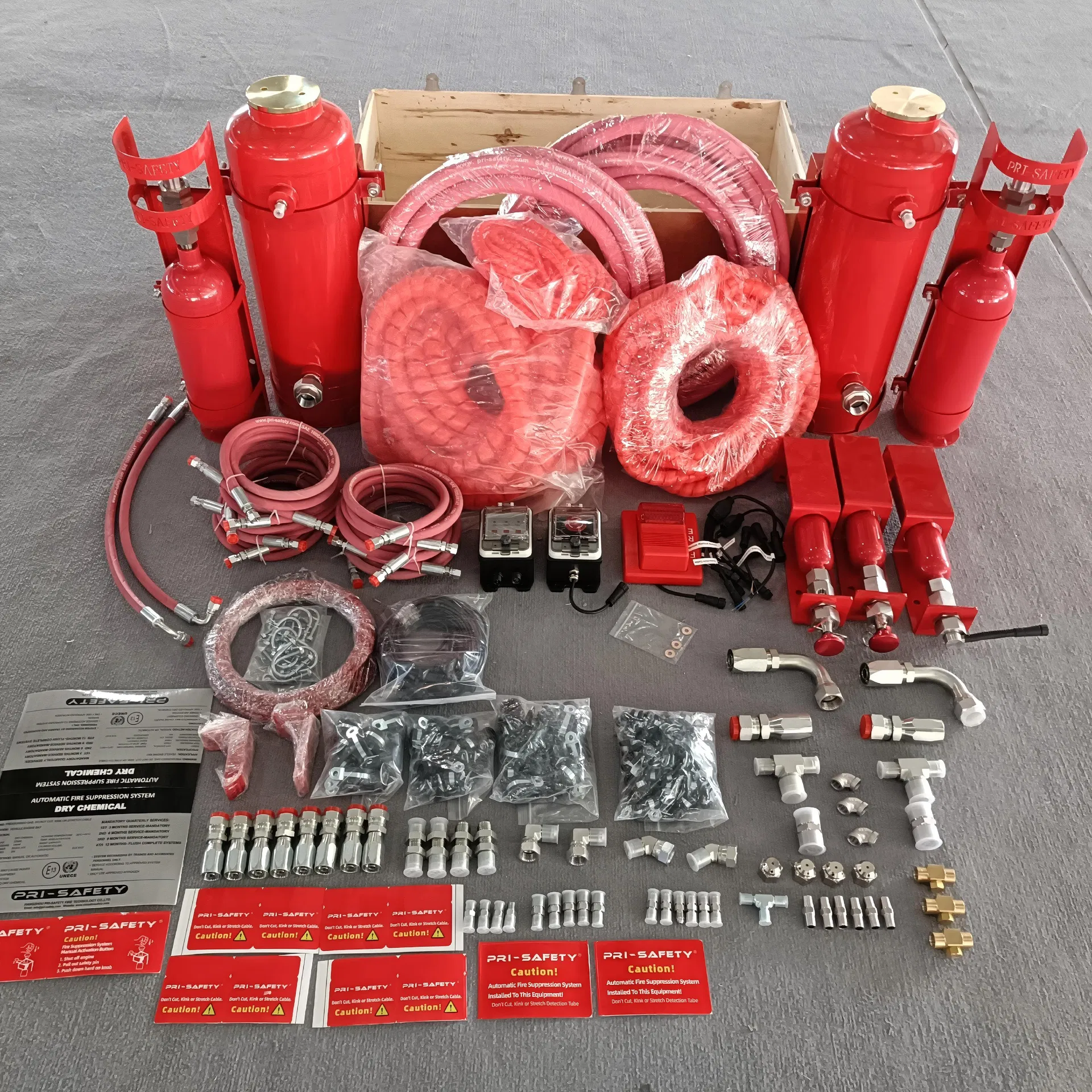

Technical Certification
❓ Frequently Asked Questions
1. How does the system activate automatically?
The system uses a linear detection cable that triggers the suppression agent once a specific temperature threshold (138°C or 180°C) is reached, ensuring immediate response without human intervention.
2. Which fire suppression agent is best for my vehicle?
It depends on the environment. Dry powder is versatile for various fire classes, Foam is excellent for liquid fuel fires, and FK-5112/Novec 1230 is ideal for protecting sensitive electronics without leaving residue.
3. Is this system certified for mining and public transport?
Yes, our systems are UN ECE R107 certified, which is the international standard for fire suppression in large passenger vehicles and heavy machinery.
4. Can the system be manually operated in an emergency?
Yes, every system includes a manual actuation button located on the dashboard or the exterior of the vehicle for emergency override.
5. What maintenance is required?
We recommend regular pressure gauge checks and annual professional inspections of the detection lines and nozzles to ensure maximum reliability.
6. Does the system shut down the engine?
Yes, the control panel can output a signal to the vehicle's engine management system to shut off the engine and fuel pump upon fire detection.
