| Model | Vehicle Fire System |
| Object | Class A/B/C/D/E Fire |
| Size | 20lbs, 30lbs, 40lbs, 50lbs, 60lbs, 100lbs (Customization Supported) |
| Certification | CE, UN ECE R107 / ISO9001 |
| Activation Type | Automatic & Manual Fire Extinguisher |
| Retirement Life | 8 Years |
| Agent Type | Dry Powder / Foam / FK-5112 Novec 1230 |
| Material | Stainless Steel / Steel with Coating |
| Detection Temp | 140ºC & 180ºC |
| Working Pressure | 14 Bar |

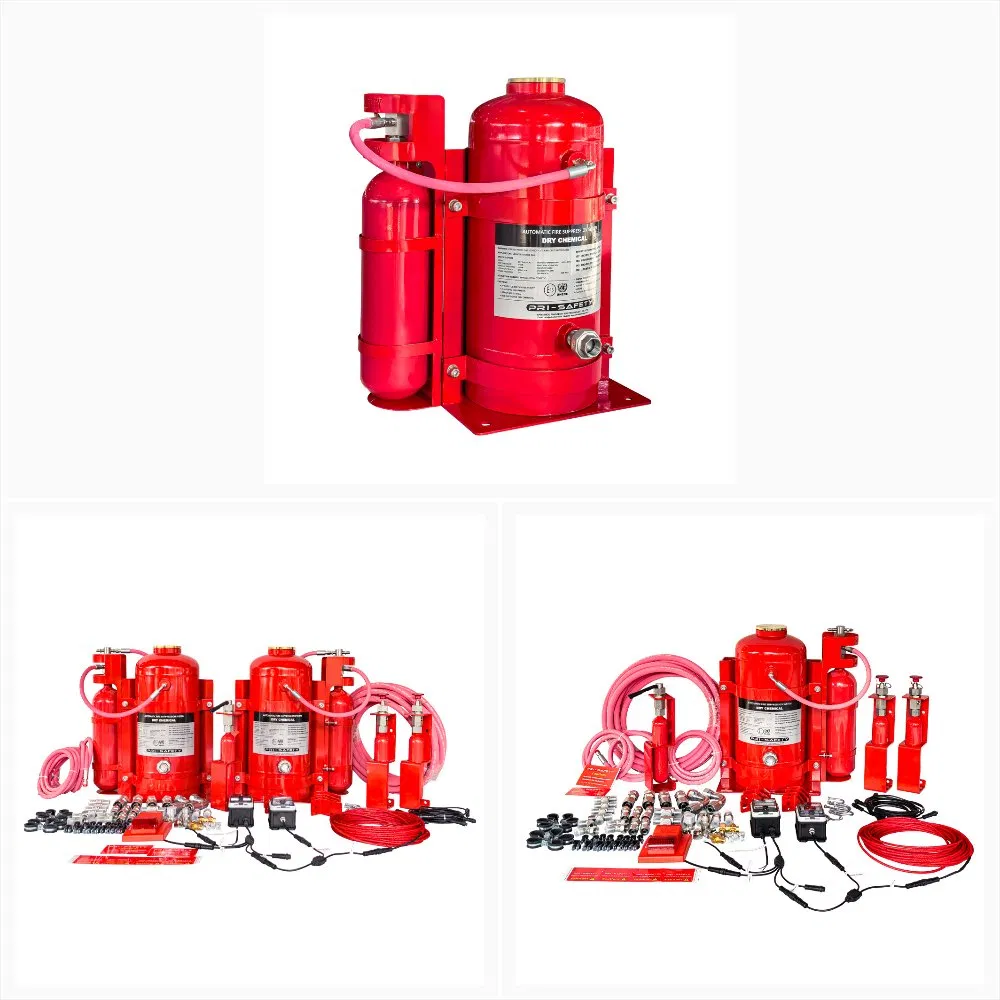

Vehicle Fire Systems for Mining, Construction, Agriculture, and Transportation

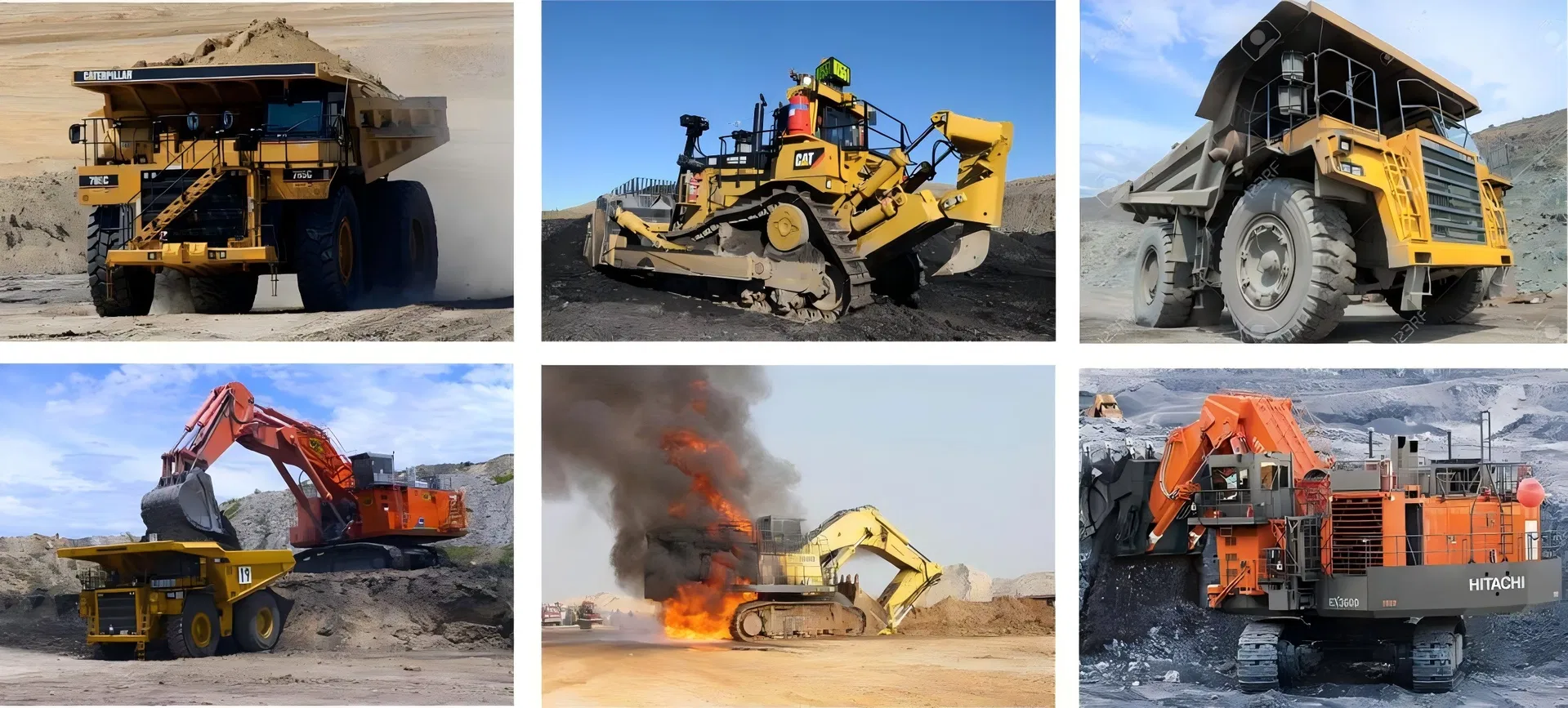

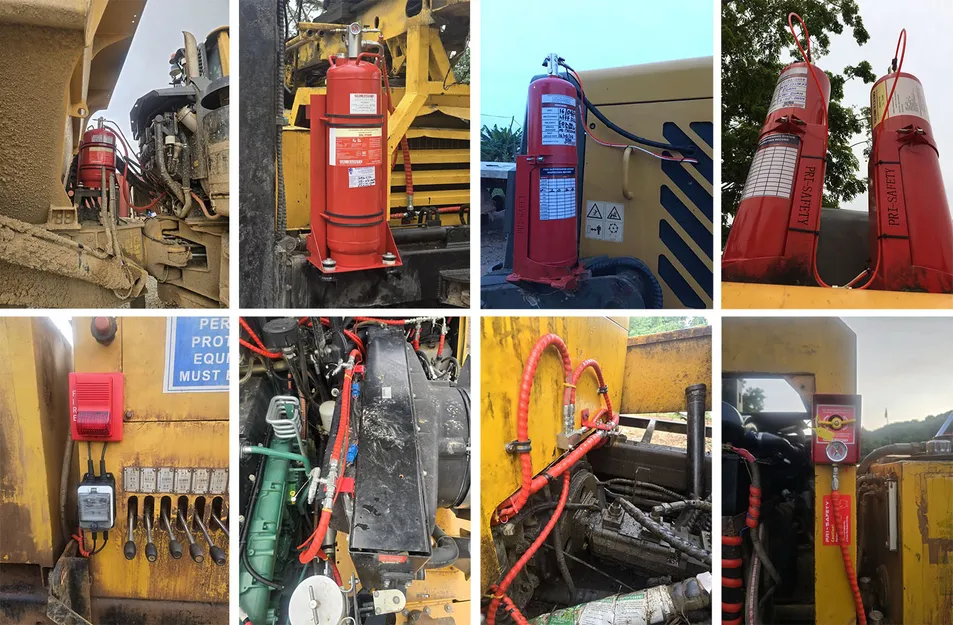

The Vehicle Fire Suppression System is pre-engineered to protect off-highway vehicles, commercial machines, and industrial equipment. Typical applications include surface and underground mining equipment, forest harvesting machines, construction vehicles, farming machinery, and public transport such as municipal buses.

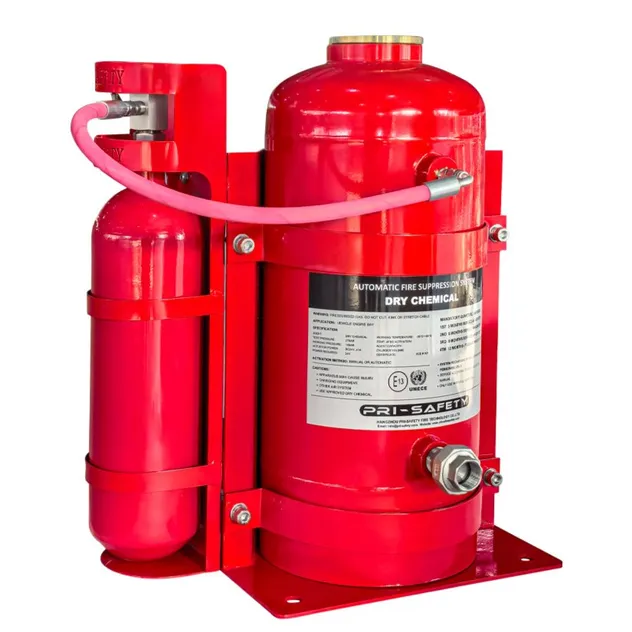

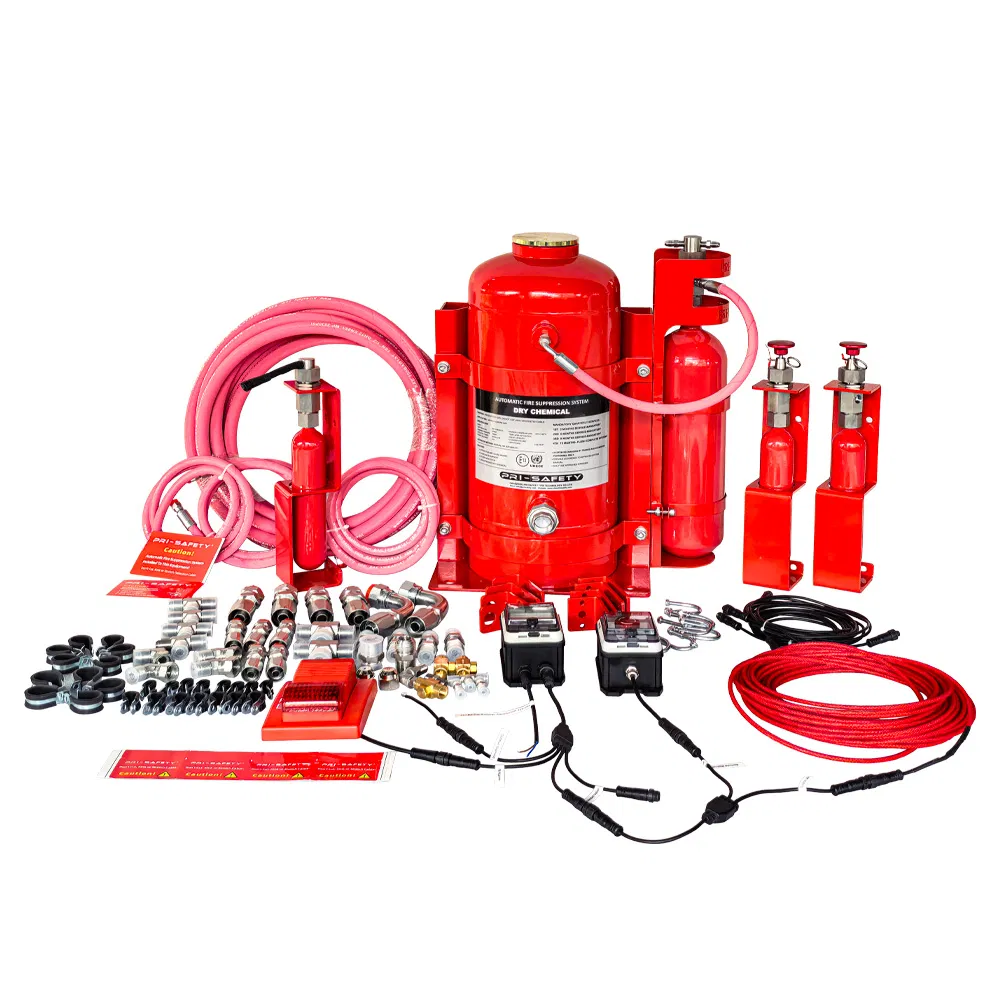

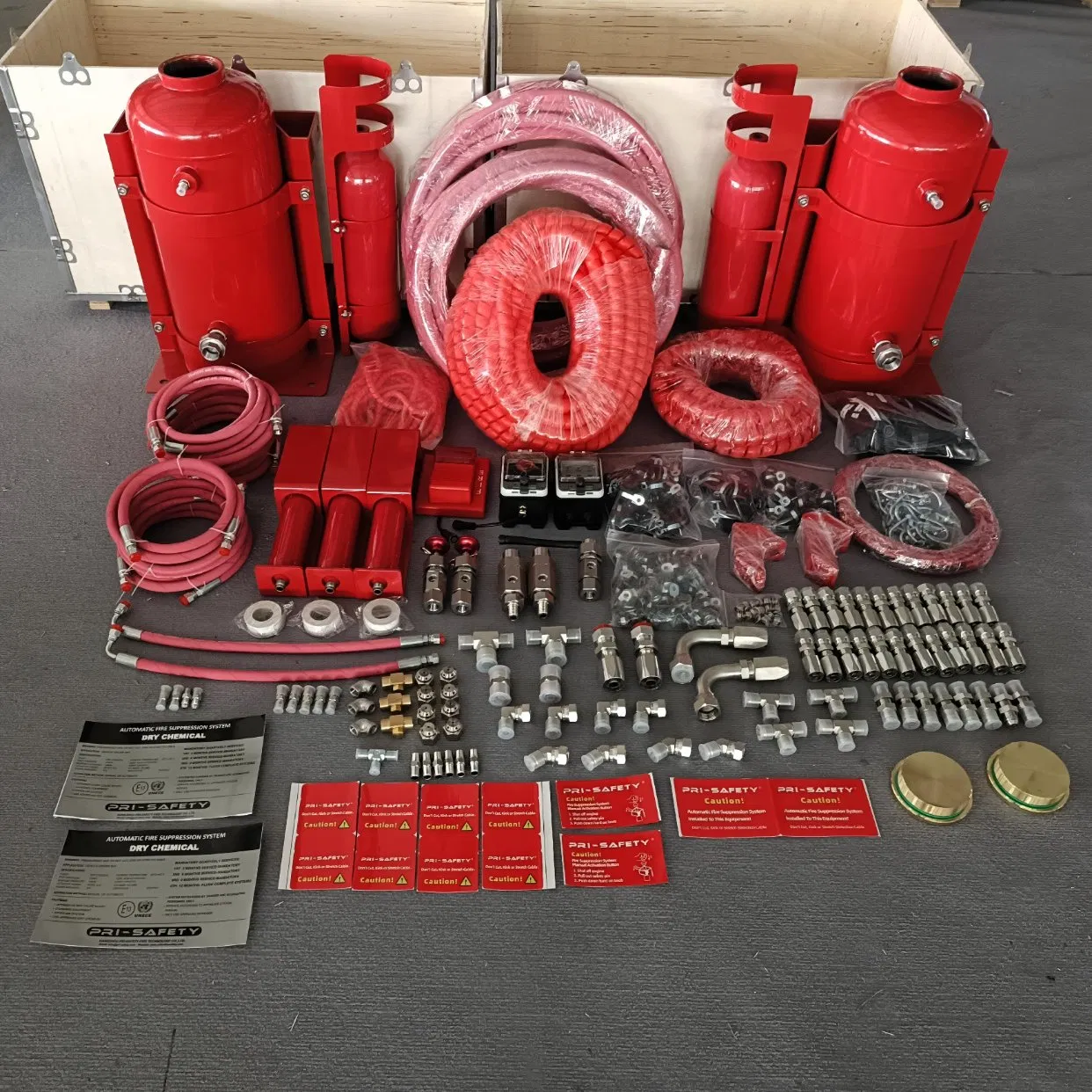

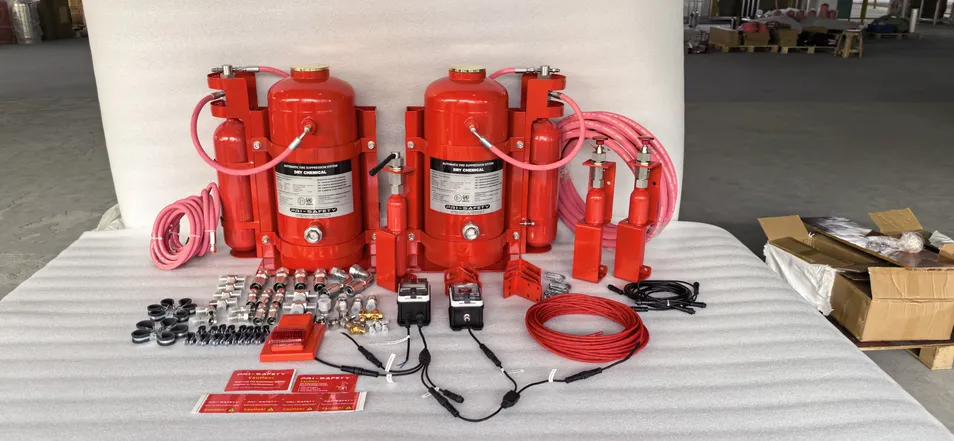

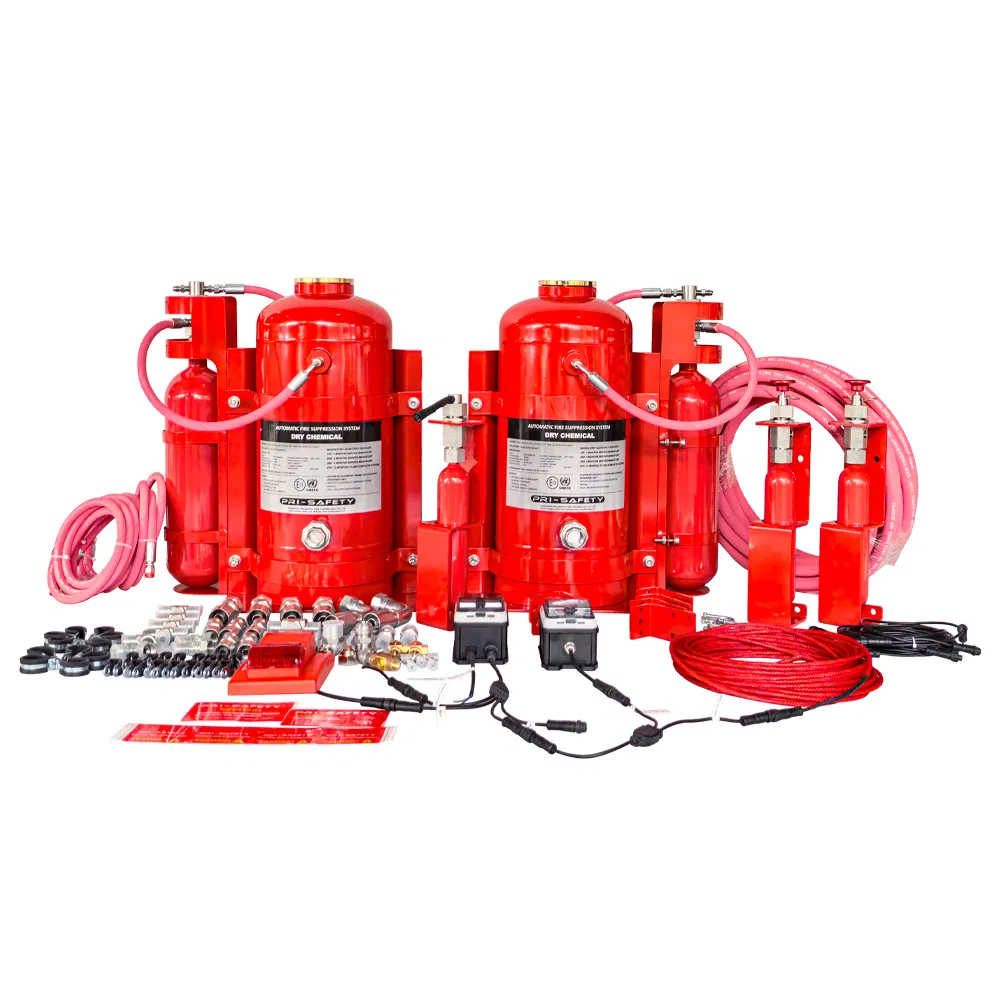

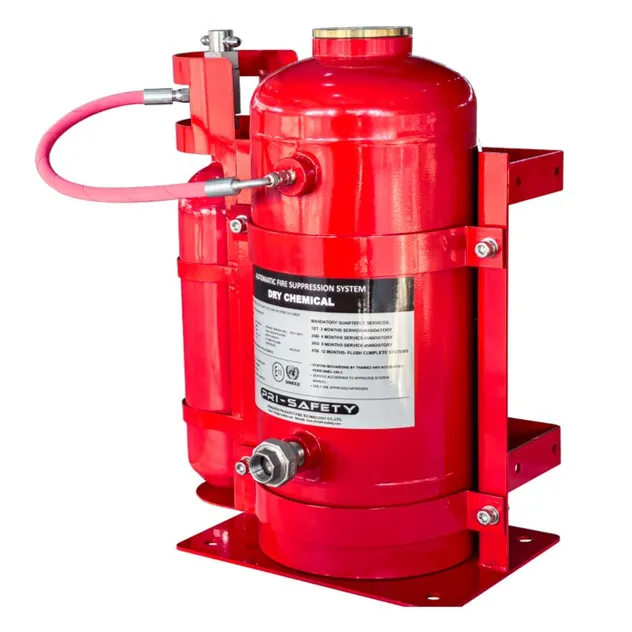

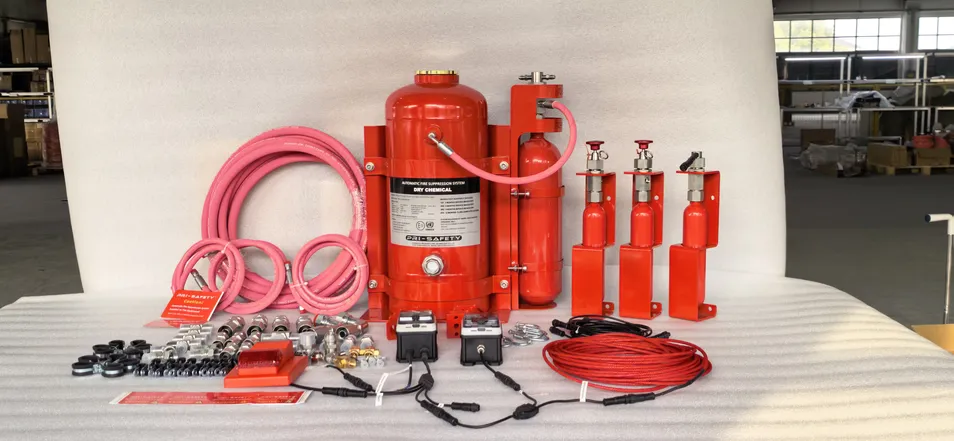

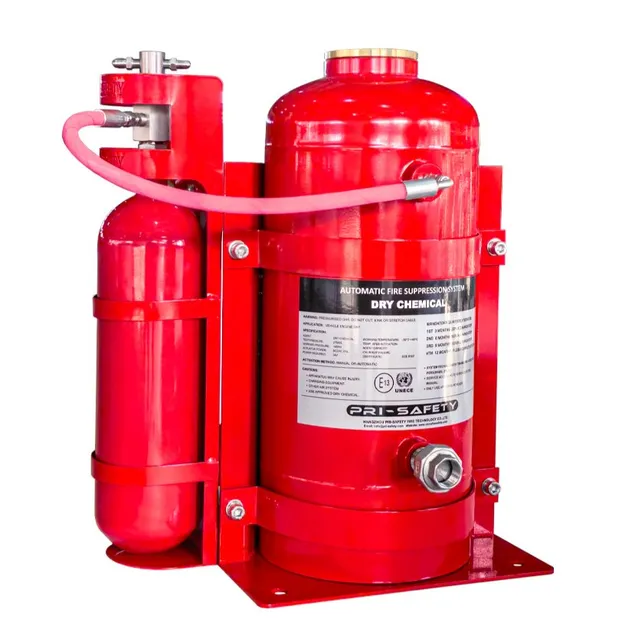

Major Components:

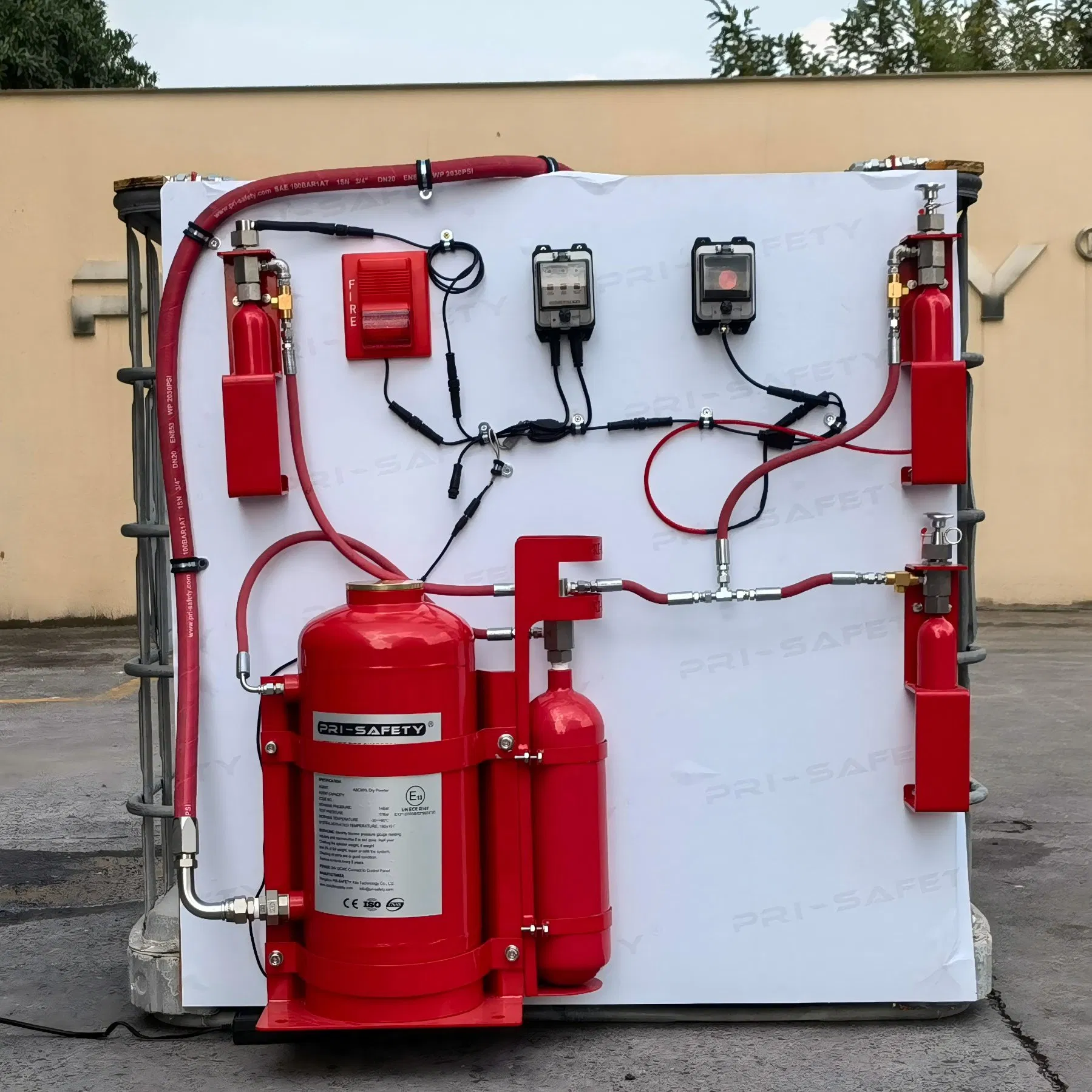

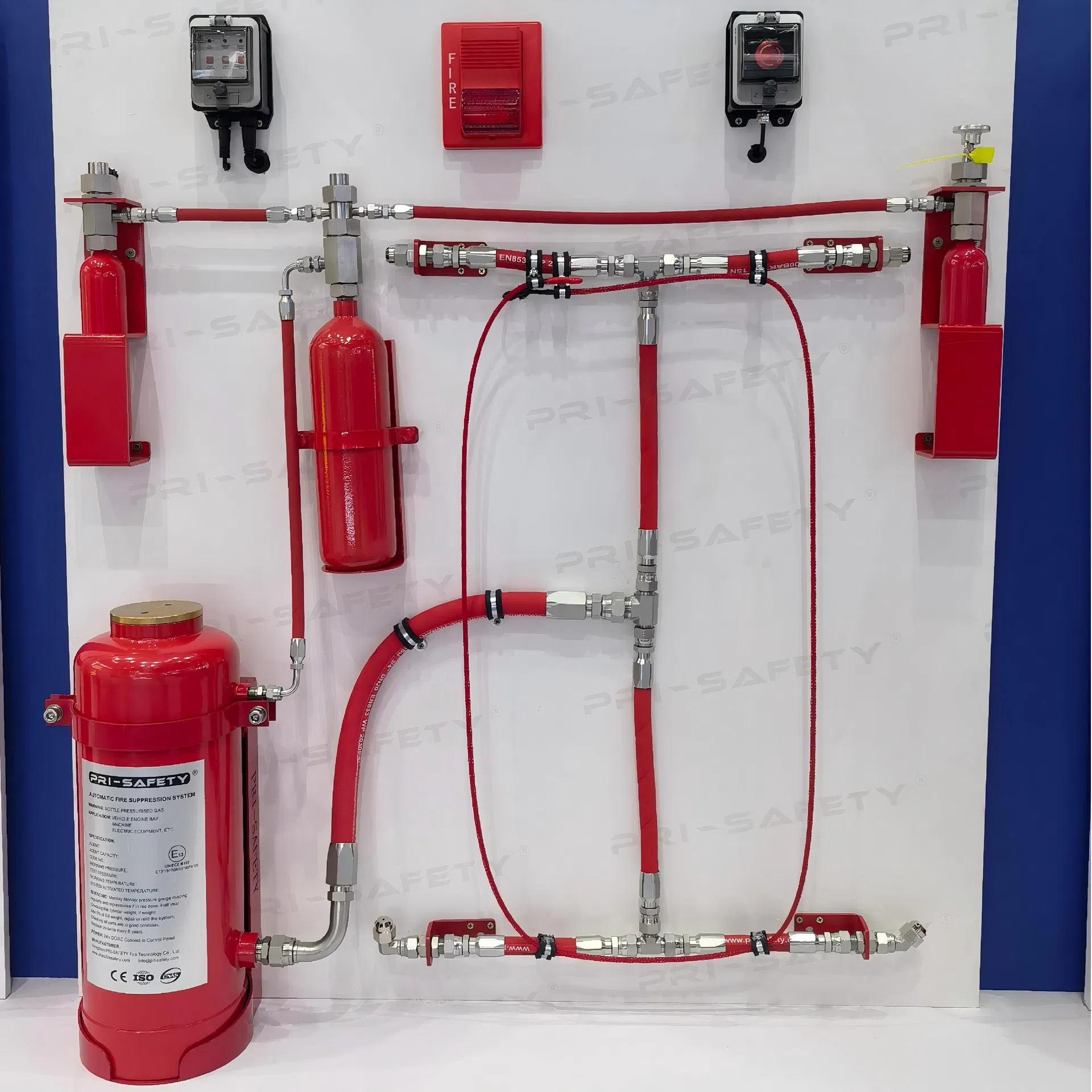

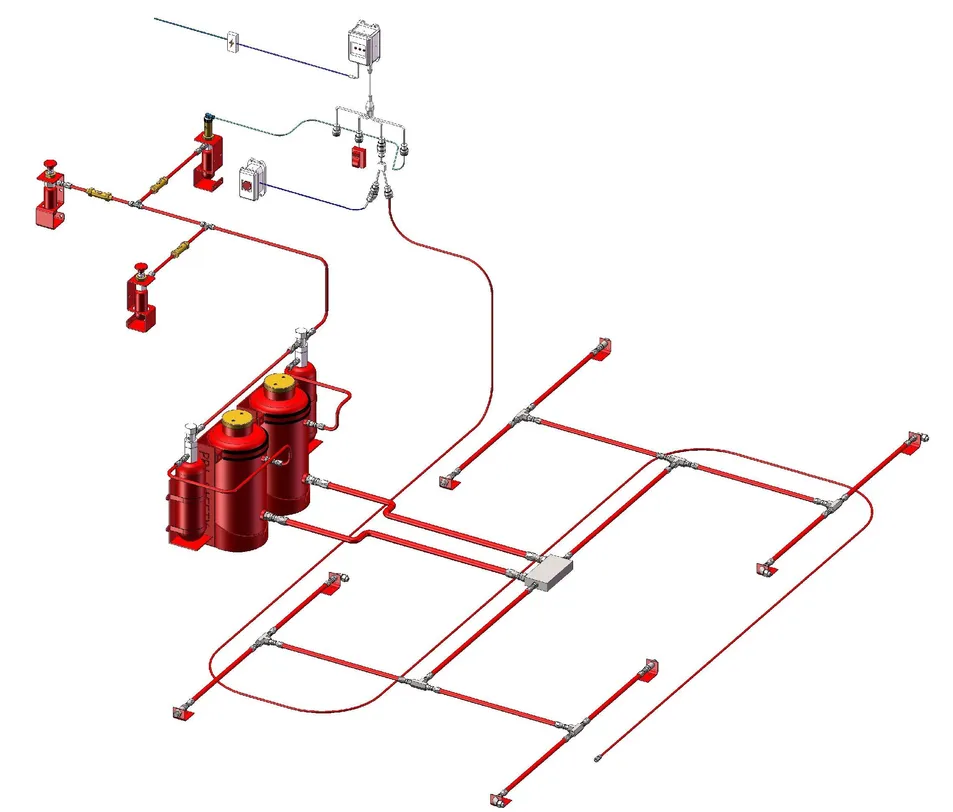

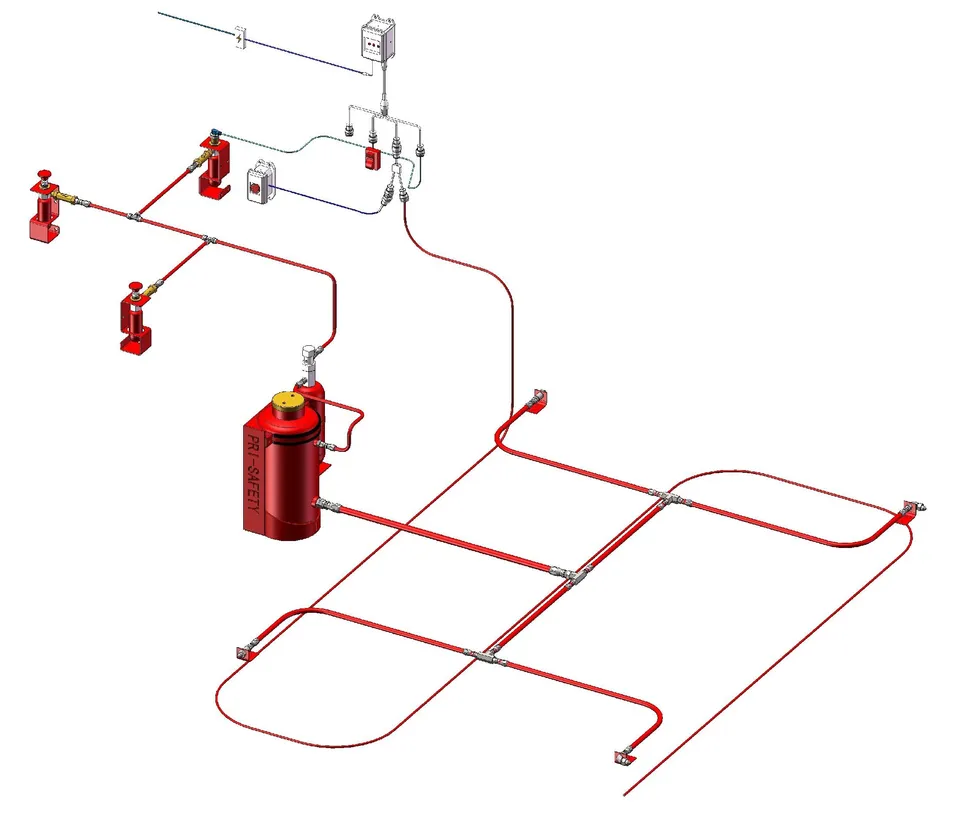

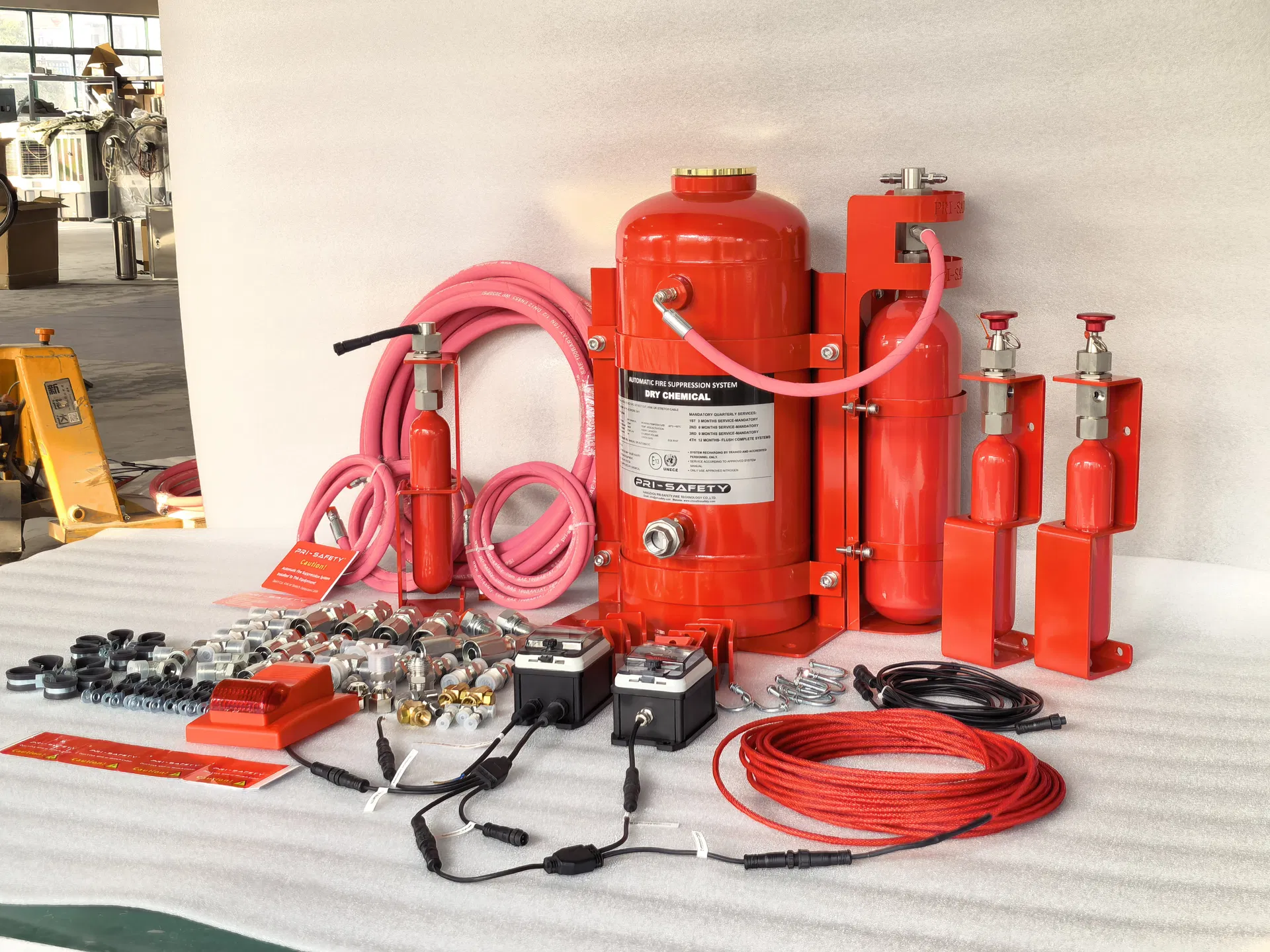

Working Diagram Explanation:
The system utilizes a flexible temperature detection cable connected to a control panel. When temperatures reach 180ºC (or 138ºC), the cable sends a signal to the panel, activating a solenoid valve. The fire agent is then discharged through pipes and nozzles. Simultaneously, a fire alarm is triggered, and a signal is sent to the vehicle controller to shut off the engine.
| Parameter | Details |
|---|---|
| Capacity Options | 20LBS to 100LBS or Customized |
| Agents | Foam / Dry Powder / FK-5112 / Novec 1230 |
| Working Pressure | 14 Bar |
| Testing Pressure | 27 Bar |
| Cylinder Material | Steel (Red Paint) or Stainless Steel 304 |
| Certificates | UN ECE R107, CE |
| Activation Temp | 140ºC & 180ºC |

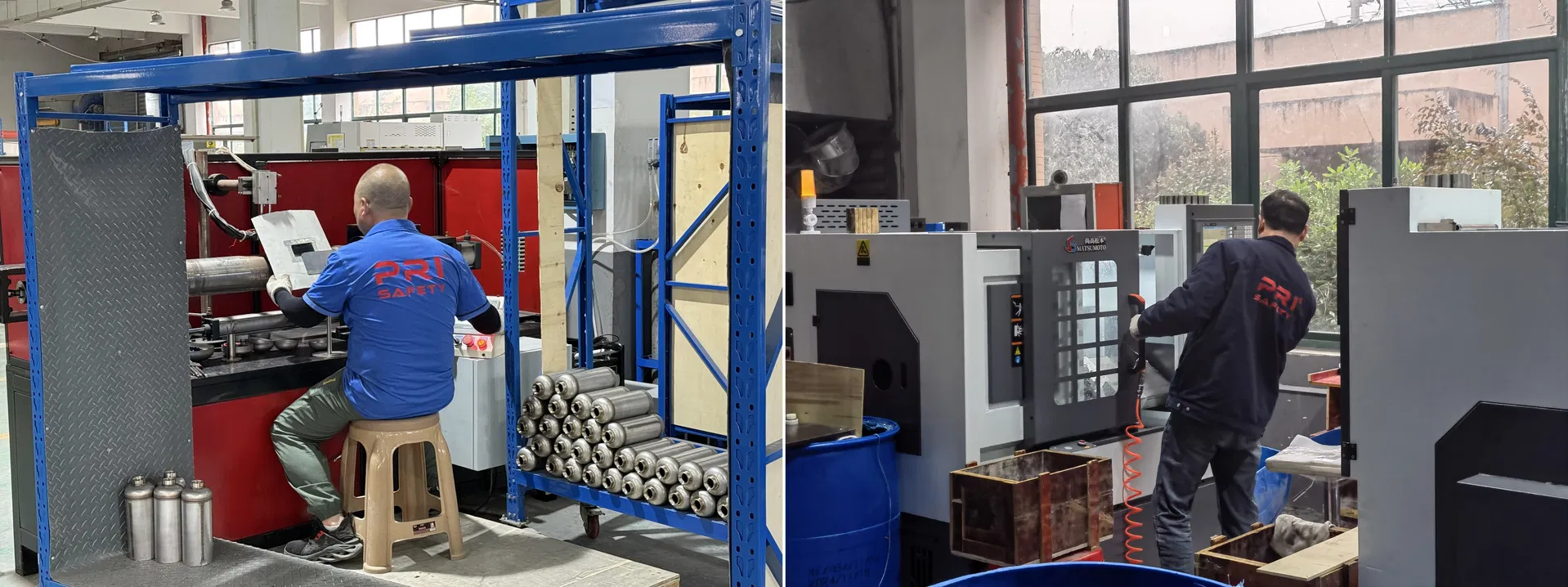

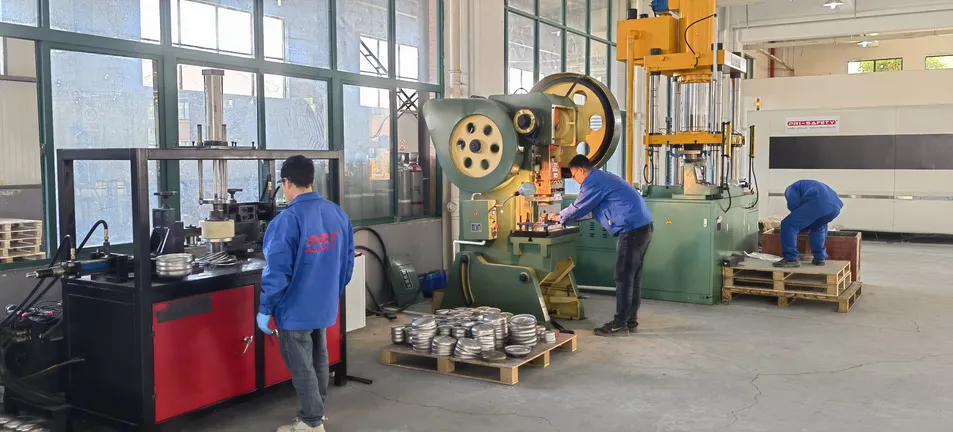

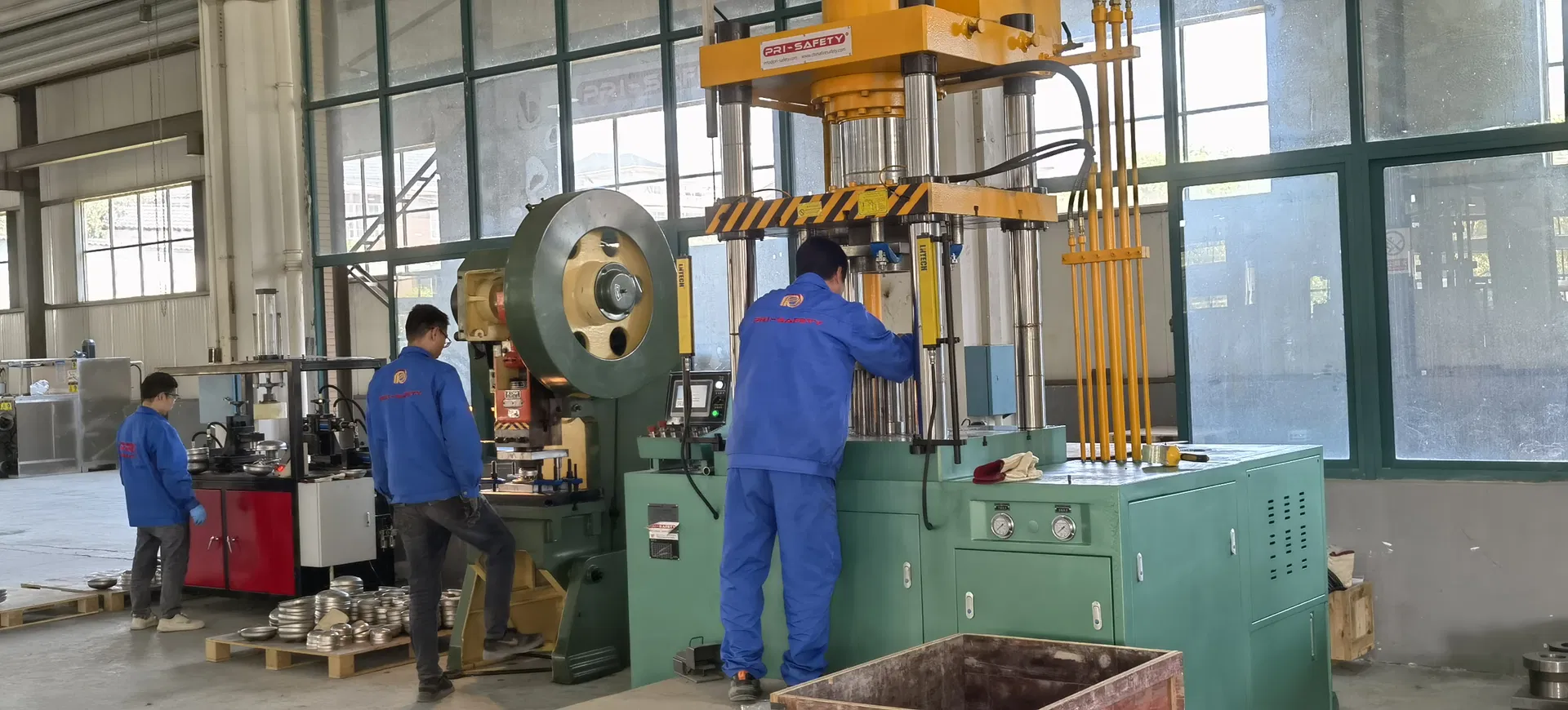

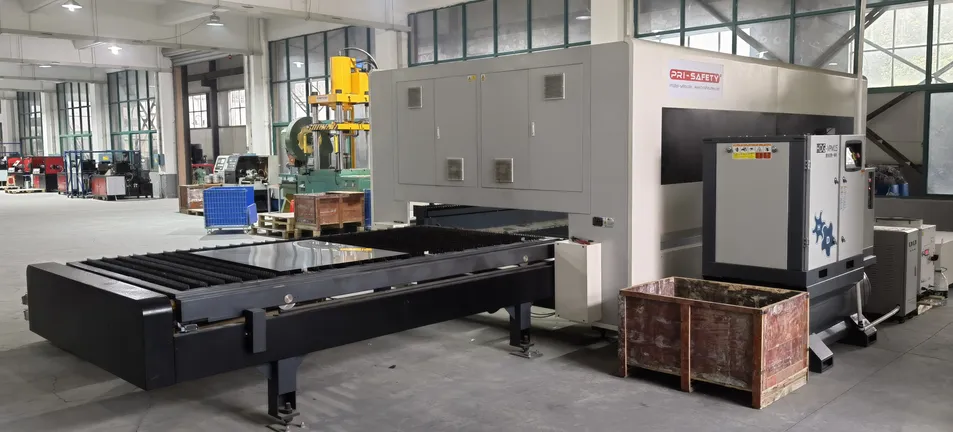

Our facility is a national high-tech enterprise specializing in the research, design, and manufacture of automatic fire suppression systems. We provide full-spectrum solutions, including Kitchen Fire Systems, Gas Suppression Systems (FM200/FK-5112), and Water Mist systems.

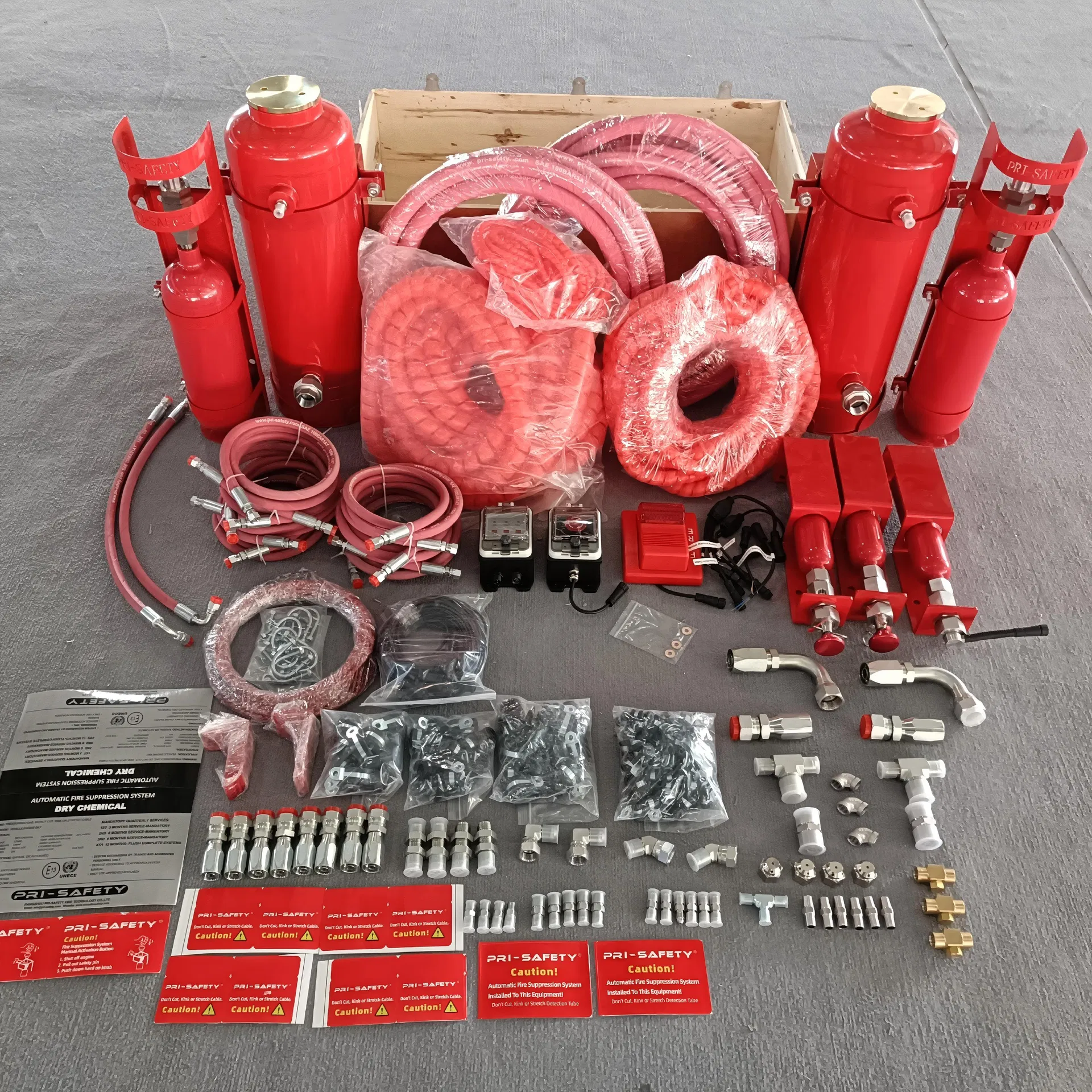

One-Stop Service Capability:
