| Model NO. | HGM |
|---|---|
| Motor Power | 30KW |
| Rotational Speed | 21-23r/min |
| Application | Mine |
| Materials | Ore, Mining, Construction |
| Condition | New |
| Fineness | 30-2500 Mesh |
| Capacity | 1-30 T/H |
| Warranty | 1 Year |
| Input Size | 20mm |
| Power Range | 146.05-527kw |
| HS Code | 84742090 |

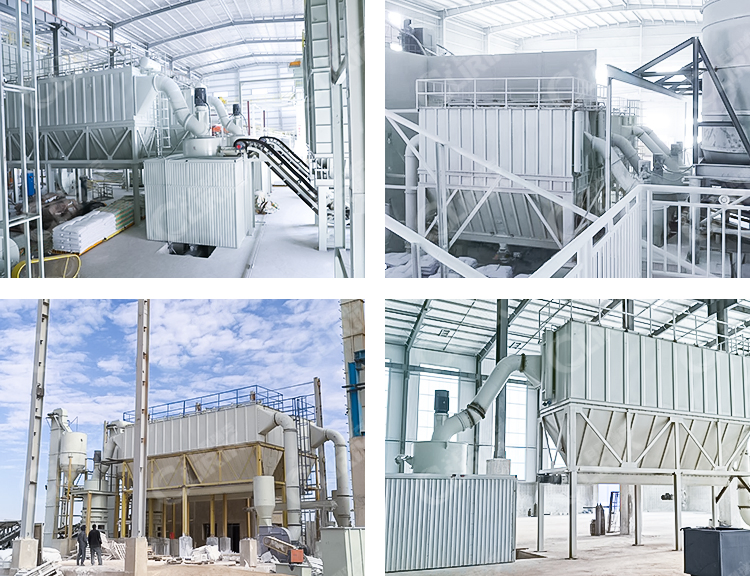

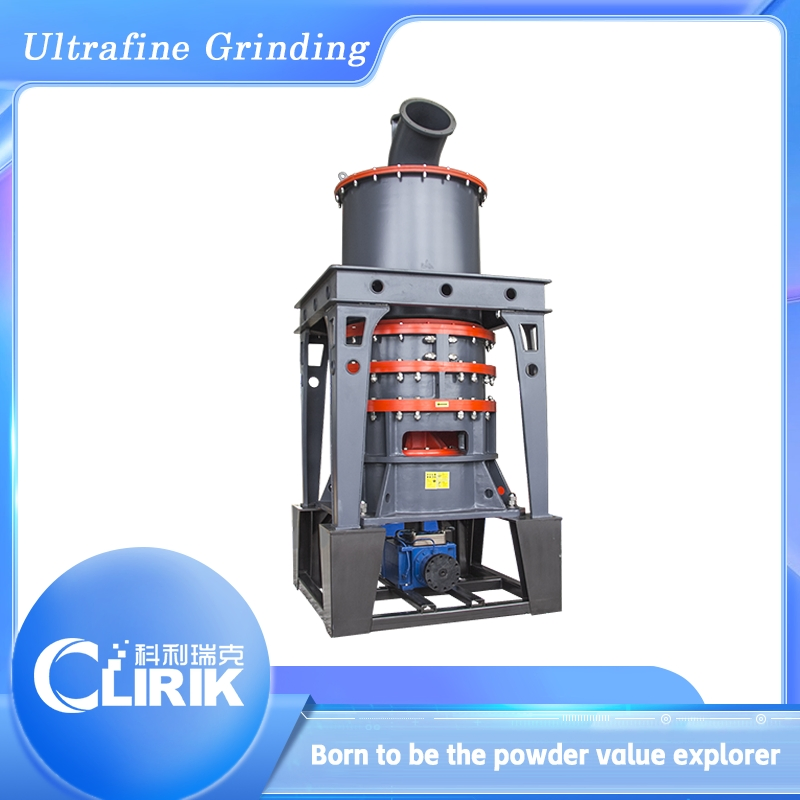

The Micro Powder Grinding Mill is designed for high-performance material processing. Available in multiple models including HGM80, HGM90, HGM100, HGM125, and HGM1680, it caters to diverse production requirements.
| Model | HGM80 | HGM90 | HGM100 | HGM125 | HGM1680L |
|---|---|---|---|---|---|
| Ring Diameter (mm) | 800 | 900 | 1000 | 1250 | 1680 |
| Roller Number (PCS) | 18-21 | 24-29 | 28-36 | 30-44 | 30-40 |
| Input Size (mm) | ≤10 | ≤10 | ≤15 | ≤15 | ≤20 |
| Finished Size (mesh) | 200-2500 | 200-2500 | 200-2500 | 150-2000 | 150-1500 |
| Capacity (t/h) | 0.4-4.5 | 0.6-6.5 | 1-9 | 2-16 | 3.8-30 |
This equipment is revolutionary for producing micro and fine powders across industries such as metallurgy, chemistry, cement, construction, and ceramics.

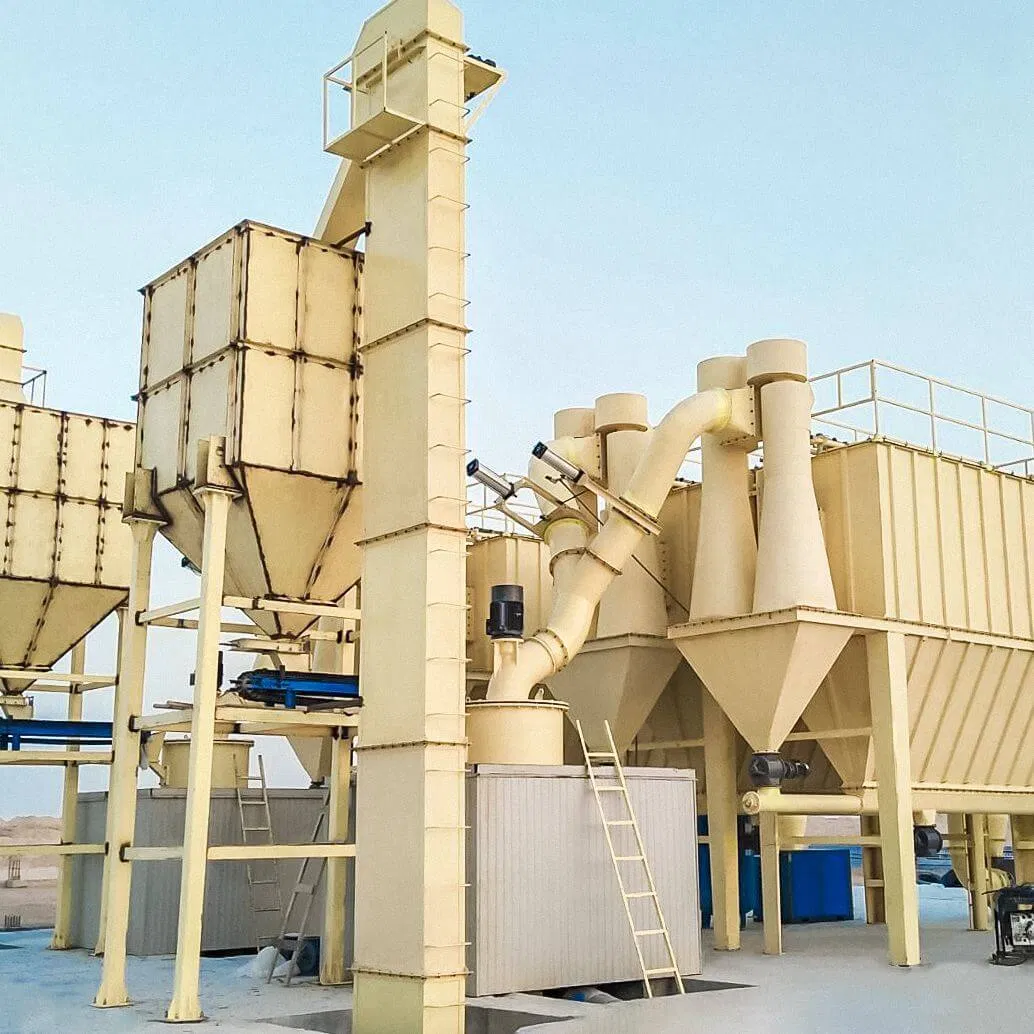

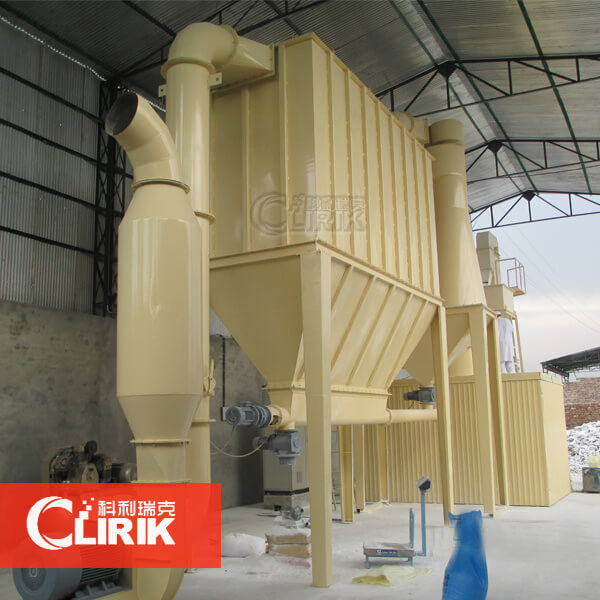

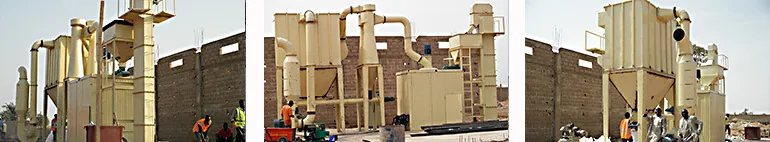

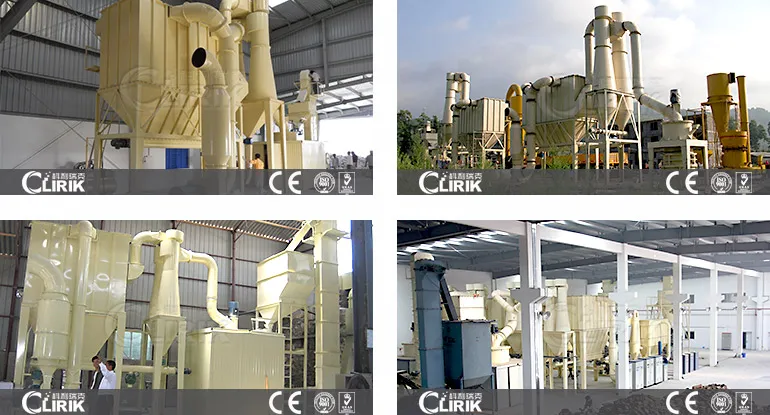

The comprehensive system includes a hammer crusher, bucket elevator, storage hopper, vibrating feeder, classifier, cyclone collector, and pulse deduster system.
Capacity is double that of jet mills and ball mills with the same power, reducing energy consumption by 30%.
Premium material spare parts like rings and rollers can last 2-5 years when grinding calcite carbonate.
No rolling bearings or screws in the grinding cavity, eliminating issues with bolt shedding or bearing wear.
Equipped with pulse bag filters and mufflers to significantly reduce dust pollution and noise.

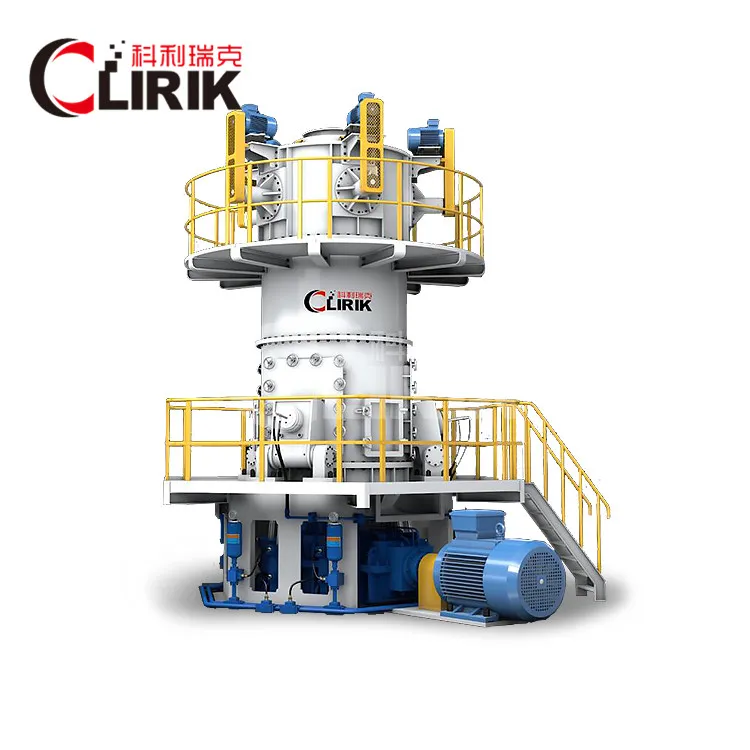

Ultrafine Vertical Roller Mill
600-4500 mesh

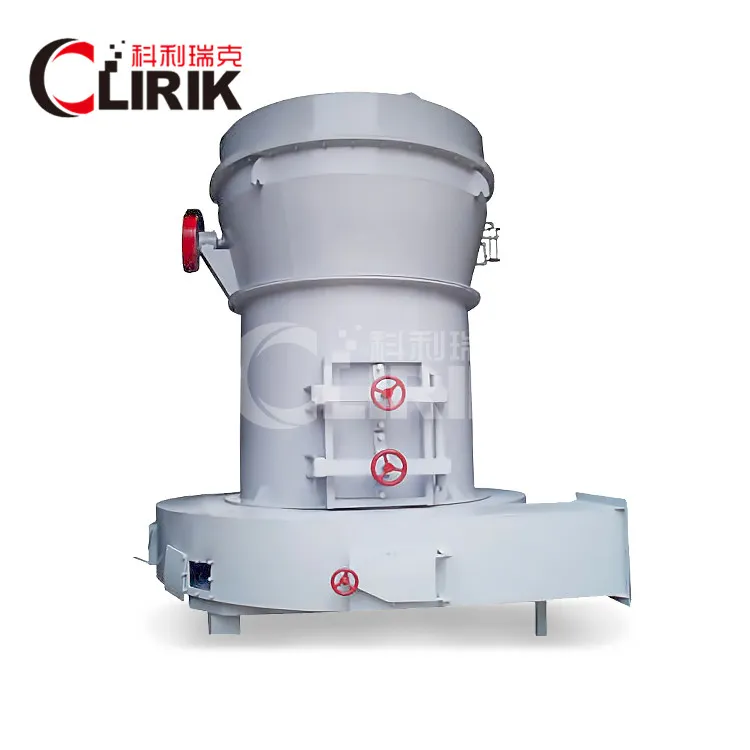

Raymond Mill
50-450 mesh

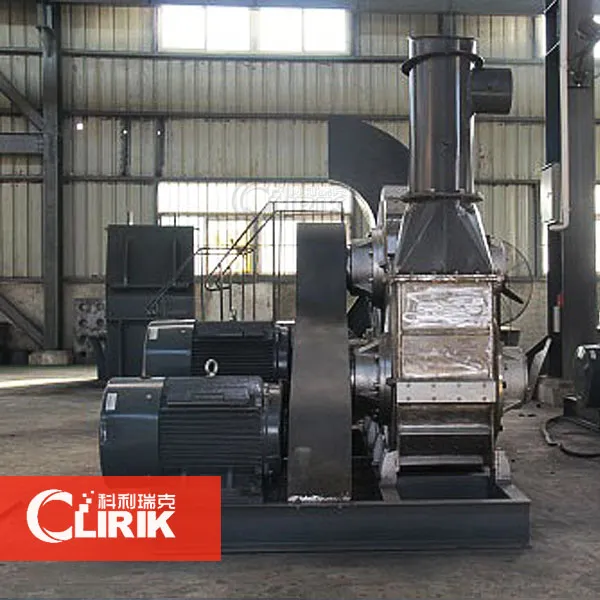

Coating Machine
