Choose from a variety of models of vacuum conveyors, including small vacuum feeding machines, high-temperature resistant vacuum feeding machines, continuous vacuum feeding machines, and customizable negative pressure conveying stations.

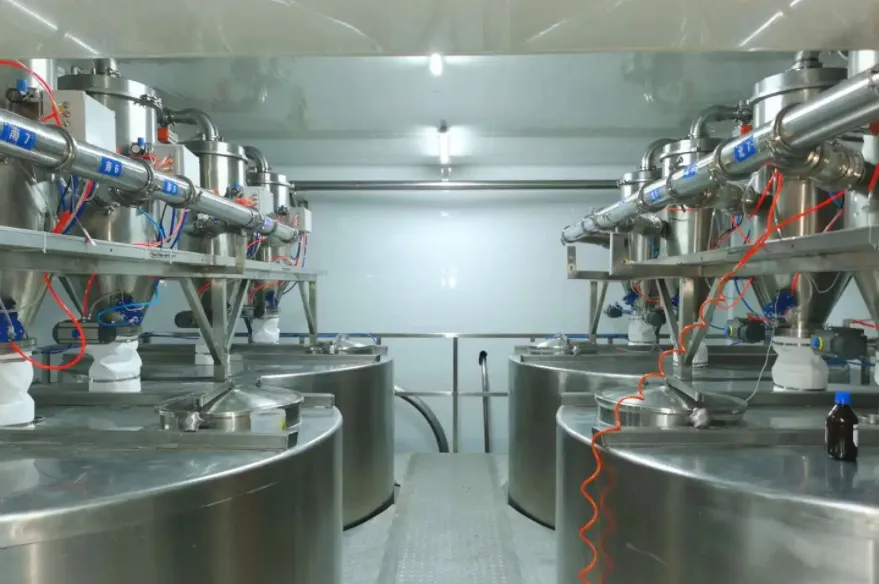

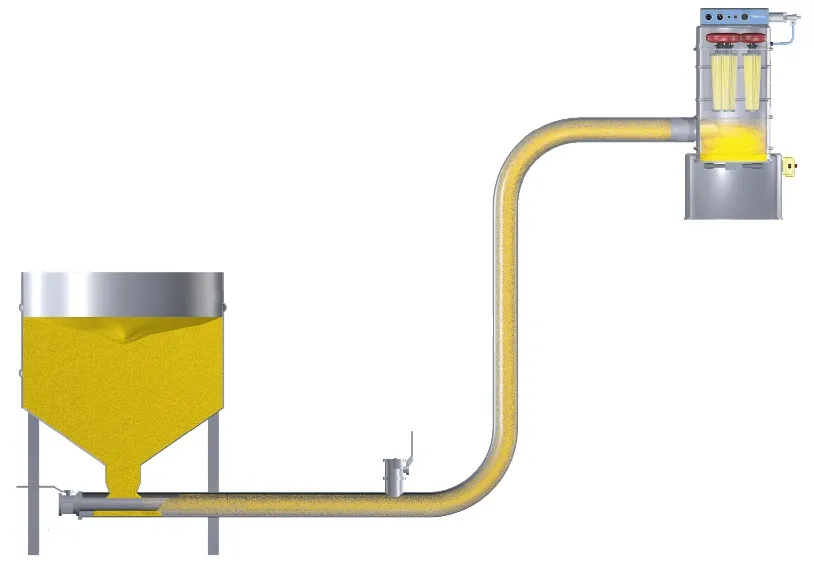

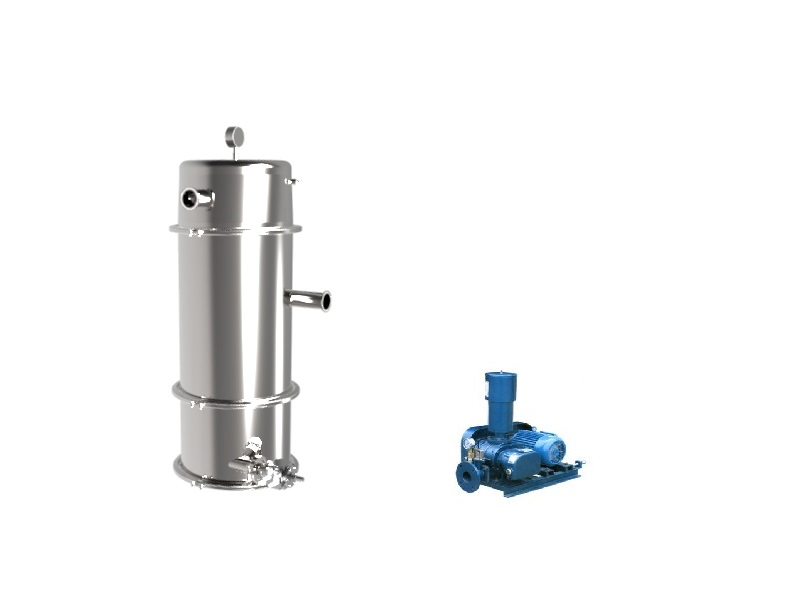

The vacuum suction machine is an advanced and ideal vacuum conveying equipment for transporting powder materials and powder particle mixtures. It automates the transportation of materials to packaging machine hoppers, injection molding machines, crushers, and mixers, reducing labor intensity and preventing dust overflow during feeding.

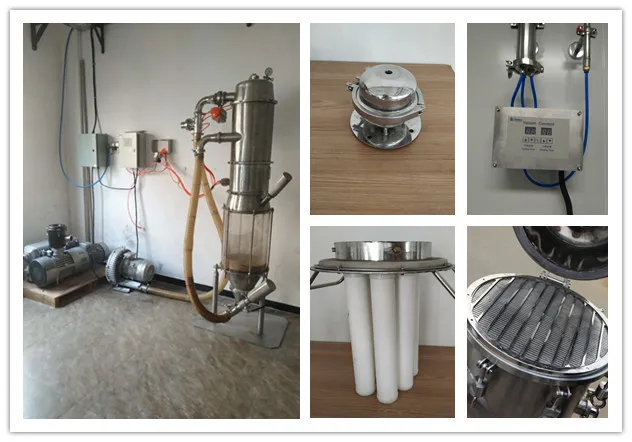

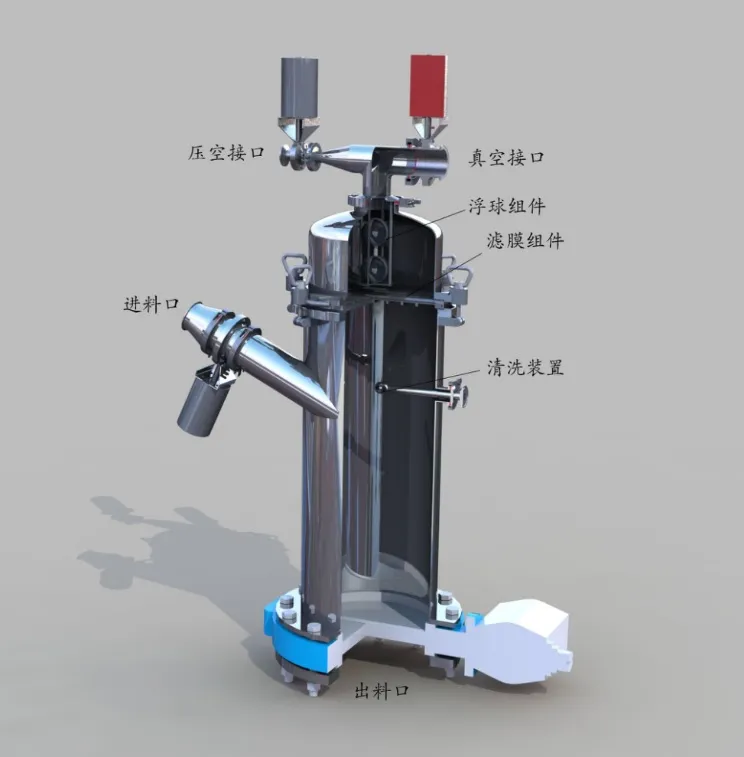

The system includes a vacuum pump (oil-free, water-free), stainless steel suction nozzle, conveying hose, PE filter (or 316 stainless steel filter), compressed air back blowing device, pneumatic discharge door device, vacuum hopper, and material level automatic control device. The system is designed to meet GMP standards.
| Model Parameter | QXL-200 | QXL-300 | QXL-400 |
|---|---|---|---|
| Volume (L) | 13 | 38 | 68 |
| Power (W) | 200 | 200 | 200 |
| Air Consumption (L/min)/MPa | 50/0.6 | 80/0.6 | 100/0.6 |
| Vacuum Interface | Quick 1.5" | Quick 2.5" | Quick 3.5" |
| Feeding Interface | Quick 1.5" | Quick 2.5" | Quick 3.5" |
| Production Capacity (Kg/h) | 50-900 | 300-2500 | 600-3500 |
| Weight (Kg) | 72 | 96 | 125 |
| Dimensions (D×H mm) | φ350×1100 | φ450×1300 | φ480×1400 |

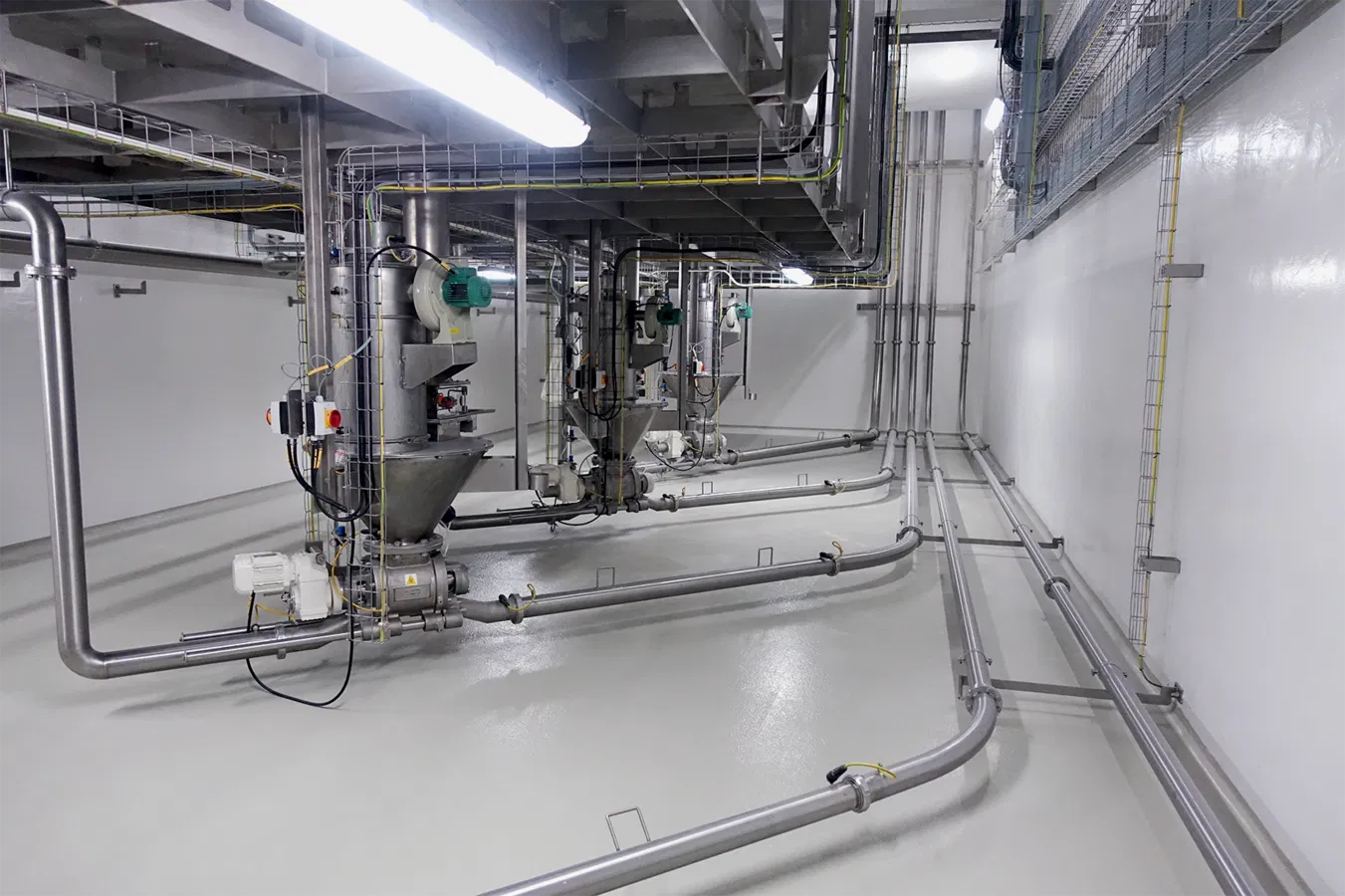

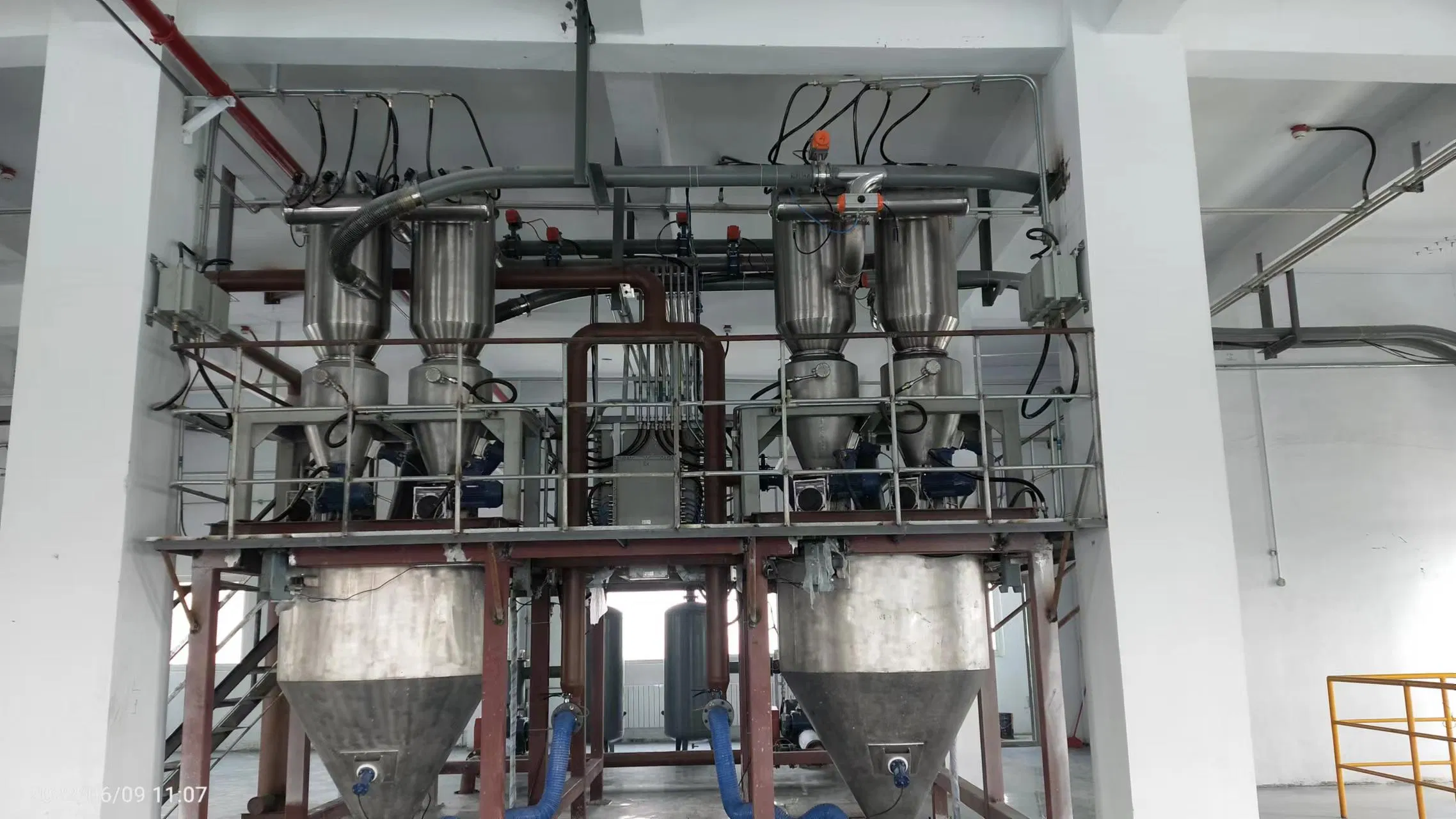

The High Volume Pneumatic Powder Conveying Unit offers efficient powder transfer with high capacity and advanced vacuum technology, ideal for food, chemical, and manufacturing industries.
