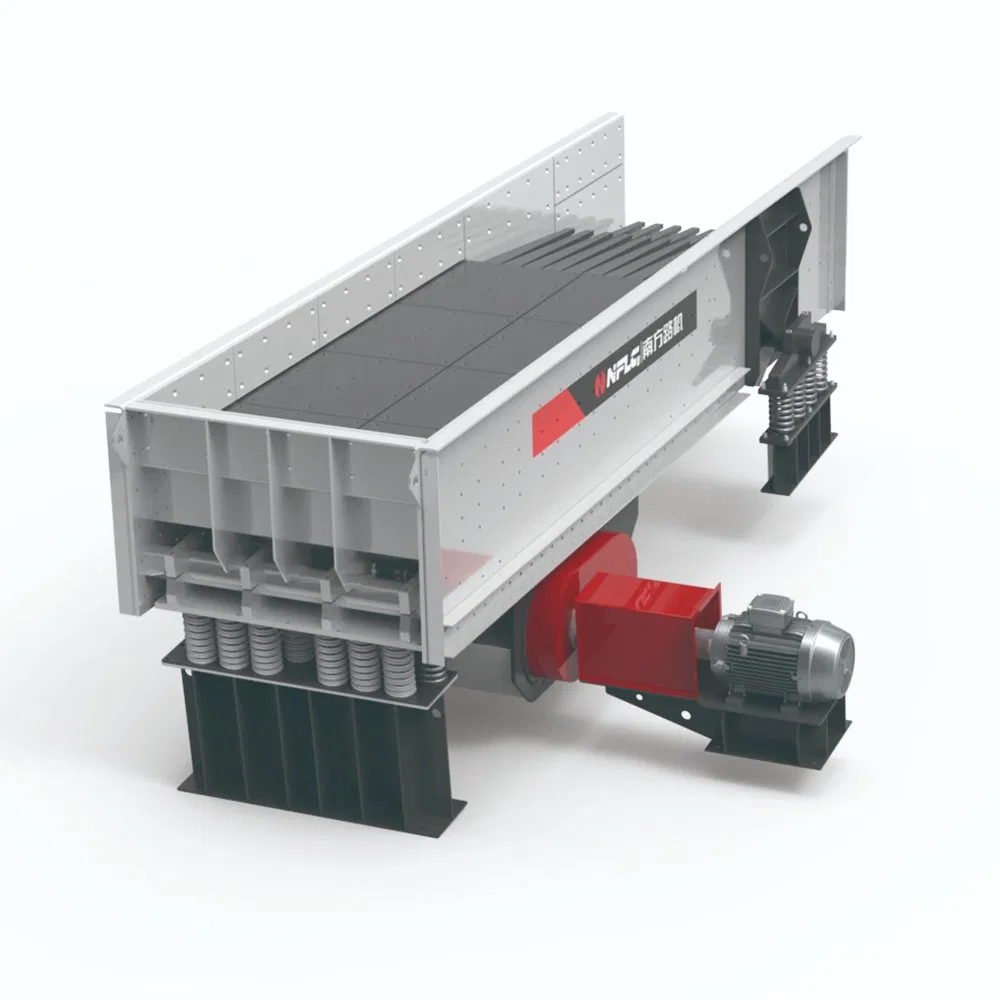

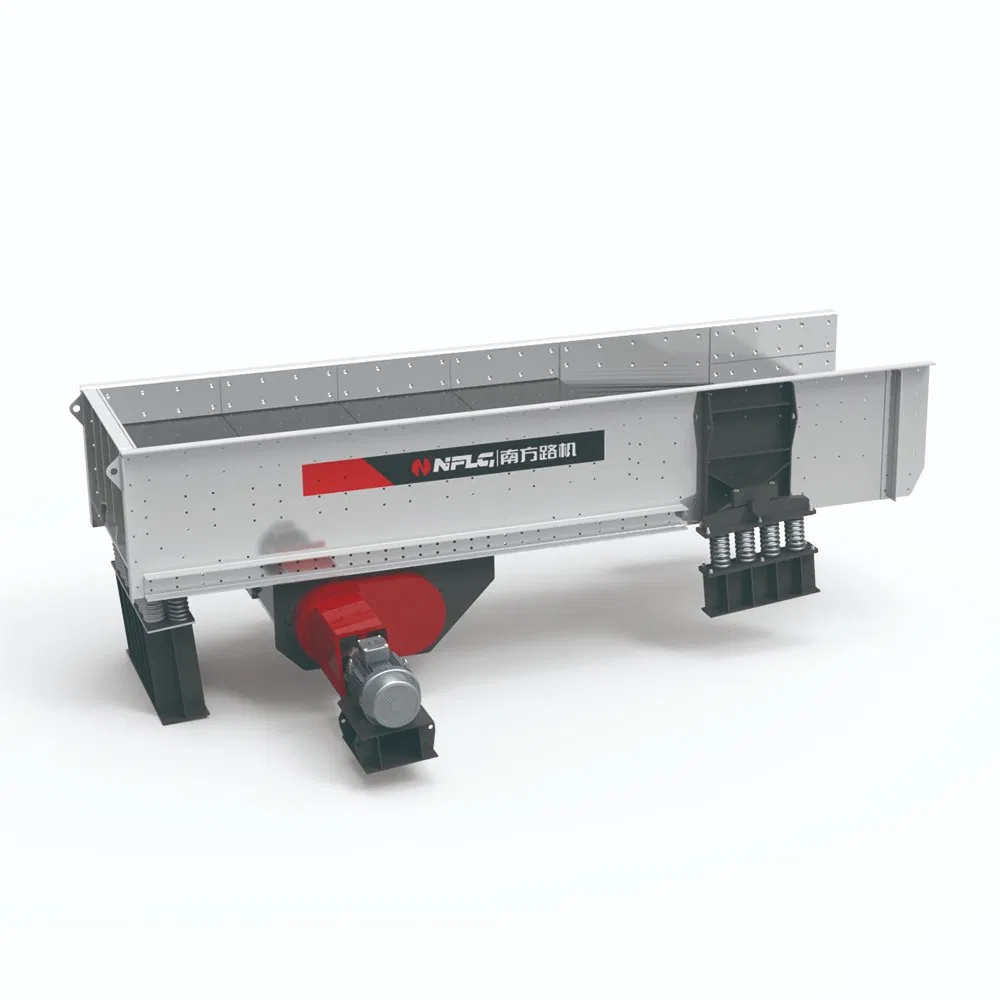

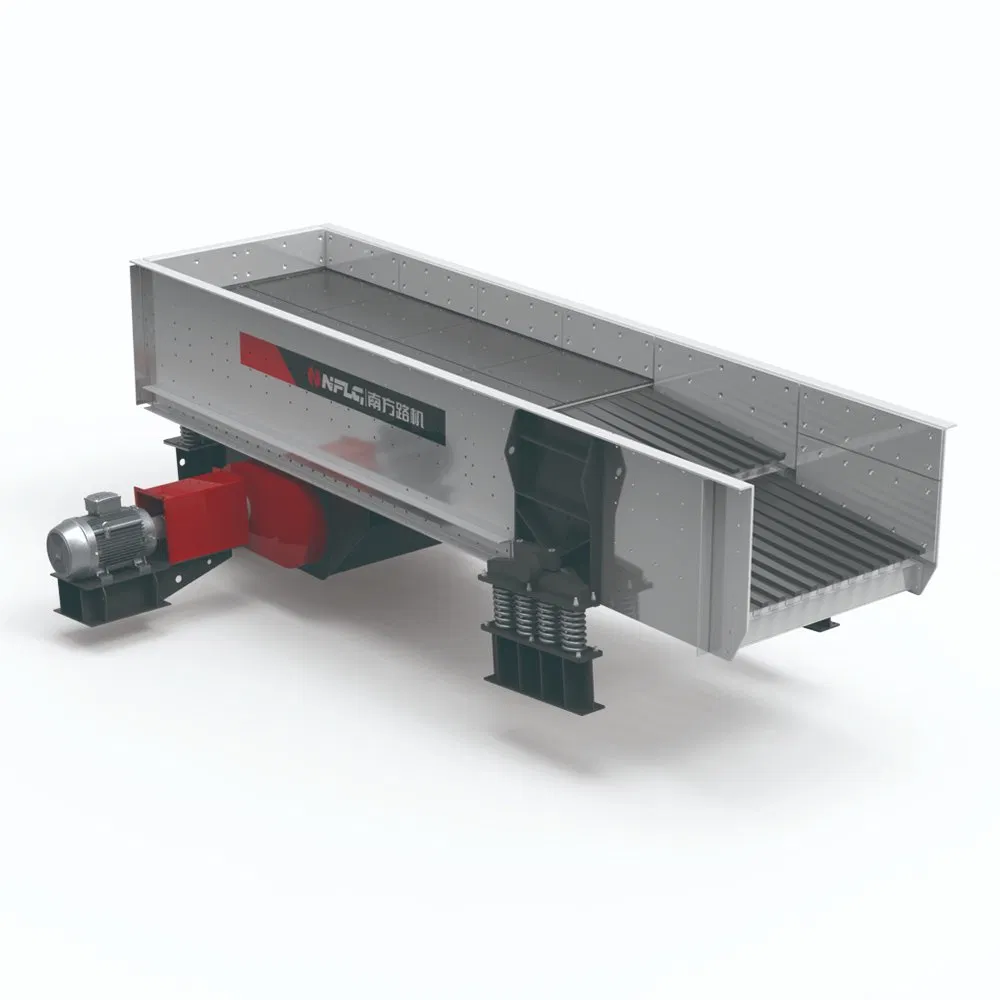

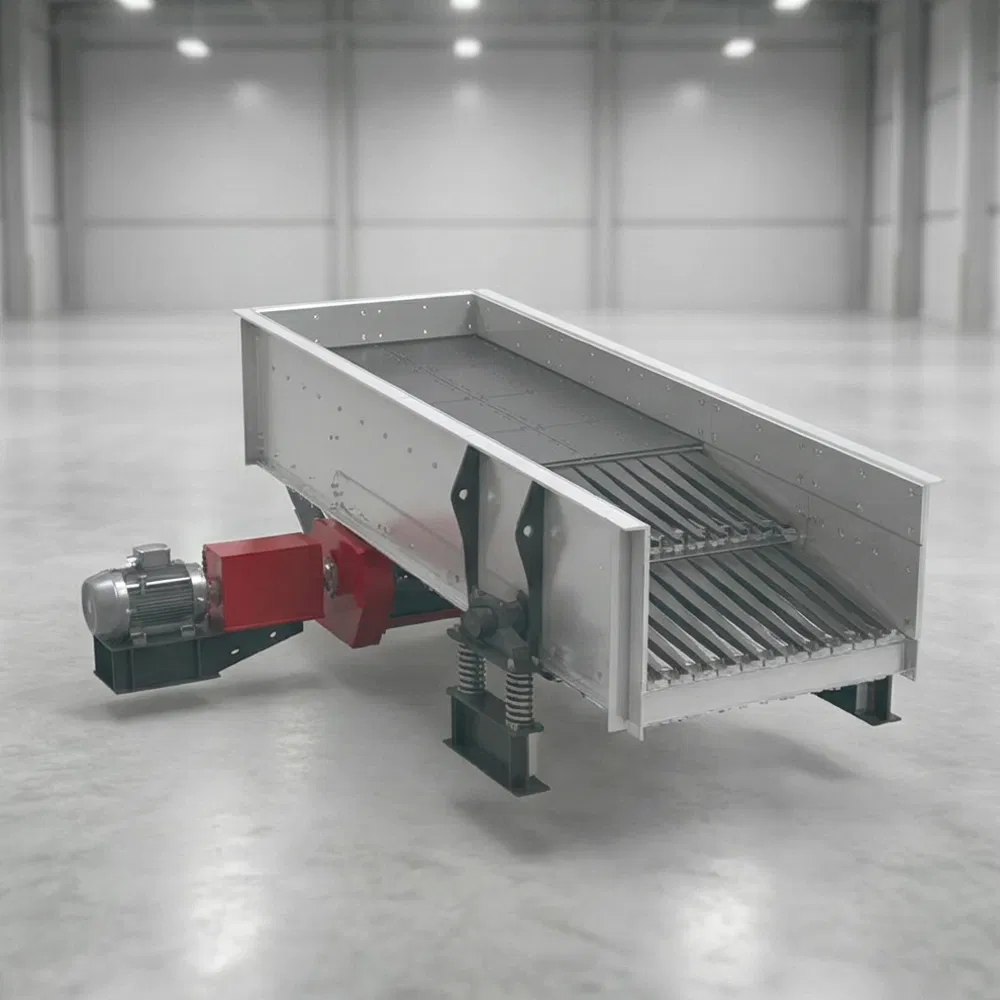

High Efficiency Heavy-Duty Screening System with Fast Mesh Replacement

Capacity(t/h):	450-1500
Feeding Mechanism:	Vibratory Type
Feeding Size:	650-1500

1

Basic Information

Model NO.

ZGH1040 - ZGH2060 Series

Type

Motor Vibrating Feeder

Usage

Building Materials, Colliery, Gravel Field, Ore-dressing

Product Name

ZGH Series Heavy Feeder

Bar Length(mm)

2*1250

Amplitude(mm)

8-8.5

Warranty

1 Year

After-Sales Service

Full Life Cycle Industrial Services

2

Product Description

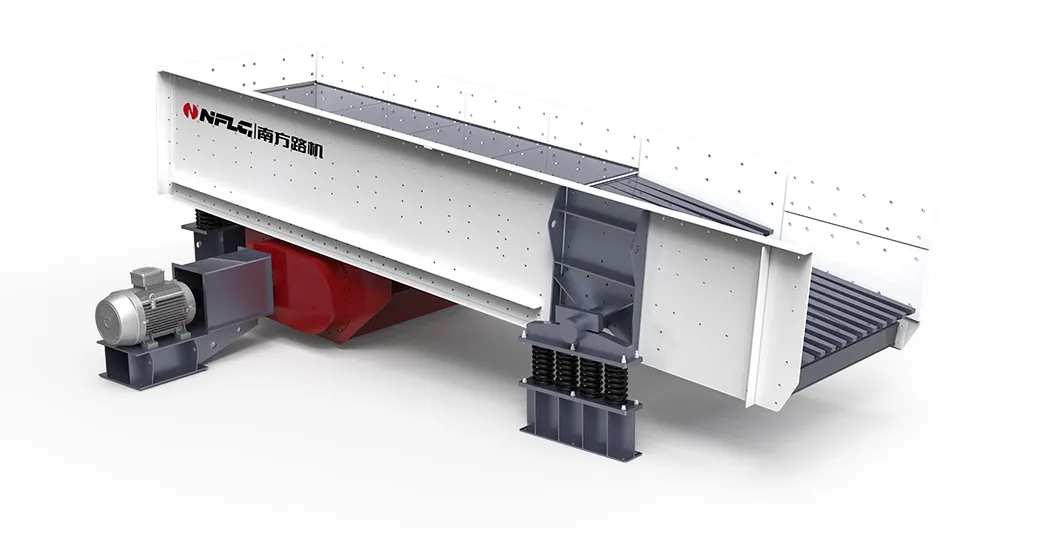

ZGH Series Heavy Feeder
ZGH series heavy feeders are engineered with precision to master ultra-heavy working environments conditions, making them ideal for the initial feeding of materials into jaw crushers, impact crushers, and more. They are indispensable across the stone, construction materials, and metal mining sectors, ensuring efficient and robust operational support.

3

Product Parameters

Model	Mesh size(mm)	Max feeding(mm)	Bar length(mm)	Power(kW)	Angle(°)	Amplitude(mm)	Capacity(t/h)	Dimension(mm)
ZGH1040	1000×4000	650	1654	14	5(0-10)	8	450	442518001630
ZGH1260	1200×6000	800	2×1250	22	5(0-10)	8.5	500	6100×3350×2050
ZGH1360	1300×6000	900	2×1250	30	5(0-10)	8.5	600	6100×3450×2050
ZGH1560	1500×6000	1000	2×1250	30	5(0-10)	8.5	800	6100×3650×2050
ZGH1860	1800×6000	1200	2×1250	45	5(0-10)	8.5	1000	6100×4250×2150
ZGH2060	2000×6000	1500	2×1250	55	5(0-10)	8.5	1500	6100×4450×2150

4

Detailed Features

Advanced lubrication system for extended service life and reliable performance.

Large vibration exciter for handling massive processing capacities.

Super heavy chute structure ensures a consistently stable feeding process.

Adjustable bar gap allows for efficient pre-screening tailored to working conditions.

5

Process & Applications

?

Frequently Asked Questions

Are you an original manufacturer?

Yes, we are a leading manufacturer in construction machinery. Our core products cover engineering mixing, material processing, and construction waste processing solutions.

What kind of payment terms can be accepted?

Normally we can work on T/T (Telegraphic Transfer) terms or L/C (Letter of Credit) terms.

Do you provide equipment operation training?

Yes. We can send professional engineers to the working site for equipment installation, adjustment, and comprehensive operation training.

What is the typical delivery time?

The standard delivery time is approximately 45 days after receiving the initial deposit.

What is the warranty period for the equipment?

We provide a warranty period of 12 months starting from the date of shipment.

What is the Minimum Order Quantity (MOQ)?

The Minimum Order Quantity is 1 piece.
