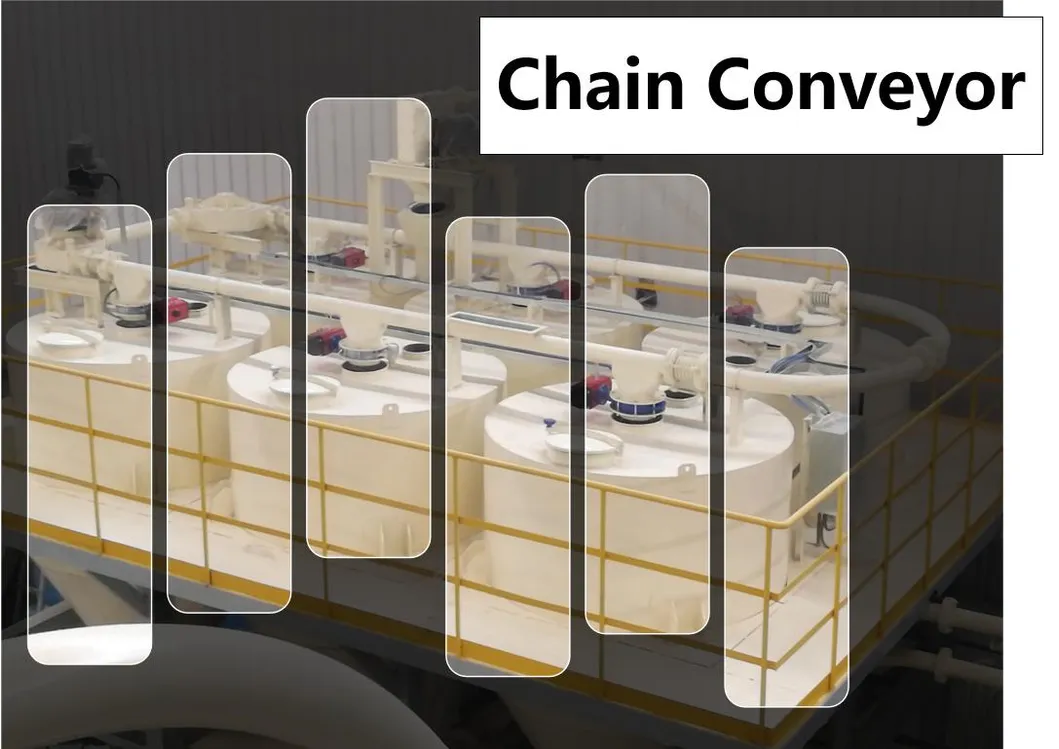

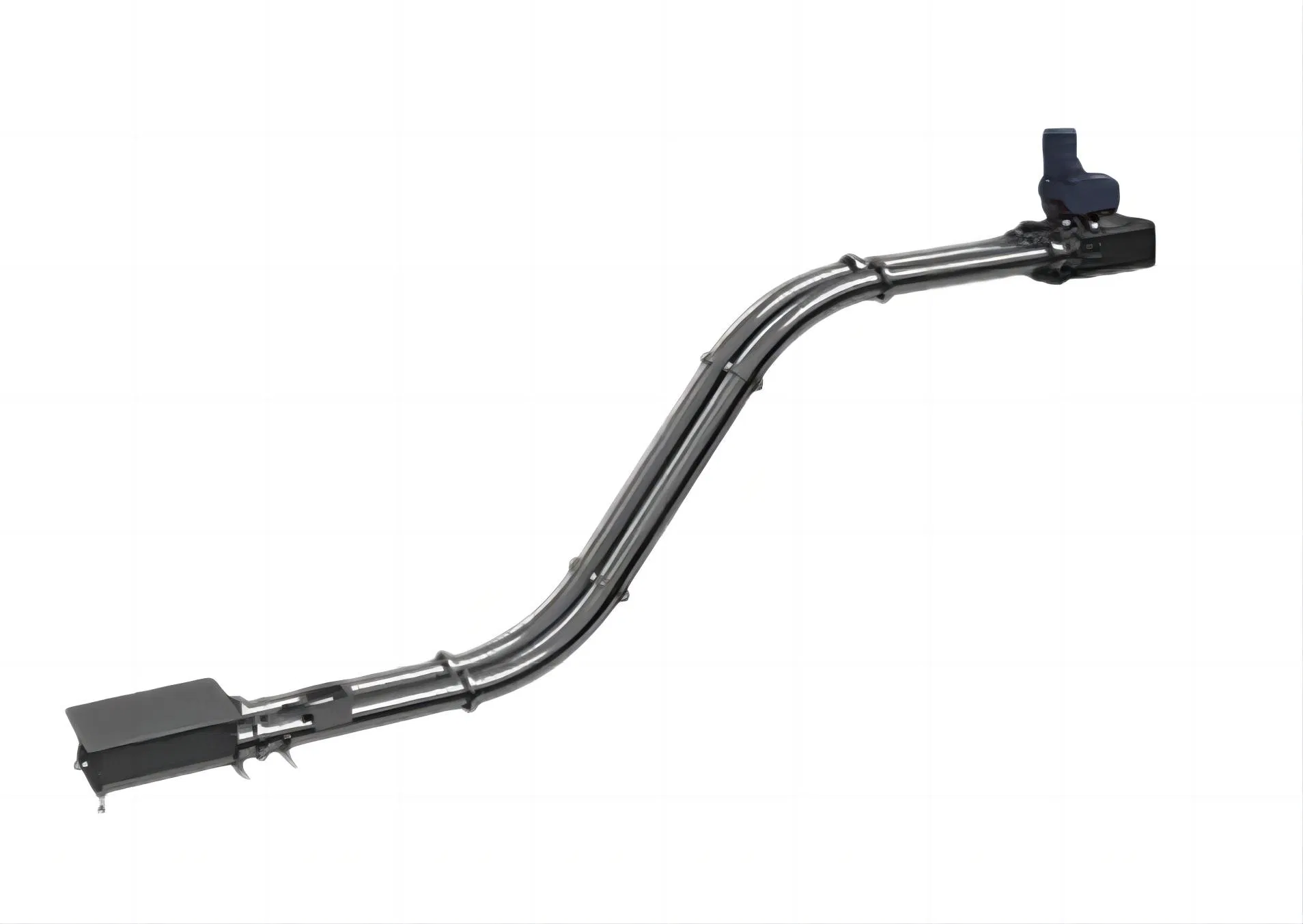

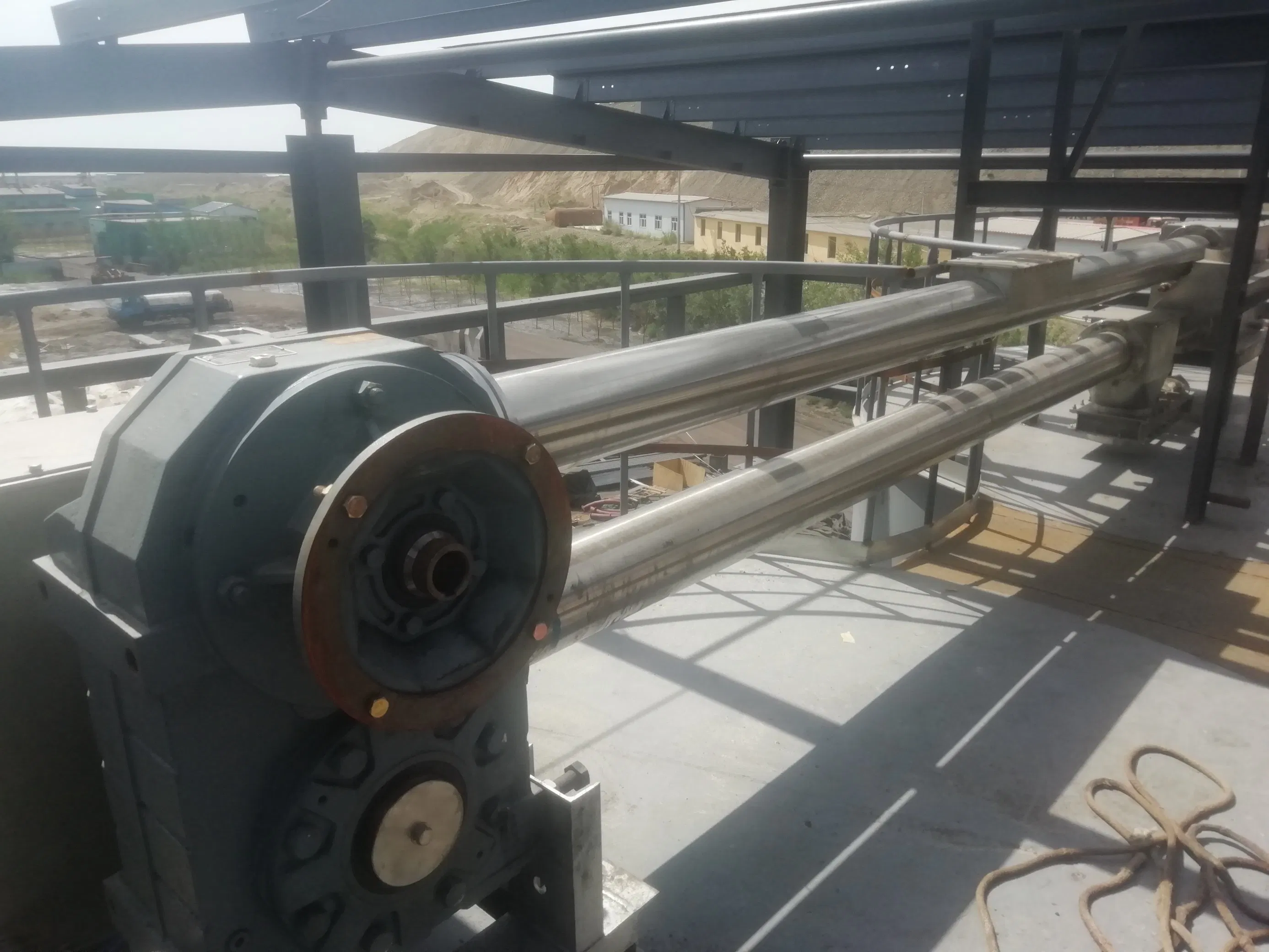

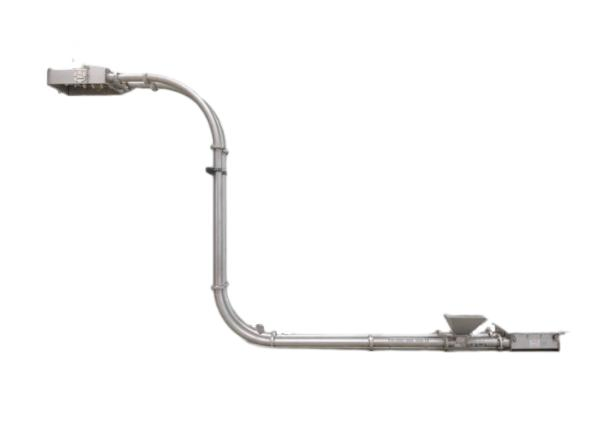

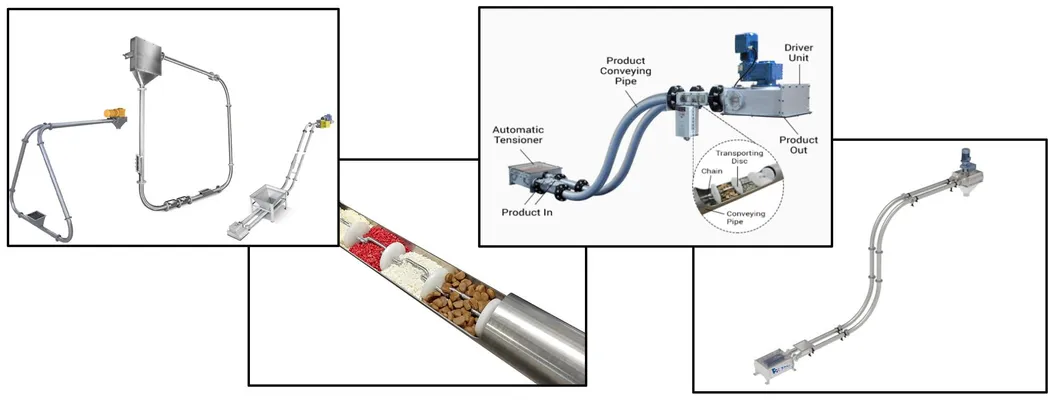

The Tubular Chain Conveyor System. Introducing the Customizable Stainless Steel Tubular Conveyor with SS304 Chain - a groundbreaking marvel in bulk material management. Expertly crafted for the seamless conveyance of granules, small particles, and small blocks, this continuous conveyor skillfully navigates horizontal, inclined, and vertical terrains.

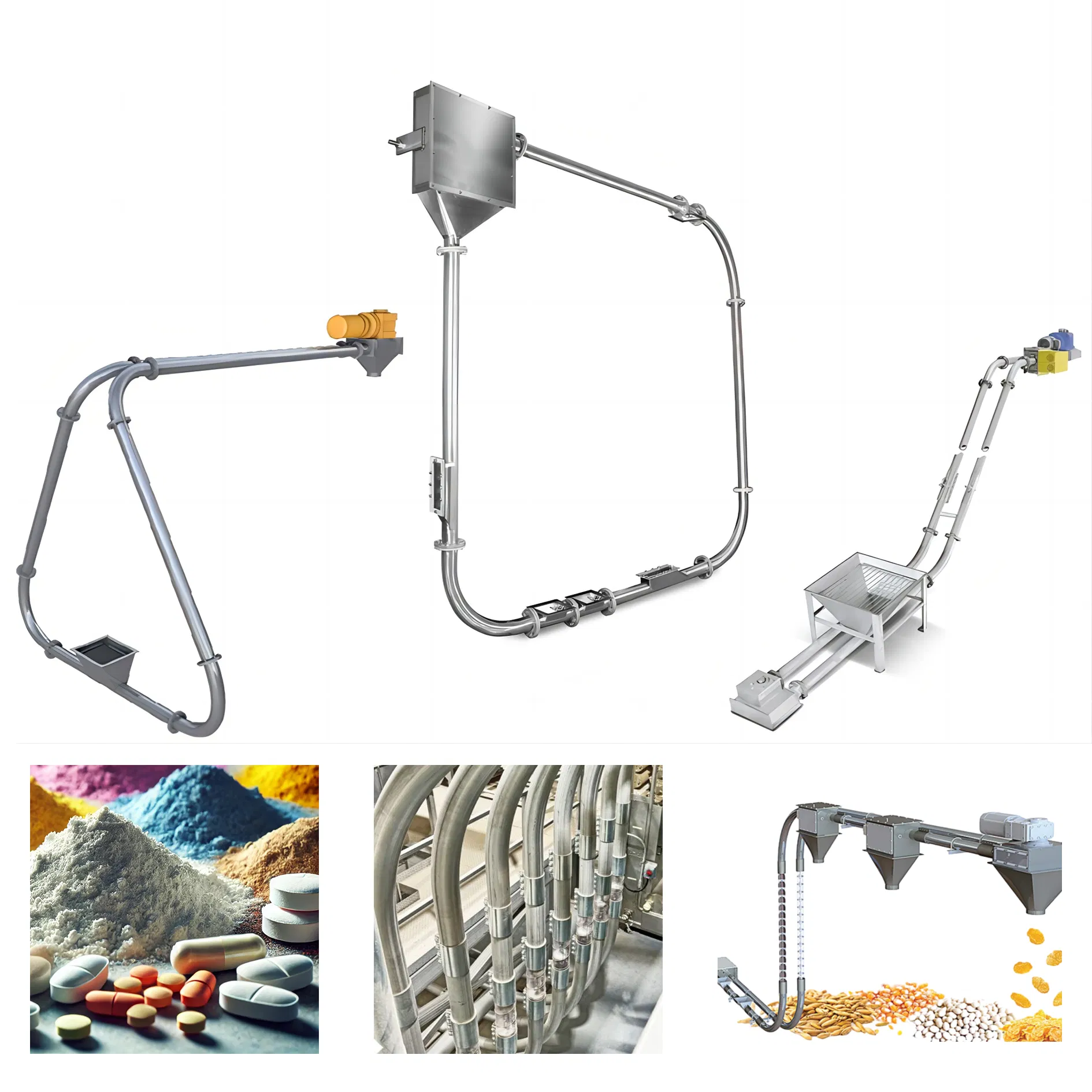

Celebrated for its versatility, the system's chains act as universal joints, ensuring effortless directional transitions and unparalleled layout flexibility. Designed for fine chemicals, pesticides, ores, construction materials, and the food sector, this system epitomizes adaptability and performance.
| Model | Motor Power (kW) | Linear Velocity (m/s) | Rotational Speed (r/min) | Capacity (m³/h) | Max Torque (N·m) | Max Tensile (N) | Remark |
|---|---|---|---|---|---|---|---|
| PC-80 | 4.0 | 0.30 - 0.40 | 20.7 - 24.9 | 3.9 - 4.7 | 1504 - 1810 | 1090 - 1300 | Low-speed max tensile: 1.5 tons |
| PC-100 | 5.5 | 0.30 - 0.40 | 17.5 - 23.4 | 6.0 - 7.0 | 2200 - 2943 | 1350 - 1800 | Low-speed max tensile: 2 tons |
| PC-150 | 7.5 | 0.30 - 0.40 | 13.4 - 17.9 | 13.7 - 18.2 | 3923 - 5240 | 1840 - 2450 | Low-speed max tensile: 3 tons |
| PC-200 | 11.0 | 0.30 - 0.40 | 11.4 - 15.2 | 27.4 - 36.5 | 6776 - 9034 | 2700 - 3590 | Low-speed max tensile: 4 tons |
Our team specializes in designing and delivering groundbreaking material handling automation systems. With an impressive portfolio of patents and accolades, including "National High-Tech Enterprise" awards, our solutions are trusted globally.
Our core offerings encompass dust-free enclosed feeding systems, sealed conveying systems, pneumatic conveying systems, and tube chain conveying systems. These cutting-edge products serve industries such as metal materials, food processing, chemical, pharmaceutical, and new energy sectors.
