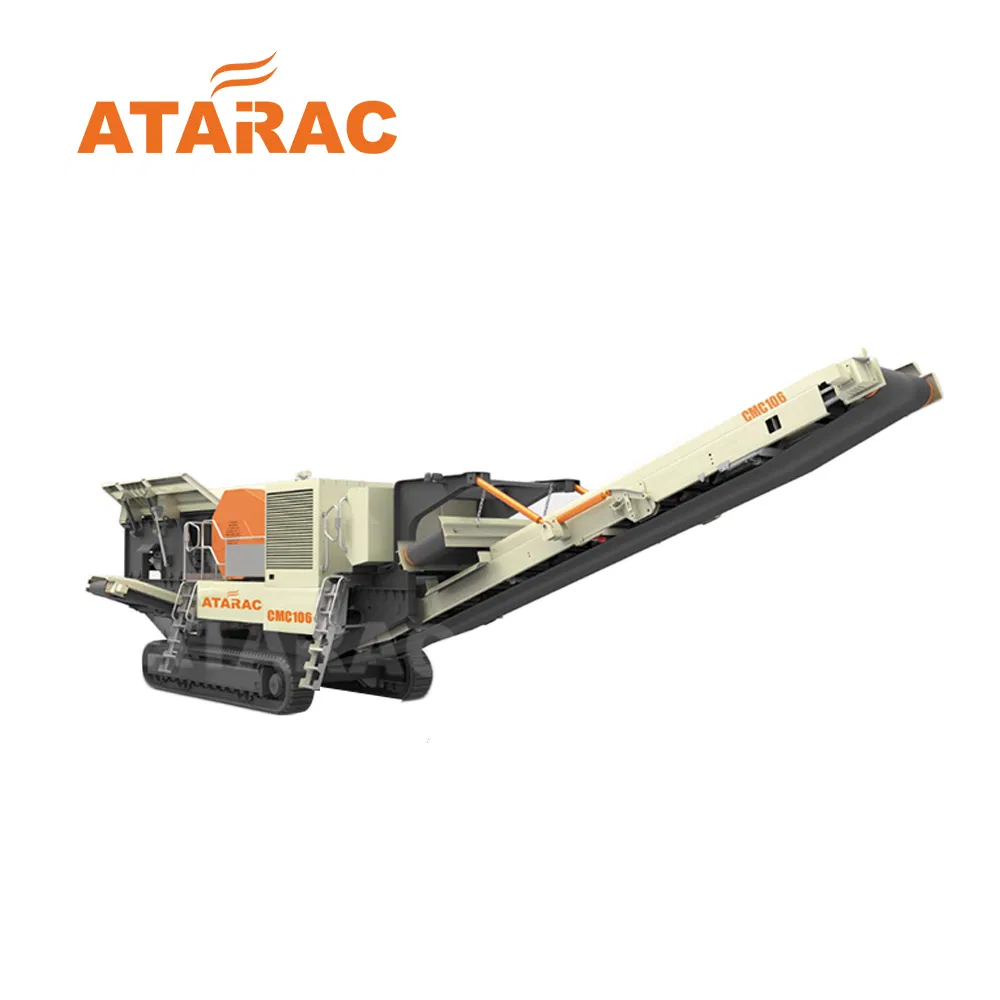

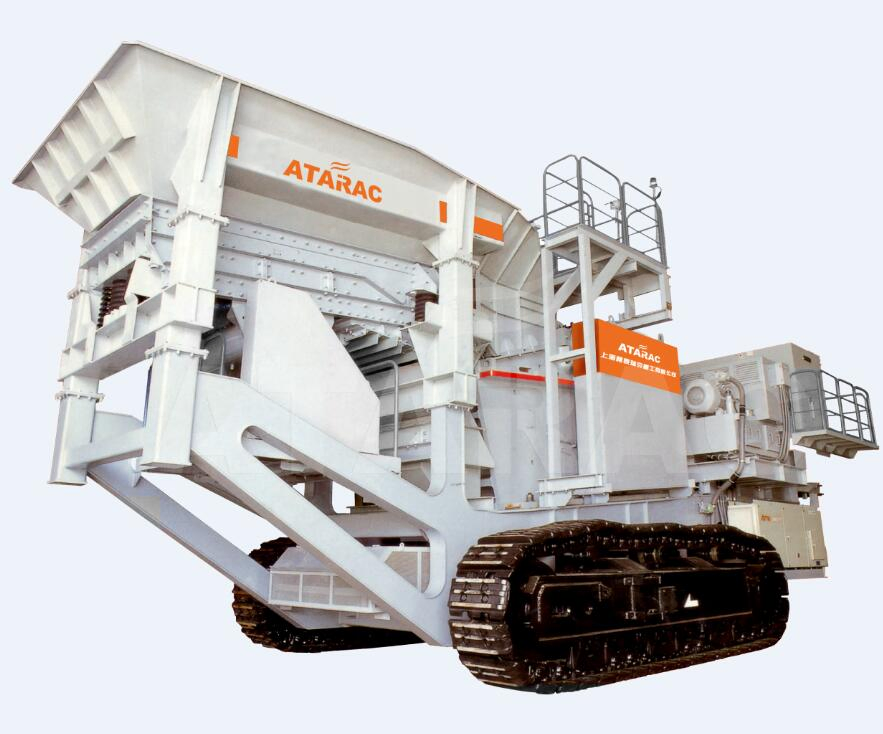

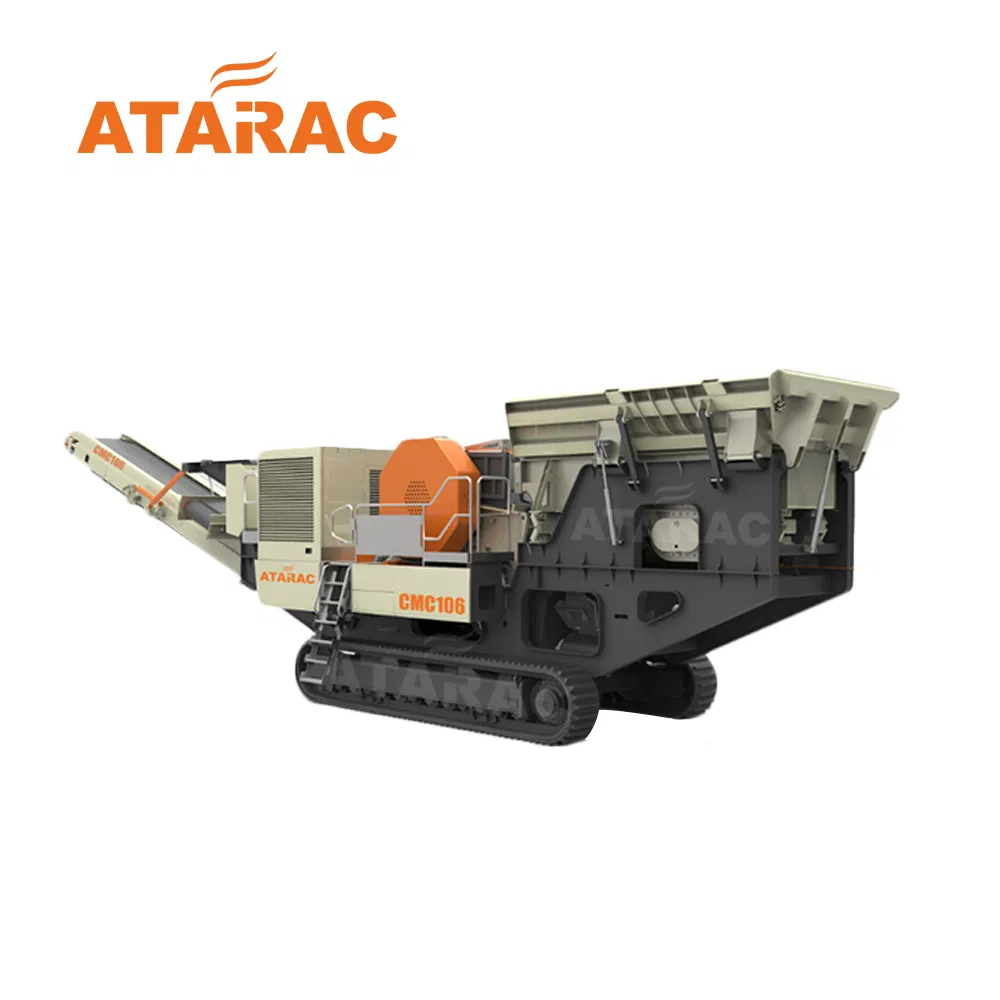

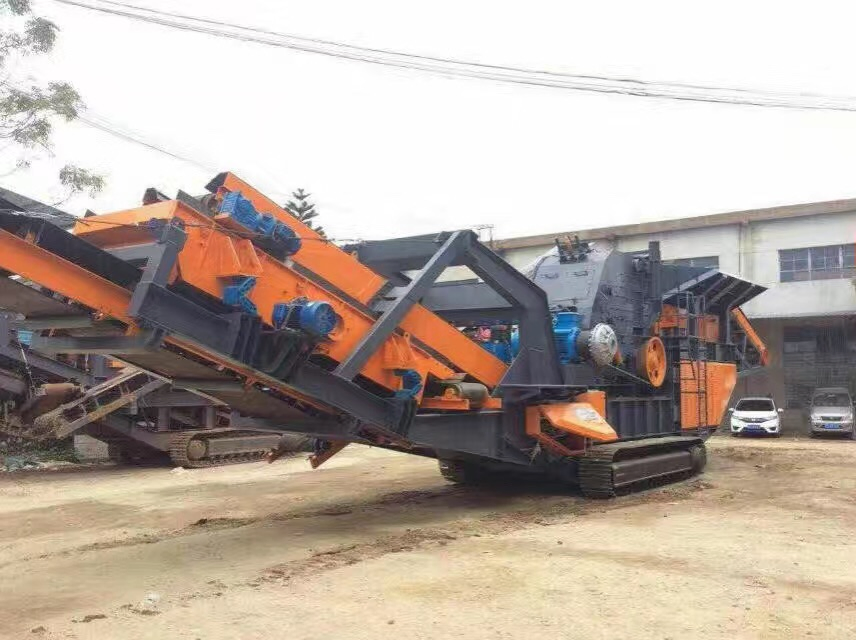

Yt Series Mobile Crushing Plant - Advanced Hydraulic System for Smooth Operation

Customization: Available
Type: Mobile Crusher
Motor Type: AC Motor

Product Description

i

Basic Information

Motor Power
Based on Model
Application
Construction
Materials
All Kinds of Stones and Ores
Outlet Size
Based on Users' Requirement
Inlet Size
Based on Users' Requirement
Condition
New
Warranty
1 Year
After-sales Service
Within 24 Hours
Input Size
Adjustable
Output Size
Adjustable
Movement Type
Wheel or Crawler
Origin
China
HS Code
8474209000
Production Capacity
50 Set/Month
D

Product Description

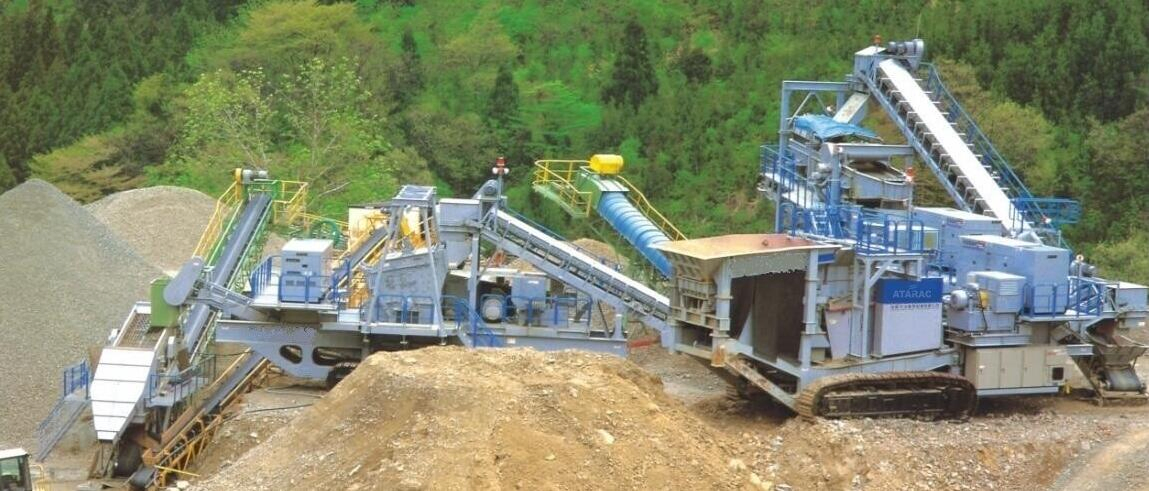

YT series crawler mobile crushing plant is developed by importing and using advanced foreign technology and developed to high efficient mobile workstations. It is equipped with heavy-duty crawler chassis, self-contained power, advanced design with complete functions. It adopts modular design which integrates feeding, crushing, sand making, screening and transmission part.
YT series crawler-type mobile crushing station adopts advanced intelligent control system, which can achieve "one-click" start operation with efficient crushing capacity and controllability. Crushing station has the features of compact structure, easy installation, convenient transportation, flexible walking, which is suitable for a variety of complex operating environment. It can be used not only for open-circuit, but also for closed-circuit production, which can produce high-quality multi-standard aggregate.
A

Application Fields

Applicable material: Mobile crushing plant applies to crush stone and make sand like applications in metal mines, building aggregates and solid waste treatment industries etc. Some materials like sharp aggregates, marble and granite could also be processed.
Application Fields Diagram
V

Our Advantages

  • Perfect performance of diesel engine: Low consumption, low noise, and reliable performance. Equipped with a cryogenic preheat starting device for operation below -25 degrees Celsius.
  • Advanced Chassis: Adopts crawler rigid ship form structure with high intensity, easy to transport on mountains and marshlands.
  • High-Torque Power: Full-power variable open hydraulic system with imported main components (pumps, valves, etc.) ensuring high reliability.
  • High Efficiency: Equipped with multi-function special vehicle equipment, offering high capacity and reliable performance.
  • Servo Control: Advanced imported servo system for easy and exact stepless crawling control.
  • Optimized Screening: 20-degree angle screen installation for high screening efficiency.

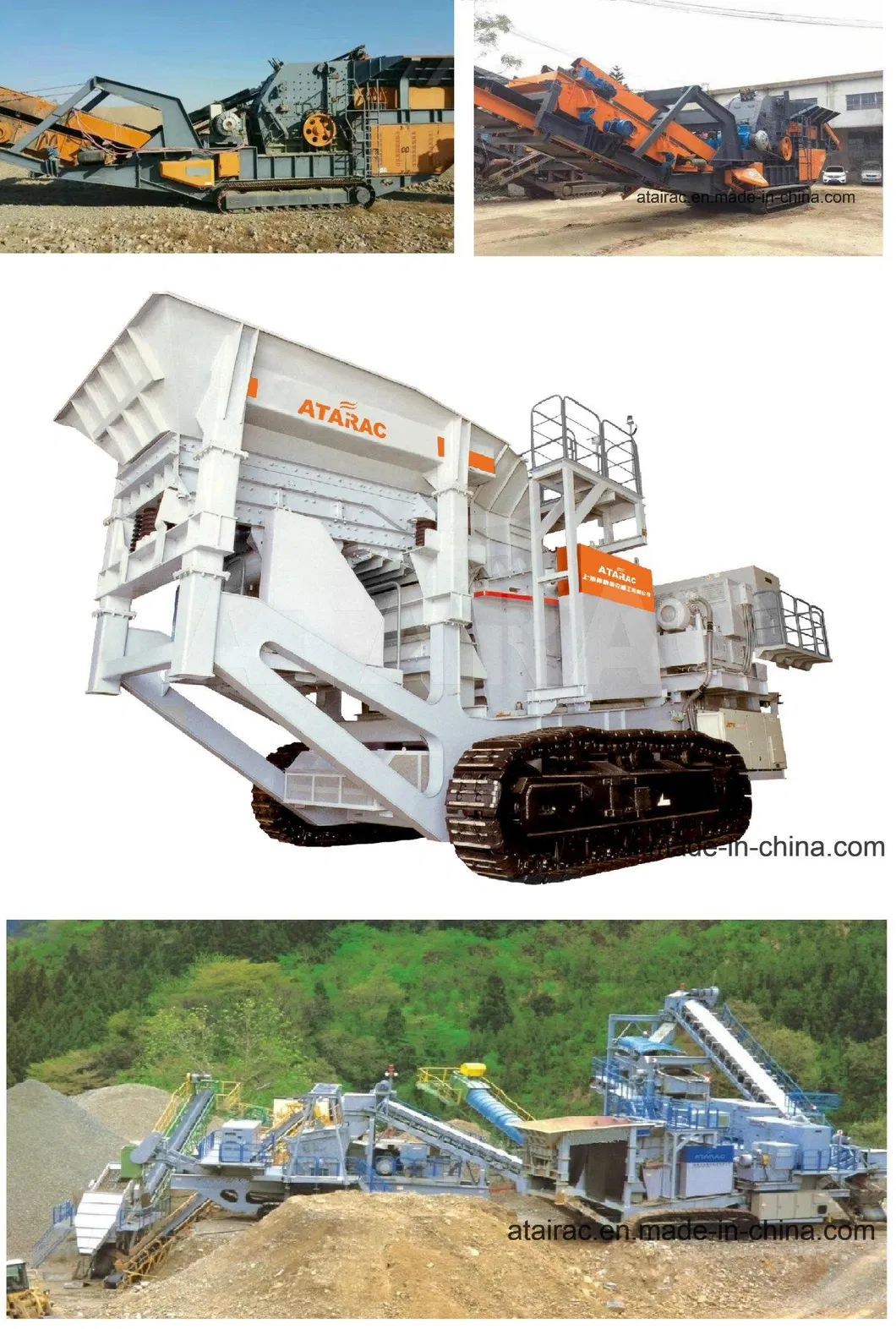

Advantage Diagram
P

Product Parameters

Model YT-150 YT-250 YT-350 YT-450
Capacity (t/h) 100-150 150-250 250-350 350-450
Silo Volume 8m³ 10m³ 15m³ 20m³
Jaw Crusher Configuration Feeder ZSW380*95 ZSW450*120 ZSW500*130 ZSW600*150
Jaw Crusher JC90 JC110 JC125 JC140
Main Belt Conveyor B800 B1000 B1200 B1400
Side Belt Conveyor B500 B650 B650 B800
Impact Crusher Model PFS1113 PFS1315 PFS1320 PFS1515
Product Size (mm) 0-40 0-80 0-80 0-80
S

Packaging & Shipping

Packaging & Shipping Process
C

Visual Overview

Technical Overview
?

Frequently Asked Questions

What materials can the YT series mobile crushing plant process?
It is designed to process all kinds of stones and ores, including sharp aggregates, marble, granite, and construction waste.
Can this machine operate in extremely cold environments?
Yes, it can be equipped with a cryogenic preheat starting device, allowing the plant to start and operate even in temperatures below -25 degrees Celsius.
Is the crushing station easy to transport between different sites?
Absolutely. The crawler rigid chassis is designed for high mobility and intensity, making it suitable for mountains, marshlands, and urban construction transitions.
How is the quality of the hydraulic components?
The main hydraulic components, including pumps and valves, are imported from high-quality manufacturers in Japan to ensure maximum reliability and performance.
What is the warranty and after-sales service policy?
The product comes with a 1-year warranty. After-sales service is guaranteed within 24 hours to ensure minimal downtime for your project.
Does it support intelligent operation?
Yes, it features an advanced intelligent control system that allows for a "one-click" start operation, making it highly efficient and easy to control.
