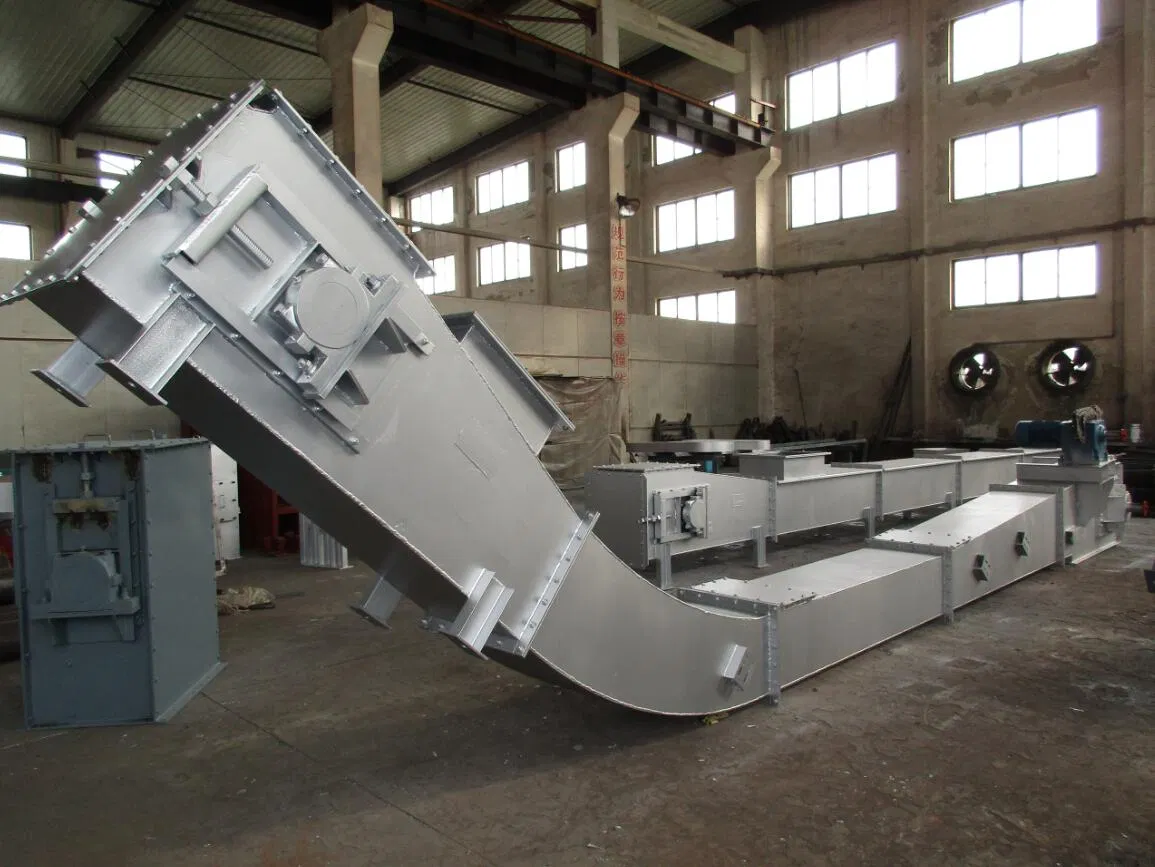

Customizable Redler Chain Conveyor System for Industrial Material Handling

1 / 5

Customizable Redler Chain Conveyor System for Industrial Material Handling

Warranty:	12 Months
Structure:	Chain Conveyor
Material:	Carbon Steel

Send Inquiry

Product Description

Basic Information

Model NO.

Application

Chemical Industry, Grain Transport, Mining Transport, Power Plant

Condition

New

Transport Package

Seaworthy Packing

Specification

Customizable

Origin

China

HS Code

8428391000

Product Overview

The Scraper Conveyor is a robust and continuous transport mechanism, boasting a flexible traction element that guarantees seamless and efficient material handling. Its inherent flexibility allows it to effortlessly adapt to a wide range of transportation scenarios, providing unmatched versatility.

Operating within a meticulously designed rectangular or U-shaped sealed trough, the system utilizes a dynamic scraper chain to propel materials forward. As the scraper chain advances, it integrates with the material, forming a continuous stream of transported goods. The chains are embedded within the material during transit, coining the term 'embedded scraper conveyor.' This machinery is indispensable in grain processing plants and warehouses, serving as a premier conveyor solution.

Main Structure

The Scraper Conveyor consists of essential components: scraper chains, head wheel and tail wheel, inlet and outlet, drive device, and tensioning device.

Working Principle

1) Horizontal Transport: The scraper chain directly engages with the material. The combined friction between the material and the trough walls ensures the material remains steady, while the scraper chain's thrust propels the load forward as a cohesive unit.

2) Vertical Transport: The scraper's thrust, material gravity, and pressure generate lateral pressure against the trough walls. This stabilizes the material, prevents slippage, and ensures smooth upward movement.

Key Features

Simplicity in structure, lightweight design, and compact size; easy to install and maintain.

Excellent sealing ensures minimal dust dispersion, maintaining a clean environment.

Versatile feeding and discharging with multiple inlet and outlet point options.

Flexible technology layout allows for multi-directional transportation.

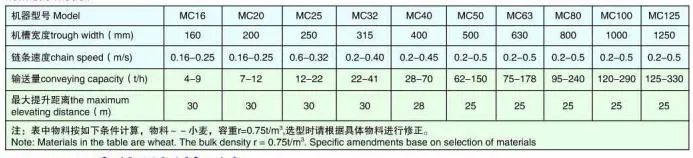

Main Technical Parameters

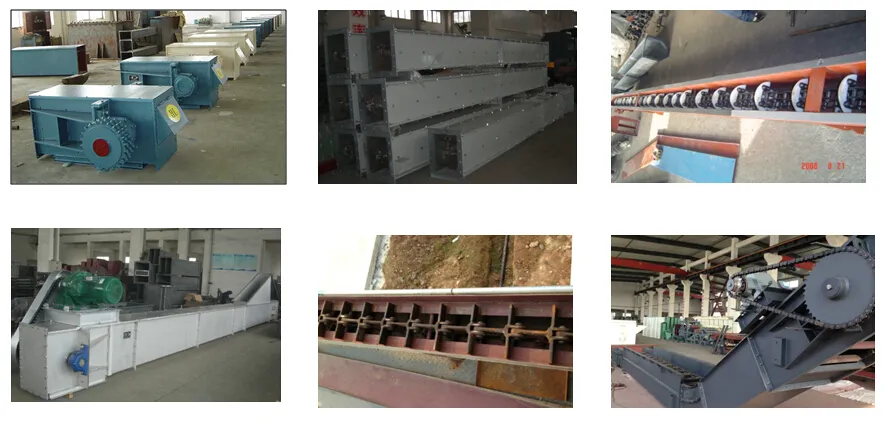

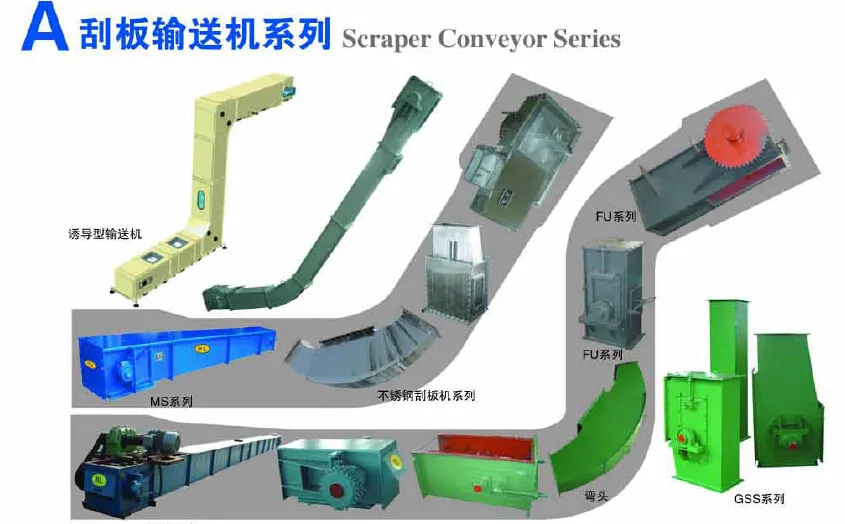

Conveyor Models & Applications

We offer a range of scraper conveyor models tailored to your specific needs:

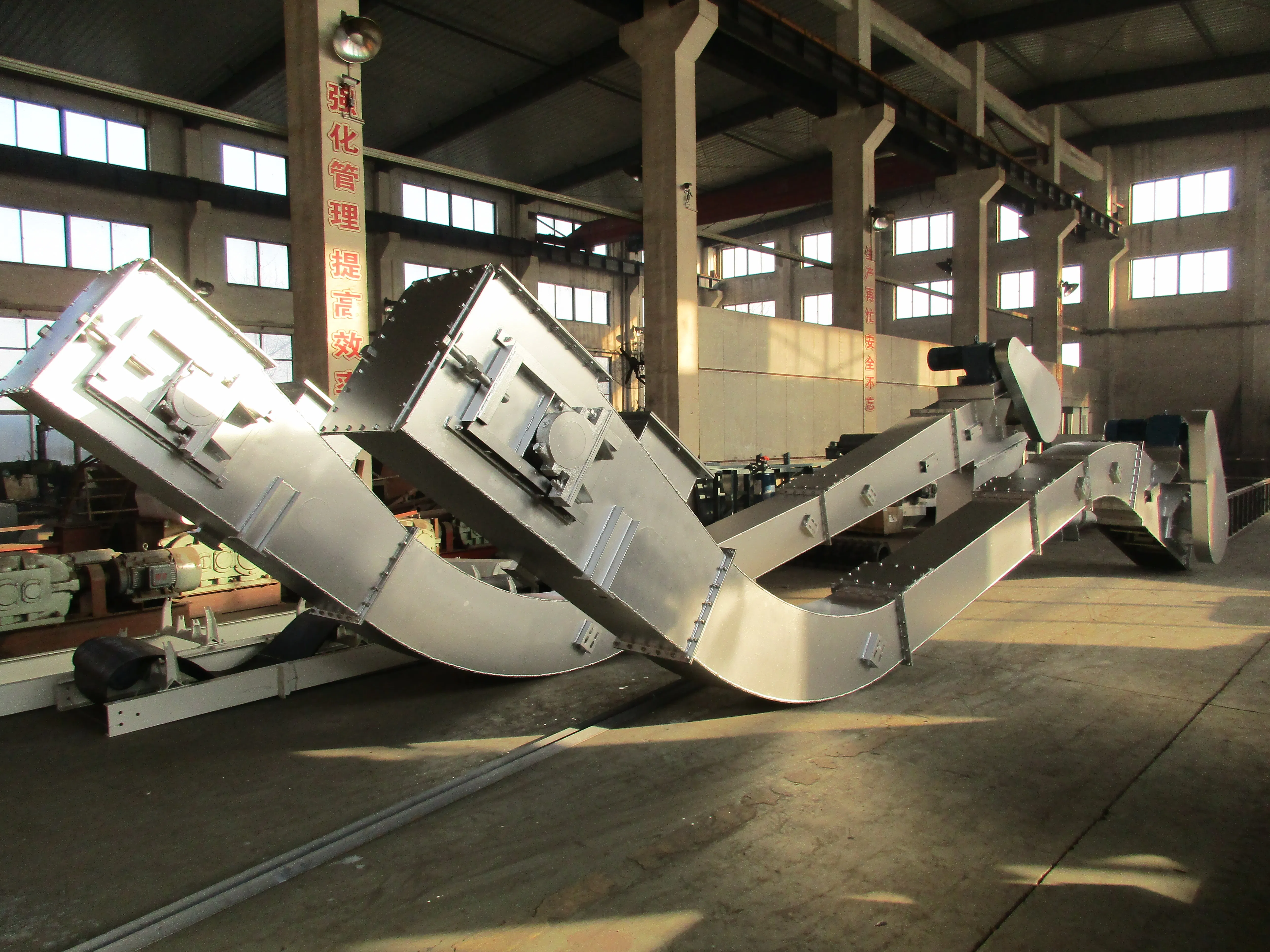

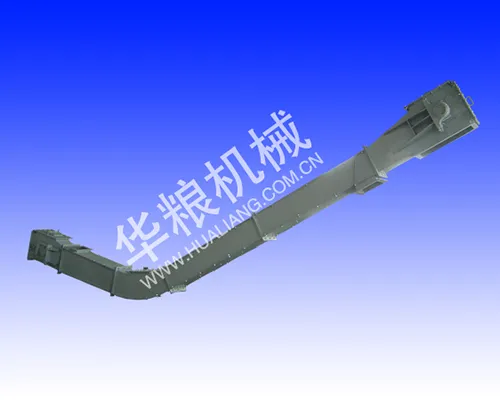

Curved Scraper Conveyor

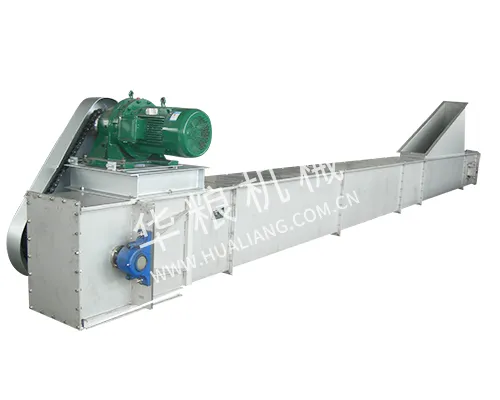

Horizontal Scraper Conveyor

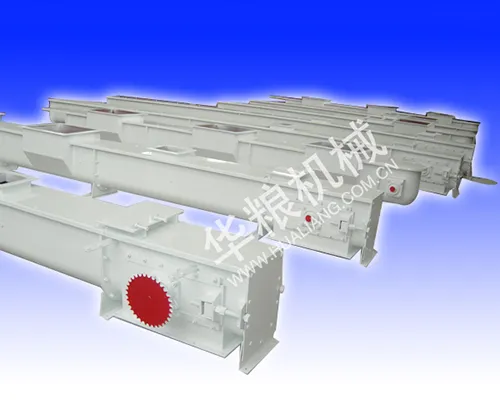

Self-Cleaning Drag Conveyor

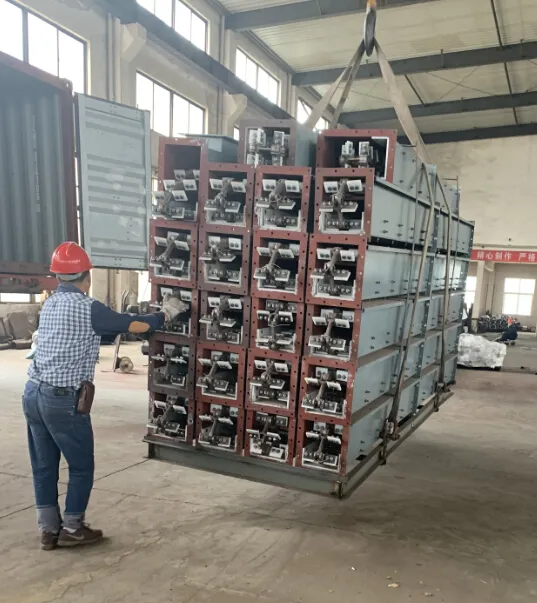

Packing and Transport

Our state-of-the-art packing and transport solutions ensure materials are handled with the utmost care and efficiency.

Frequently Asked Questions (FAQ)

Q1: What industries are scraper conveyors typically used in? A1: They are widely used in the chemical industry, grain transport, mining transport, and power plants due to their robust design and efficiency.

Q2: Why is it called an "embedded" scraper conveyor? A2: It is termed "embedded" because the scraper chains are actually submerged or embedded within the material during transportation, moving the material as a continuous stream.

Q3: Can the scraper conveyor handle vertical transport? A3: Yes, through lateral pressure against the trough walls generated by the scraper's thrust and material weight, it can effectively move materials vertically without slippage.

Q4: Does the system prevent dust pollution? A4: Yes, the scraper conveyor features an excellent sealing design with a rectangular or U-shaped sealed trough that ensures minimal dust dispersion.

Q5: Are there any special maintenance requirements? A5: Since the scraper chain and trough are susceptible to wear over time, regular inspection and maintenance are recommended to ensure long-term operational efficiency.

Q6: Can the conveyor handle high-moisture materials? A6: High-moisture materials can cause adhesion or compaction. While possible, it requires careful management to prevent issues like chain float.
