Product Description
Belt Conveyor is one of the most economical choices for transporting bulk materials from one point to another point. The belt conveyor system is composed of conveyor belt, driving device, cylinder, roller, tension device, rack, head funnel, feed channel, sweeper, unloader, and electrical safety protection device. It is a continuous conveyor equipment using cotton canvas, nylon, polyester canvas and steel cord conveyor belt components for drag. It transports various bulk, block or integer goods with loose density 500-2500kg/m3.
With high belt speed, large handling capacity, and long distance conveying, this system is widely used in mining, metallurgy, port, cement, grain, chemical and other industries.
📷

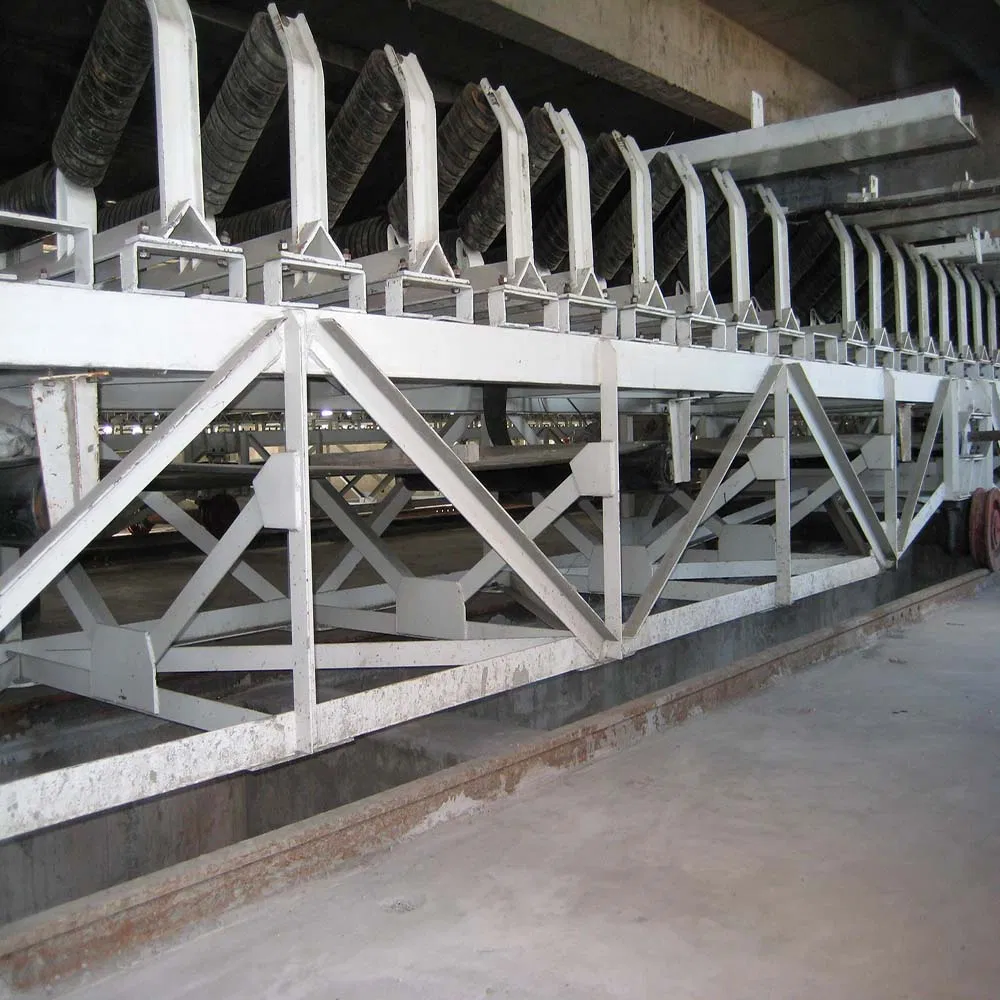

Detailed Photos

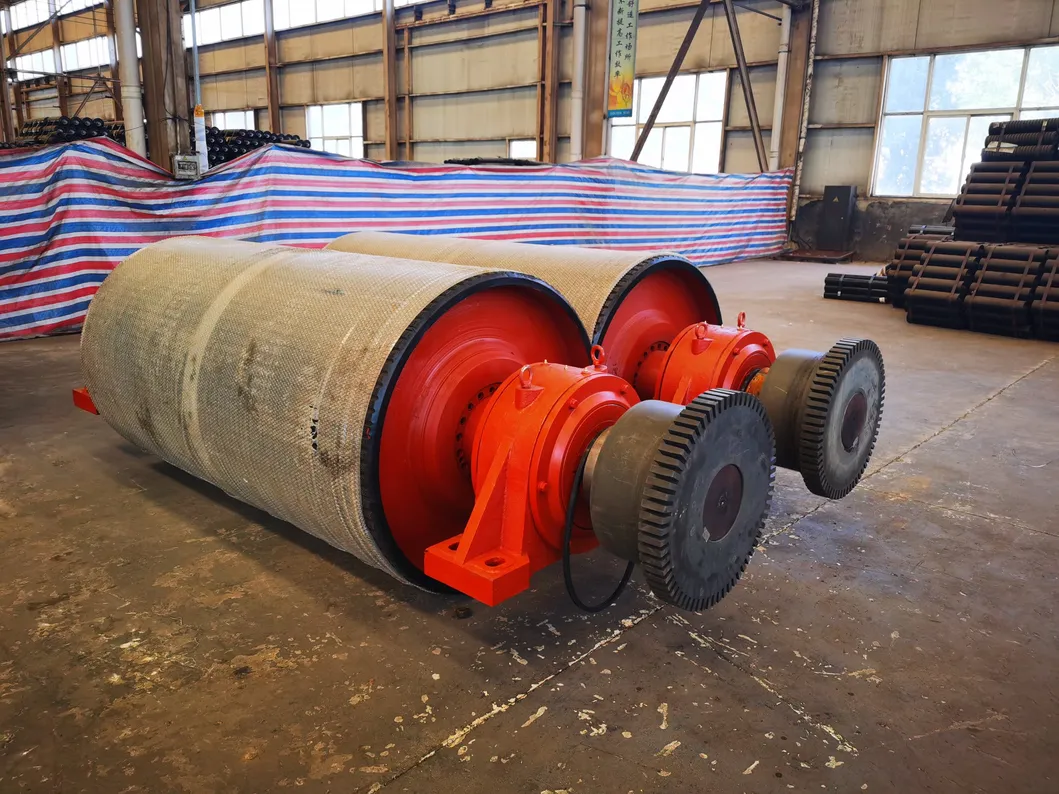

A belt conveyor system consists of two or more pulleys (sometimes referred to as drums), with an endless loop of carrying medium—the conveyor belt—that rotates about them. One or both pulleys are powered, moving the material forward. The powered pulley is called the drive pulley while the unpowered pulley is called the idler pulley.
⭐
Belt Conveyor Features
✔
Stable running, low noise and long service life.
✔
Thread rod type take-up (tensioner) can be fitted at the tail to meet various conveying requirements.
✔
Flexible for multi-point feeding and discharging.
✔
Equipped with an alarming device for material blockage.
✔
Optional devices for speed loss and chain breakage protection.
📊
Product Parameters

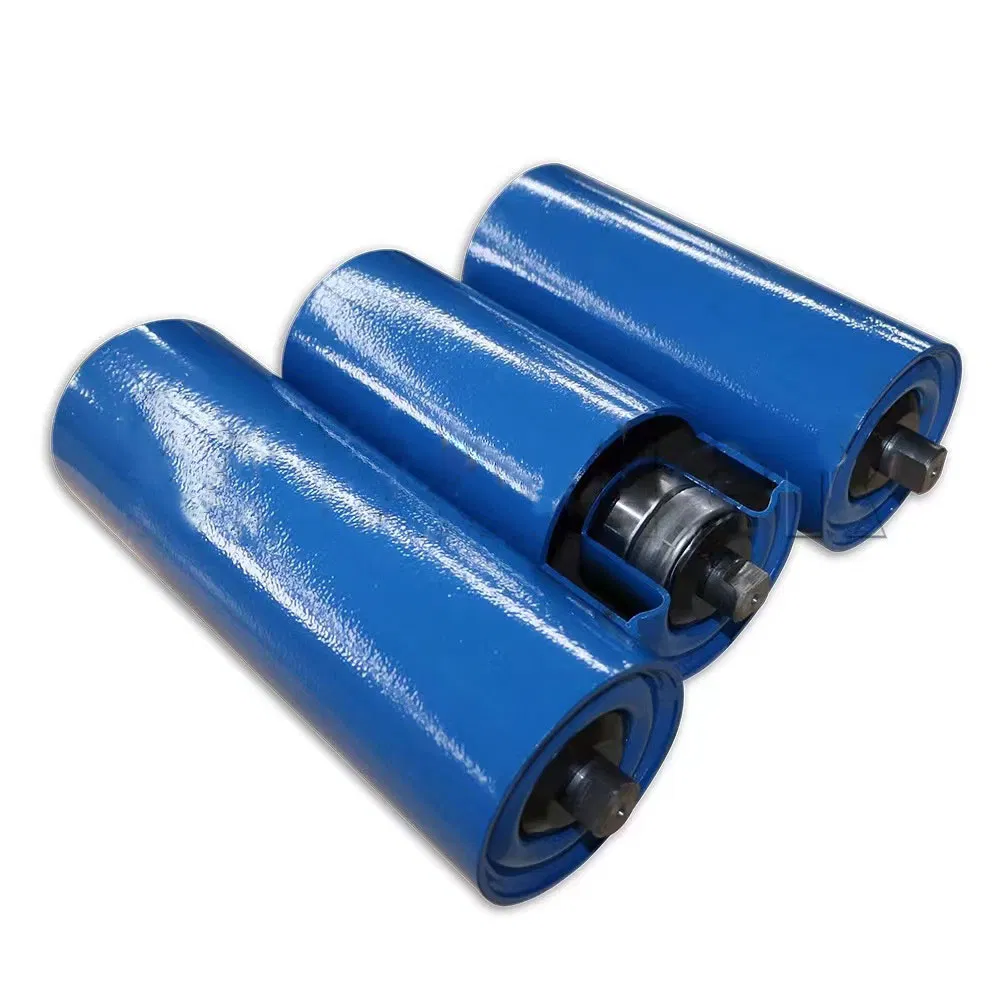

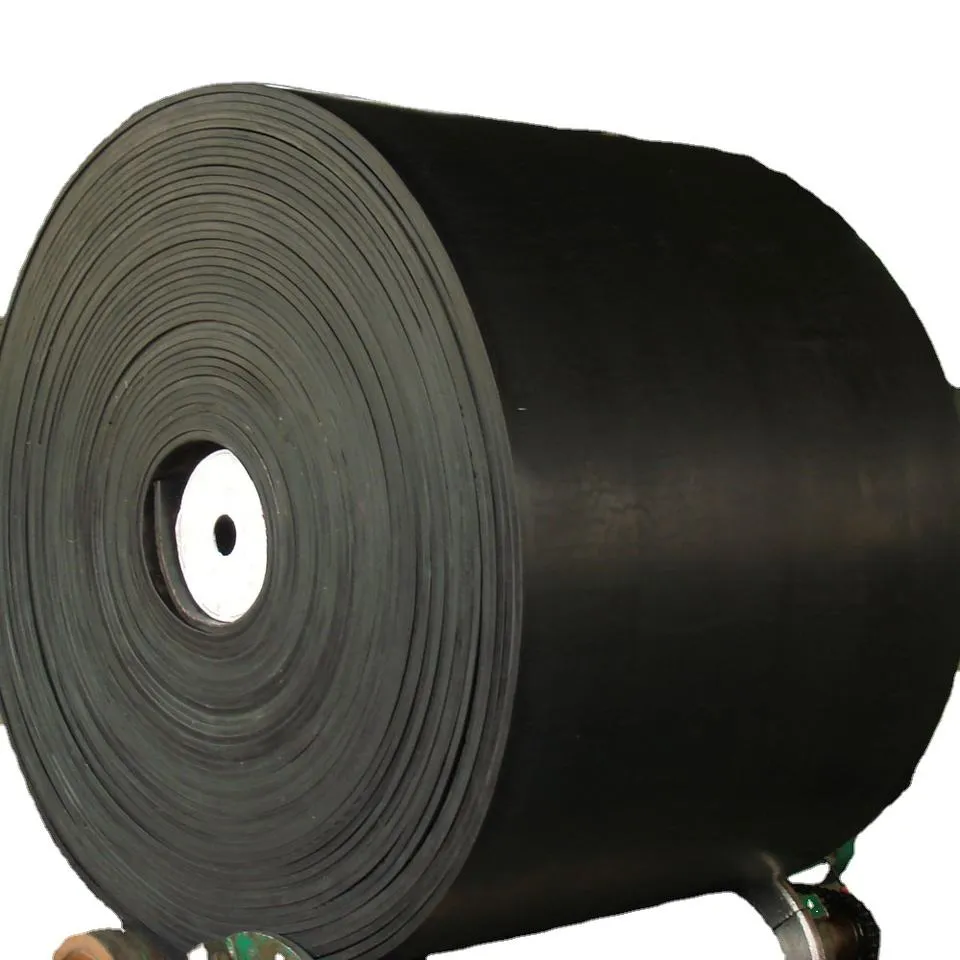

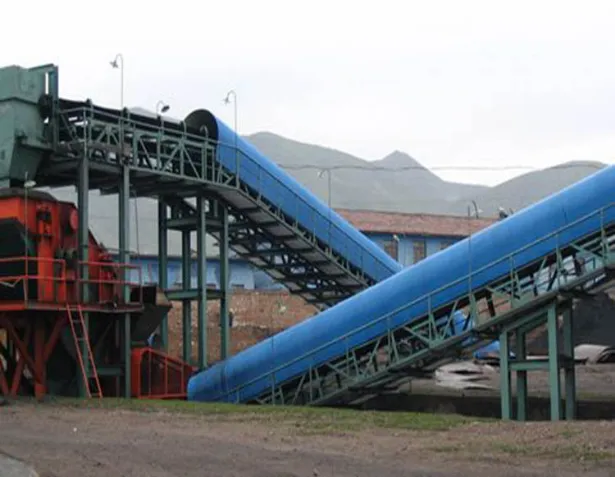

Structure details: Conveyor belt, rollers, machine structure, supporting rollers, drive device etc. Conveyor belt width ranges from 300mm to 1200mm. Rollers with rubber reduce the attrition of the conveyor belt. Supporting rollers materials are painted carbon steel.
| Belt width (mm) |
500 |
650 |
800 |
1000 |
1200 |
1400 |
1600 |
1800 |
2000 |
2200 |
2400 |
| Belt speed (m/s) |
Capacity (m³/h) |
| 1.0 |
87 |
159 |
248 |
405 |
593 |
825 |
- |
- |
- |
- |
- |
| 2.0 |
174 |
318 |
496 |
811 |
1188 |
1652 |
2186 |
2795 |
3470 |
- |
- |
| 3.15 |
- |
- |
871 |
1278 |
1872 |
2602 |
3444 |
4403 |
5466 |
6843 |
8289 |
🏢
Company Profile

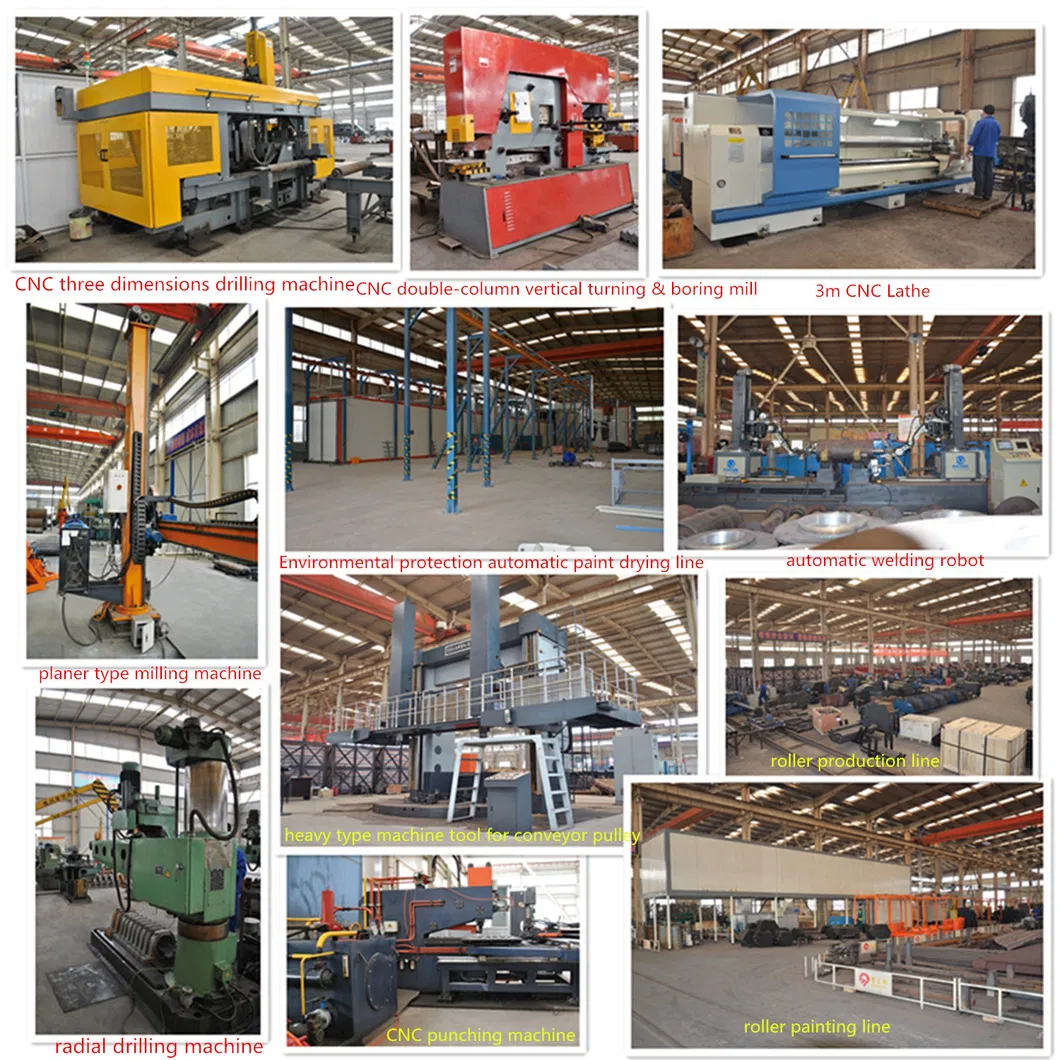

We are a high-end Conveying Equipment brand with an excellent technical team and in-house intellectual property & national patents. We focus on providing one-station solutions for intelligent conveying systems, including products and full-cycle management from construction to operation and service.
❓
Frequently Asked Questions
Are you a manufacturer?
Yes, we have manufactured conveyor and conveyor components for more than 19 years.
What is the standard delivery time?
About 10 to 30 days, depending on the specific product quantity and customization requirements.
What payment methods do you accept?
We primarily accept T/T (Telegraphic Transfer) and L/C (Letter of Credit).
How do you guarantee product quality?
We perform five rounds of inspection throughout the production process before final delivery.
Can the conveyor specifications be customized?
Yes, parameters like belt width, speed, voltage, and color can all be customized according to your industrial needs.
What is the warranty for core components?
All core components come with a standard one-year warranty.
