Industrial Dust Pneumatic Conveying System for Powder Material Handling

Customization:	Available
After-sales Service:	1 Year
Warranty:	1 Year

Basic Information

Model NO.

tzL/LD

Structure

Conveyor System

Material

Carbon Steel

Feature

Heat & Fire Resistant

Application

Grain, Mining, Power Plant

Condition

New

Core Components

Engine, PLC

Work Efficiency

<50m3/H

Temperature

150°

Working Mode

Circulating Transport

Packaging & Delivery

Package Size

310.00cm * 130.00cm * 150.00cm

Gross Weight

1800.000kg

Product Description

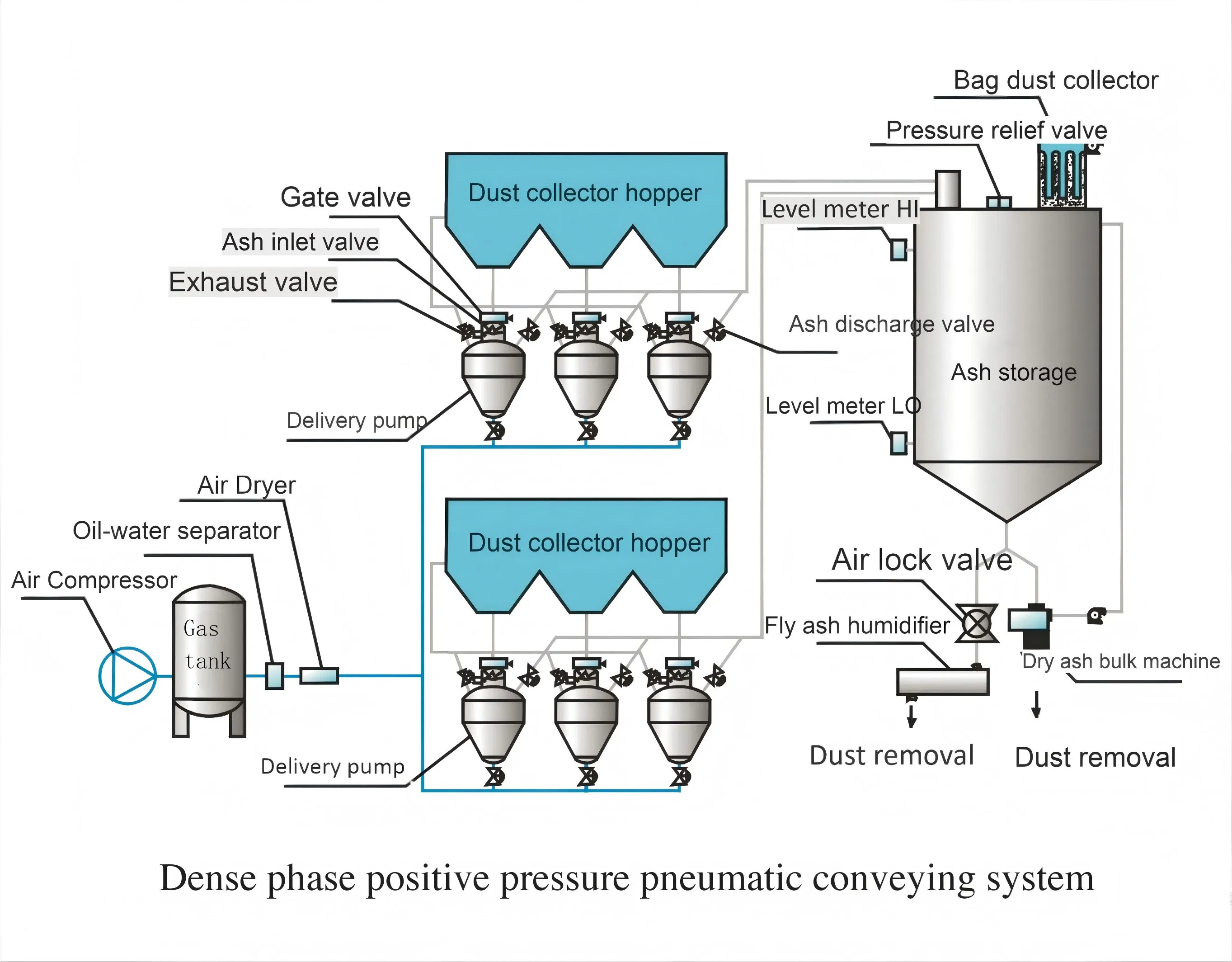

Cement powder Dry Fly Ash Dense Phase Pneumatic Conveyor / Pneumatic Conveying System

Dense-phase pneumatic conveying system is specially applied to a variety of dust long-distance sealed transport; the adaptive conveying distance equivalent is 50-500 meters. Transport materials include: fly ash, lime powder, cement, aluminum powder, mineral powder, saw dust, straw and so on.

The equipment is simple, with small occupation area, making full use of space. Pipelines can be flexible in layout, ensuring rational plant configuration. The system configuration is complete with PLC control for fully automated operation and easy maintenance.

Key Characteristics

✓Using compressed air as primary energy sources

✓Solving the stratification of powder and granules

✓Filters made of Ti prevent jamming and abrasion

✓Eliminate static electricity

✓Made of nontoxic and corrosion resistant materials

✓Leakage free capsule to prevent cross contamination

✓Intelligent control and high automation

✓Modular structure, easy to clean and dismantle

Product Parameters

LD type pneumatic conveyor data:

Parameters	LD0.6	LD1.0	LD1.5	LD2.0
Body Inner Diam.(mm)	800	1000	1200	1400
Total volume(M^3)	0.6	1.0	1.5	2.0
Body material	Q235-B
Operation Temp.(ºC)	≤120
Max. design pressure(Mpa)	0.78
Operation Pressure(Mpa)	0.2-0.5 (Based on conveying distance)
Max. conveying distance(m)	<1000
Outlet conveying Dia.	DN80	DN100
Air consumption (m^3/min)	3.5-7	5-10

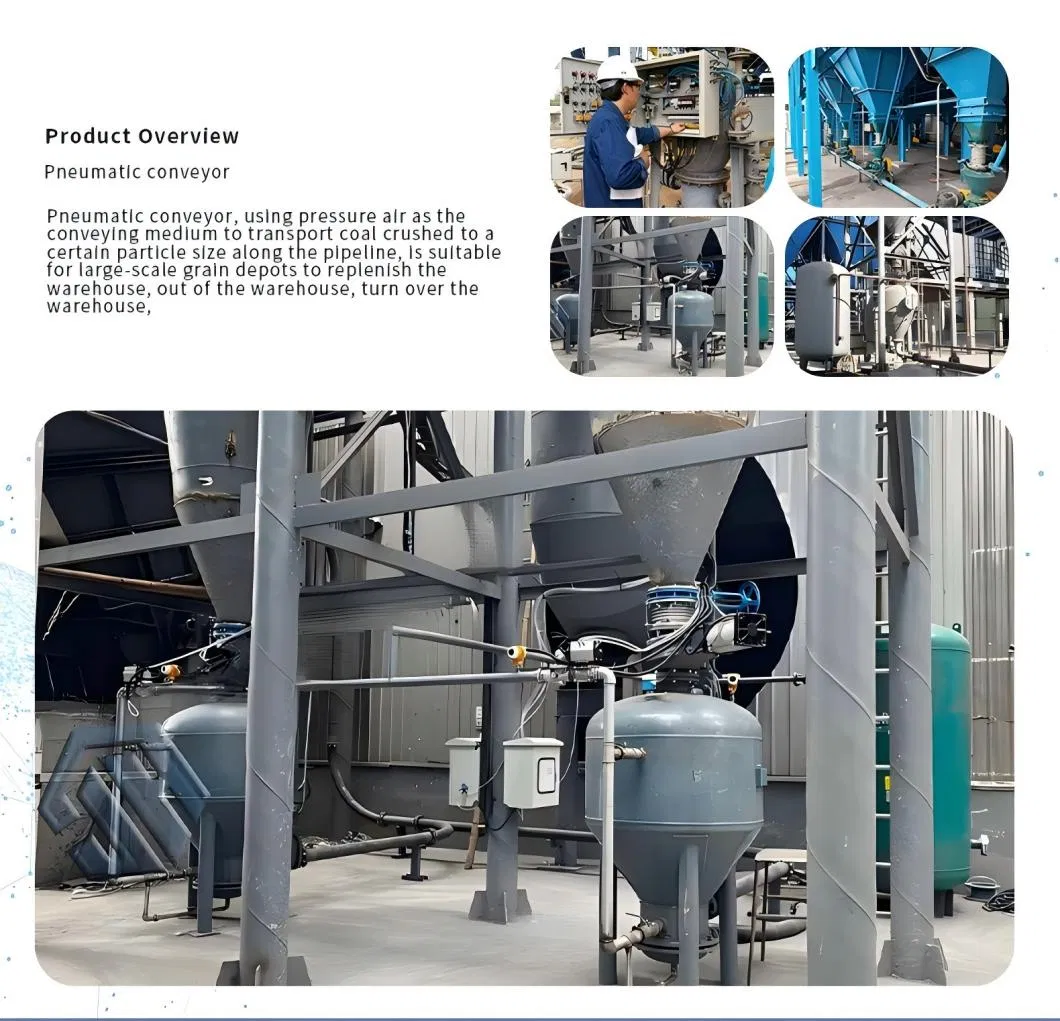

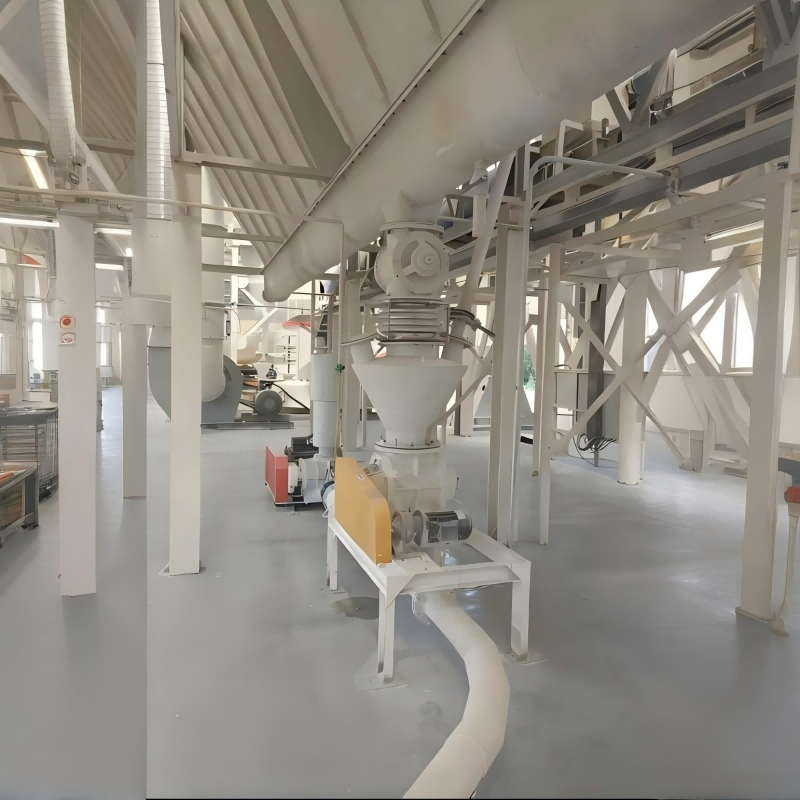

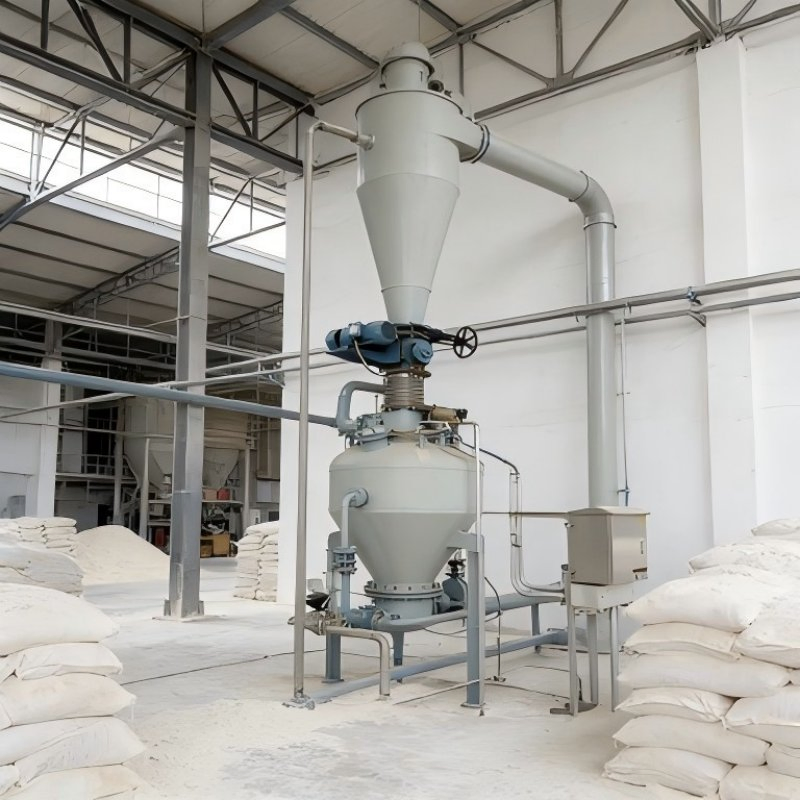

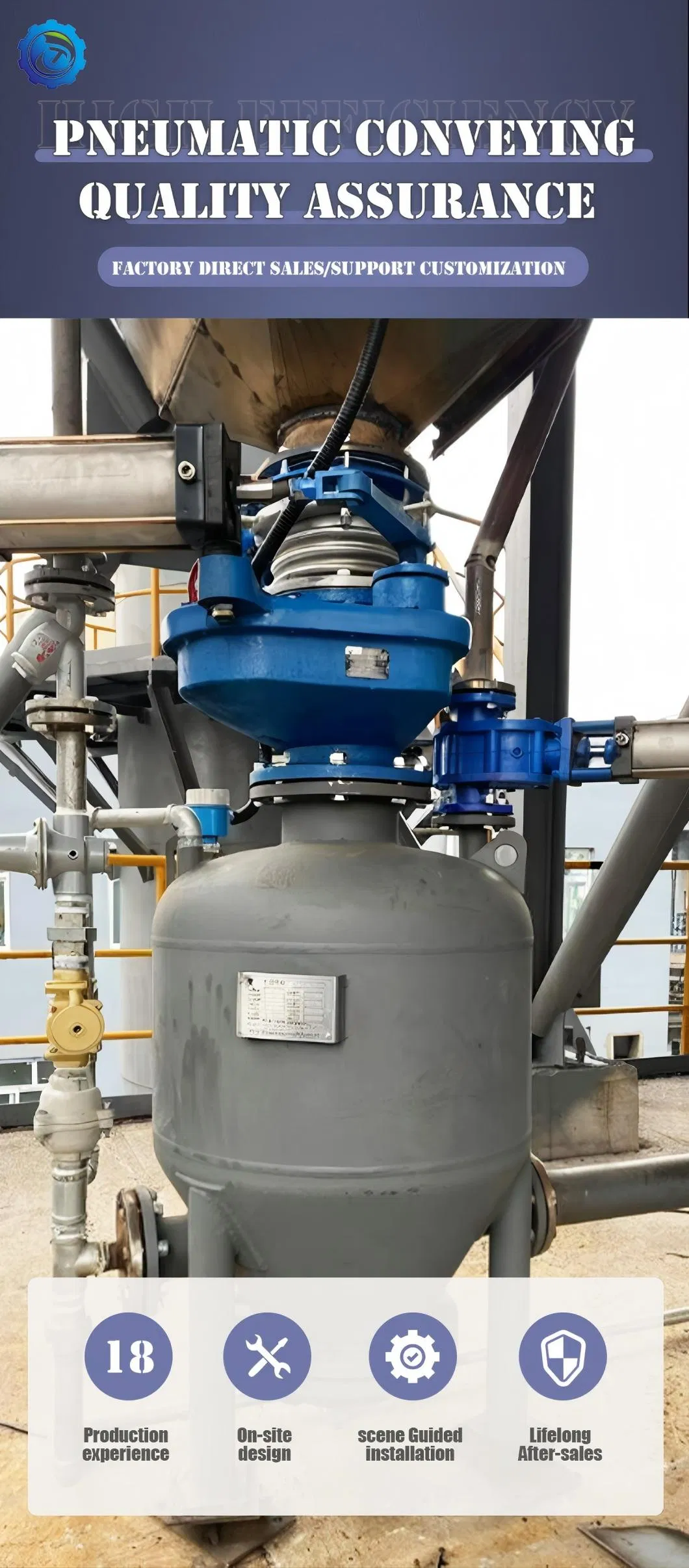

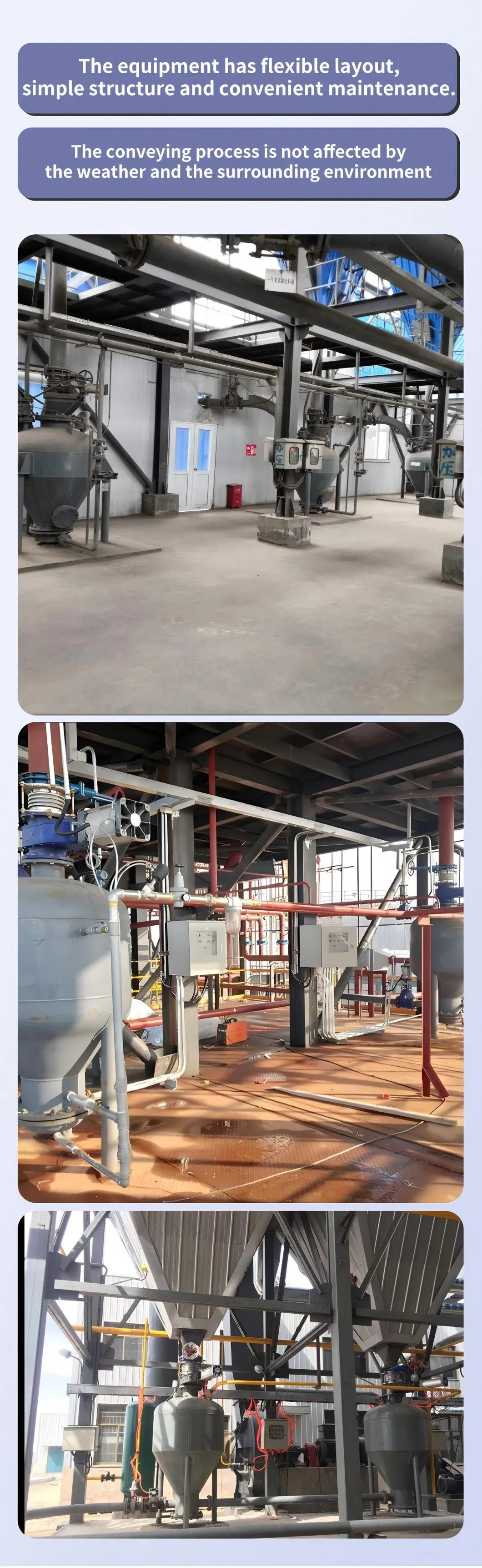

Detailed Photos

Profile

Established in 2007, we are a specialized manufacturer of Industrial Dust Collectors, Dense Phase Pneumatic Conveying Systems (Fly Ash Handling Systems), and conveyor equipment like Bucket Elevators and Scraper Conveyors. With two factories and global exports to over twenty countries including Malaysia, India, Indonesia, Russia, and Egypt, we provide research, design, installation, and technical guidance.

After Sales Service

Service Flow: Consult → Design → Process Planning → Production → Quality Control → Test → Package → Delivery → Installation → Commissioning → Training

Warranty:

12 months quality warranty period after formal operation.
Lifelong technical guidance for pneumatic conveying systems.
Spare parts provided at cost price after the warranty period.
All machines are tested before shipment.

FAQ

1. Are you a factory or trading company?

We own and cooperate with multiple factories, specializing in design, manufacture, installation, and staff training for pneumatic conveying systems.

2. How does your factory handle quality control?

We test every machine before shipping. Our facilities have gained ISO9001:2008 authentication to ensure the highest standards.

3. How long is the warranty period?

We provide a one-year warranty and free technical consultation during the entire period of use.

4. What payment methods are available?

We accept L/C, T/T, and Western Union for product payments.

5. What information is needed for a consultation?

Please provide: working situation, dust characteristics, conveying capacity, particle size of the ash, moisture content, and the horizontal/vertical conveying lengths.

6. Do you provide after-sales training?

Yes, our professional engineers provide full installation, commissioning, and staff training as part of our comprehensive solution.
