| Model NO. | 2PLM2 | Structure | Chain Conveyor |
| Material | Carbon Steel | Application | Chemical Industry, Manufacturing Industry |
| Condition | New | Motor Brand | Default Brands/Specified |
| Length/Width | Customized | Qualification | CE |
| Max Payload | 1500 kg | HS Code | 84283990 |

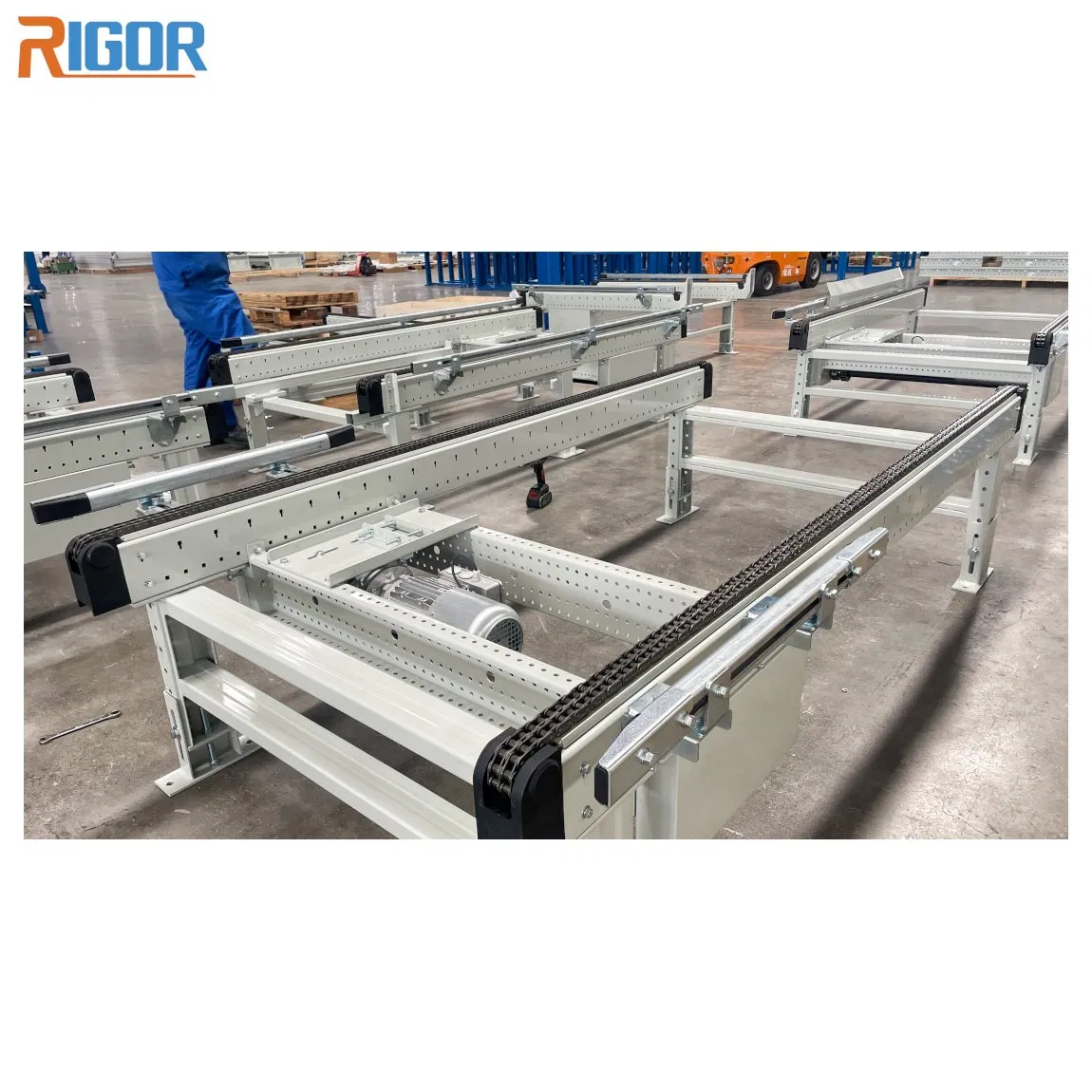

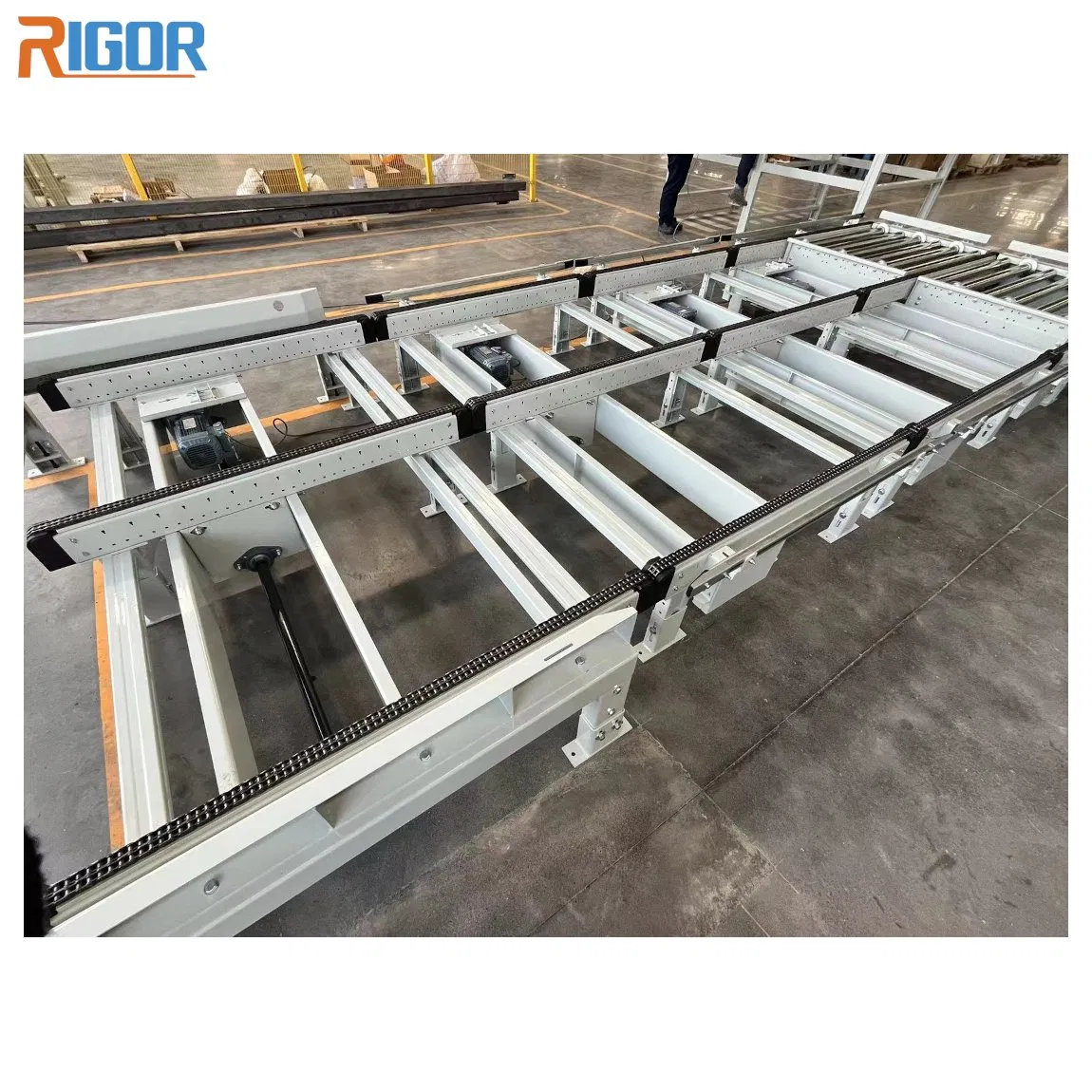

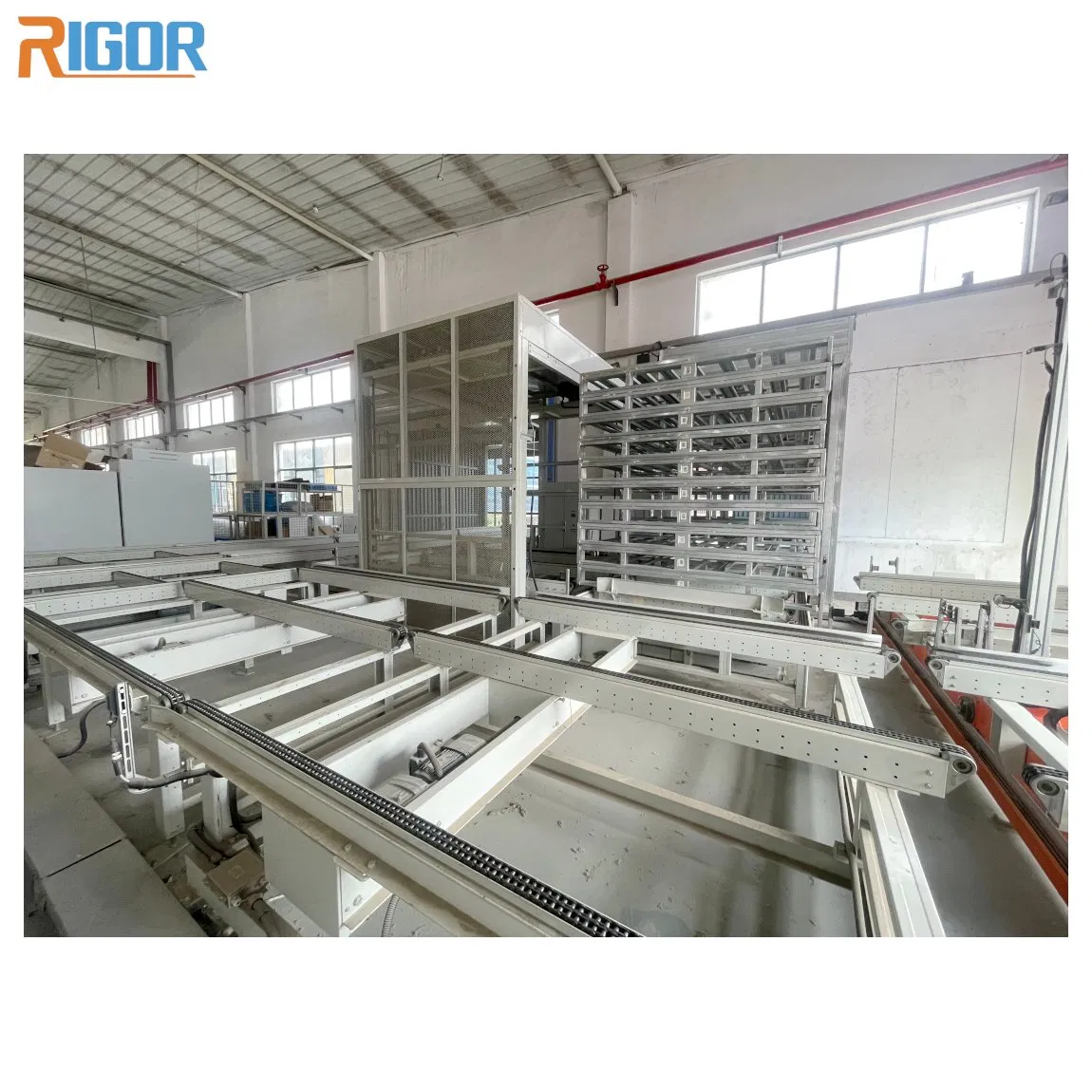

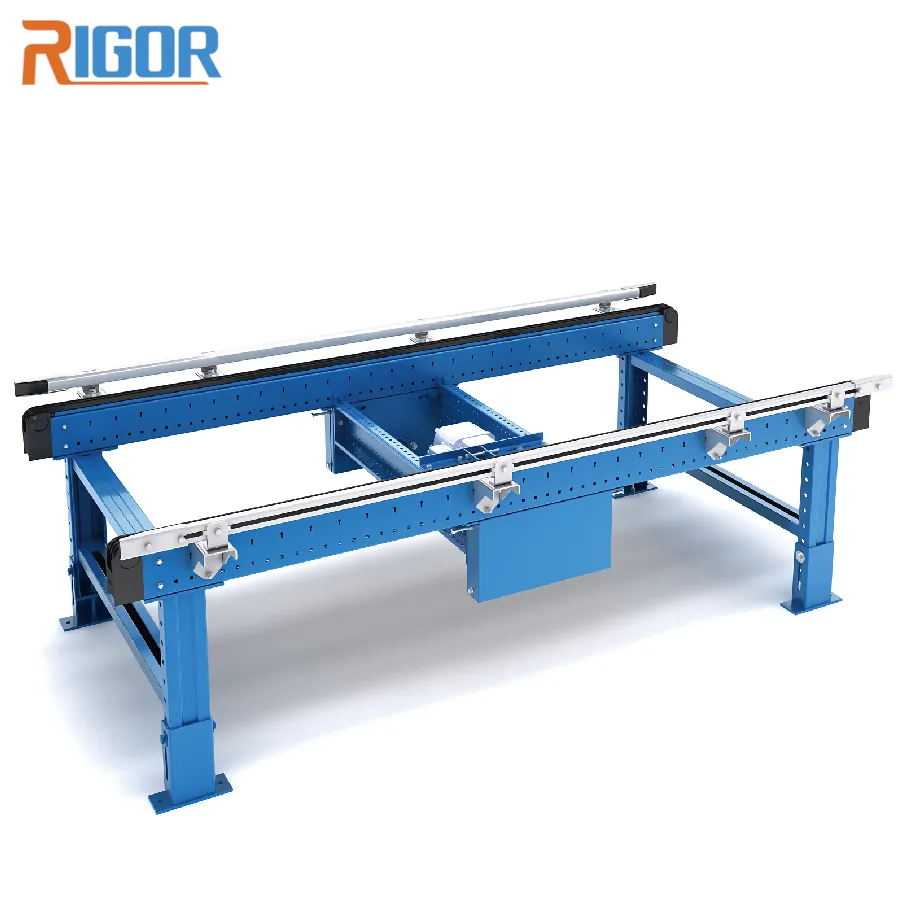

2PLM2 Double Chain Conveyor
2PLM2 double chain conveyor is suitable for horizontal transportation of empty and full-load pallet. There is PE chain guide rail under double row roller chain. The frame is heavy and has strong bearing capacity to load 1.5 T pallet. There is an integrated tensioning device to retension the conveying chain easily. When the ground is uneven, it can be easily compensated with adjustable support legs.

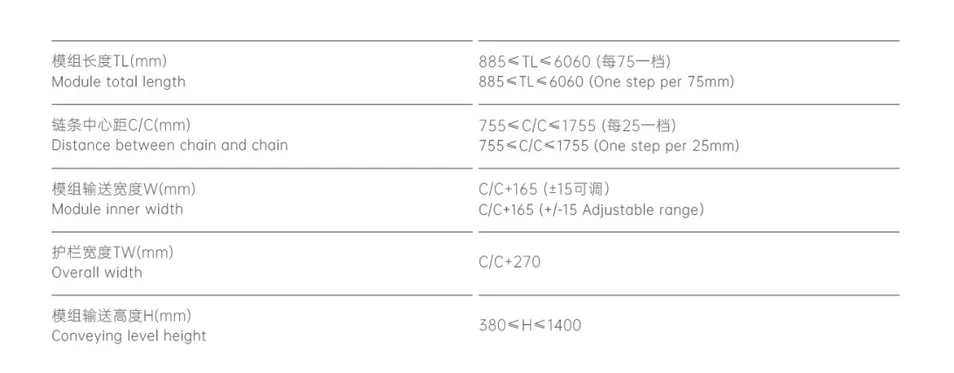

| Parameter | Detail Value |
|---|---|
| Max Payload (kg) | 1500 |
| Drive motor power (kW) | 0.55, 0.75, 1.1 (Default/Specified brands) |
| Line speed (m/min) | 13, 16, 18 |
| Environment temperature (ºC) | -5 ~ +40 |
| Surface treatment | Powder coating with RAL color |
Our focus includes: contracting the design, manufacturing, installation, commissioning, and personnel training for large sets of logistics equipment and engineering projects. We specialize in system planning and mechanical design, collaborating with excellent partners to provide quality services and products globally.

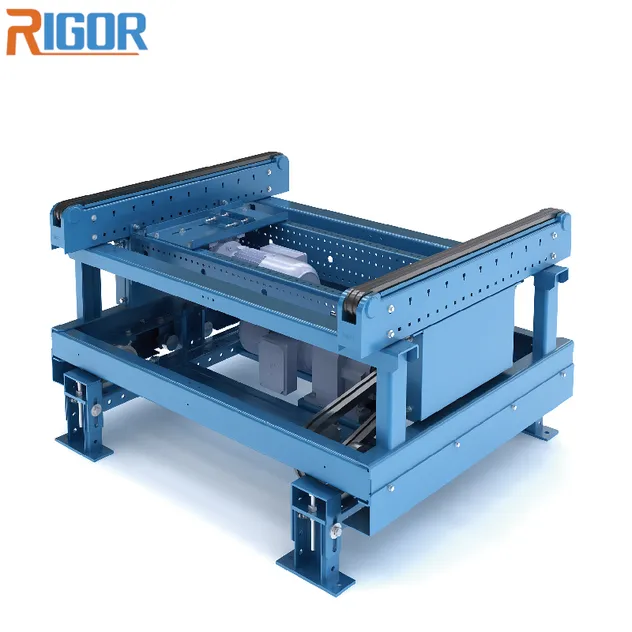

Chain Type Transfer Unit
Adopts motor driven lifting and chain conveying for 90° vertical turning.

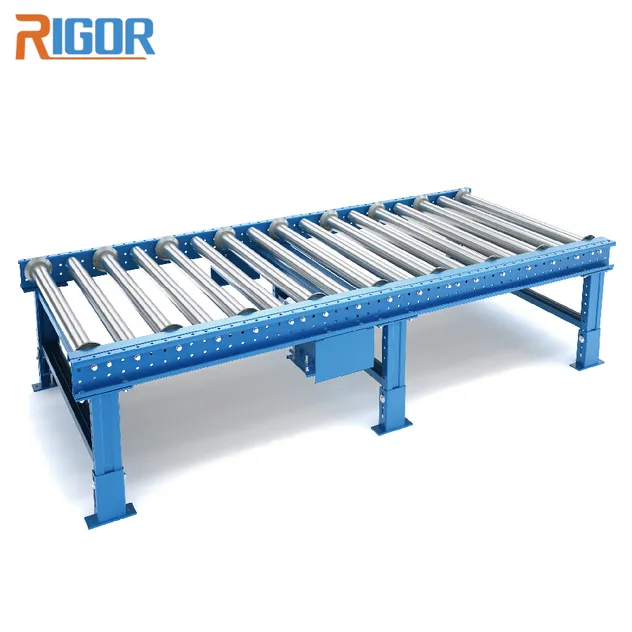

Roller Conveyor
Motorized equipment for horizontal transport of flat-bottom goods.

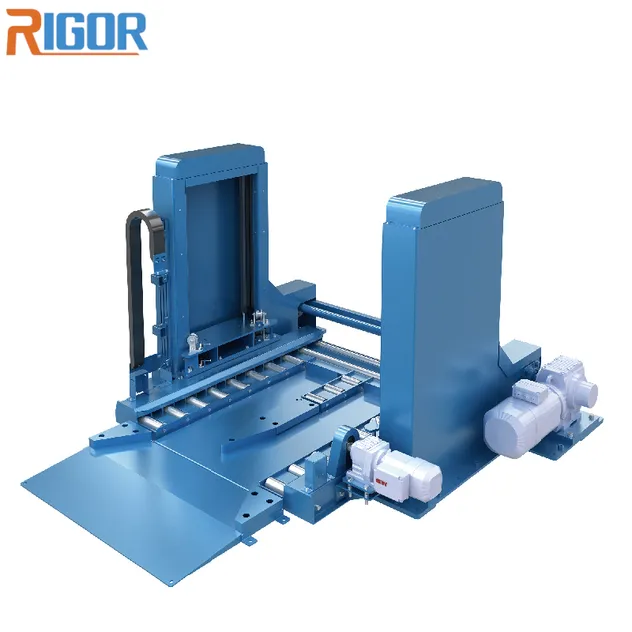

Floor-Type Vertical Elevator
Carries materials between different heights for main line docking.
