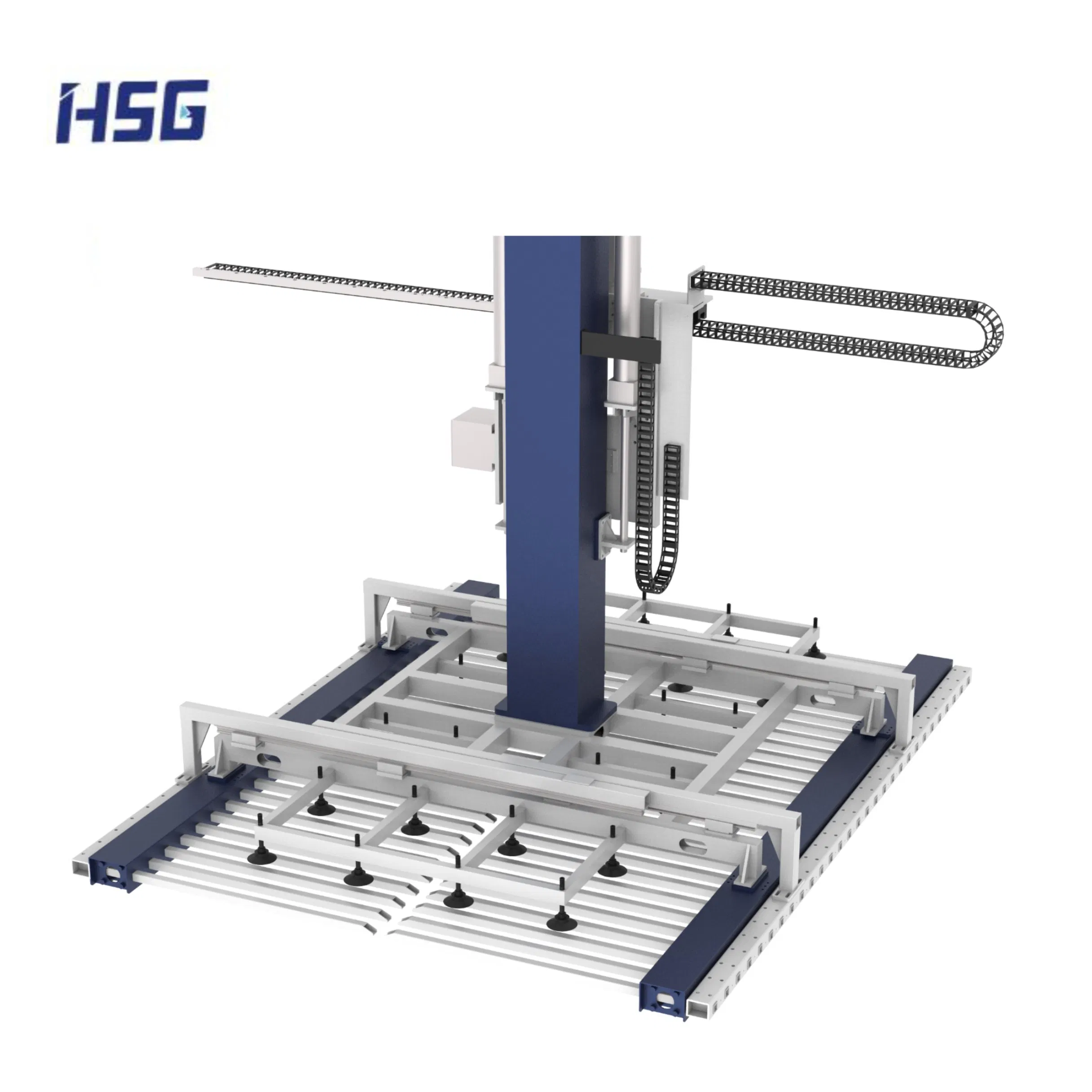

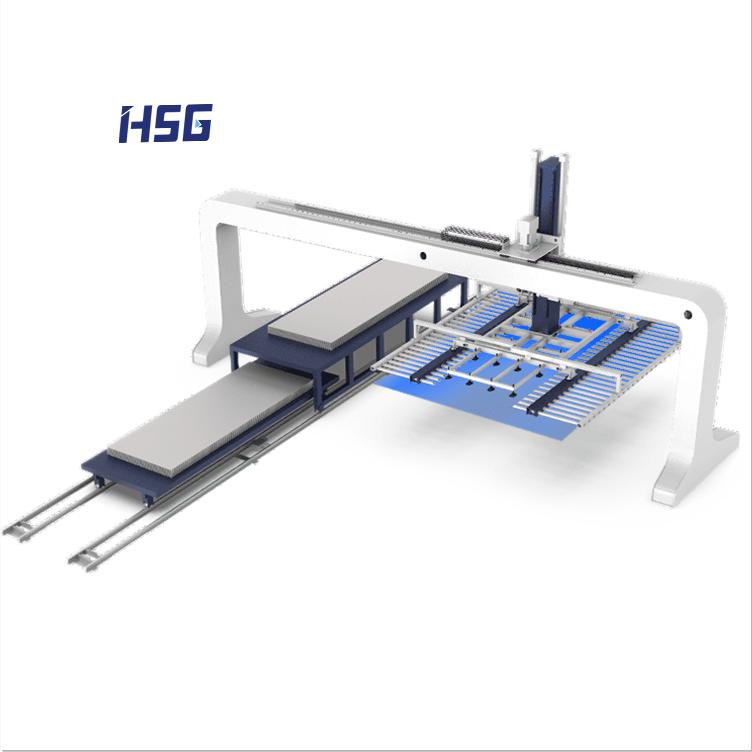

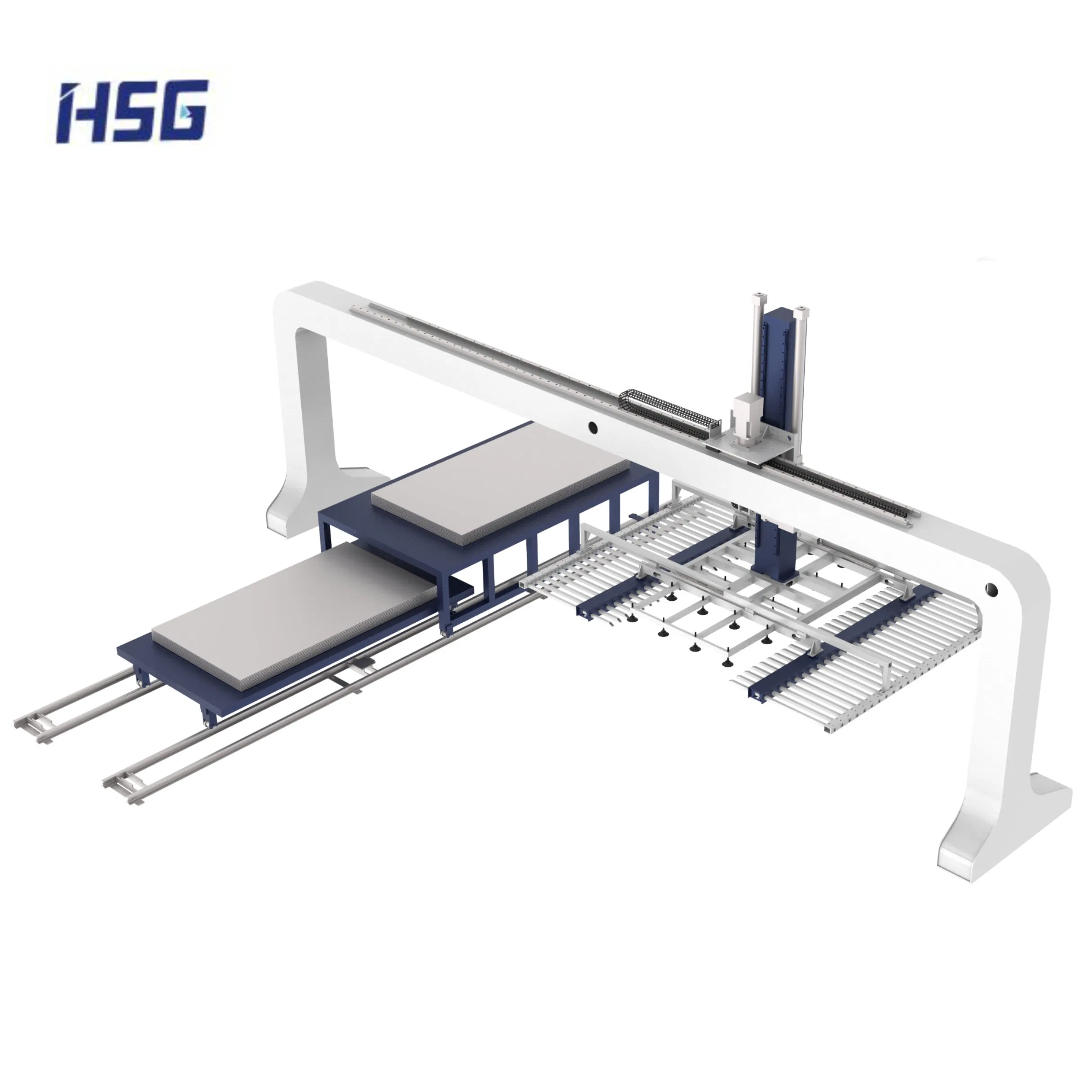

Customized Automatic Material Handling System for Industrial Laser Cutters

1 / 5

Customized Automatic Material Handling System for Industrial Laser Cutters

Customization:	Available
After-sales Service:	Online Support
Warranty:	1 Year

Send Inquiry

Product Description

Basic Information

Model NO.

ALG

Application

Metal Machinery, Automotive, Aerospace, etc.

Cooling System

Water Cooling

Structure Type

Desktop

Laser Classification

Fiber Laser

Sheet Thickness

1-22mm

Sheet Size

3000*1500mm / 4000*2000mm

Function

Automatic Loading and Unloading

Product Description

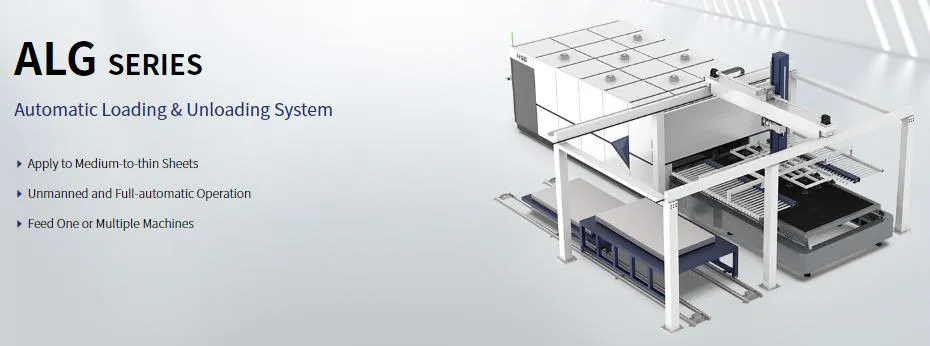

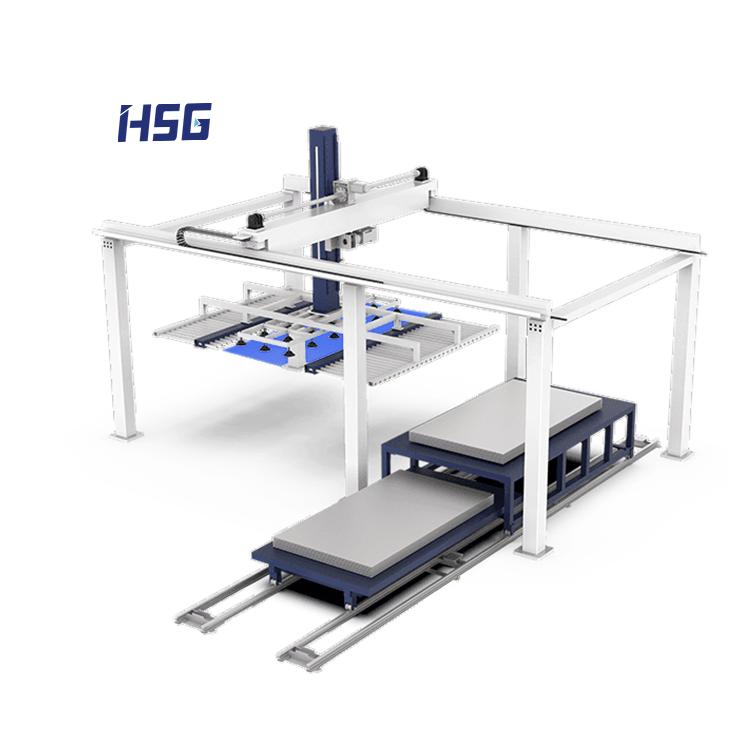

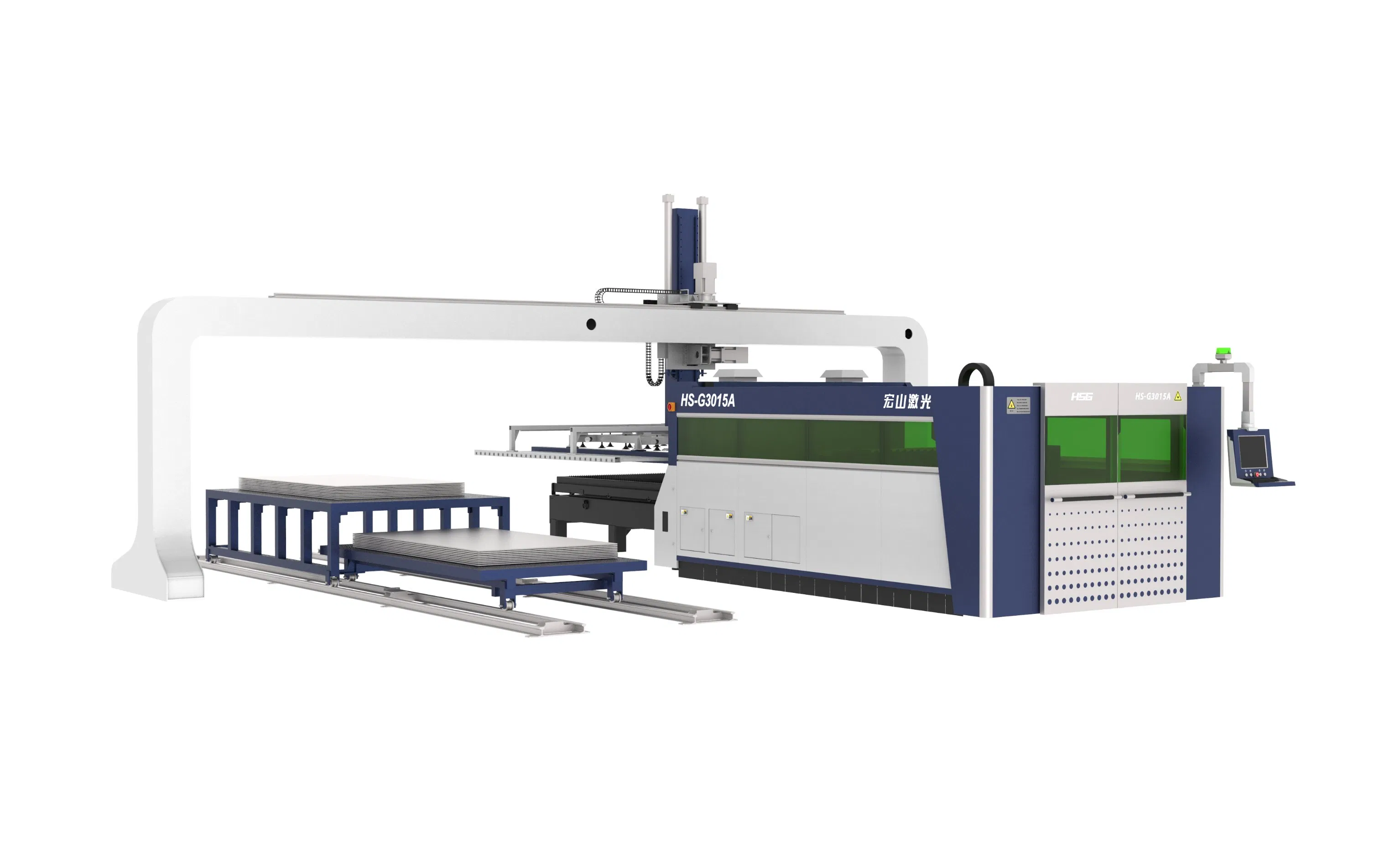

ALG Series Automatic Loading & Unloading System

The system serves global users with specialized solutions for sheet metal laser cutting, tube laser cutting, and welding processes. This automated handling system is designed to streamline industrial production and maximize efficiency.

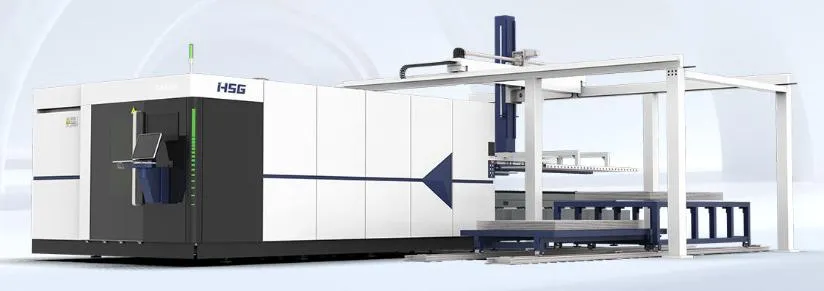

Layer-based Measurement of Sheet Thickness

Sheet metals are subject to precise thickness measurement to ensure that only one sheet is loaded each time, preventing production errors and machine downtime.

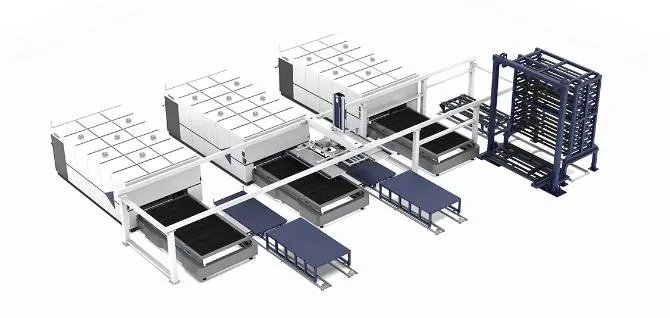

Feed One or Multiple Machines

A single set of automatic loading & unloading system can simultaneously serve several cutting machines. This configuration significantly reduces energy consumption and enhances workshop utilization.

Our Advantages

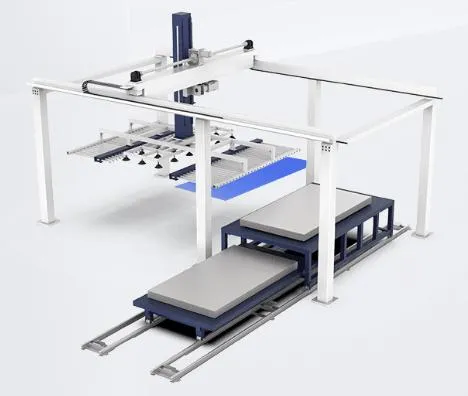

Medium-to-thin Sheets Handling

Rated Sizes: 3000*1500mm, 4000*2000mm, 6000*2000mm

Sheet Thickness: 0.8-8mm

Sheet Weight: 200kg-600kg

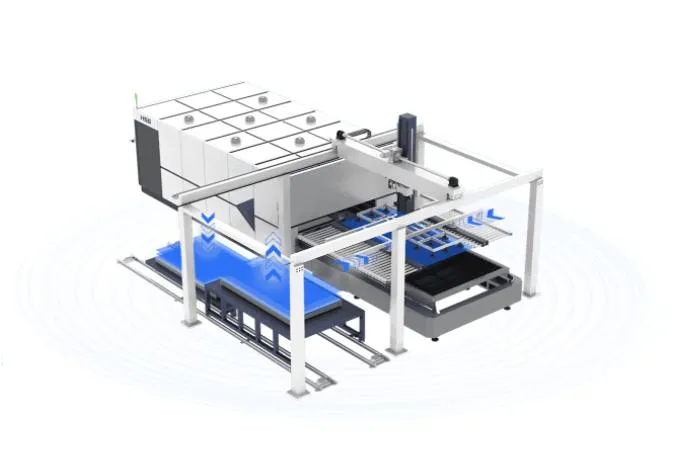

User-friendly & Safe Design

Automatic Operation: Sheet metals are loaded to exchange platforms and finished products are stacked to pallets automatically.

Scratch Protection: Digital operation and safe handling ensure sheets are well protected from scratching during the process.

Technical Parameters

Model	ALG-3015-200	ALG-4020-400	ALG-6020-600
Sheet Thickness	1-8mm	1-6mm
Sheet Weight	200-400kg	400kg	600kg
Sheet Size	300015006/8mm	400020006mm	600020006mm
Pallet Height	120mm

Certifications & Exhibition

Packaging & Shipping

Our high-standard packaging includes aluminum foil, metal frameworks, and moisture-barrier bags to satisfy ocean shipping criteria. We ensure damage-free, rapid delivery via multiple transportation methods.

Frequently Asked Questions

What is the primary function of the ALG series?

The ALG series is an automated system designed for loading raw metal sheets onto laser cutting platforms and unloading finished parts, maximizing production efficiency.

How does the system prevent loading multiple sheets simultaneously?

The system utilizes layer-based measurement technology to verify sheet thickness before picking, ensuring only one sheet is processed at a time.

Can one loading system serve more than one laser cutter?

Yes, a single ALG system is capable of feeding multiple cutting machines simultaneously, which optimizes workshop space and energy use.

What are the supported material thicknesses?

Standard models support thicknesses from 0.8mm to 8mm, while specialized configurations can handle sheets up to 22mm.

How does the system protect sheets from damage?

The system uses digital operation controls and specialized handling mechanisms to ensure metal sheets are moved safely without scratching the surface.

What shipping protections are implemented for international orders?

All machines are packed using ocean-grade standards, including aluminum foil, metal framework, and anti-rust treatments to prevent moisture damage during transit.
