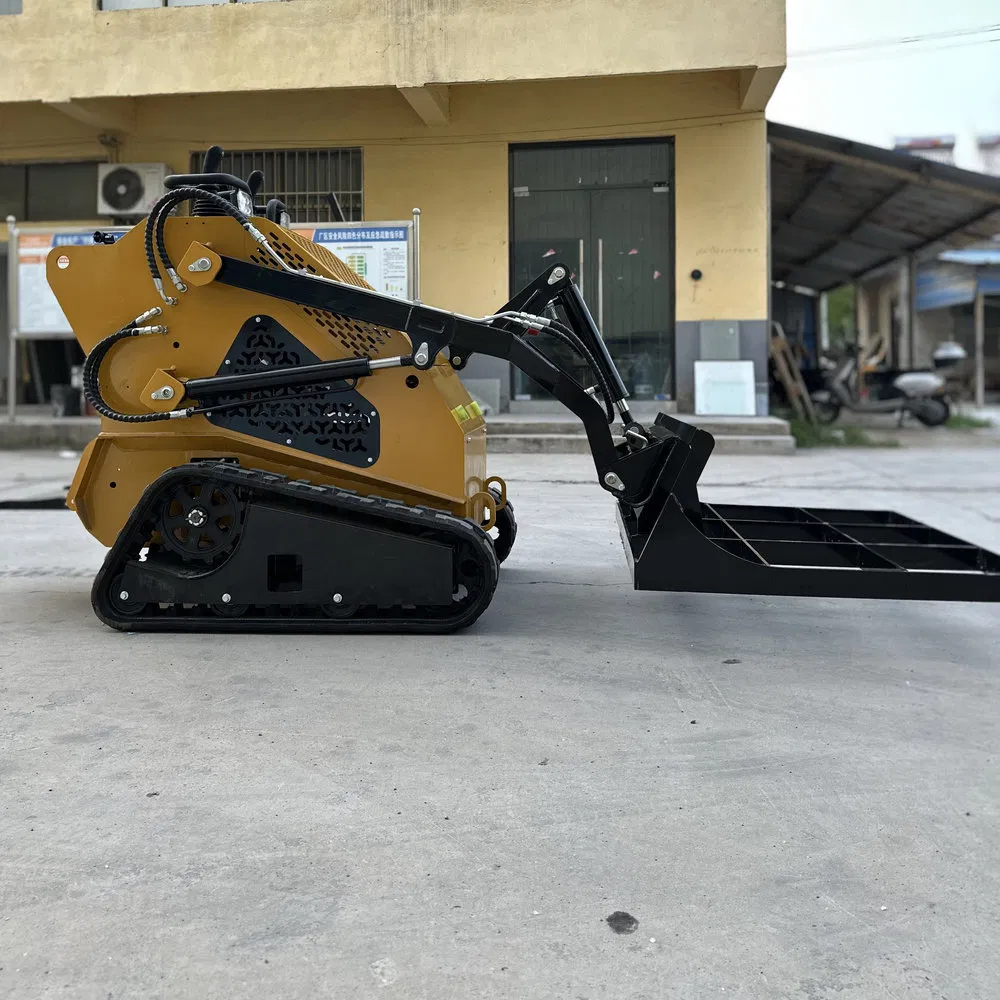

Low Noise Bdt23-Plus Small Track Loader for Foundation Excavation

1 / 5

Low Noise Bdt23-Plus Small Track Loader for Foundation Excavation

Customization:	Available
After-sales Service:	24-Hour Online Service
Warranty:	One-Year

Send Inquiry

Product Description

■ Basic Information

Model NO.	BDT23-PLUS
Certification	TUV, ISO, RoHS, CE
Condition	New
Rated Load	<1t
Transmission	Hydraulic - Mechanical
Walking Mode	Crawler
Type	Small Loader
Maximum Working Height	2190mm
Maximum Loading Height	1955mm
Overall Mass	740kgs / 850kgs
Production Capacity	50000 Sets/Year

■ Product Description

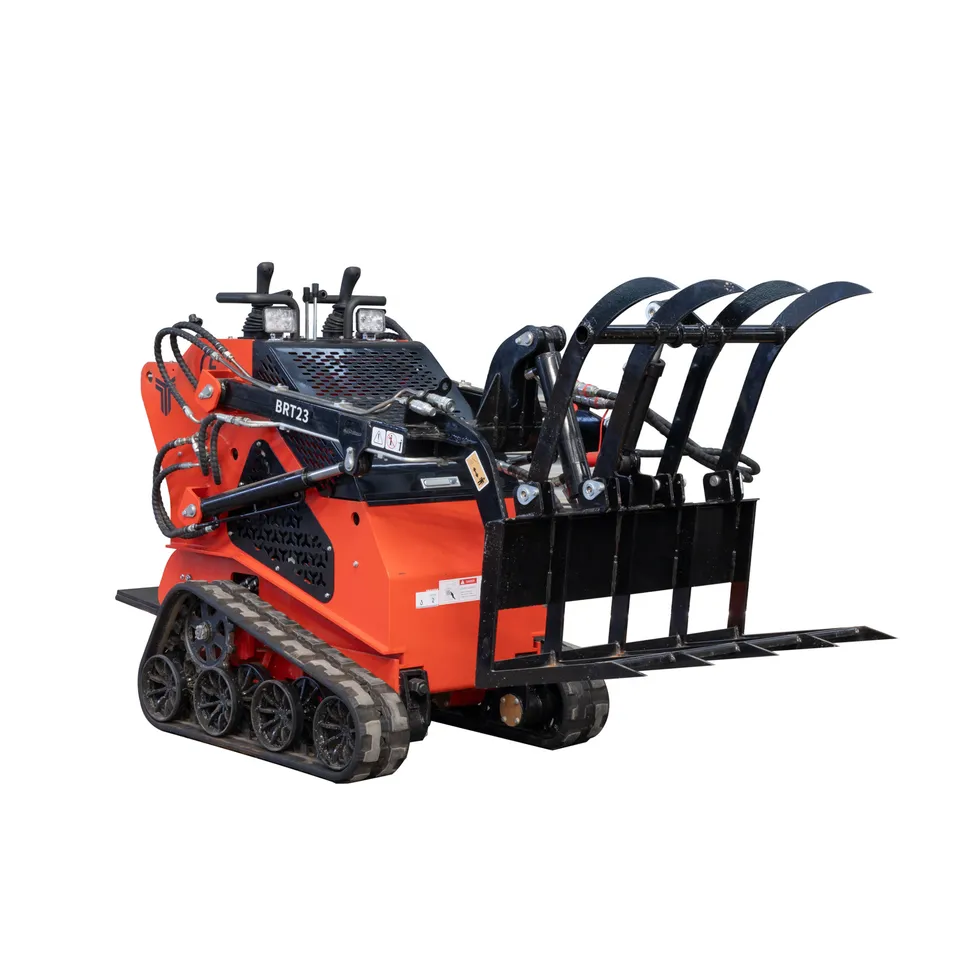

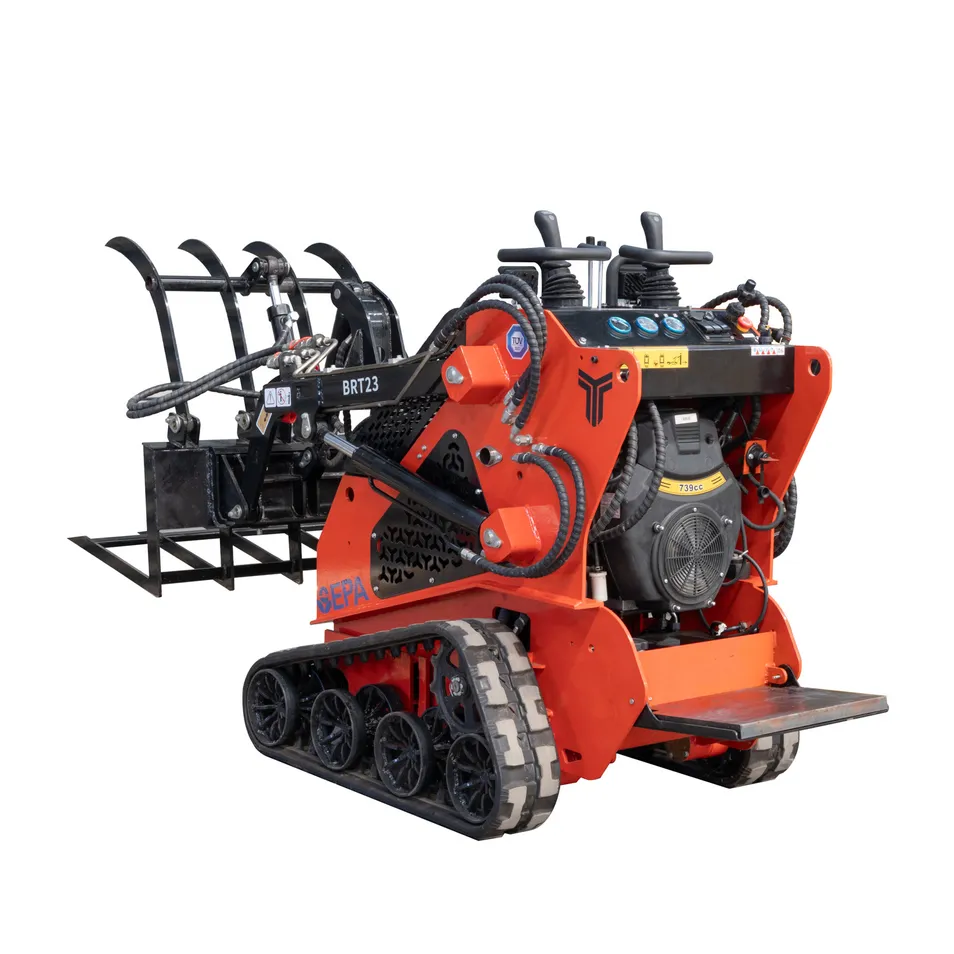

MINI SKID STEER LOADER
Experience unmatched efficiency engineered for professionals who demand performance in confined spaces. This compact loader combines a lightweight design (740-850 kg) with an impressive 320-450kg rated load capacity.

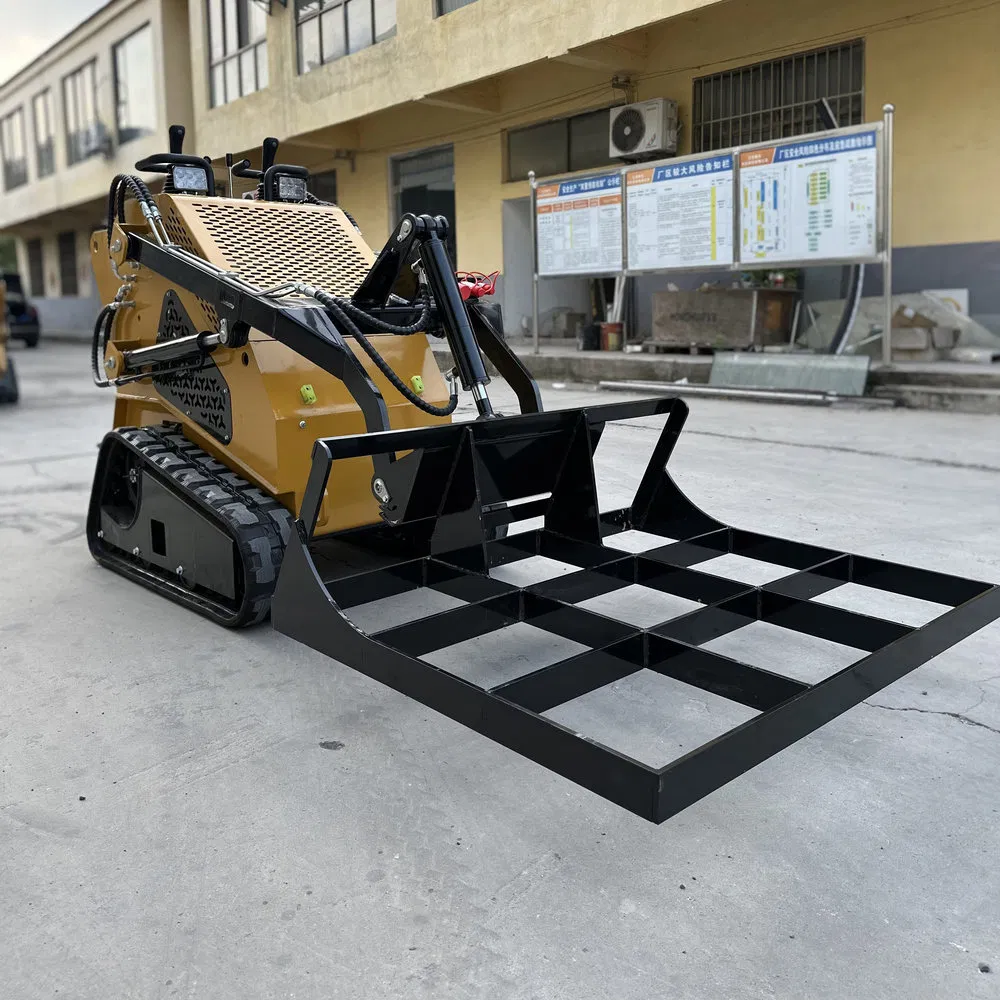

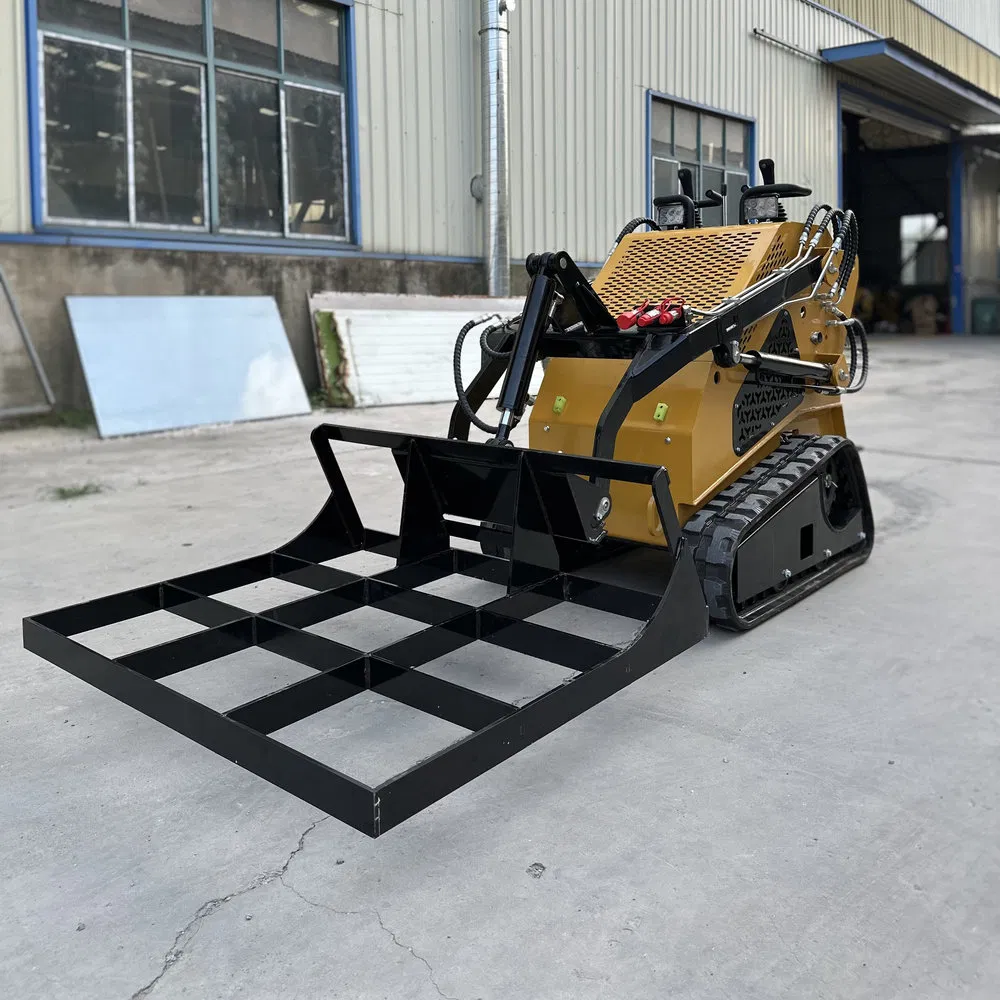

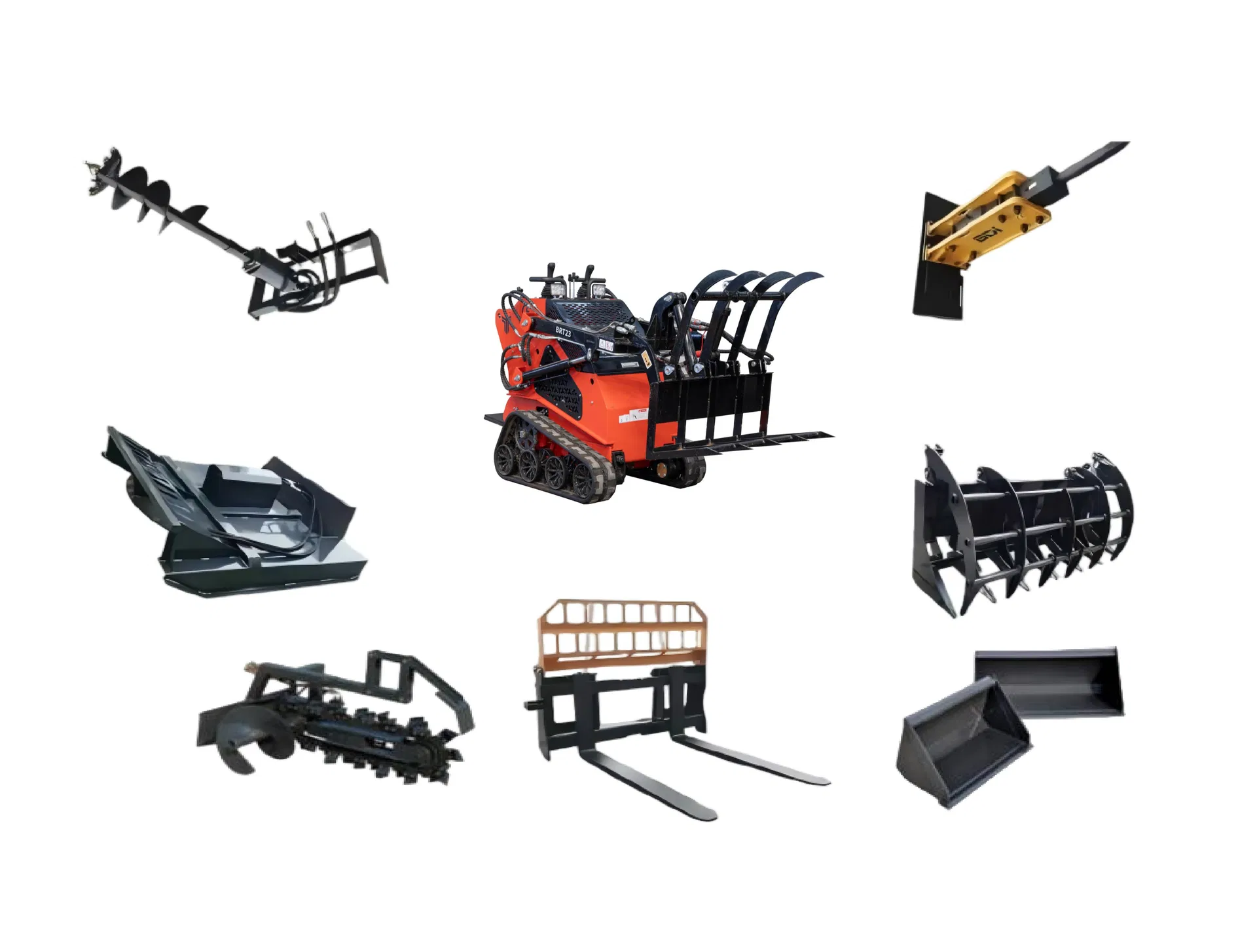

Ideal for interior renovations, high-rise construction, tunnel projects, and landscaping operations. Powered by a robust RATO 740 EPA-certified 23HP engine and featuring compatibility with over 100 attachments—including buckets, forks, augers, and graders.

●

Compact Dimensions
Width of just 1045mm and height of 1415mm enable navigation through narrow doorways and elevators.

●

Dual Load Capacity
Standard 320kg capacity or upgrade to 450kg with optional counterweight.

●

Working Parameters
Max working height of 2190mm and 40° dumping angle for efficient material handling.

■ Technical Parameters

Parameter	Value
Maximum Working Height	2190mm
Maximum Loading Height	1955mm
Maximum Unloading Height	1390mm
Maximum Dumping Distance	600mm
Maximum Unloading Angle	40°
Total Height	1415mm
Ground Clearance	125mm
Overall Length (Without Bucket)	1685mm
Overall Width	1045mm
Bucket Width	1100mm
Overall Mass (Standard)	740kgs
Rated Load (Standard)	320kgs
Overall Mass (w/ Counterweight)	850kgs
Rated Load (w/ Counterweight)	450kgs

■ Detailed Features

Heavy-Duty Construction

Thickened steel plate frame and reinforced track system guarantee durability and longevity, even under intensive daily operation.

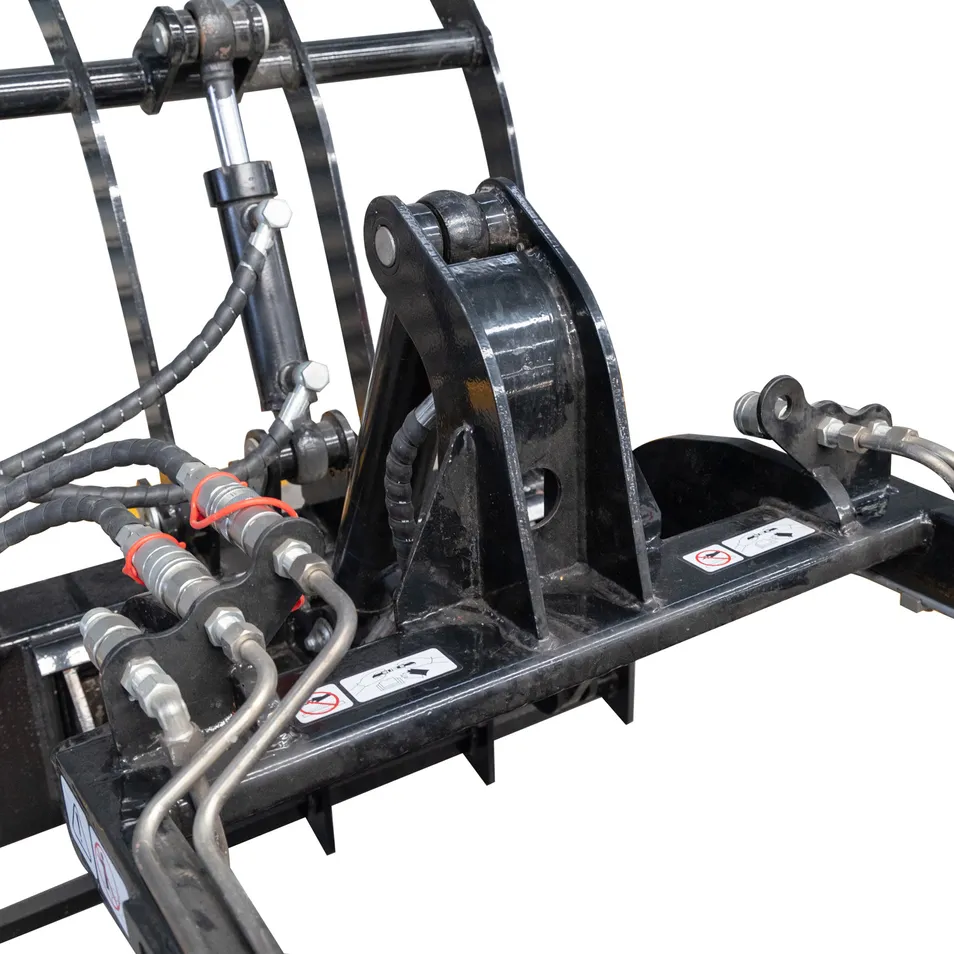

Advanced Hydraulic System

Three-pump configuration with a unique, improved internal system delivers increased flow rate and extended working duration.

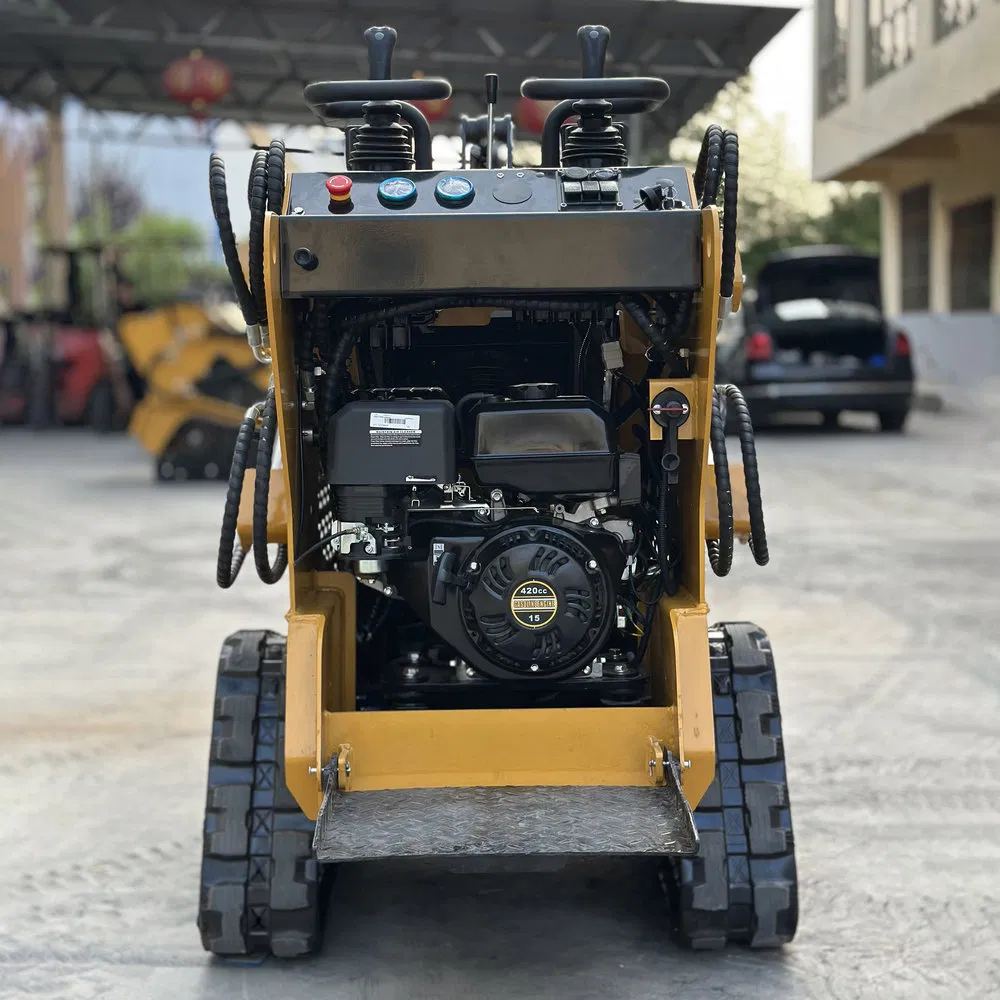

Reliable Power Source

RATO 740 EPA-certified 23HP engine provides consistent performance with environmental compliance and fuel efficiency.

Optimal Ground Clearance

125mm clearance, combined with a durable track design, ensures stable operation across uneven terrain.

? Frequently Asked Questions

Q1: Can the factory handle large orders and customized samples? A: Yes, our factory supports mass production requirements and can handle single-piece customization. Please note that free samples are not provided.

Q2: What after-sales support is provided? A: Machines come with a 12-month warranty. During this period, we are responsible for issues regarding the machine itself. Damage from improper use is not covered.

Q3: How long is the price validity period? A: Prices generally remain stable throughout the year. Adjustments occur only during significant exchange rate fluctuations or major increases in material/labor costs.

Q4: What is the delivery time? A: Regular products typically take 7 days to produce after prepayment. Customized products have a lead time of 4-5 weeks. Urgent orders can be prioritized depending on the situation.

Q5: How are the loaders packaged for shipping? A: For full containers, up to 20 mini loaders can fit. For smaller orders, we use durable steel frames to ensure safety during transportation.

Q6: Are the engines certified? A: Yes, the machines are equipped with RATO 740 EPA-certified 23HP engines, ensuring environmental compliance and reliable performance.
