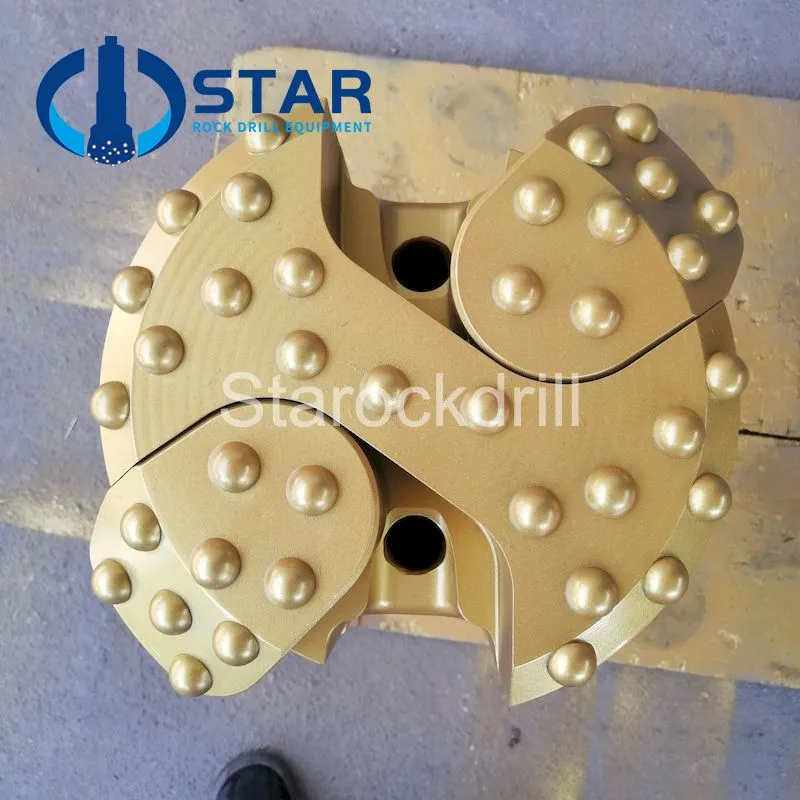

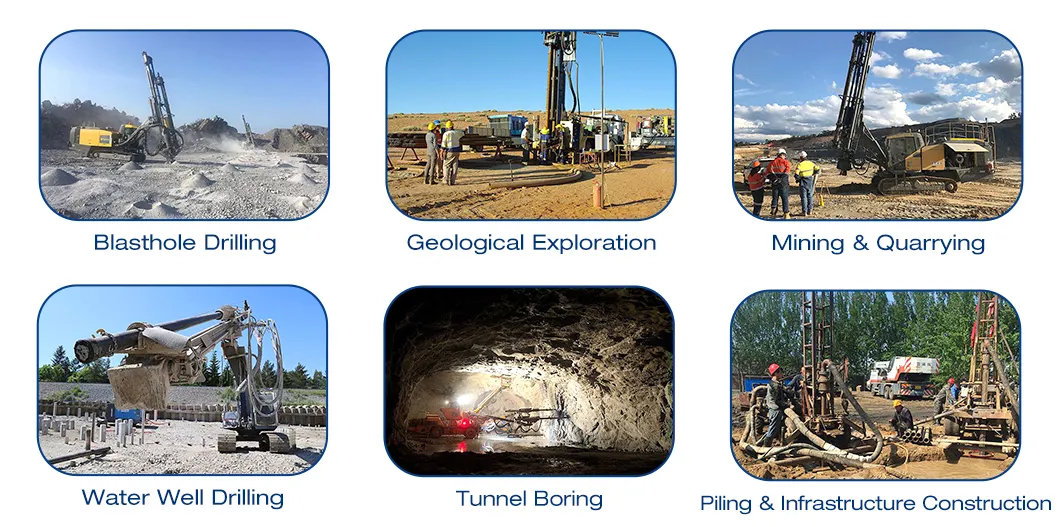

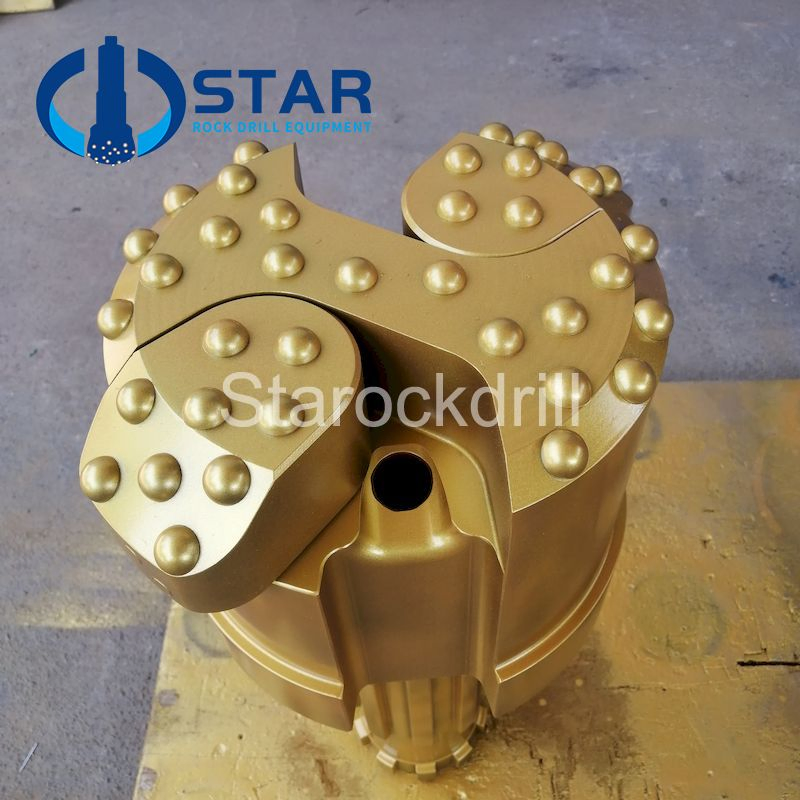

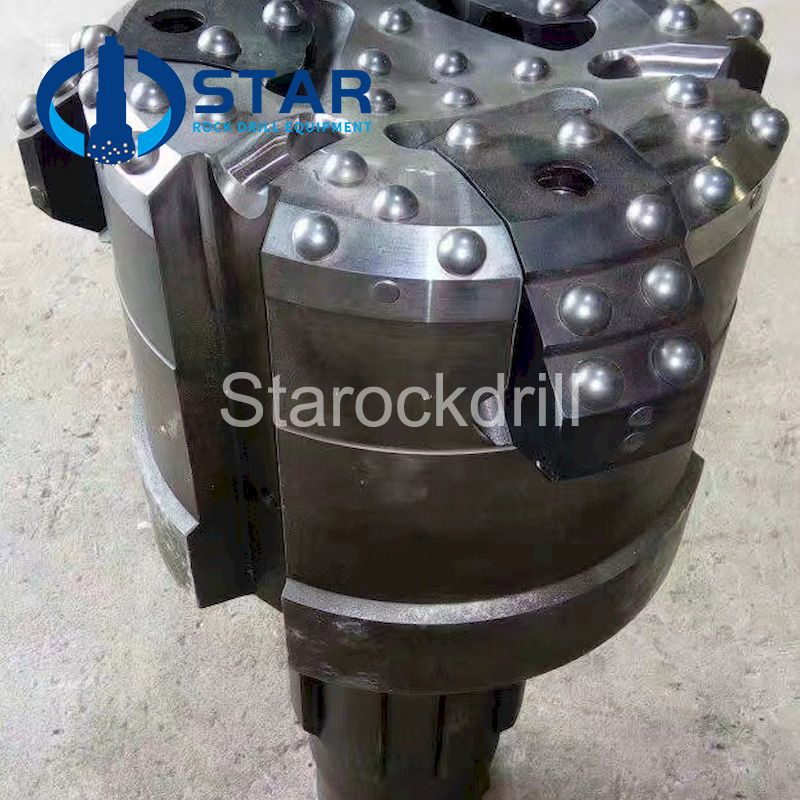

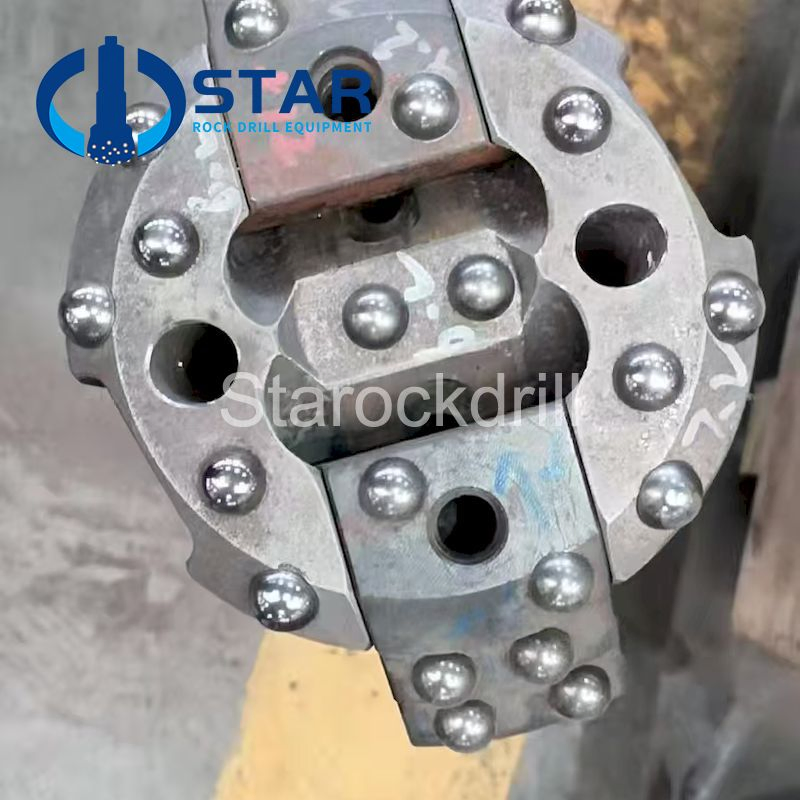

Symmetric casing block bit specifically designed for drilling in soft and unstable formations, ideal for geothermal wells, water wells, and micro-piling projects.
Designed to excel in formations with high mud content and abundant floating rocks.
Utilizes specialized materials like 25Si2MnCrNi2MoV with surface treatment reaching HRC42-45 hardness.
Engineered to save time on tool replacement and significantly boost overall work efficiency.
| Model | Casing OD (MM) | Casing ID (MM) | Reamer (MM) | NO. Blocks | Casing Shoe ID (MM) | Hammer Size | Drill Rod (MM) |
|---|---|---|---|---|---|---|---|
| BOD168 | 168 | 156 | 185 | 2 | 142 | 5 INCH HAMMER | 76/89 |
| BOD178 | 178 | 158 | 195 | 2 | 148 | 5 INCH HAMMER | 76/89 |
| BOD183 | 183 | 163 | 200 | 2 | 152 | 5 INCH HAMMER | 76/89 |
| BOD194 | 194 | 180 | 209 | 2 | 167 | 6 INCH HAMMER | 89/114 |
| BOD219 | 219 | 205 | 237 | 3 | 192 | 6 INCH HAMMER | 89/114 |
| BOD245 | 245 | 225 | 264 | 3 | 210 | 8 INCH HAMMER | 114 |
| BOD273 | 273 | 259 | 308 | 3 | 242 | 8 INCH HAMMER | 114 |
| BOD325 | 325 | 305 | 358 | 3 | 282 | 10 INCH HAMMER | 114 |
| BOD406 | 406 | 382 | 426 | 4 | 360 | 12 INCH HAMMER | 127 |
12 months or 2,000 operating hours (whichever comes first).
24/7 technical assistance and spare parts supply availability.
Comprehensive on-site or remote operation and maintenance training.
