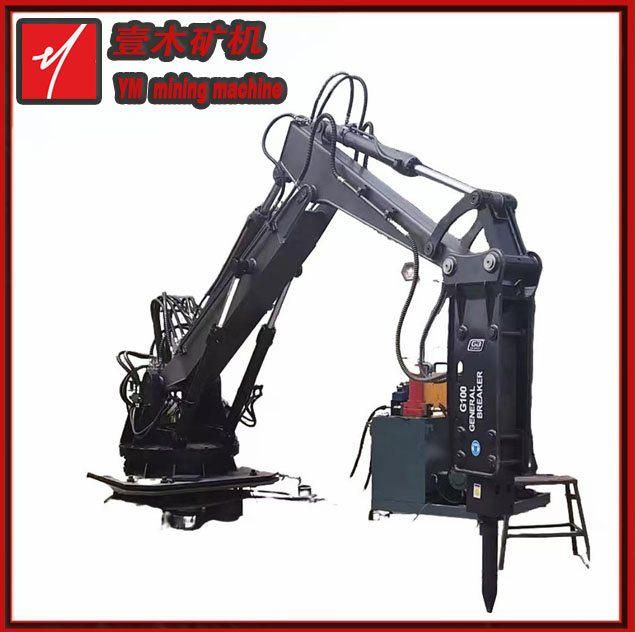

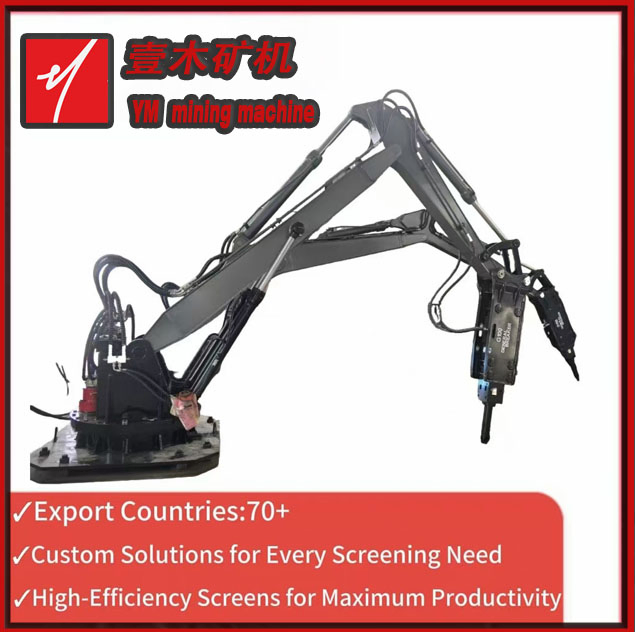

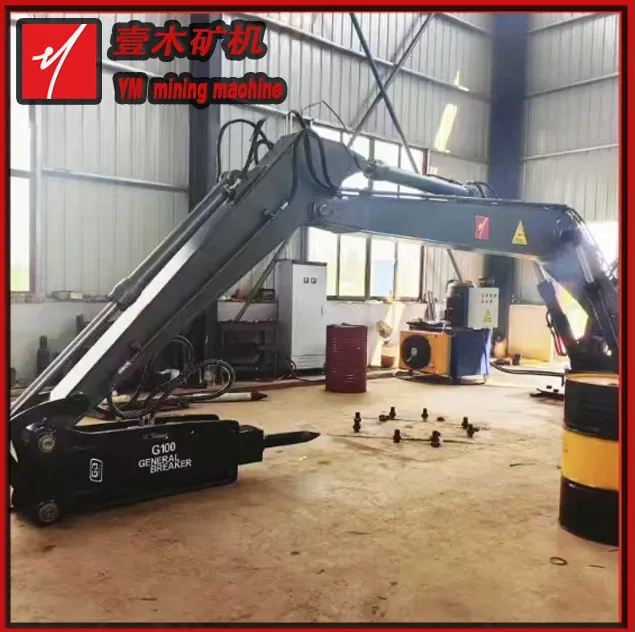

Pedestal Breaker Boom for Mining Rock Breaking

Basic Info

Motor Power75kw

ApplicationMining, Quarry, Construction

Outlet Size500mm

Inlet Size600×900mm

Warranty1 Year

Max Breaking Force1200 J

Working Radius6 M

Max Breaking Height8 M

Hydraulic Pressure16 MPa

Flow Rate150 L/Min

Net Weight5,000 Kg

CertificationCE, ISO9001

Product Description

Our pedestal breaker boom system is a robust, pedestal-mounted hydraulic rock breaker designed for the most demanding mining and quarrying applications. Engineered for high efficiency and reliability, it delivers exceptional breaking force to reduce oversized rocks, clear blockages, and optimize material flow in primary crushing operations.

Key Features & Benefits:

⚡

Superior Breaking Force: Equipped with a high-performance hydraulic breaker, it delivers up to 1200 J of impact energy at a frequency of 300-500 blows per minute.

🏗️

Extended Reach & Flexibility: The heavy-duty boom arm offers a working radius of up to 6 meters and a maximum breaking height of 8 meters, with a 360° continuous slewing capability.

🛡️

Durable Construction: Fabricated from high-strength Q345B alloy steel, ensuring structural integrity under heavy loads, with critical components made from hardened 40Cr steel.

Technical Specifications Table

Item/Model	Unit	ZX750	ZX850	ZX950	ZX1000	ZX1350
Weight	Kg	2880	3550	3750	3900	4000
Power of motor	KW	18.5	30	30	35	35
Max. coverage range	M	4.7	5.8	7	7.5	8
Max. horizontal reach	M	3.2	4.3	5.6	5.9	6.5
Swing	°	170	170	170	170	170

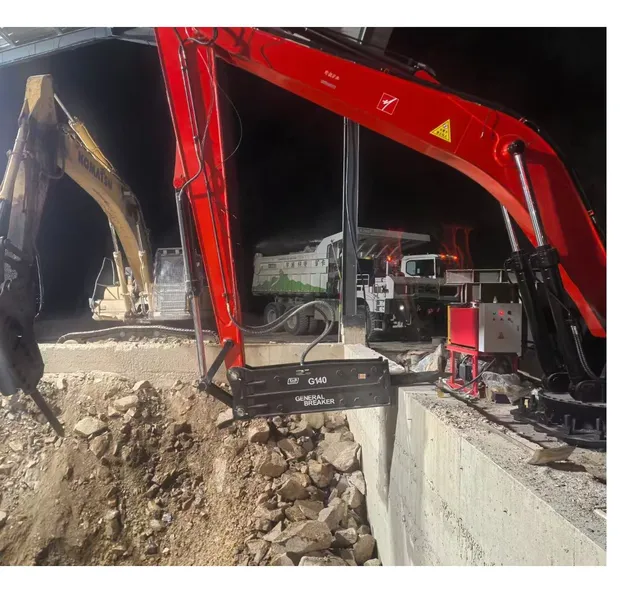

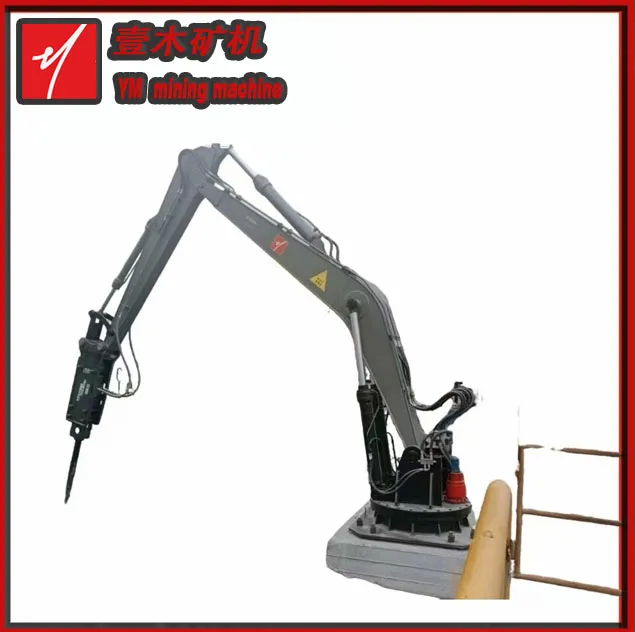

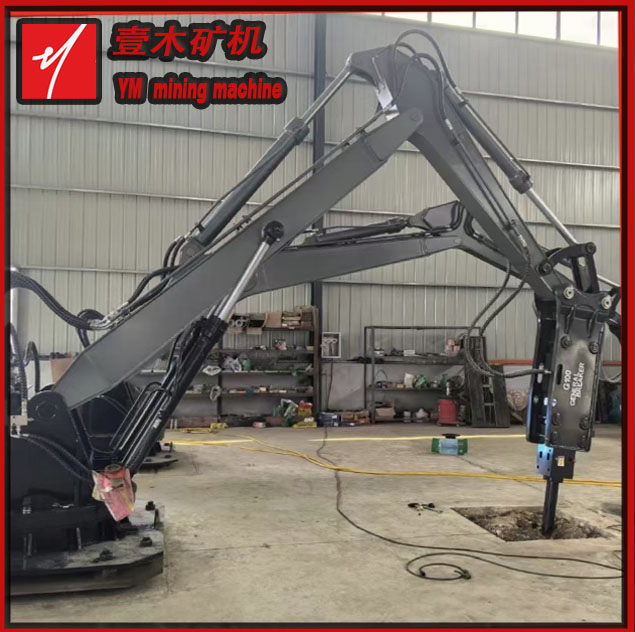

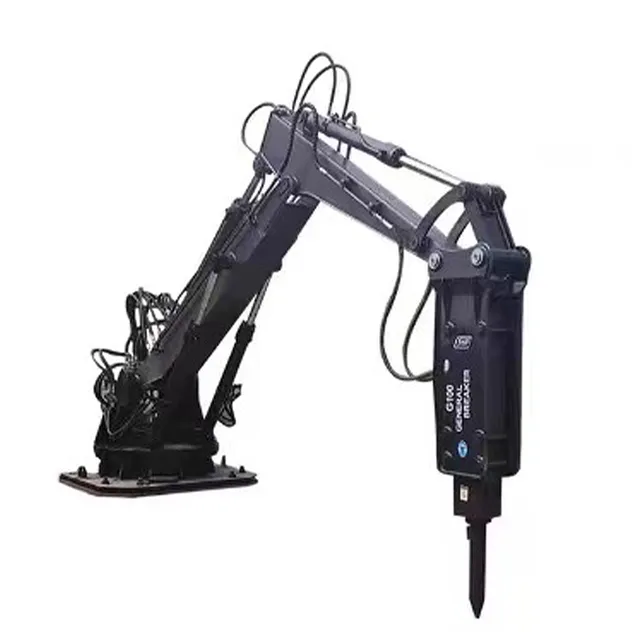

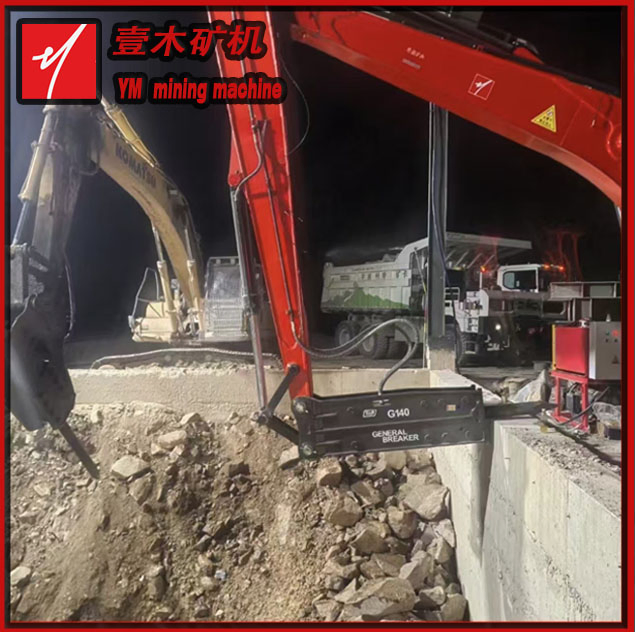

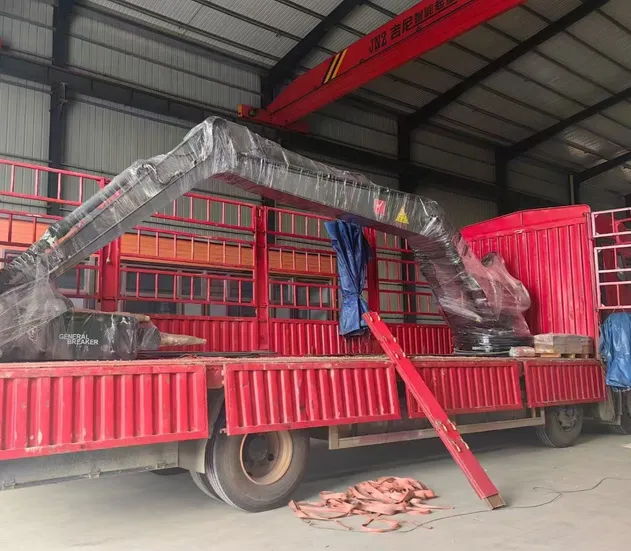

Product Gallery

Frequently Asked Questions

1. What is the primary purpose of a pedestal breaker boom system?

The system is designed for primary crushing operations, specifically to reduce oversized rocks, clear blockages, and optimize material flow in mining and quarrying environments.

2. Can the system be customized for different mine layouts?

Yes, we offer tailored configurations, including different boom lengths, breaker models, and optional features like dust removal systems and soundproof covers to meet specific project requirements.

3. How is the pedestal breaker boom operated?

The system can be operated safely via remote control or wired control, allowing operators to maintain a safe distance from the crushing area.

4. What materials are used to ensure durability?

The structure is fabricated from high-strength Q345B alloy steel, and critical components such as pins and bushings are made from hardened 40Cr steel for an extended service life.

5. What safety features are integrated into the system?

The system includes integrated overload protection, dual emergency stop functions, and a noise-controlled environment (≤85 dB(A)) to ensure operator and site safety.
