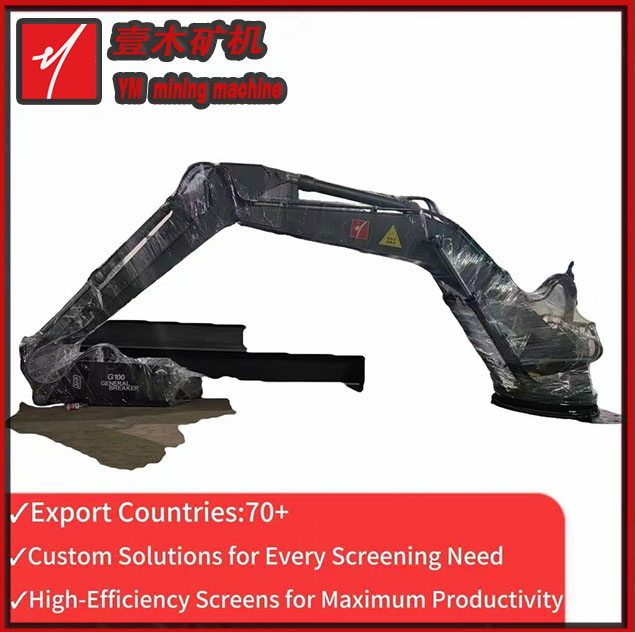

Mining Pedestal Breaker Boom System Hydraulic Rock Breaker Boom for Mining

1 / 5

Mining Pedestal Breaker Boom System Hydraulic Rock Breaker Boom for Mining

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

📊Basic Information

Model NO.

ZX-460

Motor Power

75kw

Application

Mining, Quarry, Construction Waste Processing

Materials

Ore, Rock, Concrete

Outlet Size

500mm

Inlet Size

600×900mm

Condition

New

Warranty

1 Year

Max Breaking Force

1200 J

Working Radius

6 M

Max Breaking Height

8 M

Hydraulic Pressure

16 MPa

Flow Rate

150 L/Min

Control Method

Remote / Wired Control

Net Weight

5,000 Kg

Certification

CE, ISO9001

🏗️Product Description

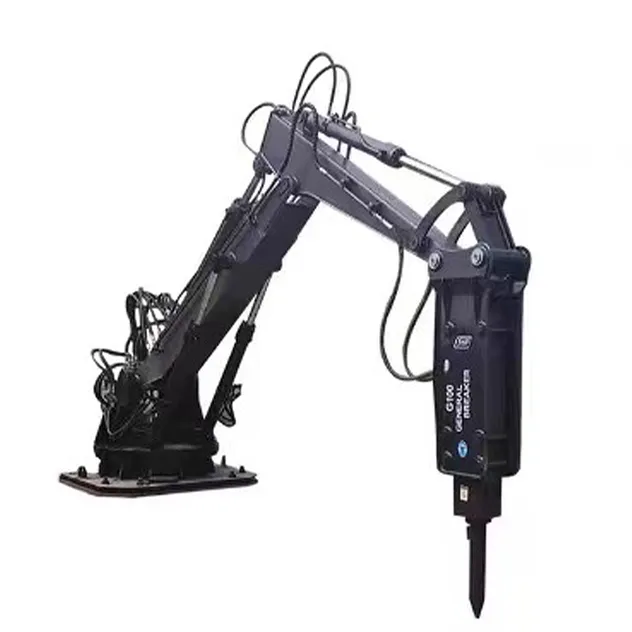

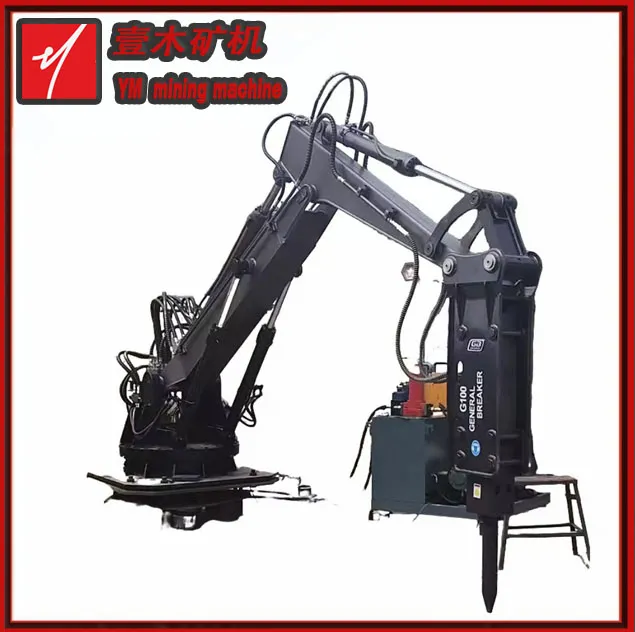

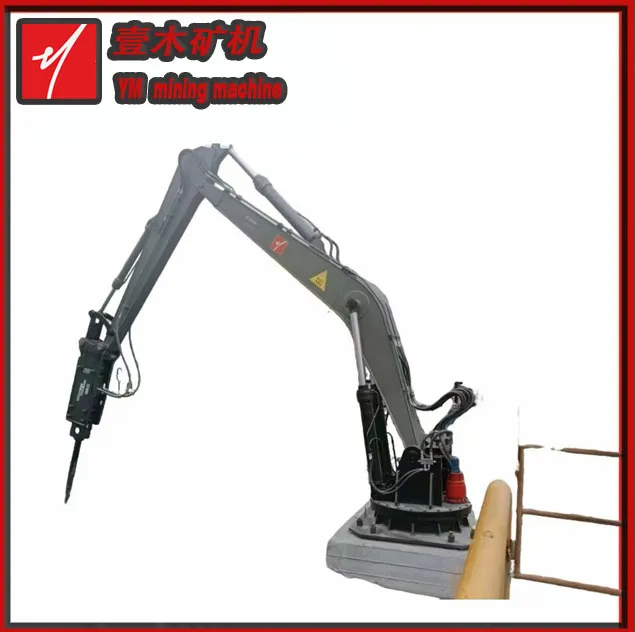

Pedestal Breaker Boom System – Heavy-Duty Mining Rock Breaking Solution

Our pedestal breaker boom system is a robust, pedestal-mounted hydraulic rock breaker designed for the most demanding mining and quarrying applications. Engineered for high efficiency and reliability, it delivers exceptional breaking force to reduce oversized rocks, clear blockages, and optimize material flow in primary crushing operations.

Key Features & Benefits:

Superior Breaking Force: Equipped with a high-performance hydraulic breaker, it delivers up to 1200 J of impact energy at a frequency of 300-500 blows per minute.
Extended Reach & Flexibility: Heavy-duty boom arm offers a working radius of up to 6 meters and a maximum breaking height of 8 meters with 360° continuous slewing.
Durable Construction: Fabricated from high-strength Q345B alloy steel with hardened 40Cr steel pins and bushings for extended service life.
Advanced Hydraulic System: Features high-quality Rexroth/Atos valve blocks and Parker seals for leak-free, consistent performance.
Safe Operation: Controlled via remote or wired control with integrated overload protection and dual emergency stop functions.

⚙️Technical Specifications

Impact Energy: 1200 J
Impact Frequency: 300-500 blows/min
Working Radius: 6 m
Hydraulic Pressure: 16 MPa
Flow Rate: 120-180 L/min
Certifications: CE, ISO9001, GOST-R

Item/Model	Unit	ZX750	ZX850	ZX950	ZX1000	ZX1350
Weight	Kg	2880	3550	3750	3900	4000
Power of motor	KW	18.5	30	30	35	35
Max. coverage range	M	4.7	5.8	7	7.5	8
Max.horizontal reach	M	3.2	4.3	5.6	5.9	6.5
Max.vertical reach	M	3.3	4.6	5	5.3	6
Swing	°	170	170	170	170	170
Breaker Weight	KG	200-500	400-1000	400-1000	500-1200	500-1200

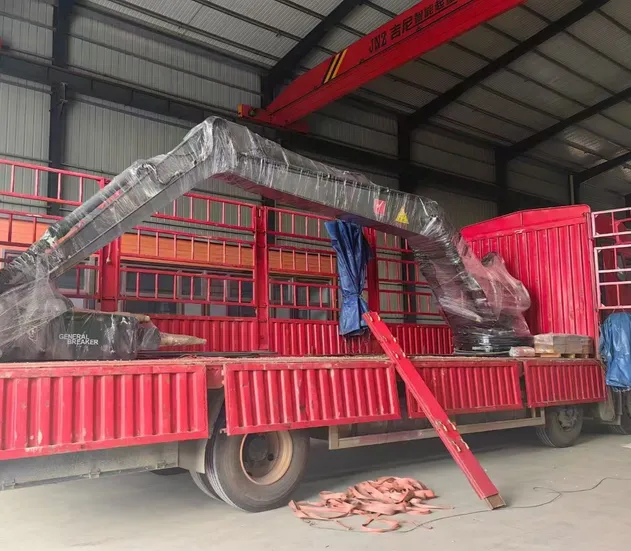

📦Packing & Delivery

Package Size

470.00cm * 250.00cm * 250.00cm

Package Gross Weight

3500.000kg

Frequently Asked Questions

What materials can the Pedestal Breaker Boom handle?

The system is specifically designed for breaking hard ore, rock, and concrete in mining, quarrying, and construction waste processing.

What is the maximum working range of the ZX series?

The working radius reaches up to 6 meters with a maximum breaking height of 8 meters, and a 170° to 360° slewing capability depending on the configuration.

What are the control options for the operator?

The system supports both remote control and wired control methods, ensuring the operator can maintain a safe distance from the breaking zone.

What hydraulic pressure is required for optimal performance?

The system operates at a standard hydraulic pressure of 16 MPa with a flow rate ranging from 120 to 180 L/min.

Is the equipment certified for international standards?

Yes, the pedestal breaker boom system is fully certified with CE, ISO9001, and GOST-R standards.

Can the system be customized for specific project needs?

Absolutely. We offer customizable solutions including different boom lengths, breaker models, and optional features like dust removal systems and soundproof covers.
