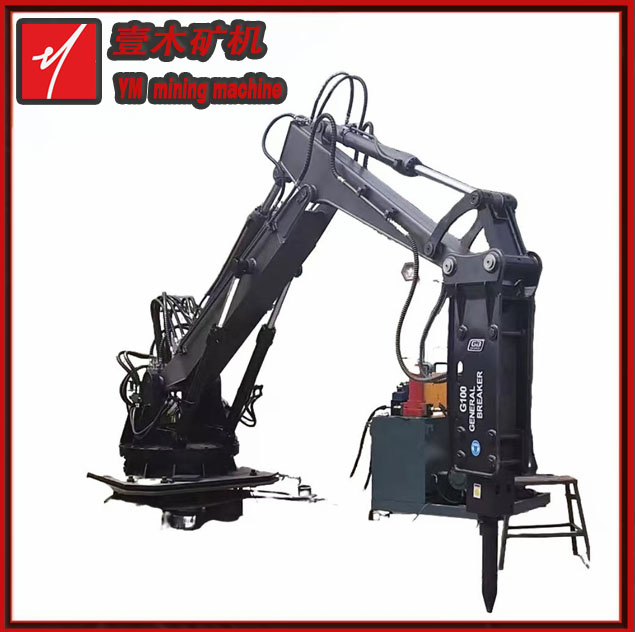

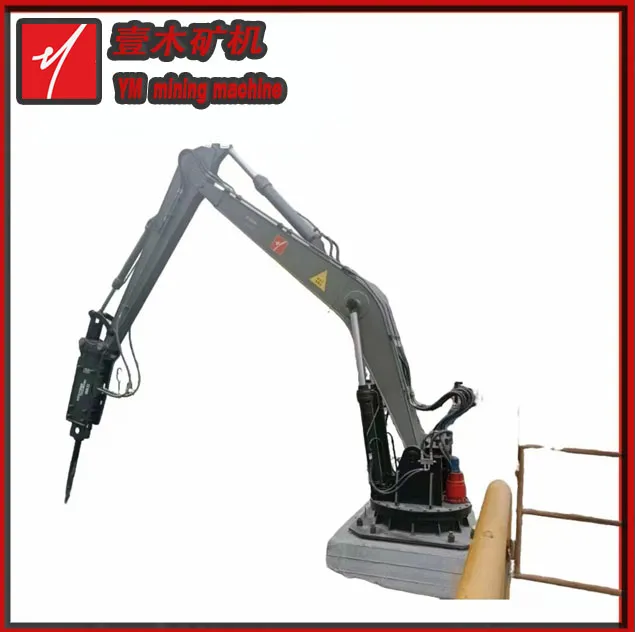

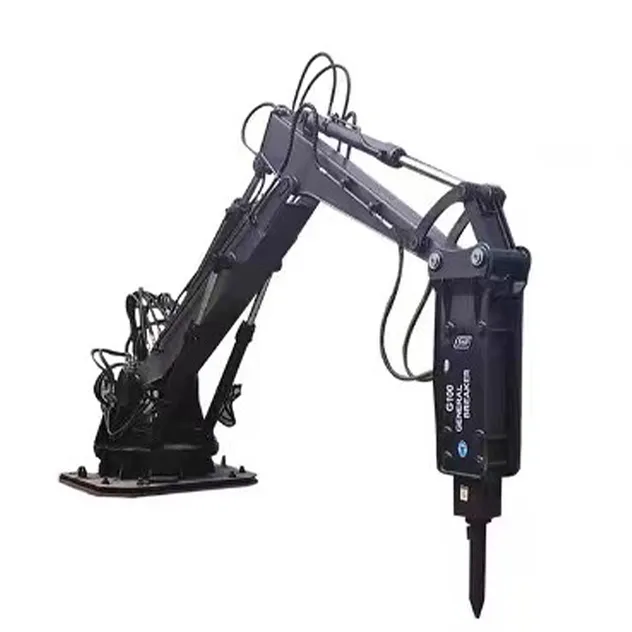

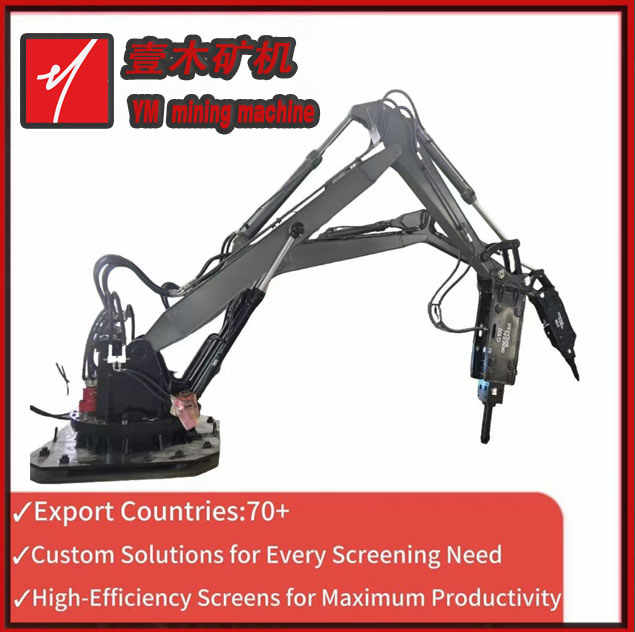

Our pedestal breaker boom system is a robust, pedestal-mounted hydraulic rock breaker designed for the most demanding mining and quarrying applications. Engineered for high efficiency and reliability, it delivers exceptional breaking force to reduce oversized rocks, clear blockages, and optimize material flow in primary crushing operations.
| Item/Model | Unit | ZX750 | ZX850 | ZX950 | ZX1000 | ZX1350 |
|---|---|---|---|---|---|---|
| Weight | Kg | 2880 | 3550 | 3750 | 3900 | 4000 |
| Power of motor | KW | 18.5 | 30 | 30 | 35 | 35 |
| Max. coverage range | M | 4.7 | 5.8 | 7 | 7.5 | 8 |
| Max.horizontal reach | M | 3.2 | 4.3 | 5.6 | 5.9 | 6.5 |
| Max.vertical reach | M | 3.3 | 4.6 | 5 | 5.3 | 6 |
| Swing | ° | 170 | 170 | 170 | 170 | 170 |
| Breaker Weight | KG | 200-500 | 400-1000 | 400-1000 | 500-1200 | 500-1200 |

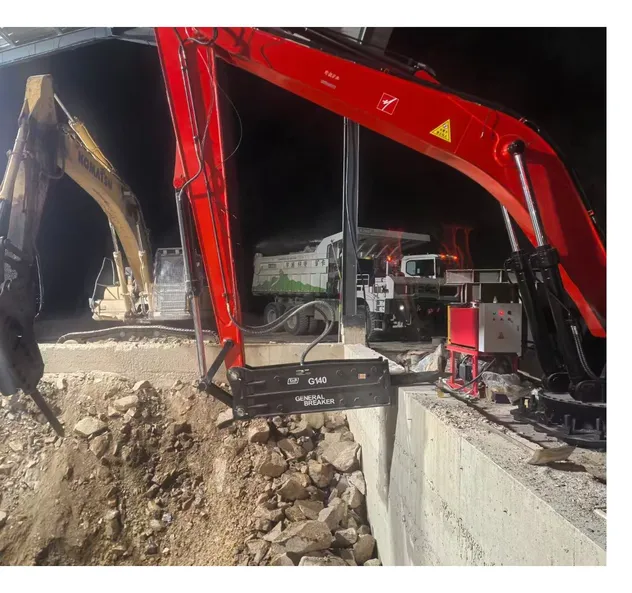

The system is designed for mining, quarrying, and construction waste processing, specifically for reducing oversized rocks and clearing blockages in crushers.
The system offers a working radius of up to 6 meters and a maximum breaking height of 8 meters, providing excellent coverage for large-scale operations.
Operators can choose between wireless remote control and wired control systems to ensure safety and precision from a comfortable distance.
Yes, it is compatible with models like Hb20g and can be customized to fit other breaker specifications as per project requirements.
It includes integrated overload protection, dual emergency stop functions, and a noise-controlled environment (≤85 dB) for maximum operator safety.
The equipment is fully certified with CE, ISO9001, and GOST-R standards, ensuring it meets international quality and safety benchmarks.
