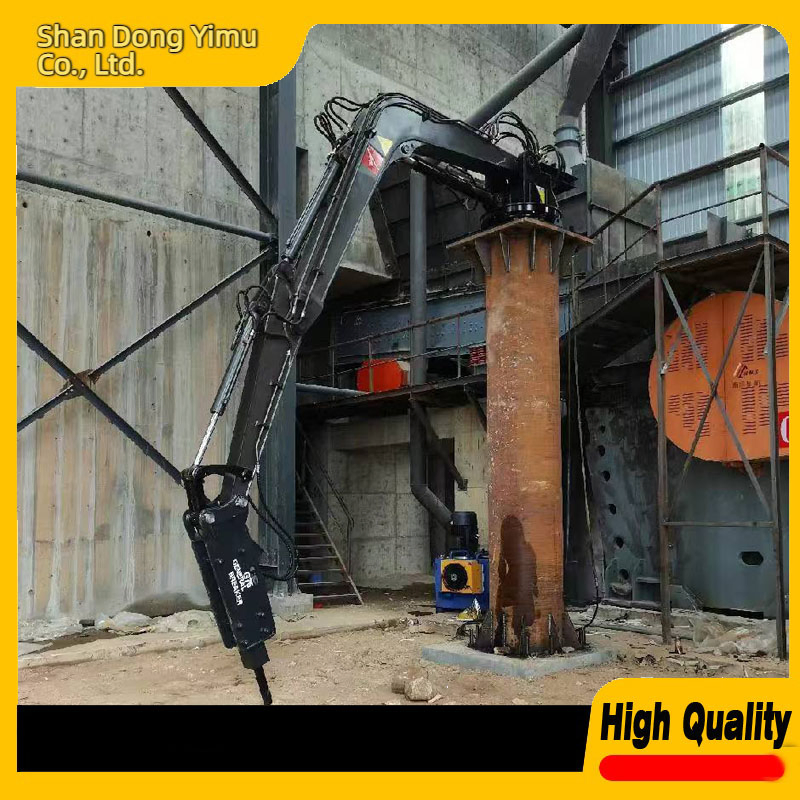

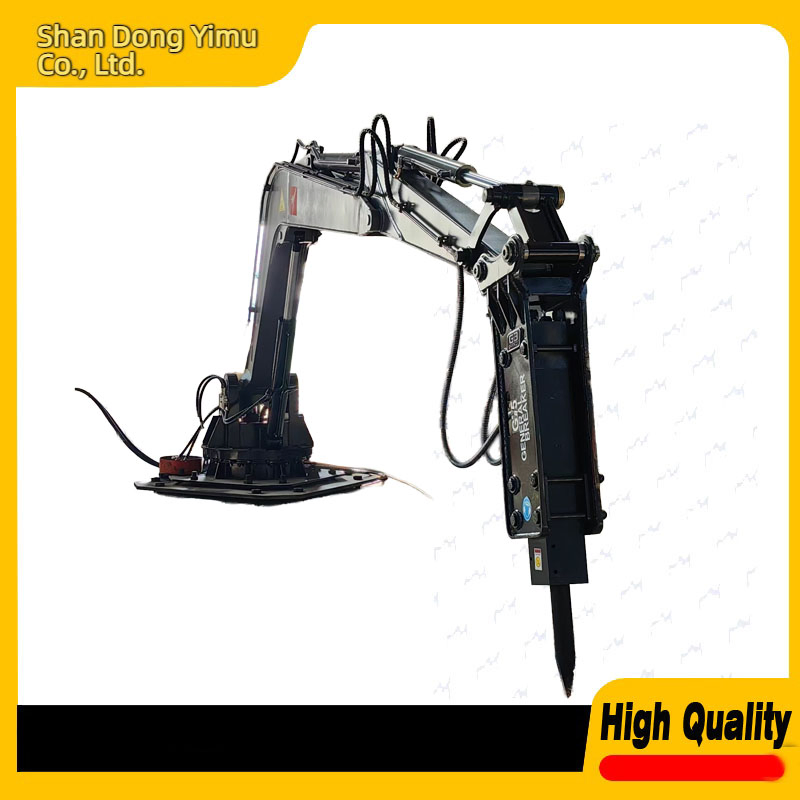

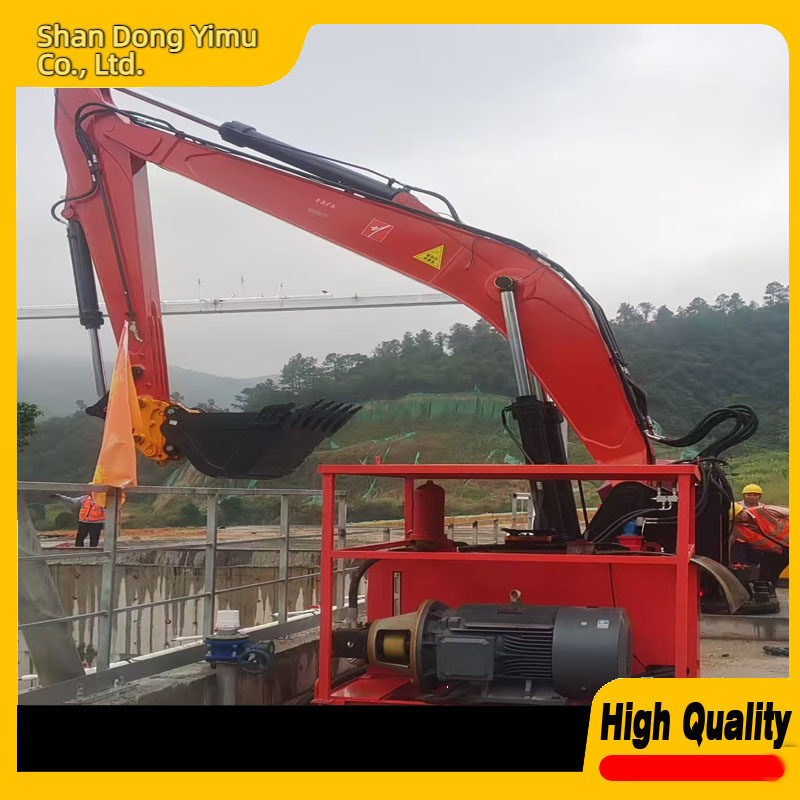

Industrial Mining Hydraulic Breaker Boom Pedestal Type

1 / 5

Industrial Mining Hydraulic Breaker Boom Pedestal Type

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Specifications

Model:

YMSW-108

Motor Power:

75kw

Application:

Mining, Quarry, Construction Waste

Materials:

Ore, Rock, Concrete

Inlet Size:

600×900mm

Working Radius:

6 M

Max Breaking Height:

8 M

Hydraulic Pressure:

16 MPa

Impact Frequency:

300-500 Blows/Min

Single Impact Energy:

1200 J

Net Weight:

5,000 Kg

Control Method:

Remote / Wired Control

Product Overview

Our pedestal breaker boom system is a robust, pedestal-mounted hydraulic rock breaker designed for the most demanding mining and quarrying applications. Engineered for high efficiency and reliability, it delivers exceptional breaking force to reduce oversized rocks, clear blockages, and optimize material flow in primary crushing operations.

⚙️ Superior Breaking Force

Equipped with a high-performance hydraulic breaker, it delivers up to 1200 J of impact energy at a frequency of 300-500 blows per minute.

🏗️ Extended Reach

Heavy-duty boom arm offers a working radius of up to 6 meters and a maximum breaking height of 8 meters with 360° continuous slewing.

Technical Highlights

The boom structure is fabricated from high-strength Q345B alloy steel, ensuring structural integrity under heavy loads. Advanced hydraulic systems feature high-quality valve blocks and Parker seals for leak-free, consistent performance.

Model Comparison Specifications

Item/Model	Unit	ZX750	ZX850	ZX950	ZX1000	ZX1350
Weight	Kg	2880	3550	3750	3900	4000
Motor Power	KW	18.5	30	30	35	35
Max. Coverage	M	4.7	5.8	7	7.5	8
Horizontal Reach	M	3.2	4.3	5.6	5.9	6.5
Vertical Reach	M	3.3	4.6	5	5.3	6
Swing	°	170	170	170	170	170
Breaker Weight	KG	200-500	400-1000	400-1000	500-1200	500-1200

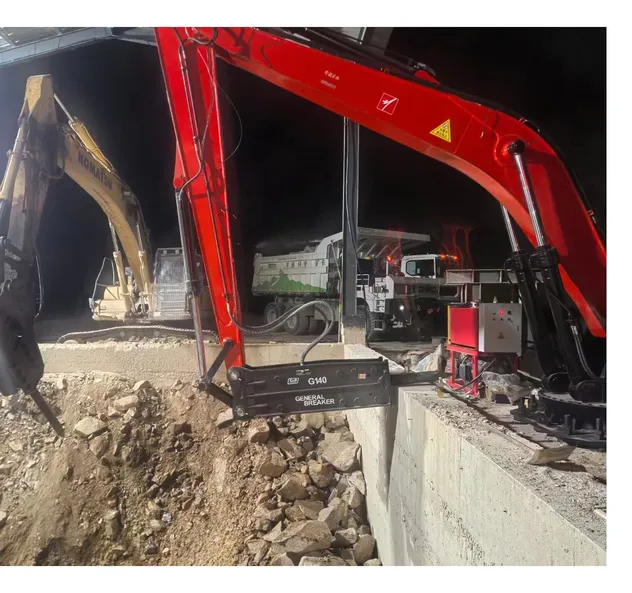

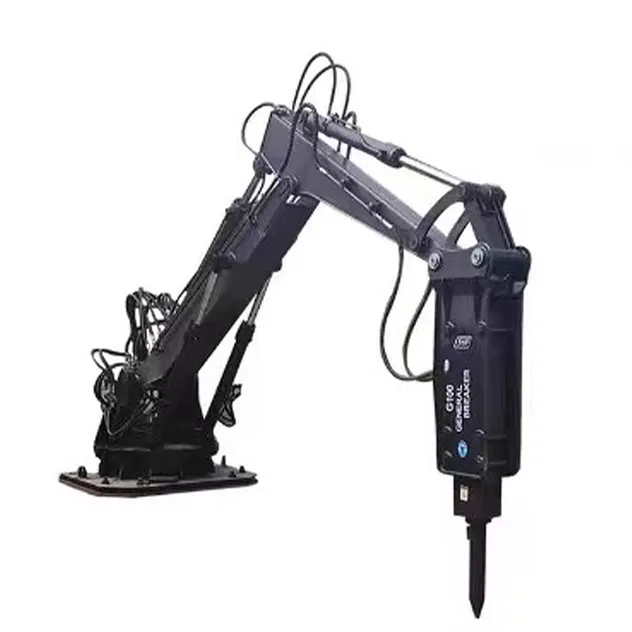

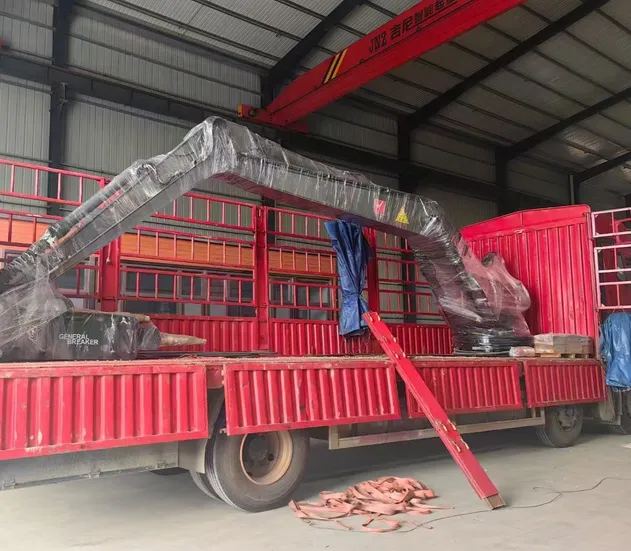

Packaging & Real Shot Gallery

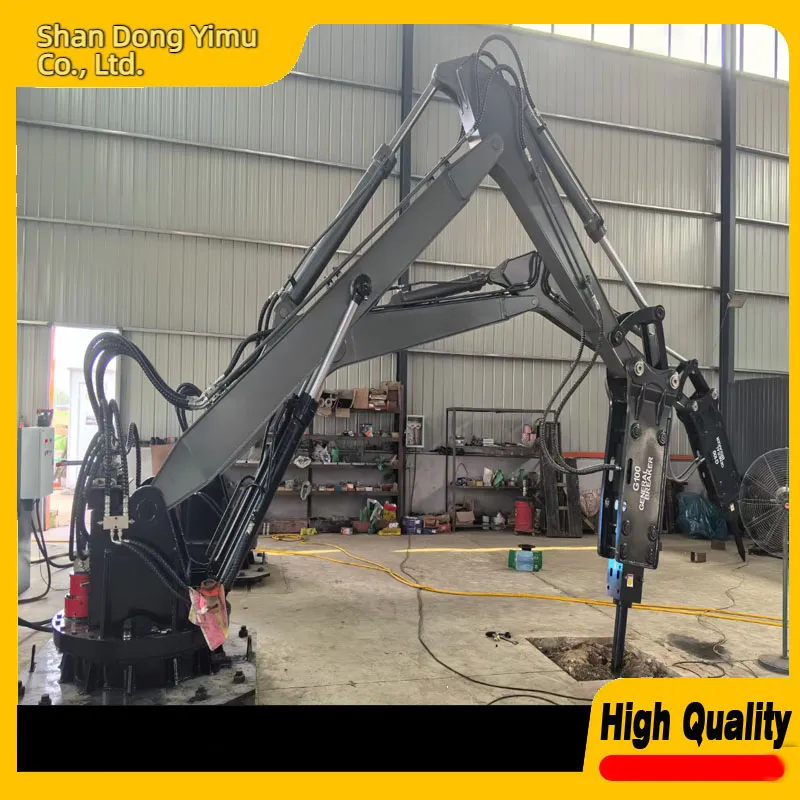

Manufacturing Excellence

Frequently Asked Questions

What are the primary applications for this breaker boom system?

It is specifically designed for mining, quarrying, and construction waste processing, ideal for reducing oversized rocks and clearing blockages in crushing operations.

What is the maximum reach of the boom?

The system offers a working radius of up to 6 meters and a maximum breaking height of up to 8 meters, depending on the specific model configuration.

How is the equipment controlled?

Operators can choose between remote control and wired control options, ensuring safety and precision during rock-breaking tasks.

What materials is the boom constructed from?

The structure is made from high-strength Q345B alloy steel, with pins and bushings crafted from hardened 40Cr steel for maximum durability.

What impact force can the hydraulic breaker deliver?

The system delivers a single impact energy of 1200 J with an impact frequency ranging from 300 to 500 blows per minute.

What certifications do these systems hold?

Our products are fully compliant with international standards and hold CE, ISO9001, and GOST-R certifications.
