Mining Hydraulic Breaker Boom System Pedestal Type

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Information

Model NO.

ZX-460

Motor Power

75kw

Application

Mining, Quarry, Construction Waste

Materials

Ore, Rock, Concrete

Inlet Size

600×900mm

Max Breaking Force

1200 J

Working Radius

6 M

Max Breaking Height

8 M

System Pressure

16 MPa

Control Method

Remote / Wired Control

Net Weight

5,000 Kg

Certification

CE, ISO9001

Product Description

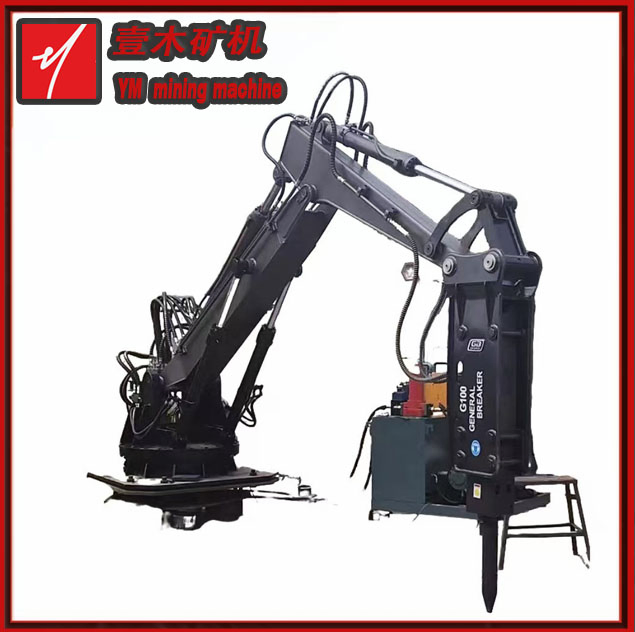

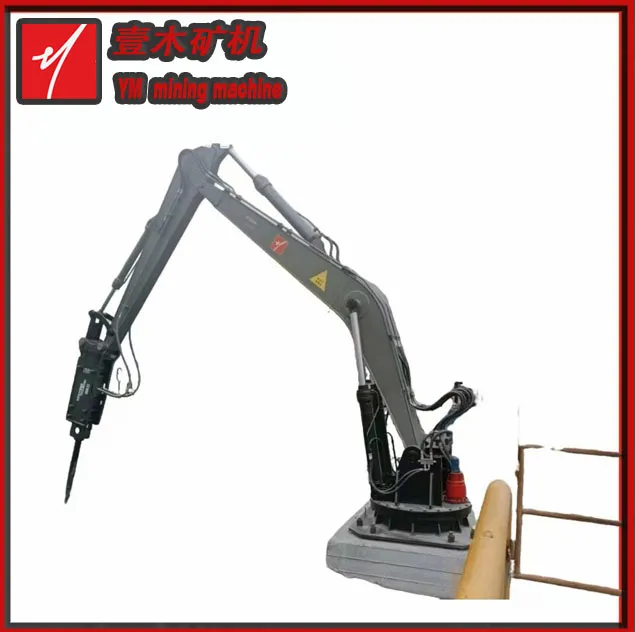

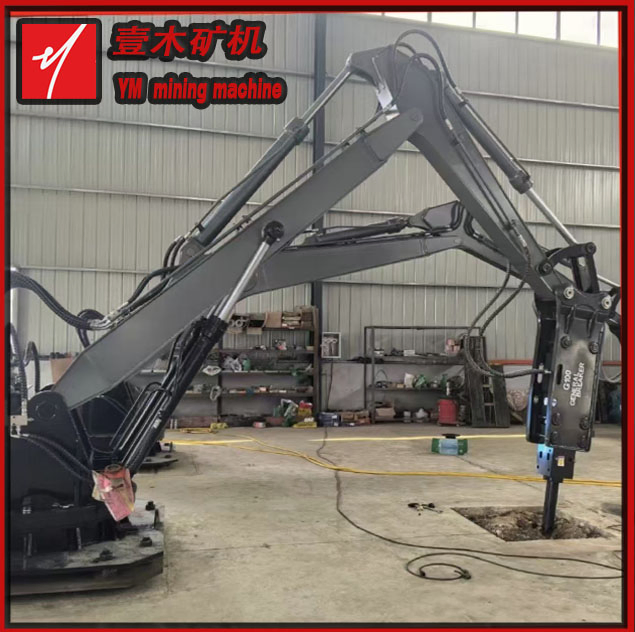

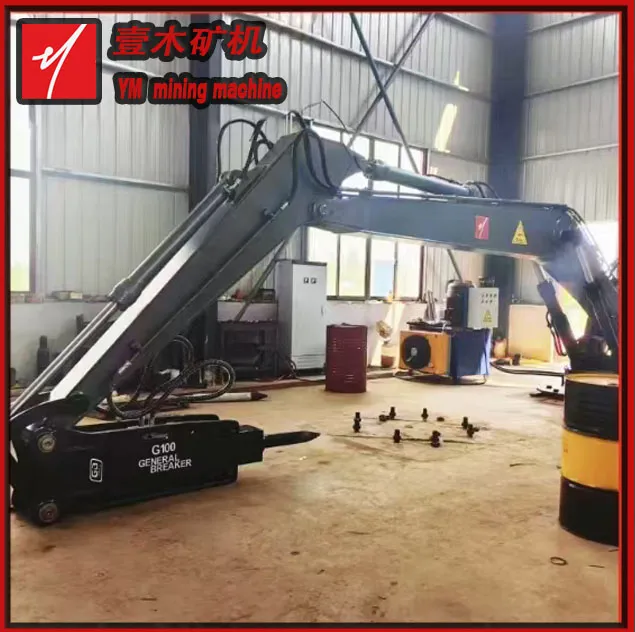

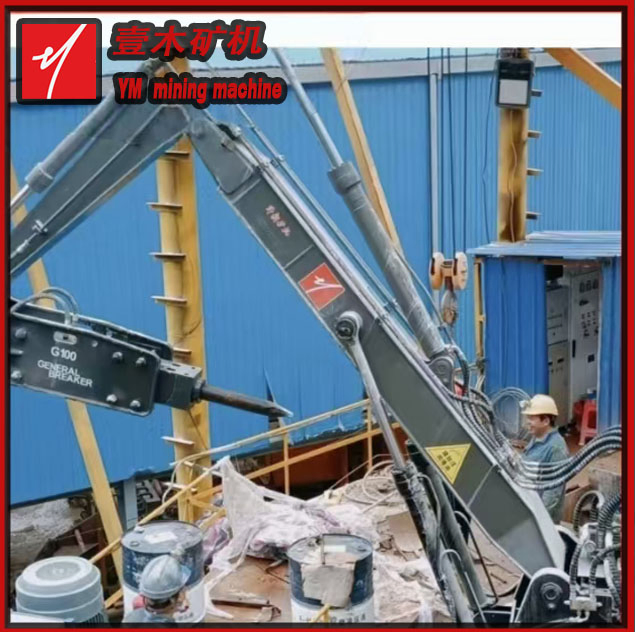

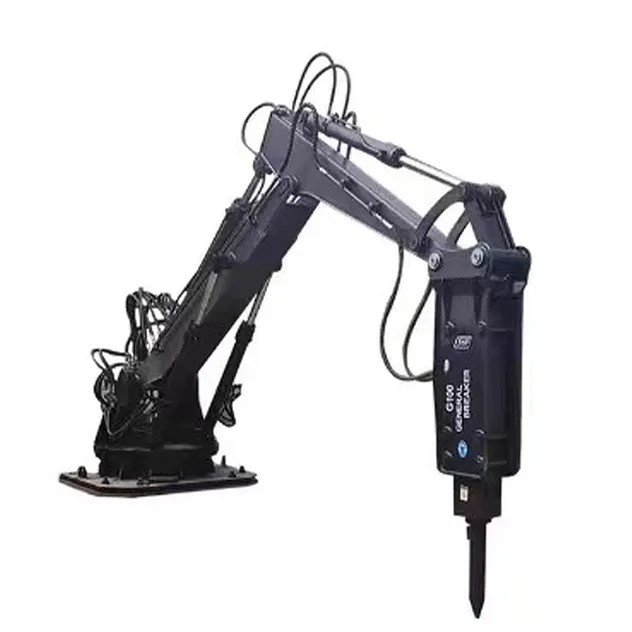

Pedestal Breaker Boom System – Heavy-Duty Mining Rock Breaking Solution

Our pedestal breaker boom system is a robust, pedestal-mounted hydraulic rock breaker designed for the most demanding mining and quarrying applications. Engineered for high efficiency and reliability, it delivers exceptional breaking force to reduce oversized rocks, clear blockages, and optimize material flow in primary crushing operations.

Superior Breaking Force

Equipped with a high-performance hydraulic breaker, it delivers up to 1200 J of impact energy at a frequency of 300-500 blows per minute, ensuring efficient fragmentation of hard rock and ore.

Extended Reach & Flexibility

The heavy-duty boom arm offers a working radius of up to 6 meters and a maximum breaking height of 8 meters, with a 360° continuous slewing capability.

Durable Construction

Fabricated from high-strength Q345B alloy steel. All critical components, including pins and bushings, are made from hardened 40Cr steel for extended service life.

Technical Specifications

Item/Model	Unit	ZX750	ZX850	ZX950	ZX1000	ZX1350
Weight	Kg	2880	3550	3750	3900	4000
Power of motor	KW	18.5	30	30	35	35
Max. coverage range	M	4.7	5.8	7	7.5	8
Max. horizontal reach	M	3.2	4.3	5.6	5.9	6.5
Max. vertical reach	M	3.3	4.6	5	5.3	6
Swing	°	170	170	170	170	170
Breaker Weight	KG	200-500	400-1000	400-1000	500-1200	500-1200

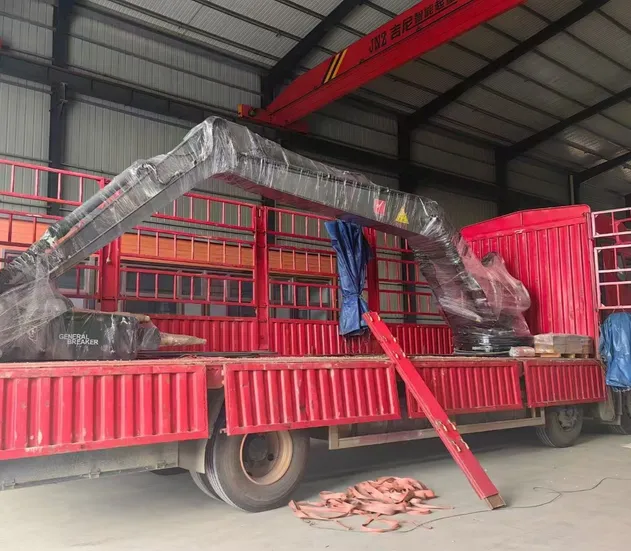

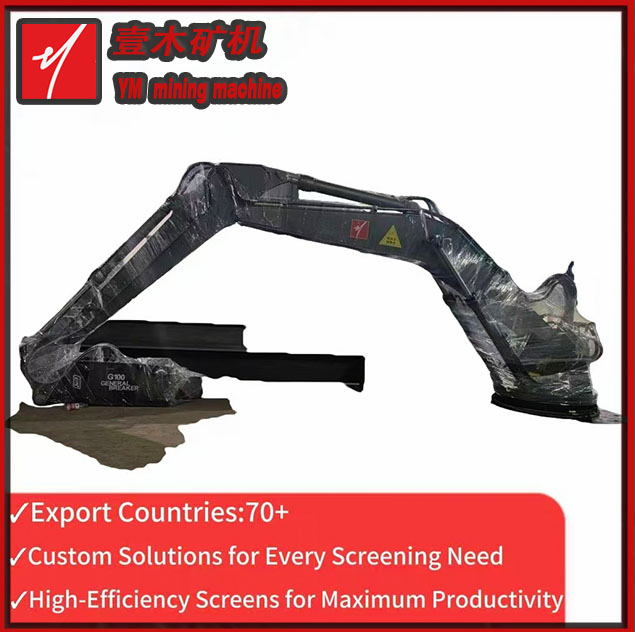

Packing & Delivery

Package Size

470.00cm * 250.00cm * 250.00cm

Gross Weight

3500.00kg

Transport Package

Wooden Case / Container

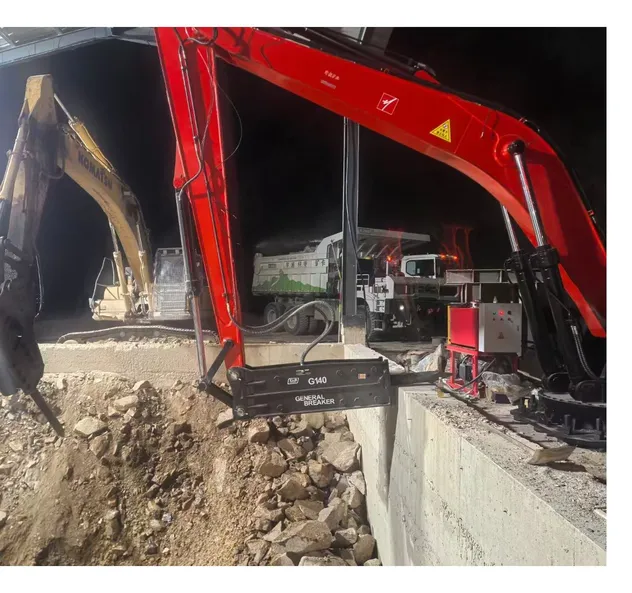

Application Gallery

Frequently Asked Questions

What are the primary applications of this breaker boom system?

The system is primarily used in mining, quarrying, and construction waste processing to reduce oversized rocks and clear blockages in primary crushing operations.

What materials is the boom structure made of?

The boom is fabricated from high-strength Q345B alloy steel, with pins and bushings made from hardened 40Cr steel to ensure maximum durability.

How is the system controlled?

The system offers flexible operation through both remote control and wired control options, allowing operators to work from a safe distance.

What is the maximum reach and breaking force?

The system features a working radius of 6 meters, a maximum breaking height of 8 meters, and delivers an impact energy of 1200 J.

Are customizable configurations available?

Yes, we offer tailored solutions including different boom lengths, breaker models, and optional features like dust removal systems and soundproof covers.

What certifications does the product have?

The Pedestal Breaker Boom System is fully certified with CE and ISO9001 standards, ensuring compliance with international quality and safety regulations.
