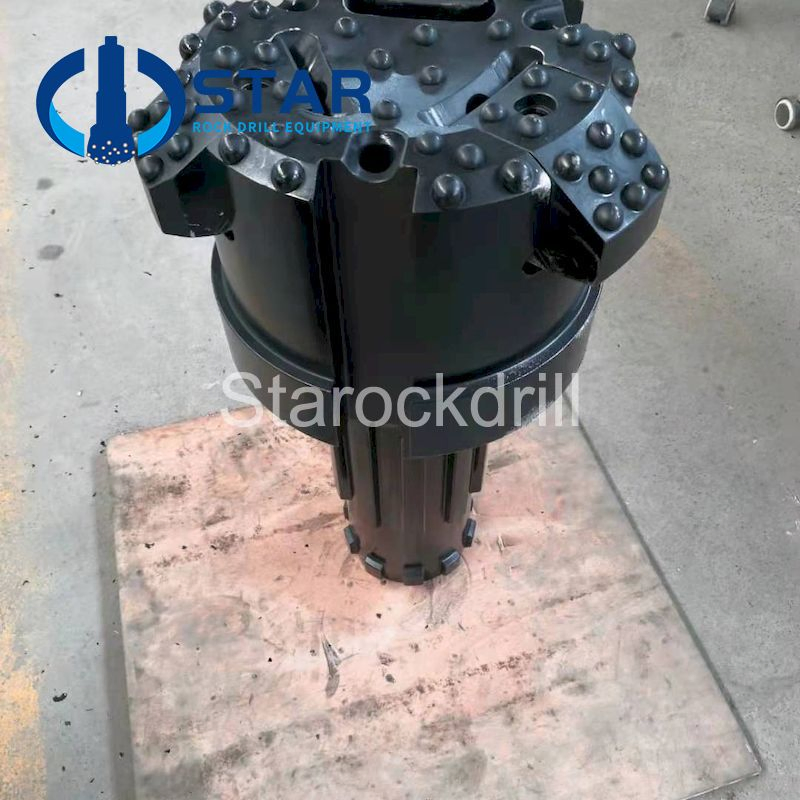

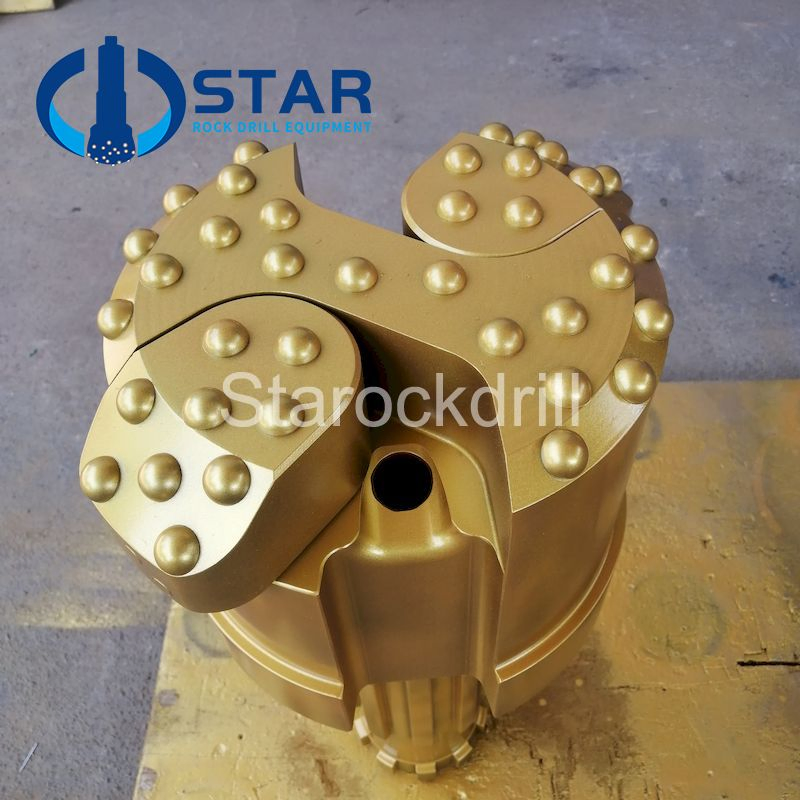

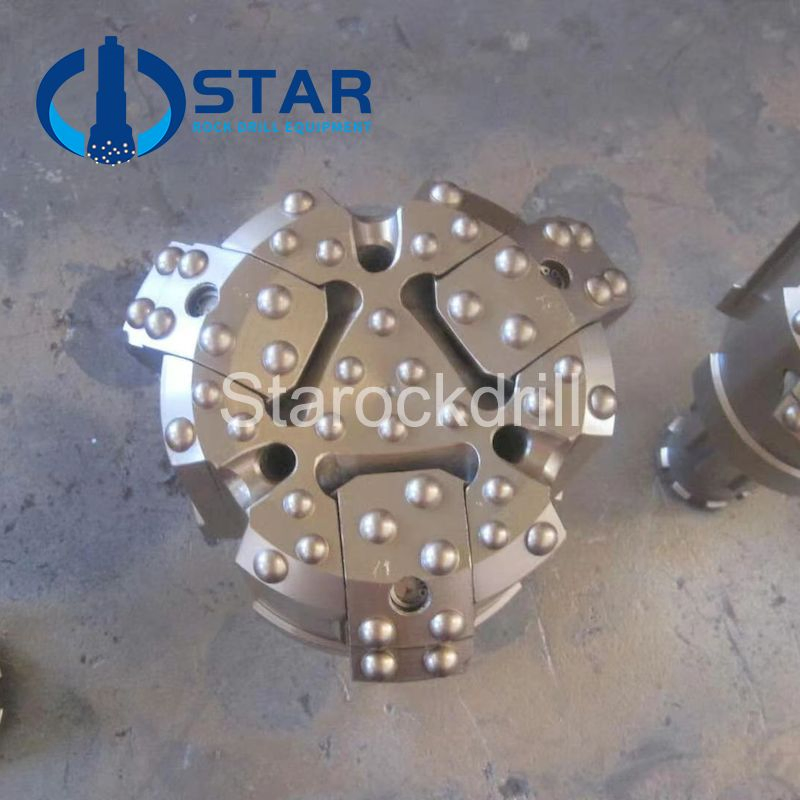

Slide Concentric Block Casing System Super Drilling System Matched DTH Drill for Geothermal Wells and Small-to-Medium-Sized Grouting Holes

Customization:	Available
After-sales Service:	One Year
Warranty:	One Year

📋 Basic Information

Model NO.

BOD183

Manufacturing Process

Forging

Material

Alloy Steel

Hammer Type

5’’-24’’ Hammer

Application

Pile Drilling, Water Well Drilling

Transport Package

Wooden Case or Carton

Specification

168mm, 219mm, 273mm, 323mm, 406mm

Production Capacity

5000PCS/Month

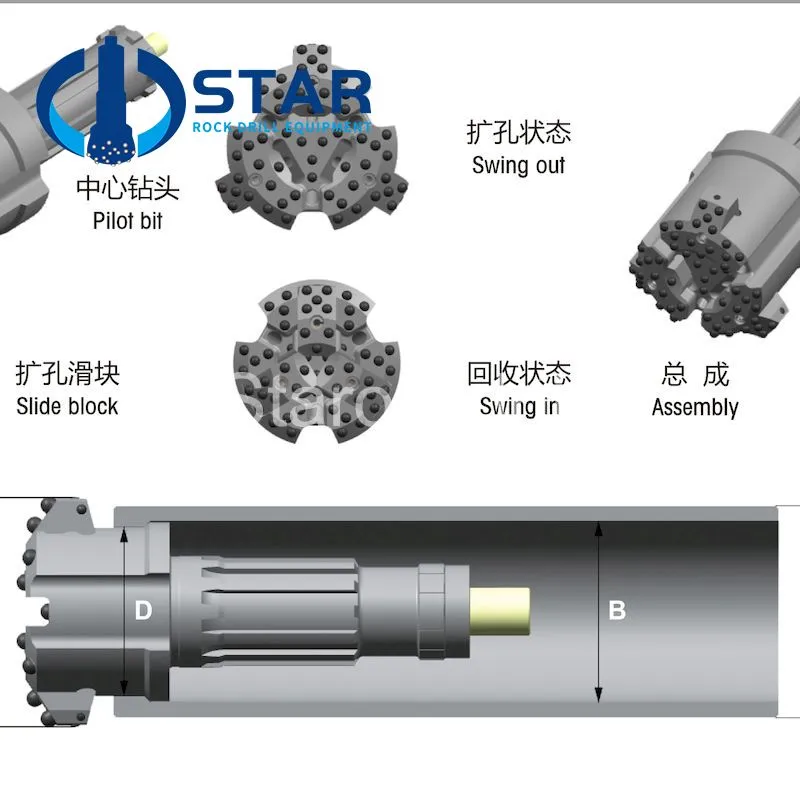

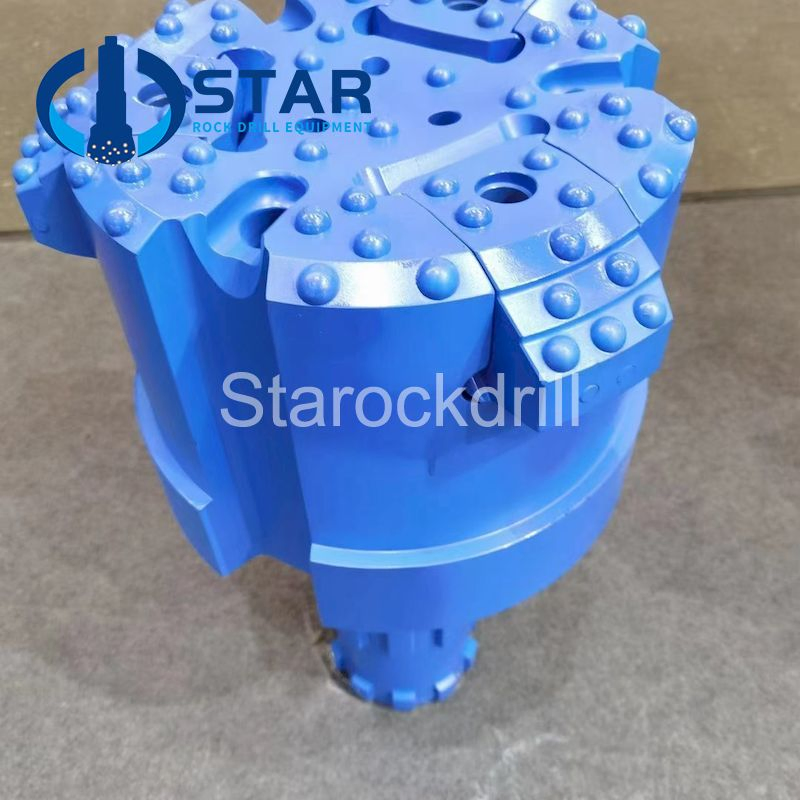

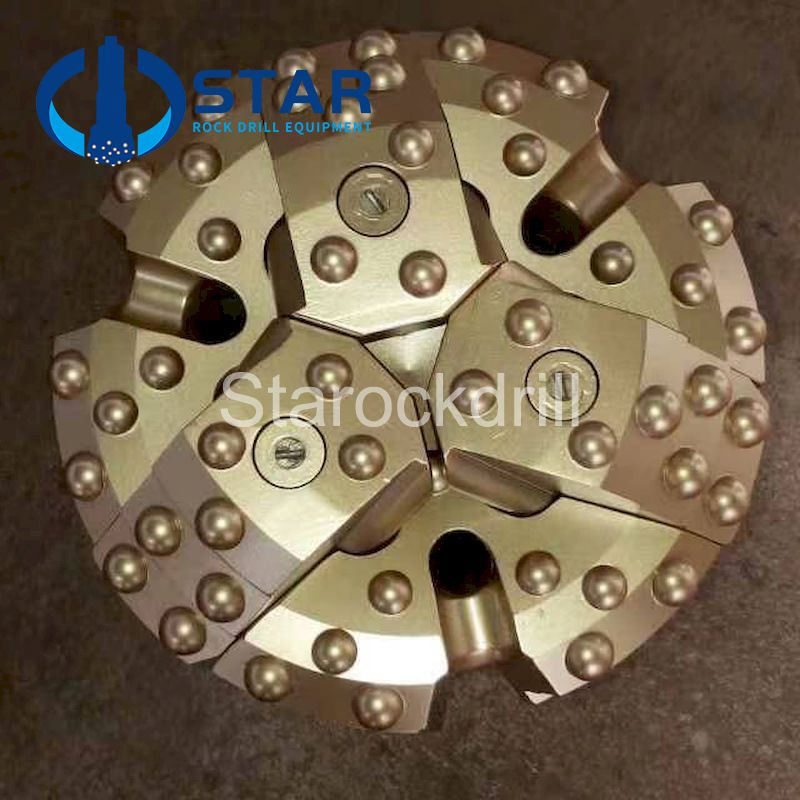

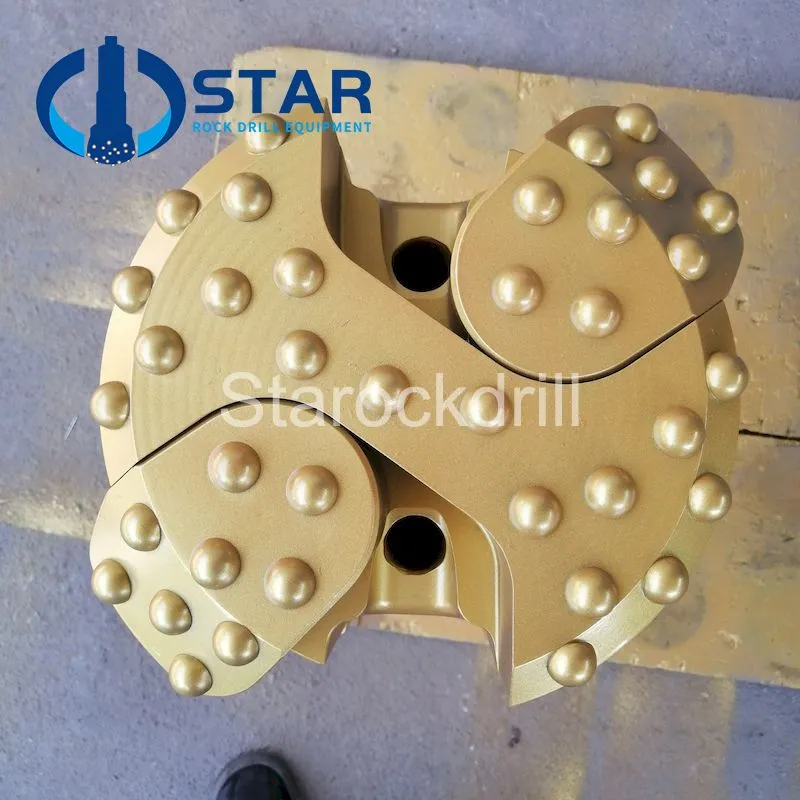

Concentric/Symmetric Slide Block Casing Drilling Assembly

Our concentric casing system with blocks is specifically designed for drilling in soft and unstable formations, making it ideal for applications such as geothermal wells, water wells, small-to-medium-sized grouting holes, and micro-piling projects.

✔ Key Features

01
Tailored for Soft Formations: Designed to excel in soft formations, including those with high mud content and abundant floating rocks.
02
High-Performance Materials: Manufactured using specialized materials like 25Si2MnCrNi2MoV. Blocks undergo surface treatment to achieve a hardness of HRC42-45, extending lifespan.
03
Simplified Operation: Save time on tool replacement and boost overall work efficiency with optimized mechanical designs.

📖 Product Introduction

To ensure exceptional durability and wear resistance, we subject our blocks to deep heat treatment processing. Additionally, our precision-engineered installation holes, created using advanced slow wire cutting techniques, guarantee seamless and hassle-free block usage.

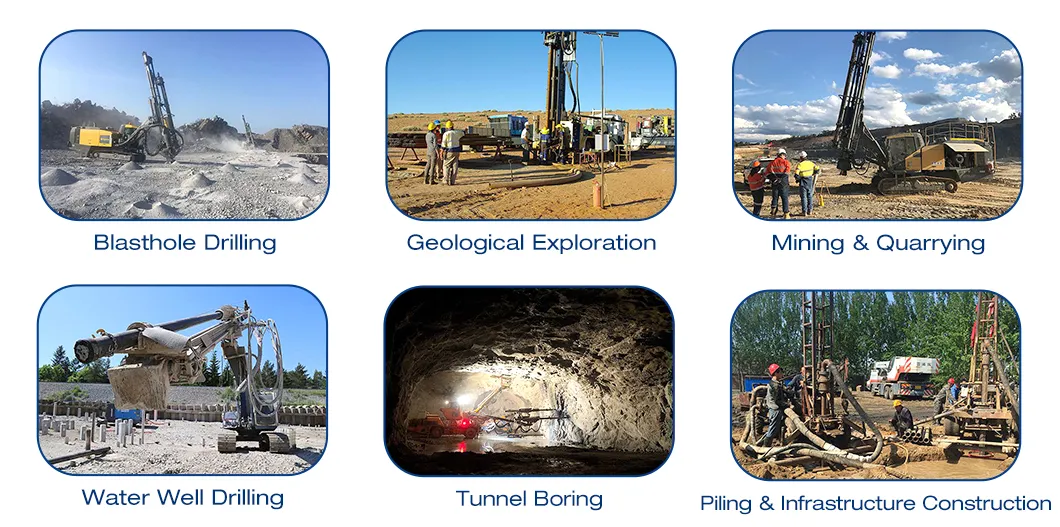

Application scenarios of drilling system

Technical Specifications

(Custom configurations available upon request.)

Model	Casing OD (MM)	Casing ID (MM)	Reamer (MM)	Blocks Qty	Shoe ID (MM)	Hammer Size	Drill Rod (MM)
BOD168	168	156	185	2	142	5 INCH	76/89
BOD178	178	158	195	2	148	5 INCH	76/89
BOD183	183	163	200	2	152	5 INCH	76/89
BOD194	194	180	209	2	167	6 INCH	89/114
BOD219	219	205	237	3	192	6 INCH	89/114
BOD245	245	225	264	3	210	8 INCH	114
BOD273	273	259	308	3	242	8 INCH	114
BOD325	325	305	358	3	282	10 INCH	114
BOD406	406	382	426	4	360	12 INCH	127

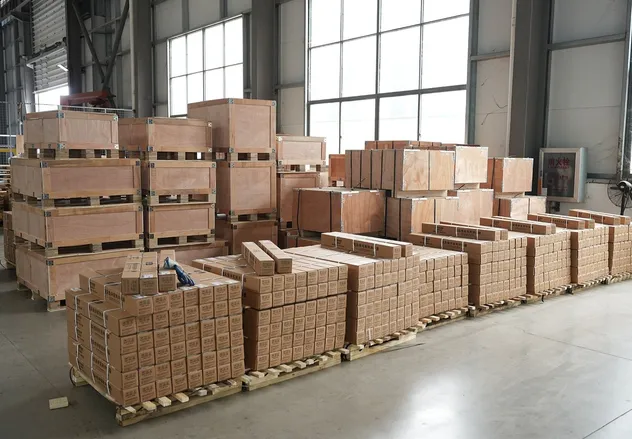

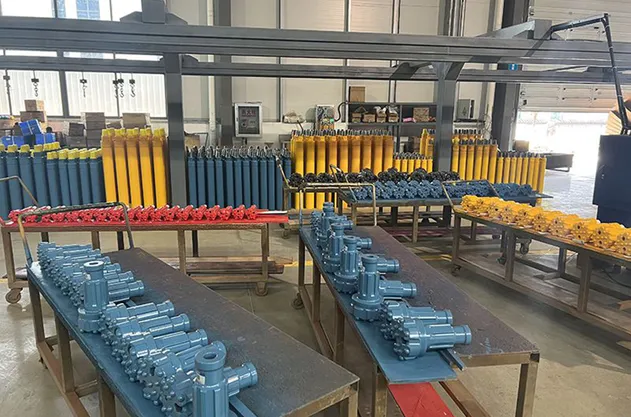

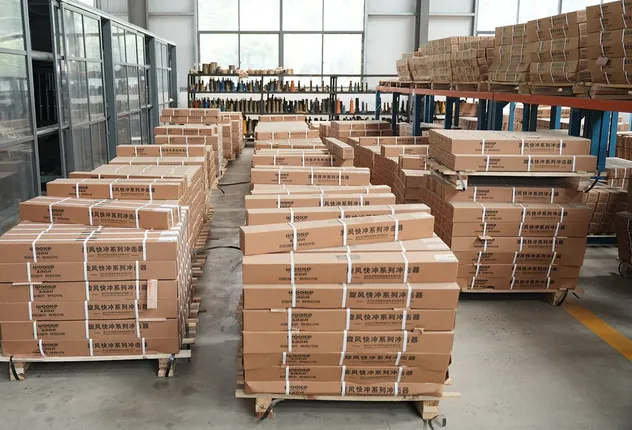

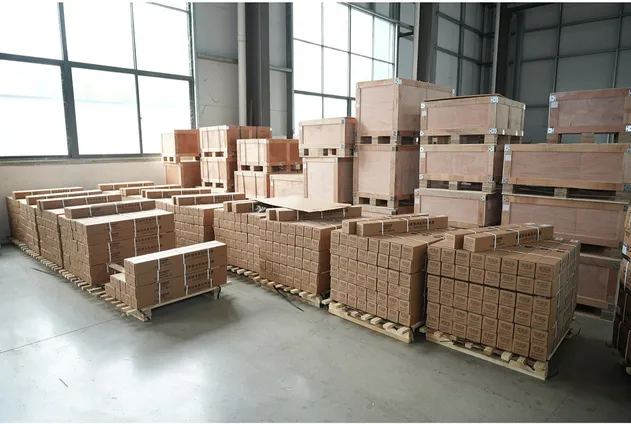

📦 Packaging & Shipping

🛠 After Sales Service

Standard Warranty: 12 months or 2,000 operating hours (whichever comes first).
Extended Warranty: Optional coverage up to 36 months.
Global Support: 24/7 technical assistance and spare parts supply.
Training: On-site or remote operation/maintenance training.

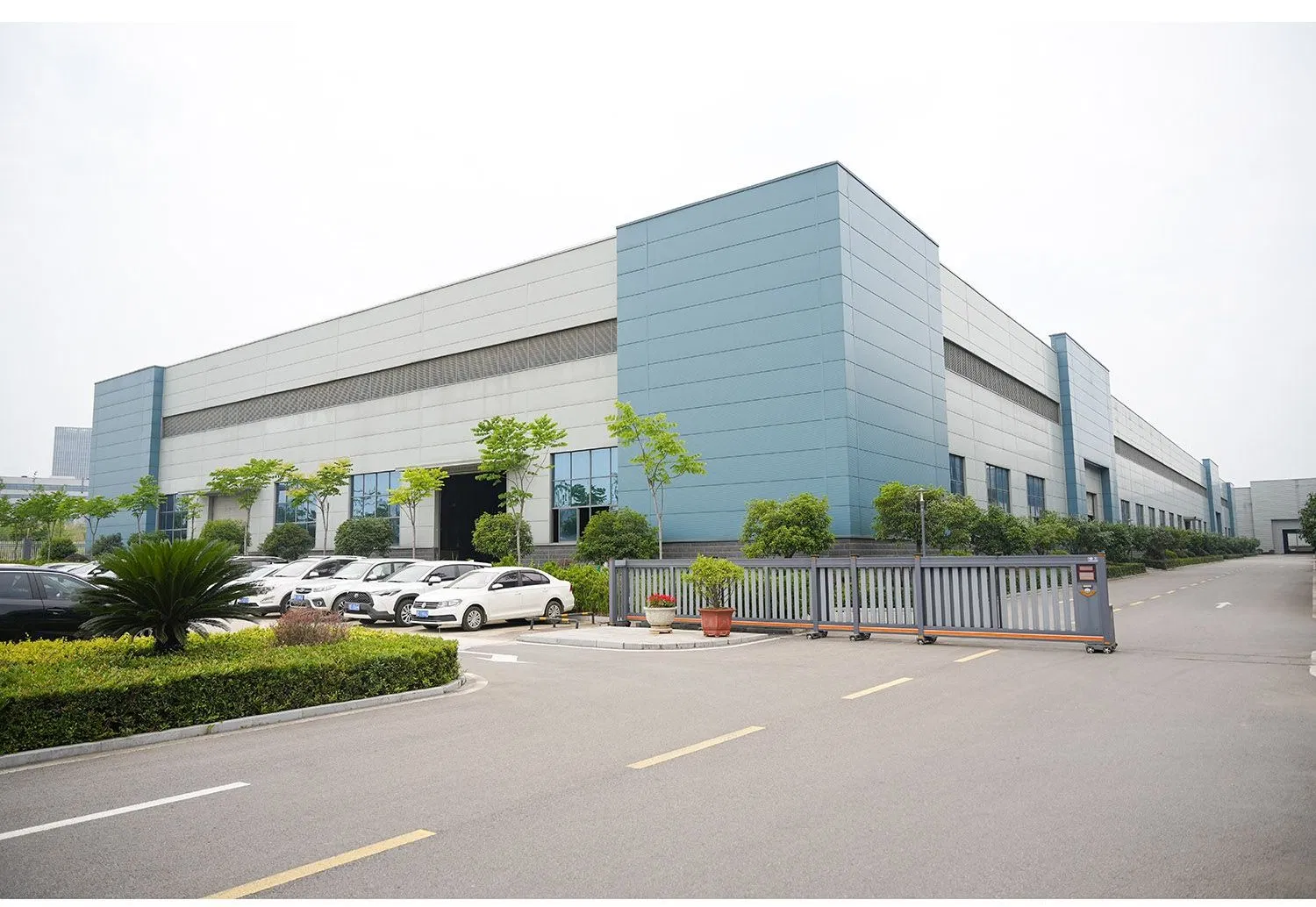

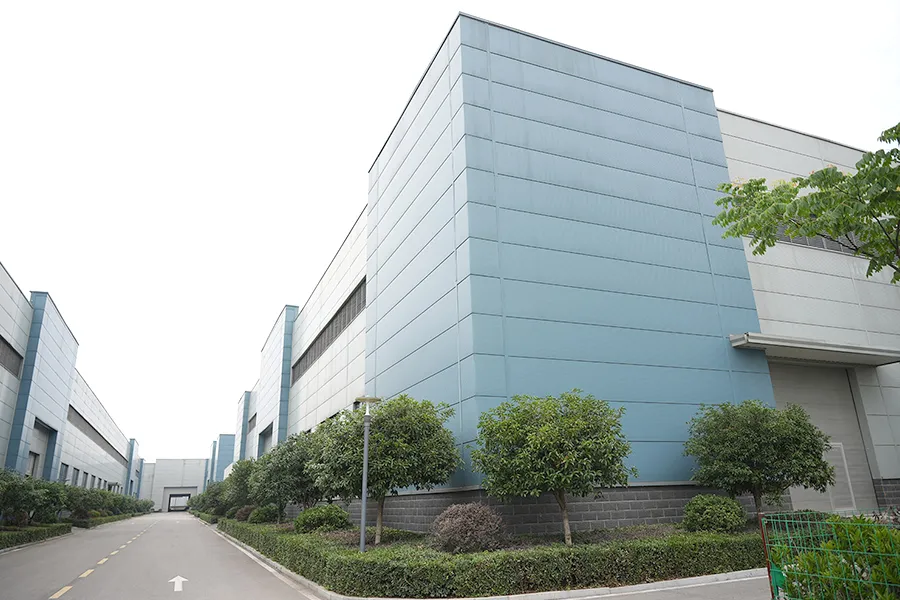

🏭 Manufacturer Profile

Specialist manufacturer of rock drilling tools since 2008. We are committed to the research, development, and production of rock drilling tools, providing high-quality, efficient, and reliable solutions to enhance productivity and reduce costs.

Certifications

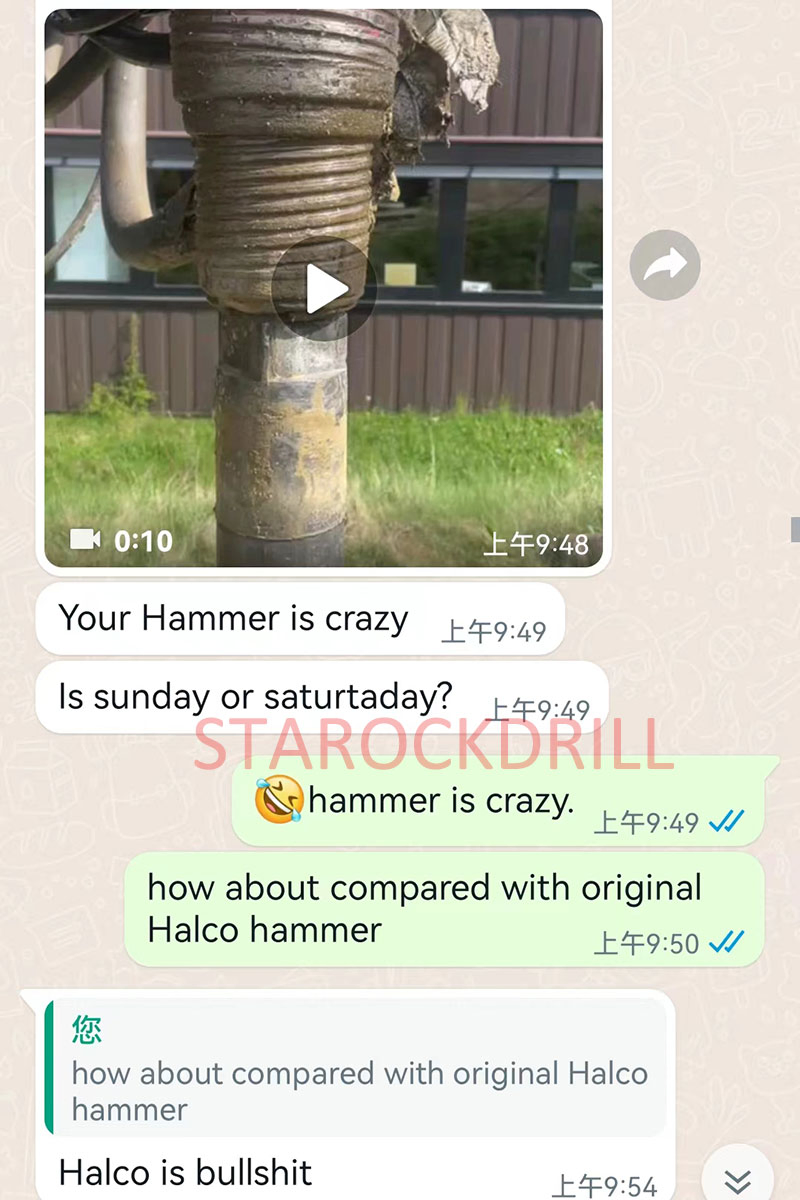

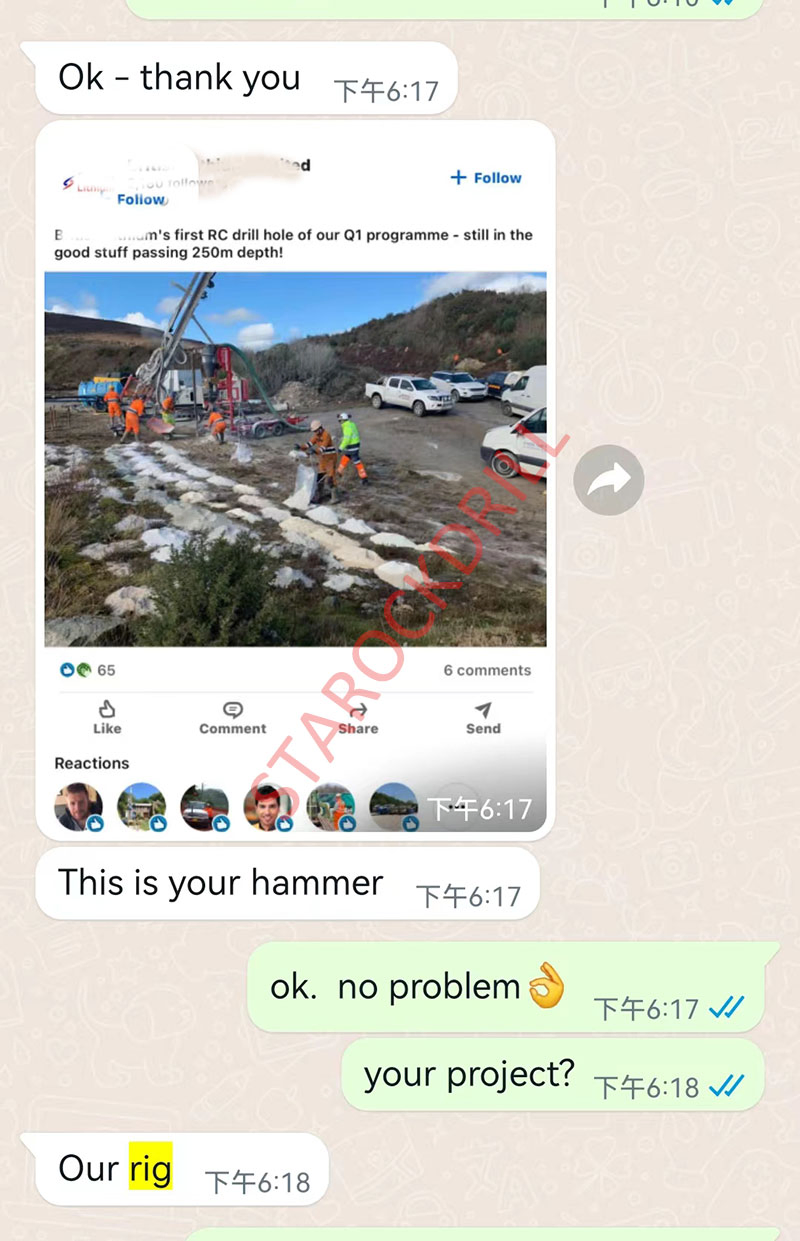

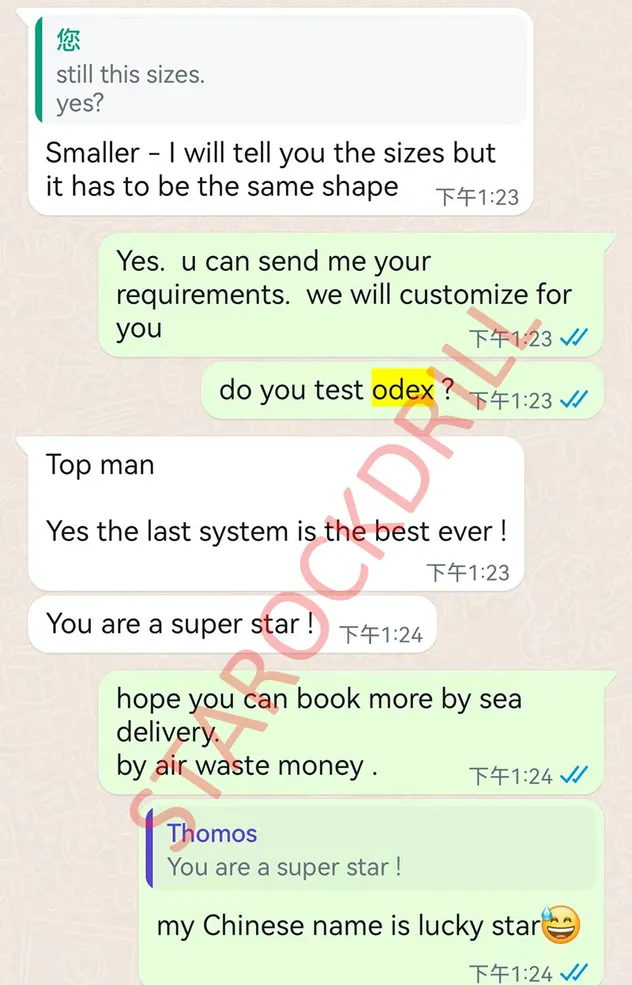

📍 Project Cases

Frequently Asked Questions

❓ What’s the lead time for orders?

Standard models typically ship within 15–30 days. For customized units or large volume orders, the lead time is approximately 30–45 days.

❓ Do you provide after-sales service overseas?

Yes, we provide global technical support 24/7 and have partnered service centers in key regions to assist with maintenance and spare parts.

❓ Can I request a customized bucket or casing size?

Absolutely. We offer OEM/ODM services and can tailor designs and attachments to meet your specific project requirements.

❓ What documents do you provide for export?

We provide a full export package including the Commercial Invoice, Packing List, Bill of Lading, Certificate of Conformity (COC), and other required regional certifications.

❓ How do I place an order?

Please contact our sales team via the inquiry form or email for a formal quote. Once terms are agreed upon, you can confirm the order with a Purchase Order (PO).

❓ What materials are used for the casing blocks?

We use high-grade 25Si2MnCrNi2MoV alloy steel with surface hardening (HRC42-45) to ensure maximum durability in abrasive drilling conditions.
