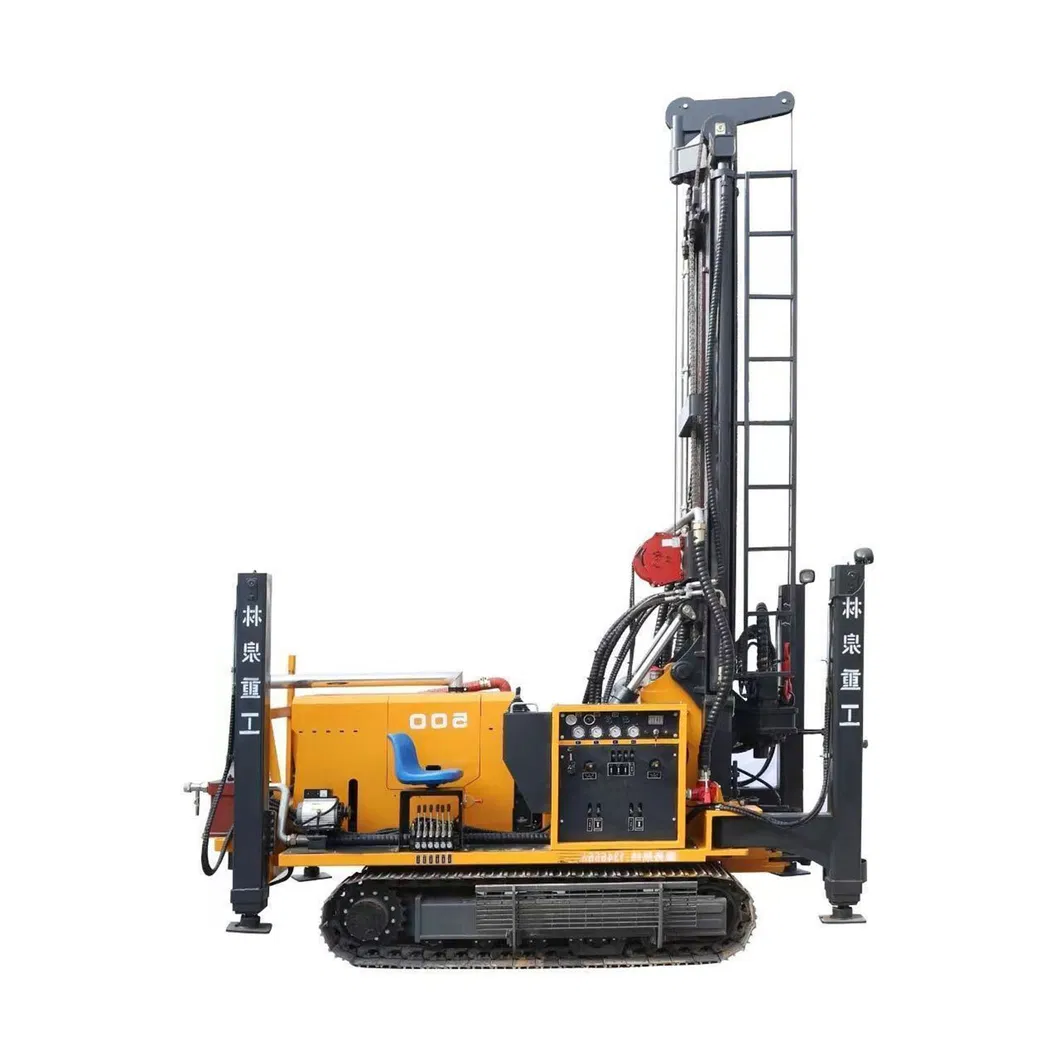

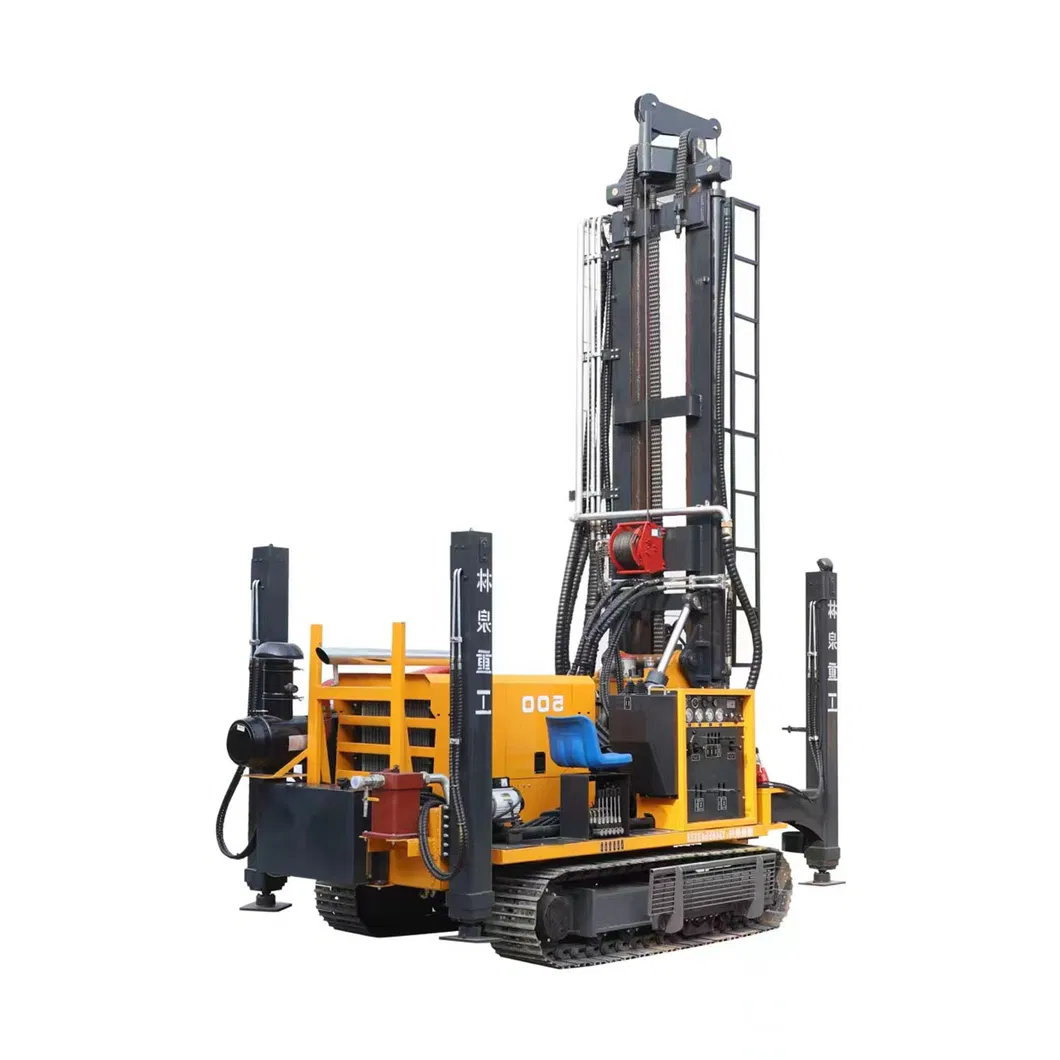

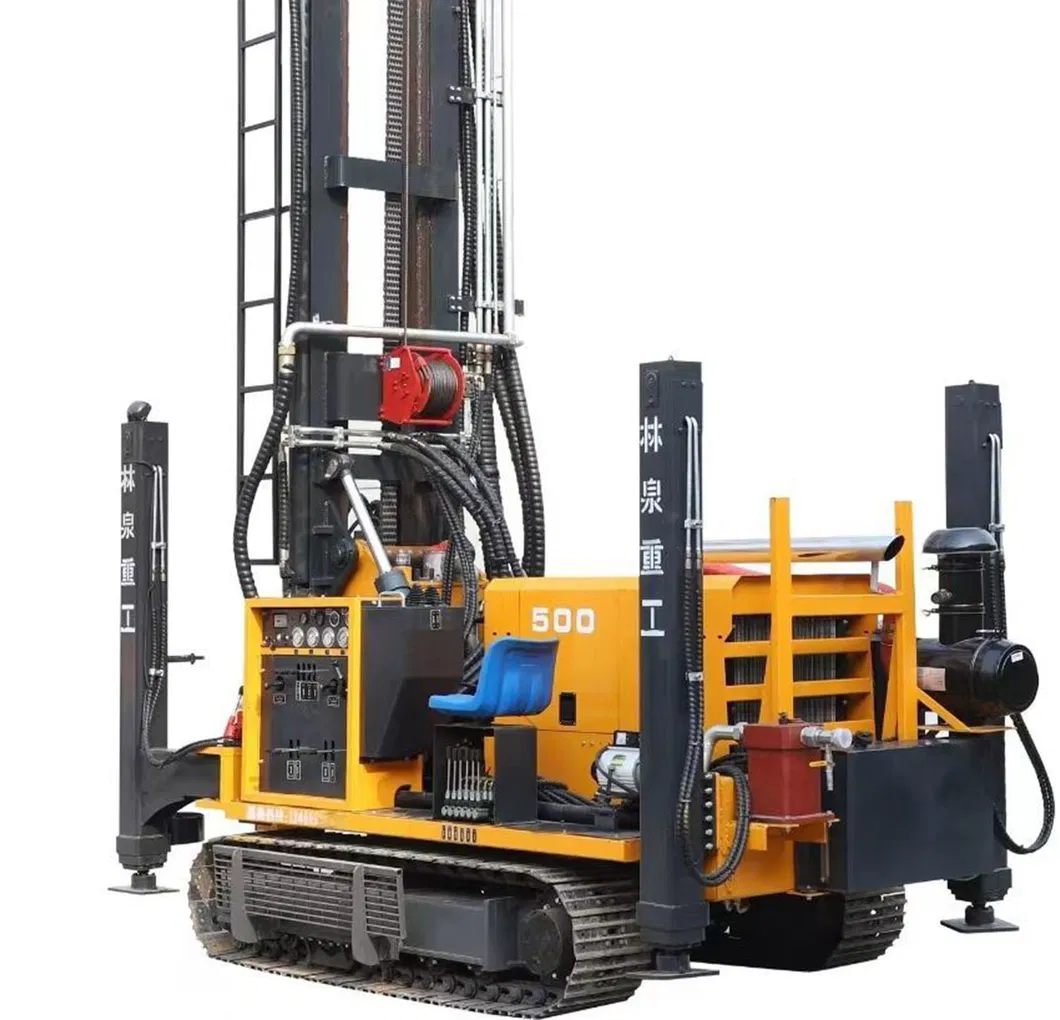

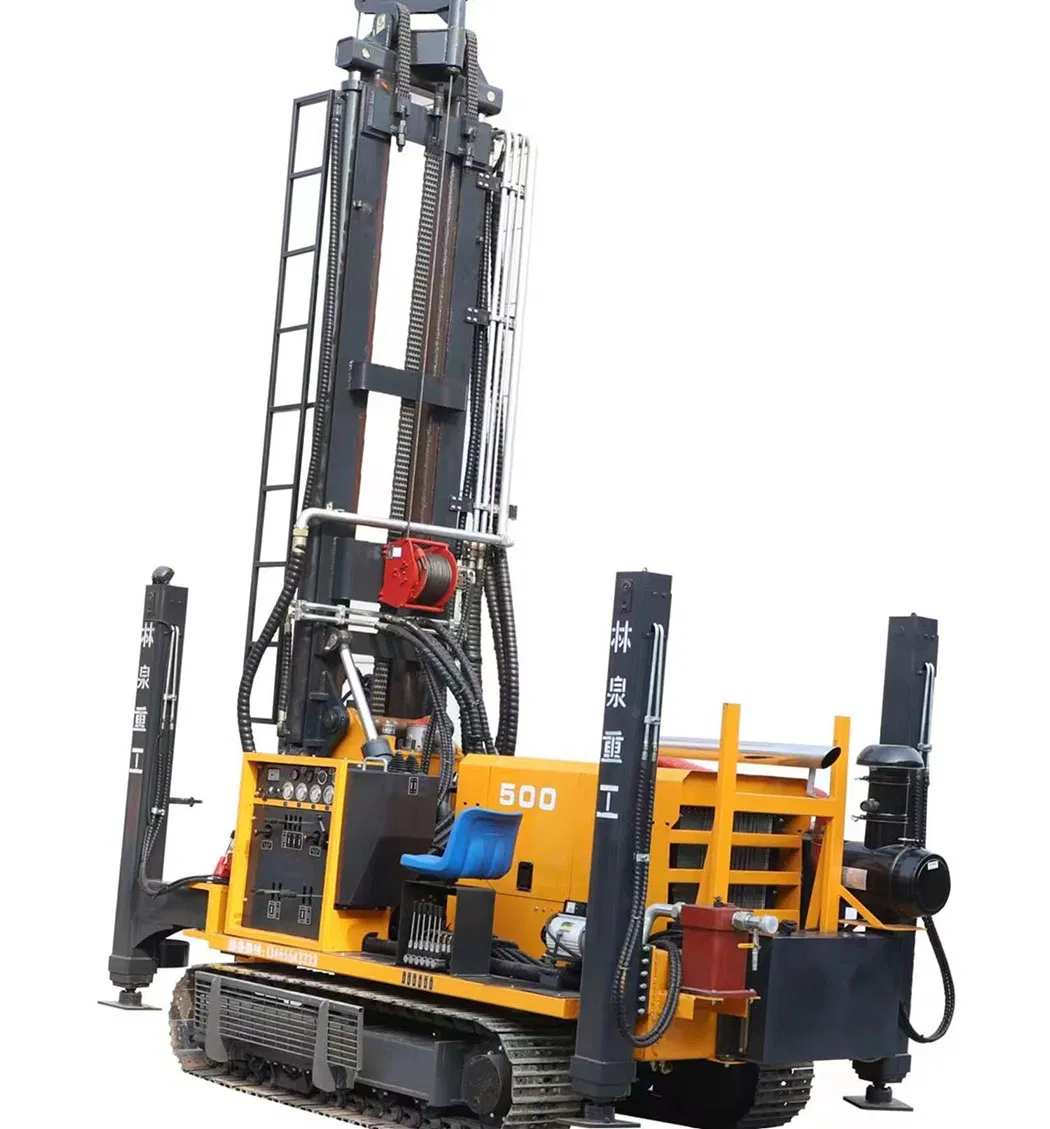

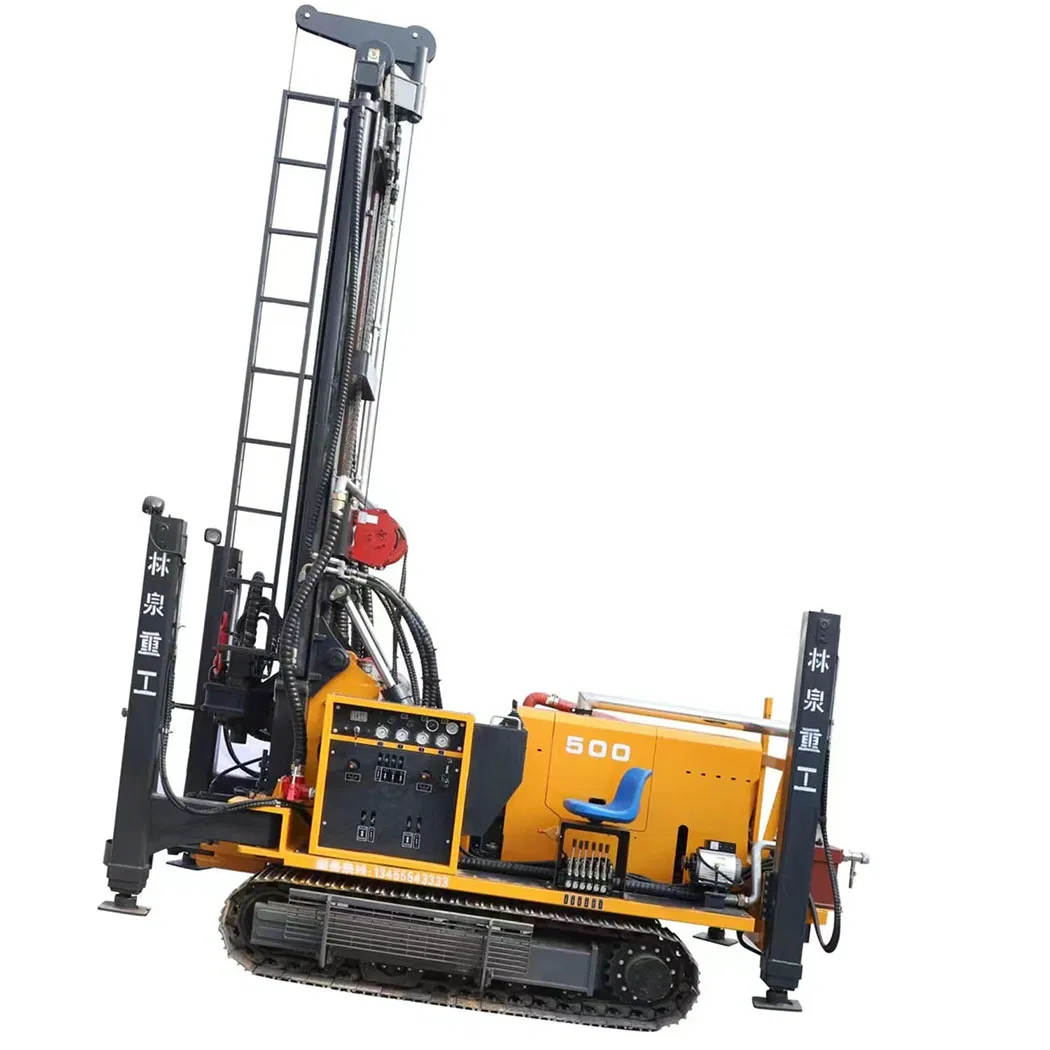

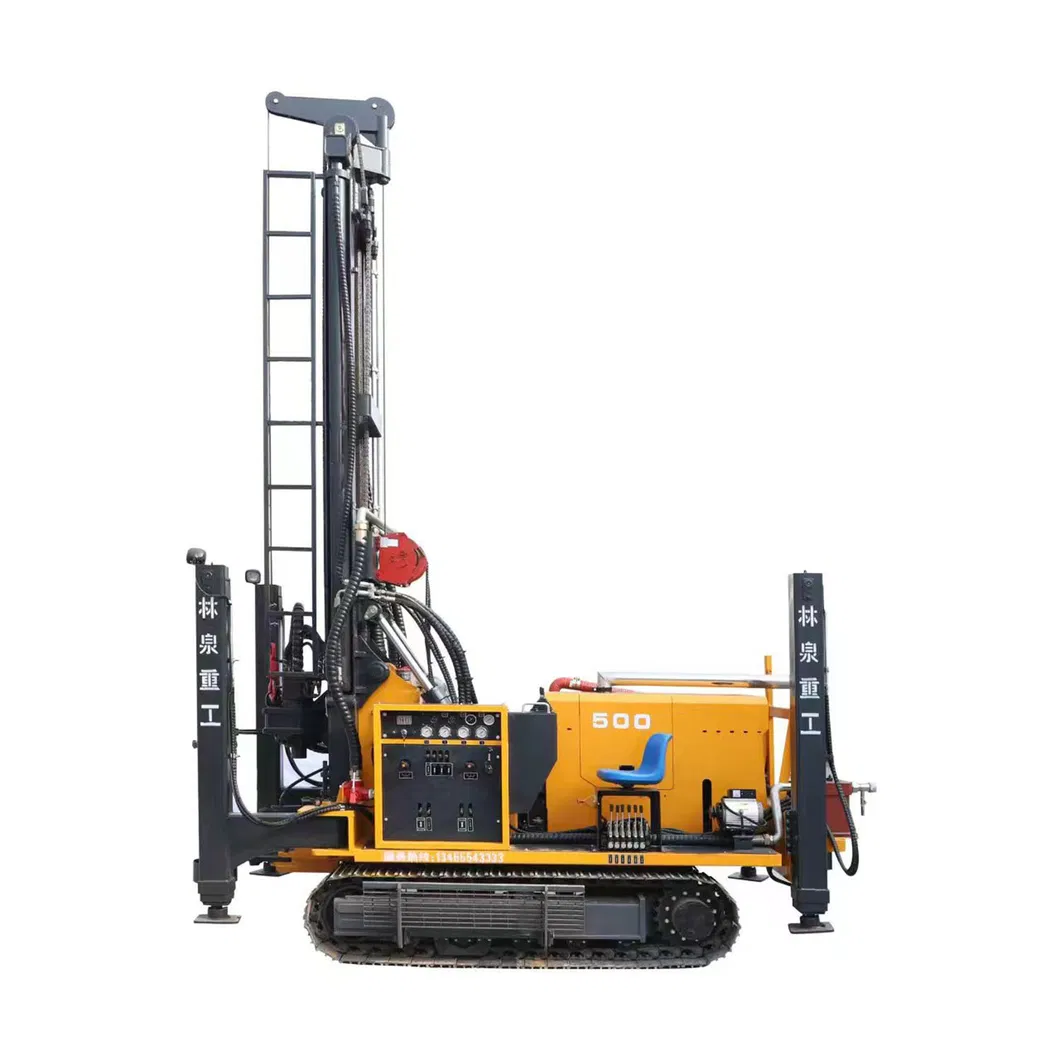

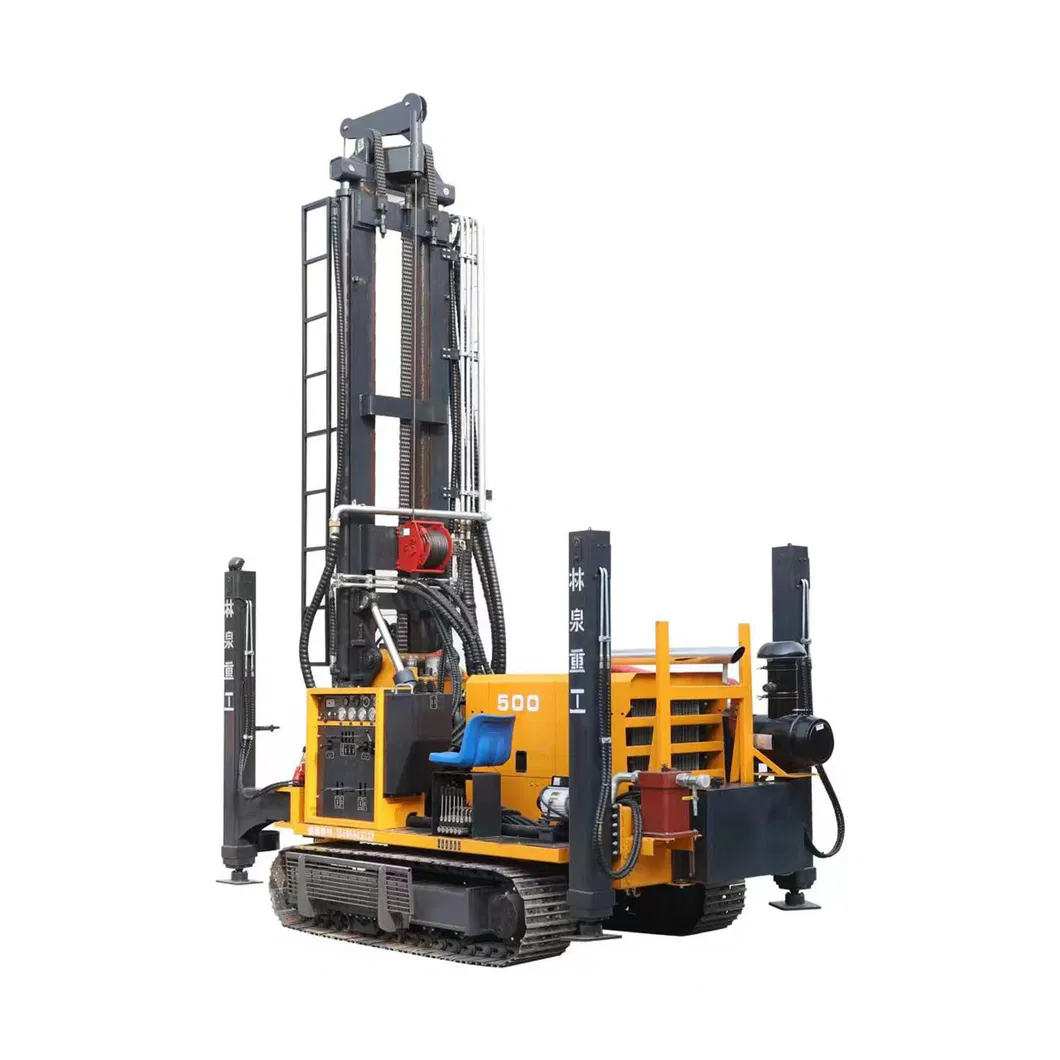

| Dual-Purpose Water and Steam Drilling Rig Details | |
|---|---|
| Model | 500 |
| Drilling depth (m) | 500-600 |
| Recommended drilling diameter (mm) | 138-325 |
| Power head maximum travel (m) | 6.6 |
| Engine Power (Kw) | 118 (six cylinders) |
| Air consumption (m³/min) | 18-42 |
| Power head rotation torque (N.m) | 13000-15000 |
| Power head rotation speed (rpm) | 30-150 |
| Maximum lifting force (T) | 40 |
| Machine weight (T) | 10 |
| Moving mode | Hydraulic crawler |
High Efficiency Drilling Performance
The advantages of drilling rigs mainly include large drilling diameter, deep drilling depth, fast footage, flexibility and efficiency.
Deep drilling depth: The drilling rig can work in various geological structures, solving the difficulties of air DTH hammer drilling in soil layers and construction challenges in hard rock, gravel, and pebble layers.
Fast drilling: This equipment completes drilling operations in a short time, significantly improving work efficiency on-site.
Maneuverability: Reasonable overall layout uses a tractor-mounted or full ground chassis for excellent mobility in difficult terrain.

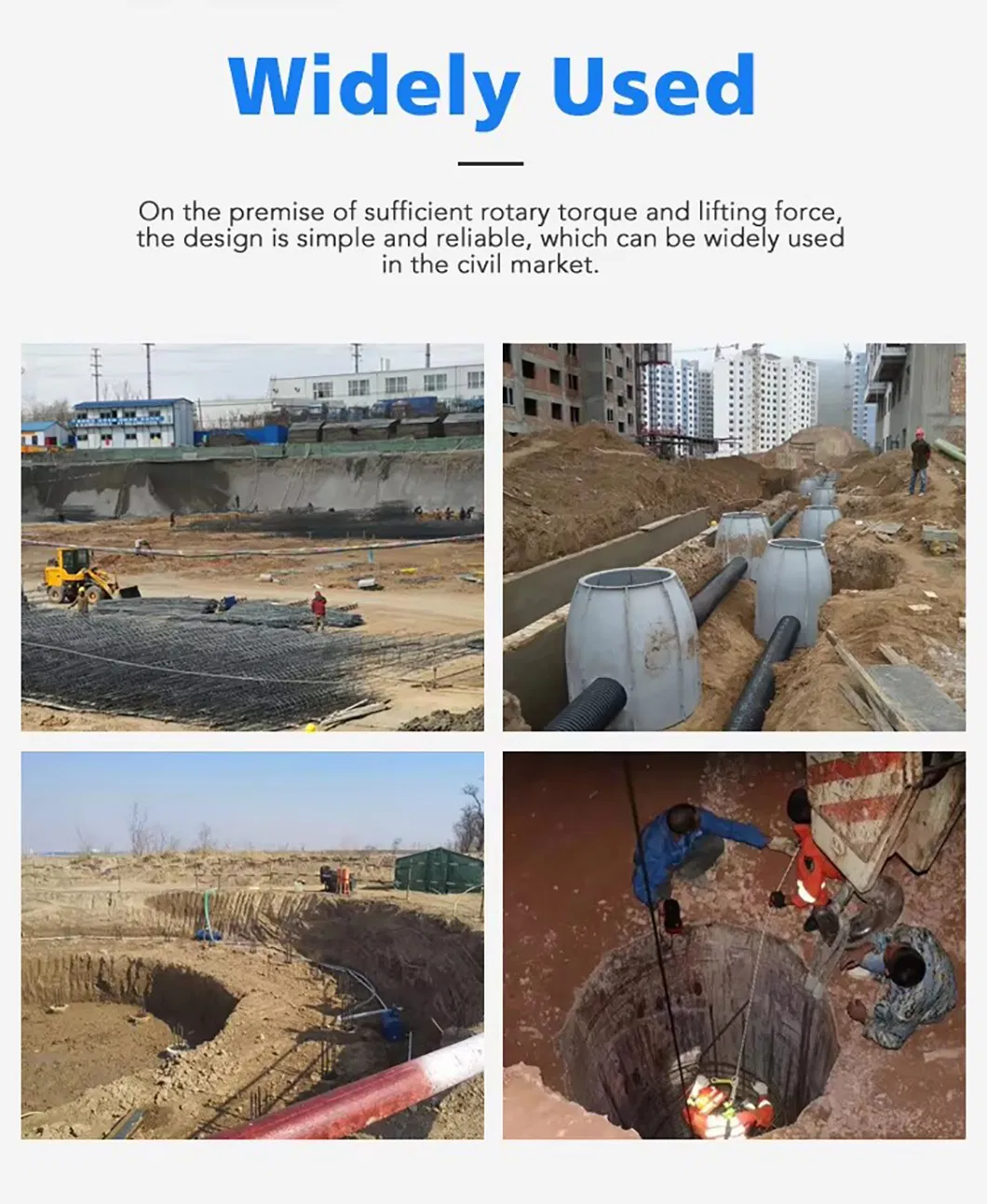

Widely used in many fields such as resource exploration of hydrology wells, coalbed methane, shallow layer of shale gas, terrestrial heat, and coal-mine gas exploitation salvage work.
