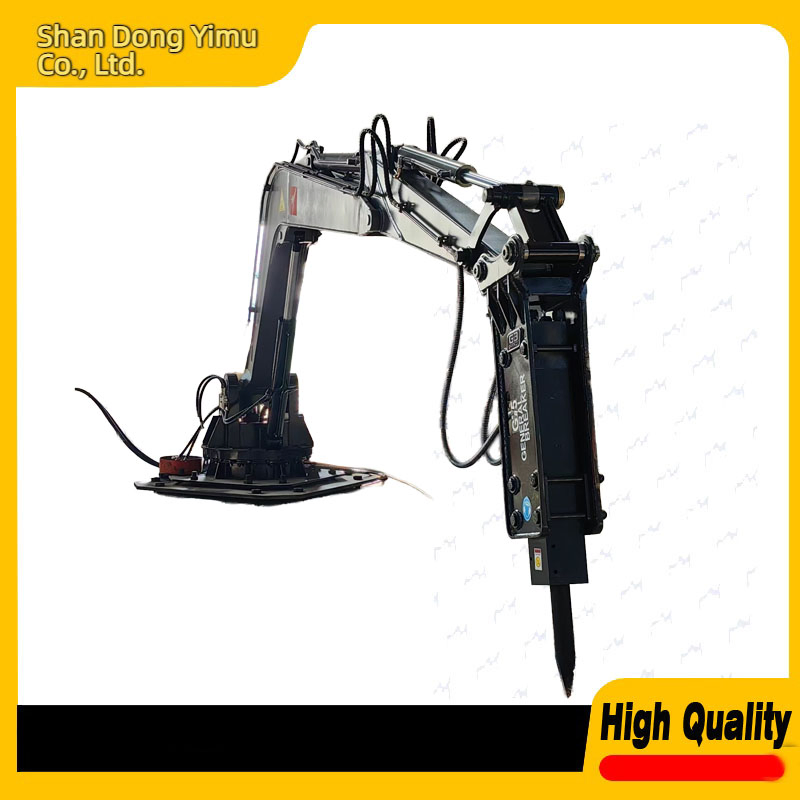

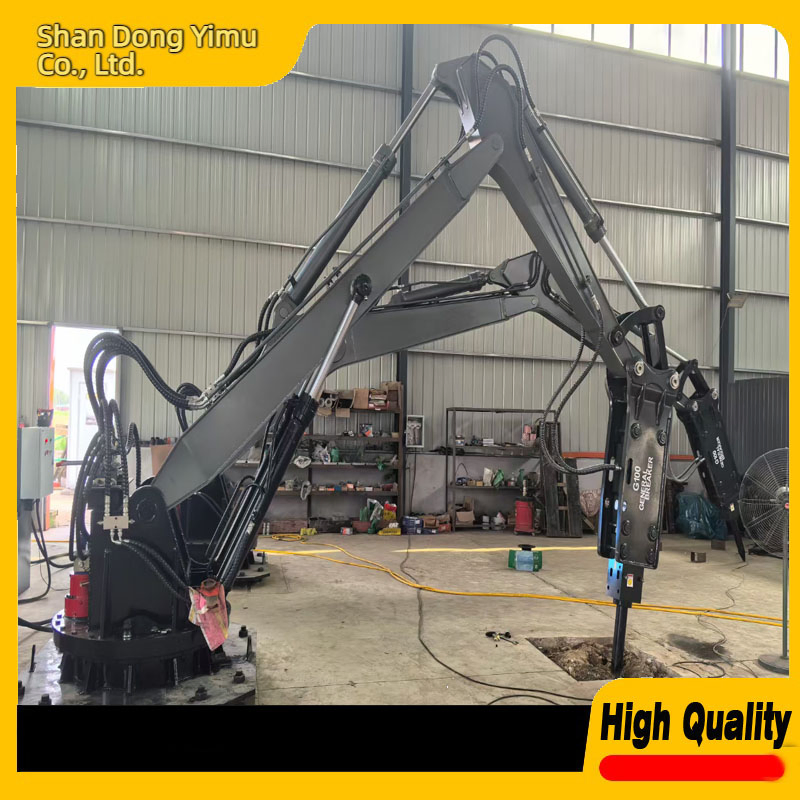

Mining Pedestal Type Hydraulic Breaker Boom Arm System

1 / 5

Mining Pedestal Type Hydraulic Breaker Boom Arm System

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

⚙️ Basic Information

Model NO.

YMSW-110

Motor Power

75kw

Application

Mining, Quarry, Construction Waste

Inlet Size

600×900mm

Working Radius

6 M

Max Breaking Height

8 M

System Pressure

16 MPa

Net Weight

5,000 Kg

Control Method

Remote Control / Wired Control

Impact Energy

1200 J

📘 Product Description

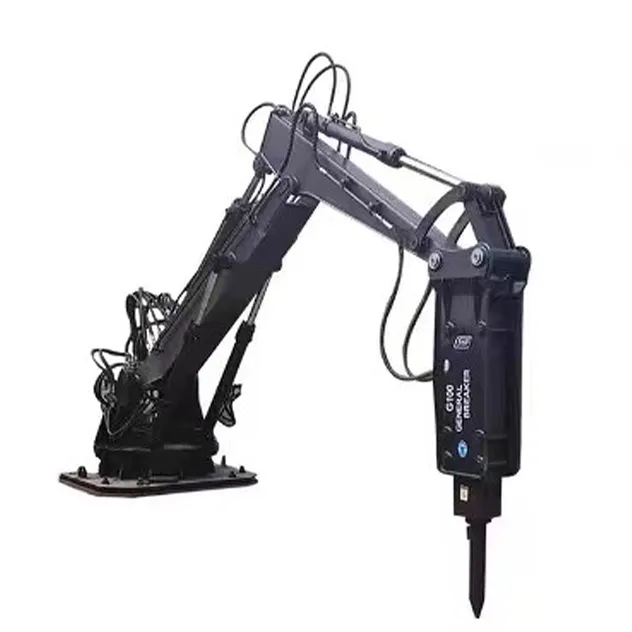

Pedestal Breaker Boom System – Heavy-Duty Mining Rock Breaking Solution

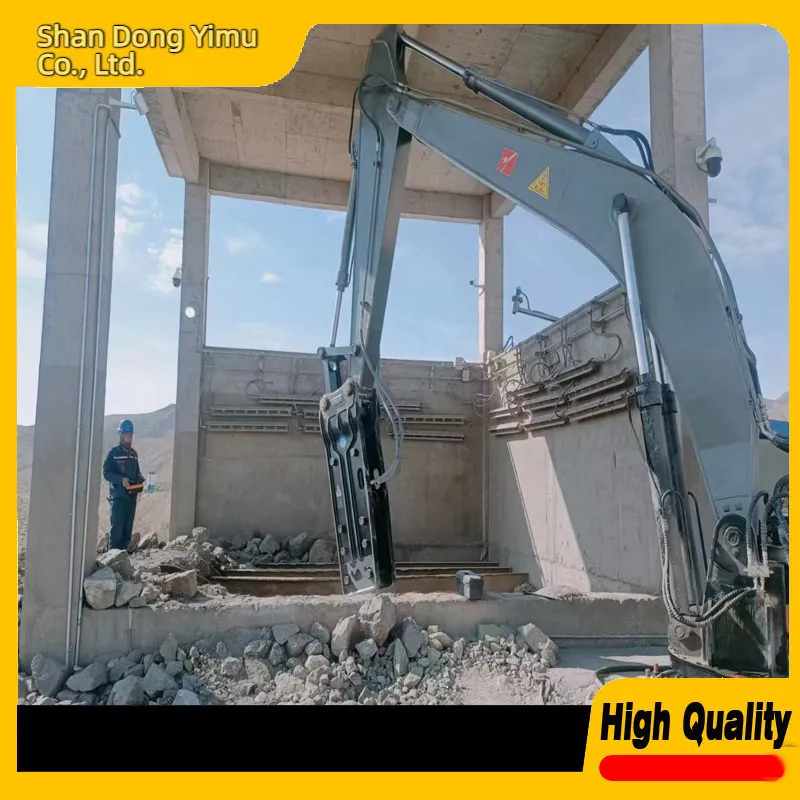

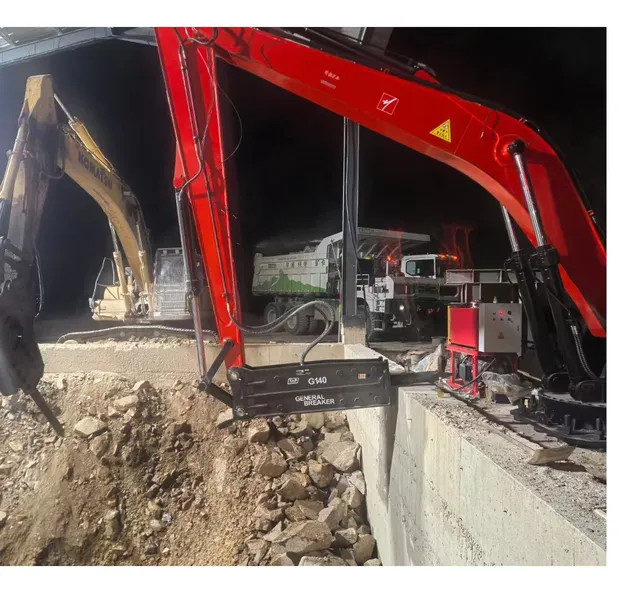

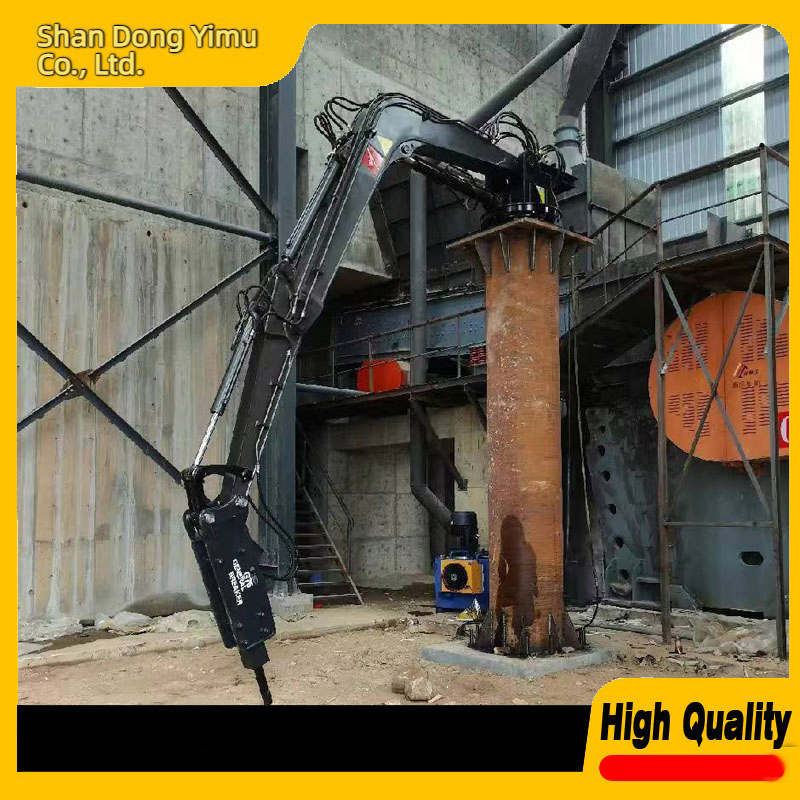

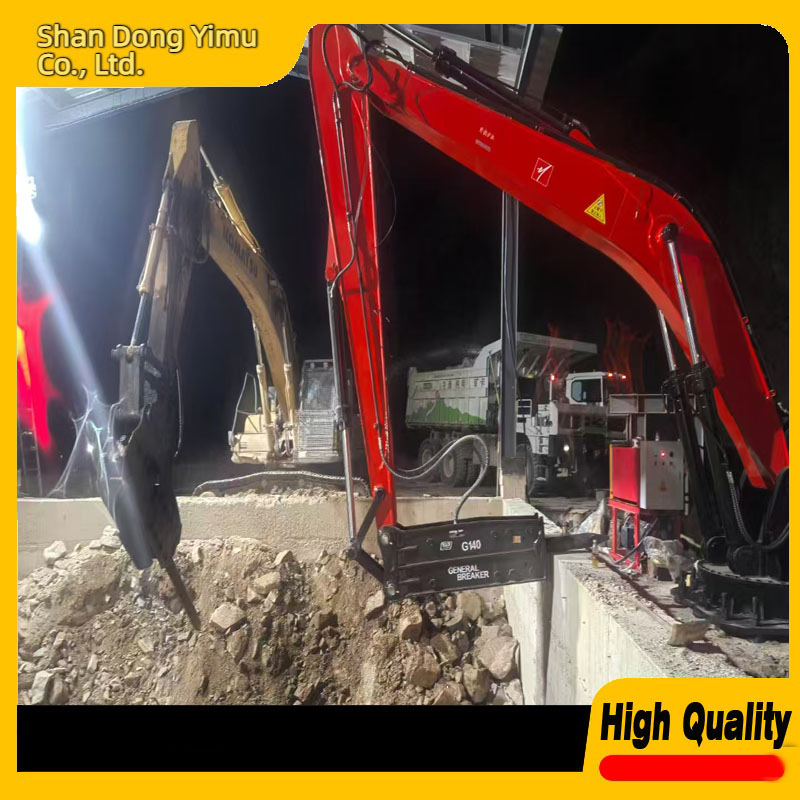

Our pedestal breaker boom system is a robust, pedestal-mounted hydraulic rock breaker designed for the most demanding mining and quarrying applications. Engineered for high efficiency and reliability, it delivers exceptional breaking force to reduce oversized rocks, clear blockages, and optimize material flow in primary crushing operations.

🚀 Key Features & Benefits

Superior Breaking Force: Equipped with a high-performance hydraulic breaker, it delivers up to 1200 J of impact energy at a frequency of 300-500 blows per minute.
Extended Reach & Flexibility: The heavy-duty boom arm offers a working radius of up to 6 meters and a maximum breaking height of 8 meters, with a 360° continuous slewing capability.
Durable Construction: Fabricated from high-strength Q345B alloy steel. Critical components like pins and bushings are made from hardened 40Cr steel.
Advanced Hydraulic System: Operates at 16 MPa with a flow rate of 120-180 L/min, featuring Rexroth/Atos valve blocks and Parker seals.
Safe & Easy Operation: Controlled via remote or wired control, with integrated overload protection and dual emergency stop functions.

📊 Technical Specifications

Item/Model	Unit	ZX750	ZX850	ZX950	ZX1000	ZX1350
Weight	Kg	2880	3550	3750	3900	4000
Motor Power	KW	18.5	30	30	35	35
Max Coverage	M	4.7	5.8	7	7.5	8
Max Horizontal	M	3.2	4.3	5.6	5.9	6.5
Max Vertical	M	3.3	4.6	5	5.3	6
Swing	°	170	170	170	170	170
Breaker Weight	KG	200-500	400-1000	400-1000	500-1200	500-1200

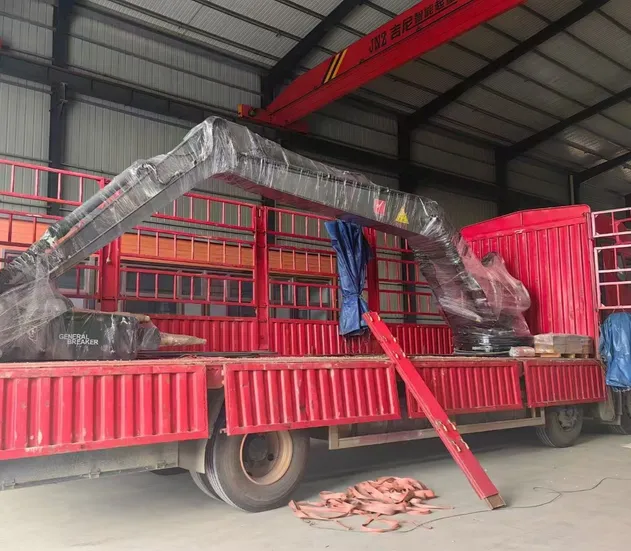

📦 Packing & Delivery

❓ Frequently Asked Questions

Q1: What are the primary applications for this pedestal breaker boom system? A: It is primarily used in mining, quarrying, and construction waste processing to reduce oversized rocks and clear blockages in primary crushing operations.

Q2: What is the maximum breaking force and frequency of the system? A: The system delivers a single impact energy of up to 1200 J with an impact frequency ranging from 300 to 500 blows per minute.

Q3: How is the pedestal breaker boom controlled? A: It supports both Remote Control and Wired Control methods for safe and flexible operation.

Q4: What materials are used in the construction of the boom arm? A: The boom is made from high-strength Q345B alloy steel, and critical components like pins are made from hardened 40Cr steel for maximum durability.

Q5: Can the system be customized for specific project needs? A: Yes, we offer tailored configurations including different boom lengths, breaker models, and optional features like dust removal systems and soundproof covers.

Q6: What certifications does the product hold? A: The pedestal breaker boom system is certified by CE and ISO9001, ensuring it meets international quality and safety standards.
