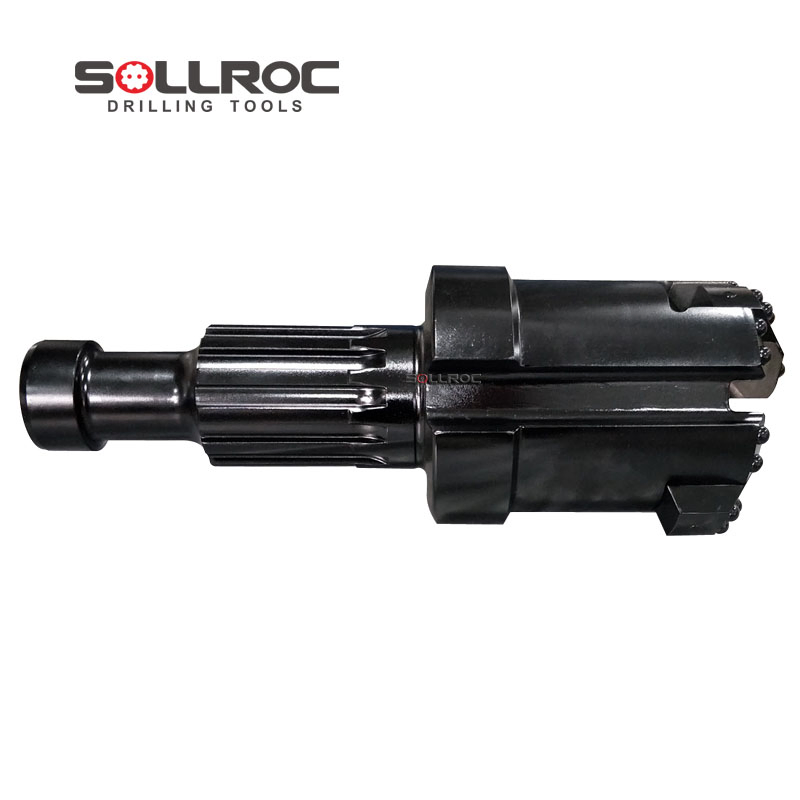

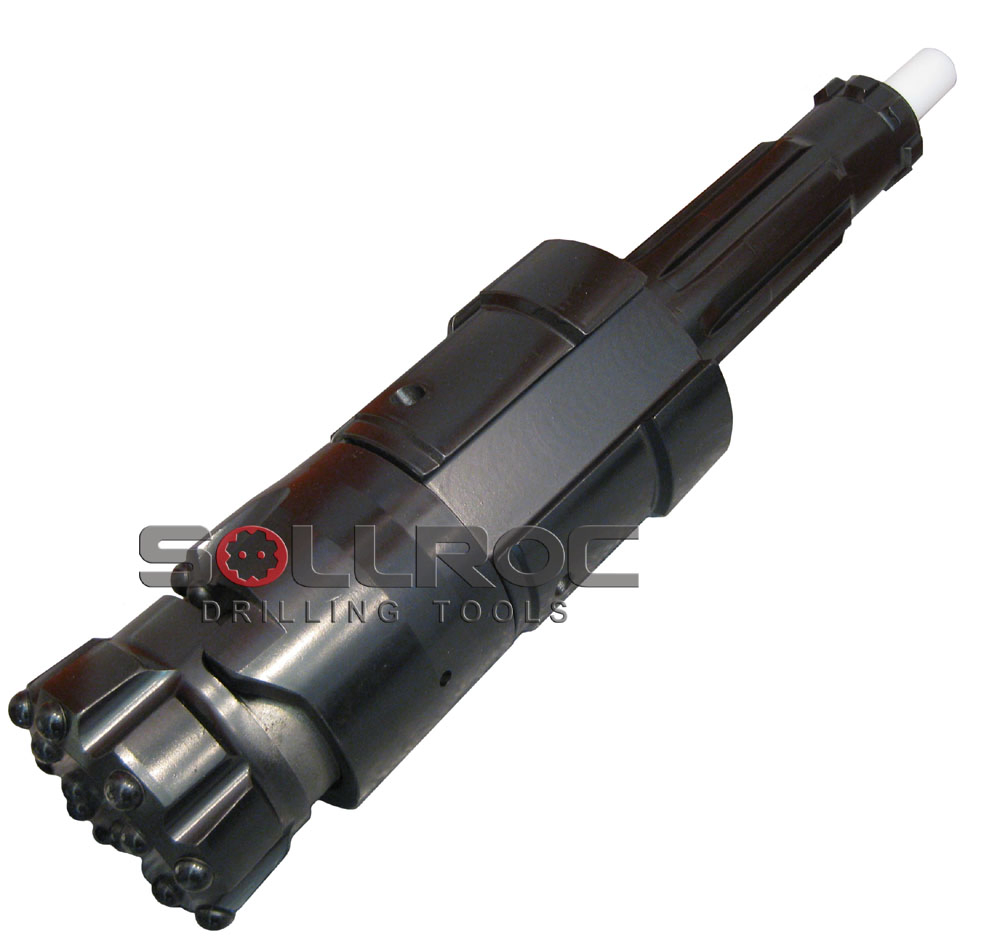

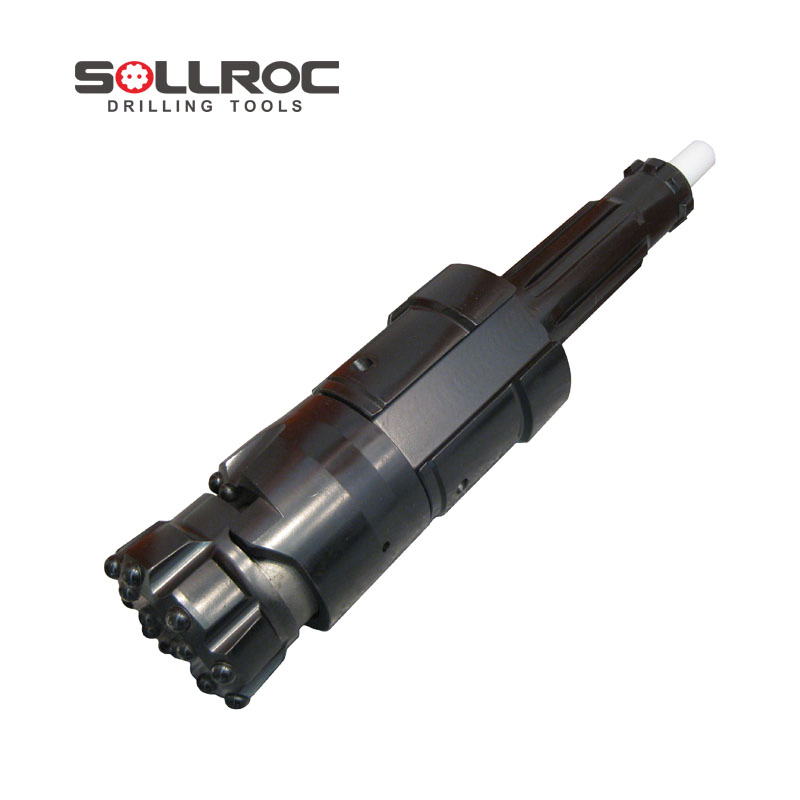

Sollroc Sample Structure Eccentric Casing System for Rock Drilling
Sollroc Sample Structure Eccentric Casing System for Rock Drilling
Sollroc Sample Structure Eccentric Casing System for Rock Drilling
1 / 3
Sollroc Sample Structure Eccentric Casing System for Rock Drilling
Sollroc Sample Structure Eccentric Casing System for Rock Drilling
Sollroc Sample Structure Eccentric Casing System for Rock Drilling

Sollroc Sample Structure Eccentric Casing System for Rock Drilling

Customization: Available
Transport Package: Cartons + Ply-Wooden Cases for Exporting
Specification: ODEX System
Send Inquiry

Product Description

Basic Information
Model NO.
Eccentric Casing System
HS Code
84314320
Production Capacity
5000 pieces/Month
Product Description

Product Specification: It can be used in all ground conditions and drilling applications as: Foundation construction, Piling construction, Water Well and Geothermal, Tunneling and Horizontal drilling.

Key Features:
✓ Hardening treatment of the part's surface with longer operating life and excellent anti-wear properties.
✓ Structural optimization to strengthen strength and ensure easy operation.
✓ Superior, stable, and reliable performance with high drilling penetration.
Technical Parameters
Product Code Outer Dia.(A)mm Inner Dia.(B)mm Wall Thickness Reamed Dia.(C)mm Shoe ID(D)mm Bit Pass ID Rec. Hammer Hammer Type(E) Drill Pipe mm
HEC108-HD35-841089661188684HD35DHD3.5 QL3076
HEC114-HD35-9011410261239290HD35DHD3.5 QL3076
HEC127-HD45-9712710991389997HD45DHD340A QL4076
HEC140-HD45-1151401286152117115HD45DHD340A QL4076
HEC168-HD55-1401681566185142140HD55DHD350R QL5076/89
HEC178-HD55-14617815810195148146HD55DHD350R QL5076/89
HEC183-HD55-15018316310200152150HD55DHD350R QL5076/89
HEC194-HD65-1651941807209167165HD65DHD360 QL6089/114
HEC219-HD65-1902192057237192190HD65DHD360 QL6089/114
HEC245-HD85-20824522510264210208HD85DHD380 QL80114
HEC273-HD85-2402732597308242240HD85DHD380 QL80114
HEC323-HN100-28032330310358282275HN100NUMA100 SD10114
Product Photos

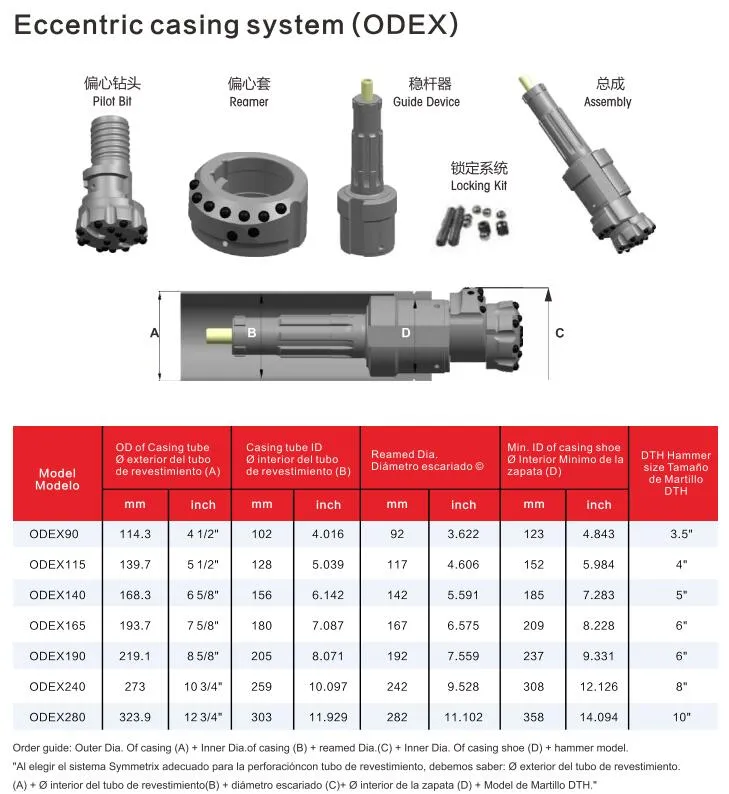

Eccentric Casing System Structure
Operating Principle
1. When drilling starts, the reamer swings out and reams the pilot-hole wide enough for the casing tube to slide down.
2. At the required depth, rotation is reversed, the reamer swings in, and the bit assembly is pulled up through the casing.
3. Casing tubes left in the hole are sealed at the bottom using cement grout or other agents.
4. Drilling continues to the desired depth using conventional tools.
Advantages & Quality Control

Product Performance: Consistent appearance due to stable heating processes and high-durability intrinsic properties.

Initial Stage
Full inspection at the start of production.
Processing
Regular sampling inspection.
Delivery
Quality checks at every process handover.
Final Test
Complete final inspection and performance testing.
Packaging & Transportation

Quality Warranty: Our hammers are made of high-quality steel and inspected strictly. We respond quickly to any feedback or suggestions.

Package: Ply-wooden cases and pallets are used for export to protect products. Custom packaging is available upon request.

Transportation: Available via Air, Express, or Sea based on your requirements.

Frequently Asked Questions
1. What are the main applications for this system?
It is designed for foundation and piling construction, water well drilling, geothermal projects, and horizontal tunneling.
2. How long is the typical delivery time?
Generally, it takes 15-25 days. If the items are in stock, delivery can be as fast as 5-10 days.
3. What is your minimum order quantity (MOQ)?
Our MOQ is 1 piece or 1 complete set, and pricing may vary depending on the total order quantity.
4. Can you provide custom OEM or ODM services?
Yes, both OEM and ODM services are fully accepted to meet your specific technical requirements.
5. What payment terms are supported?
We accept multiple payment methods including L/C, D/A, D/P, T/T, Western Union, and MoneyGram.
6. Which ports do you typically ship from?
Most containers are shipped from Shanghai port, though Guangzhou and Shenzhen ports are also available options.
